Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

35 part groups · 8 illustrations

Illustrations

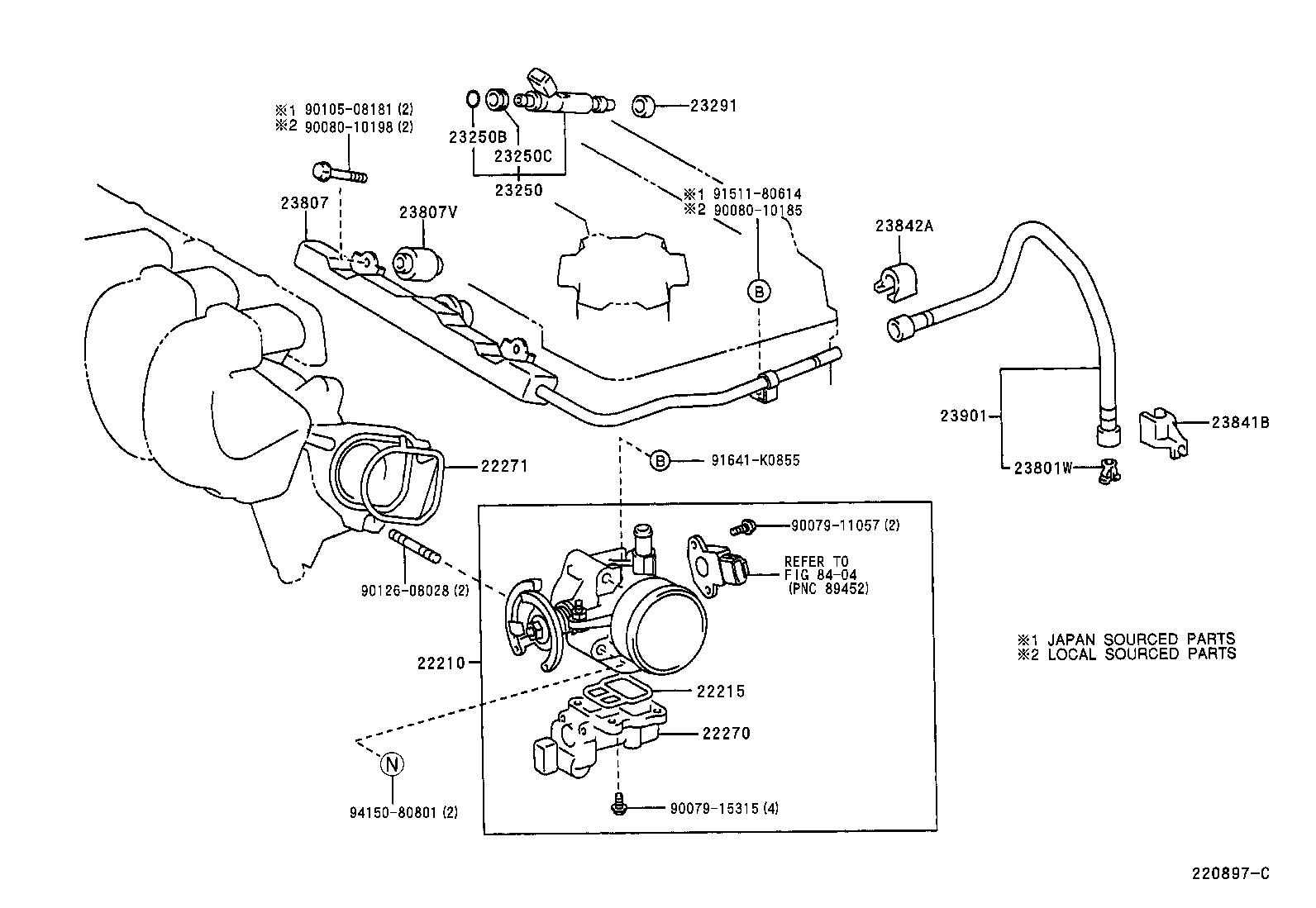

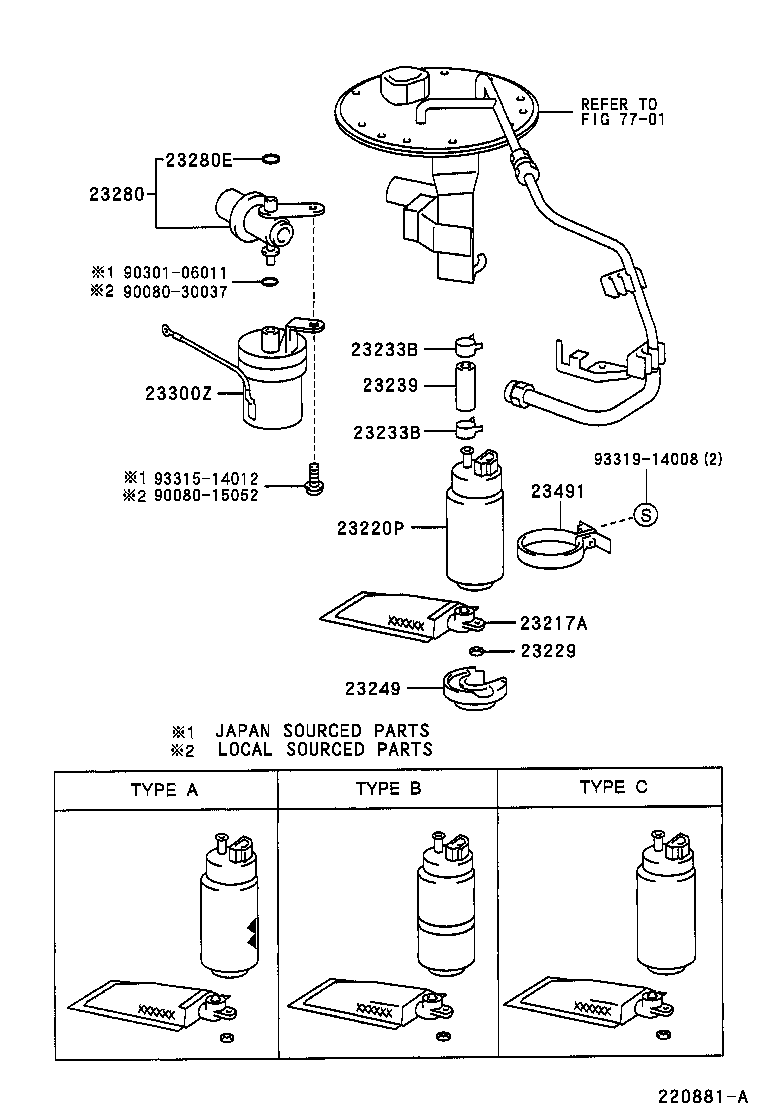

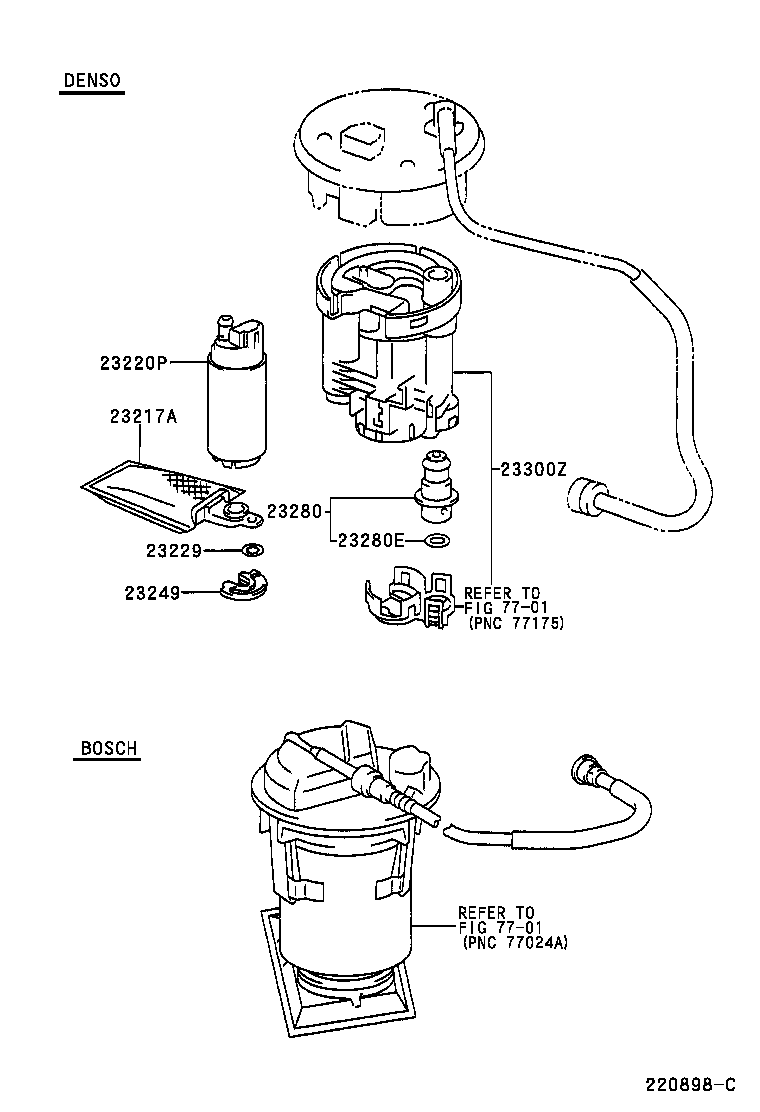

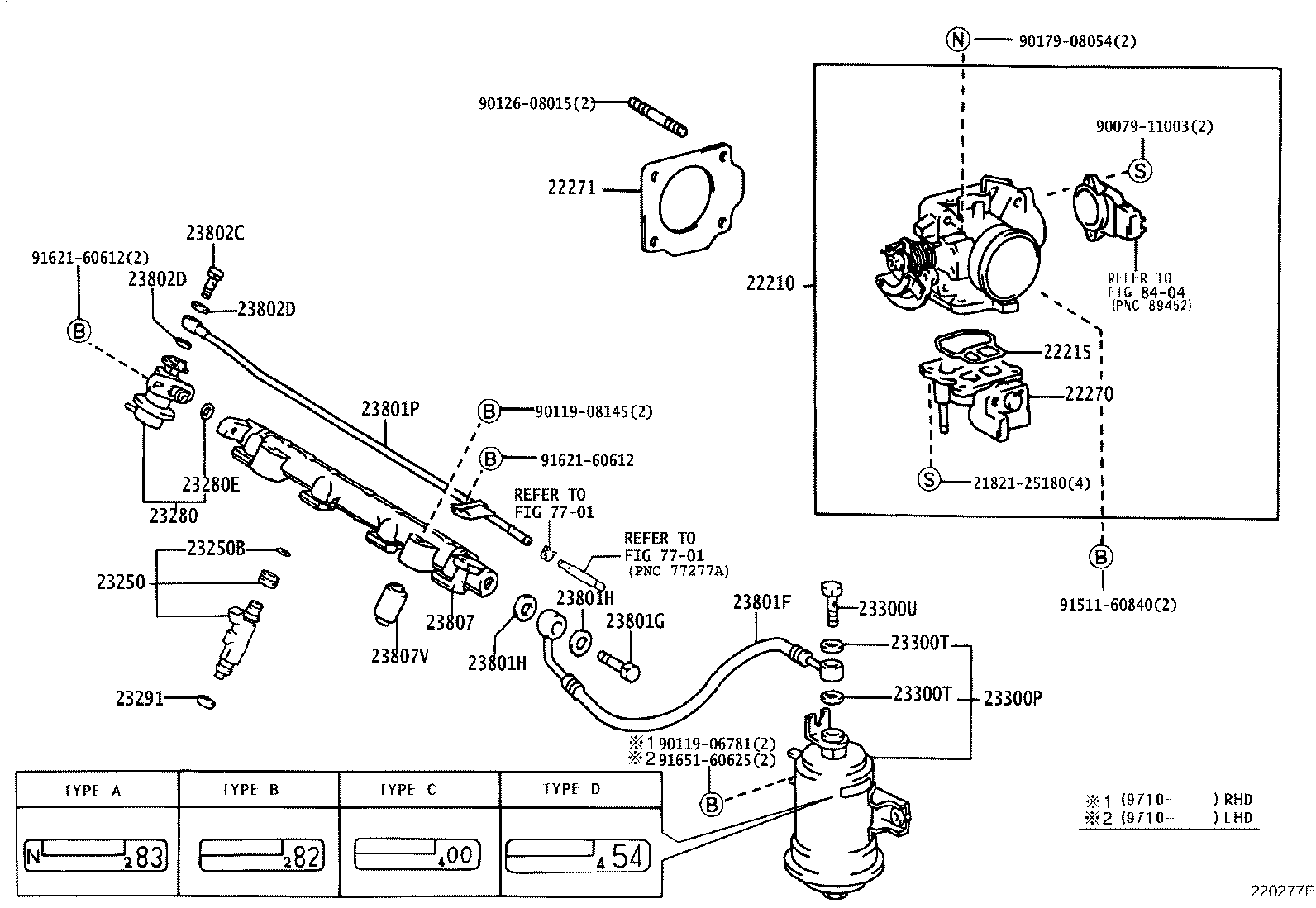

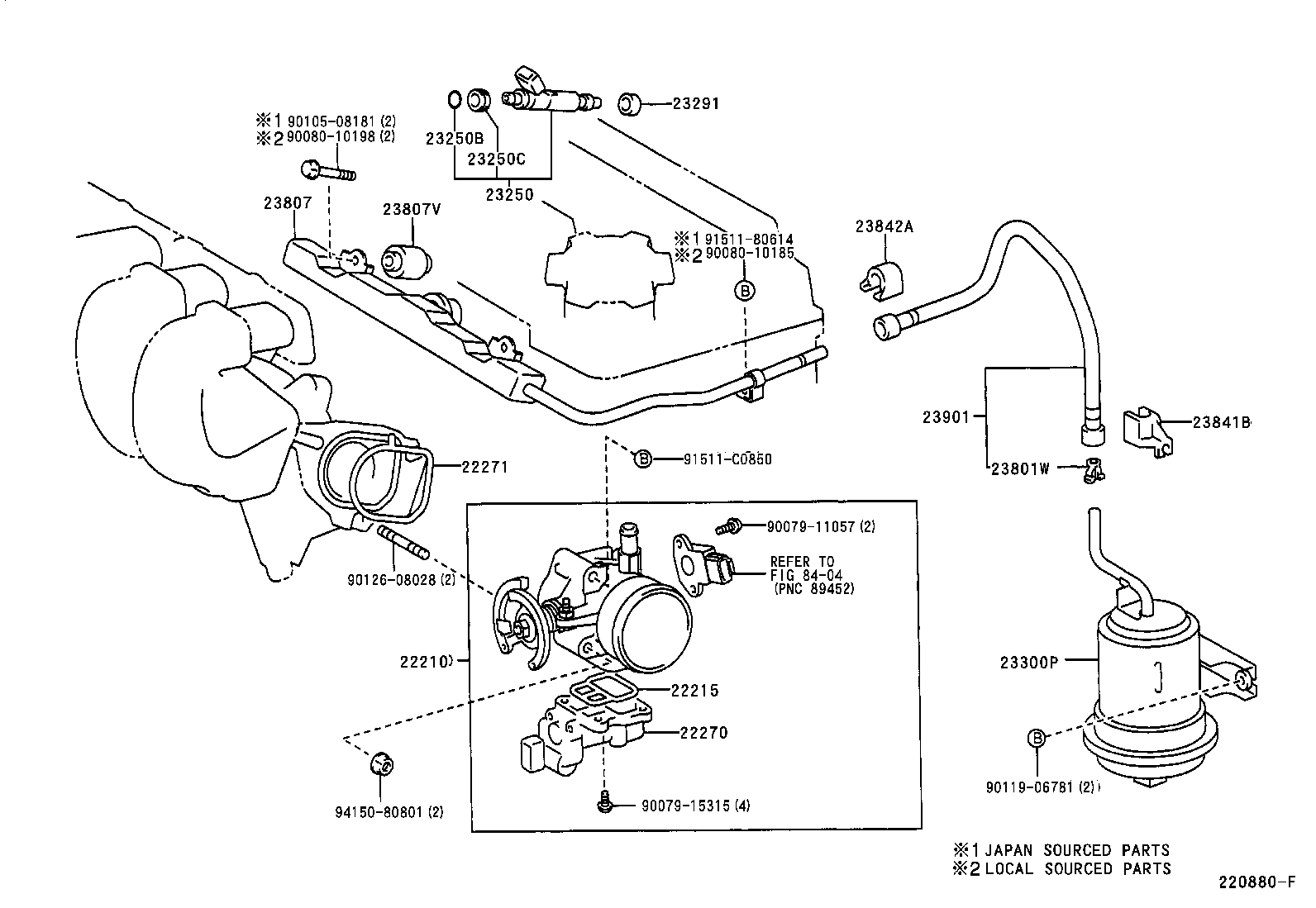

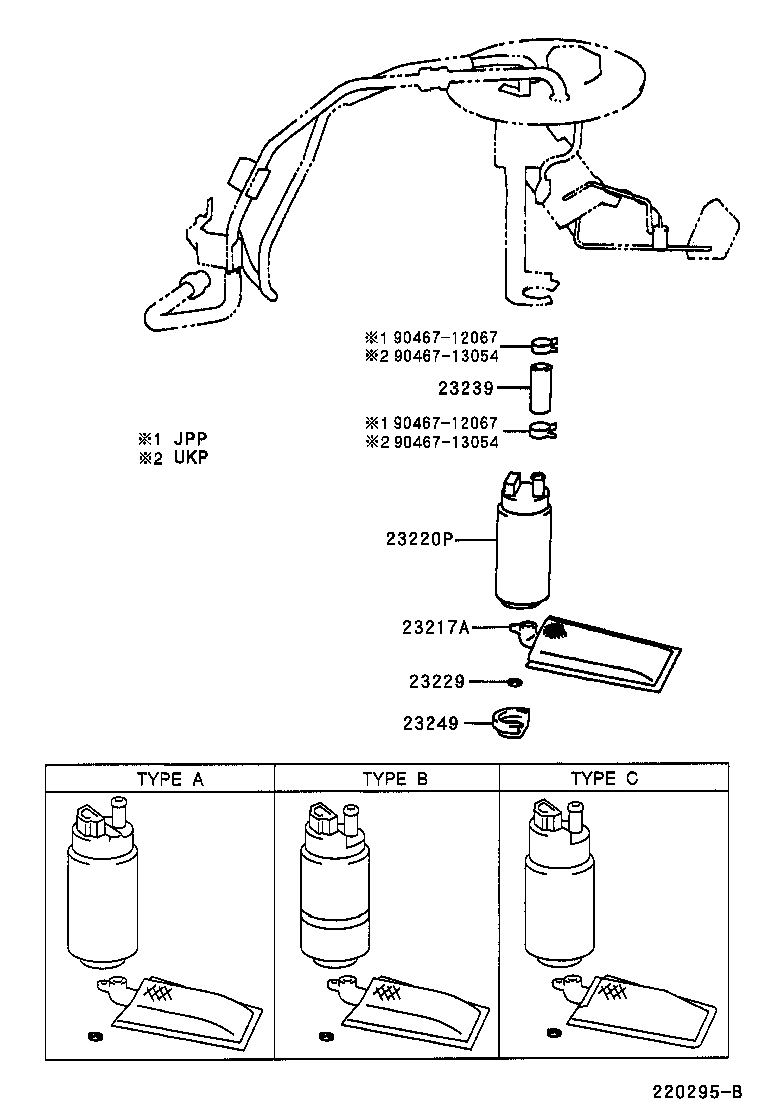

Figure 220288B 220288B 1997-04 → 1999-11 Figure 220295B 220295B 1997-04 → 1999-11 Figure 220277E 220277E 1997-04 → — Figure 220701A 220701A 1997-04 → — Figure 220880F 220880F 1999-10 → — Figure 220897C 220897C 1999-11 → — Figure 220881A 220881A 1999-10 → — Figure 220898C 220898C 1999-11 → —

Part groups

PNCDescription
22210 Body Assy, Throttle
22215 Gasket, Throttle Body Cover
22270 Valve Assy, Idle Speed Control(FOR THLOTTLE BODY)
22271 Gasket, Throttle Body
23217A Filter, Fuel Pump
23220P Pump Assy, Fuel
23229 Clip(FOR FUEL PUMP FILTER)
23233B Clip(FOR FUEL PUMP HOSE)
23239 Hose
23249 Rubber, Cushion(FOR FUEL PUMP)
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23250C Grommet(FOR FUEL INJECTOR)
23280 Regulator Assy, Fuel Pressure
23280E Ring, O(FOR FUEL PRESSURE REGULATOR)
23291 Insulator, Injector Vibration
23300P Filter, Fuel(FOR EFI)
23300T Gasket(FOR FUEL FILTER)
23300U Bolt, Union(FOR FUEL FILTER)
23300Z Filter, Fuel(FOR FUEL TANK)
23491 Clamp, Fuel Filter Earth
23801F Hose, Fuel, NO.1
23801G Bolt, Union(FOR FUEL PIPE)
23801H Gasket(FOR FUEL PIPE)
23801P Pipe Sub-assy, Fuel, NO.1
23801W Clip, Fuel Tube Connector
23802C Bolt, Union(FOR FUEL PIPE NO.2)
23802D Gasket(FOR FUEL PIPE NO.2)
23807 Pipe Sub-assy, Fuel Delivery
23807B Hose, Fuel Delivery Pipe
23807J Gasket, Pipe Fuel Delivary Inlet
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
