Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04

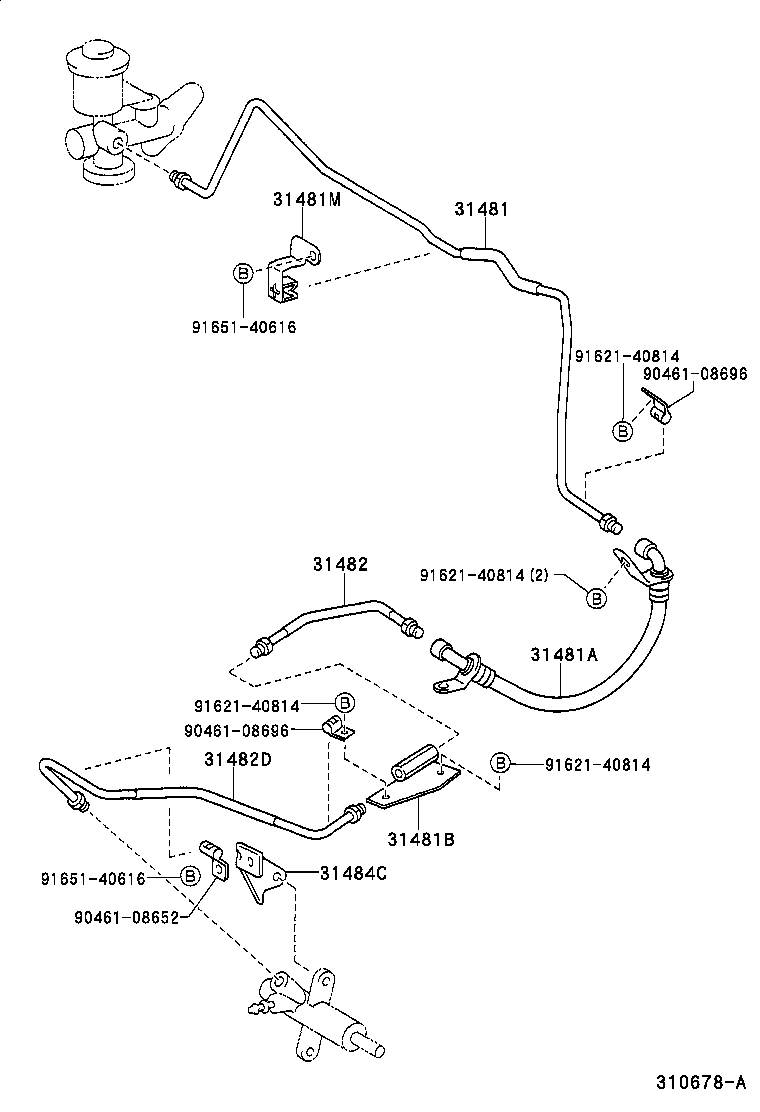

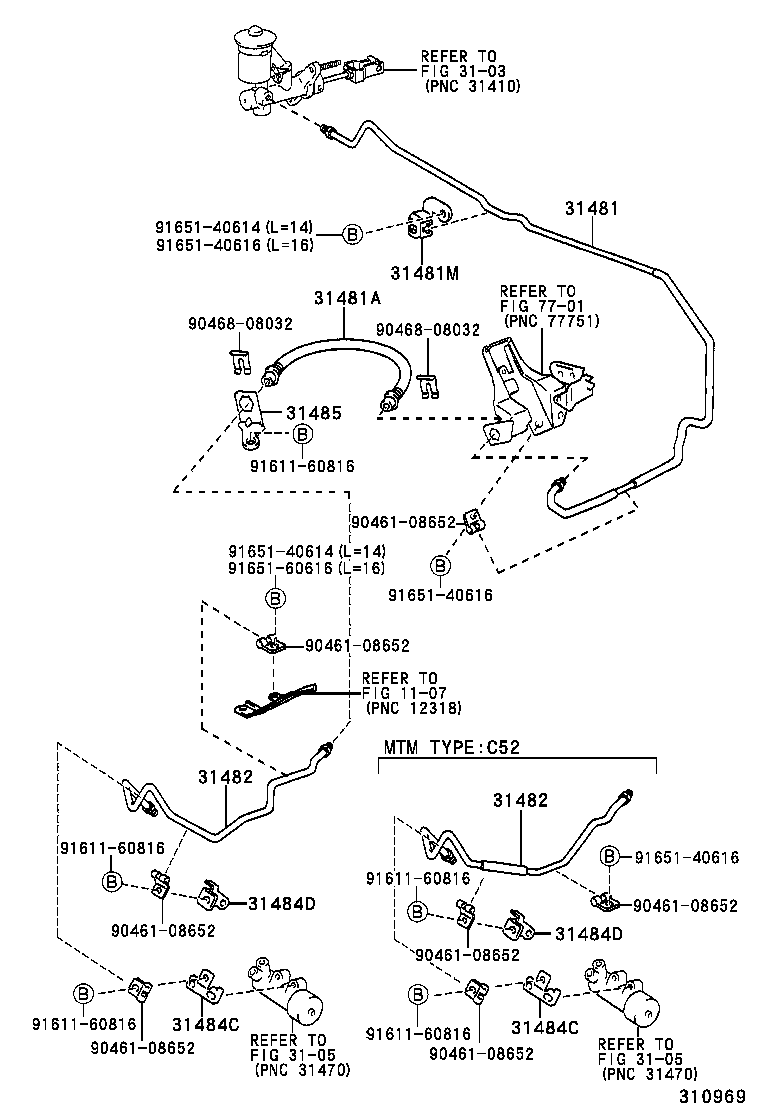

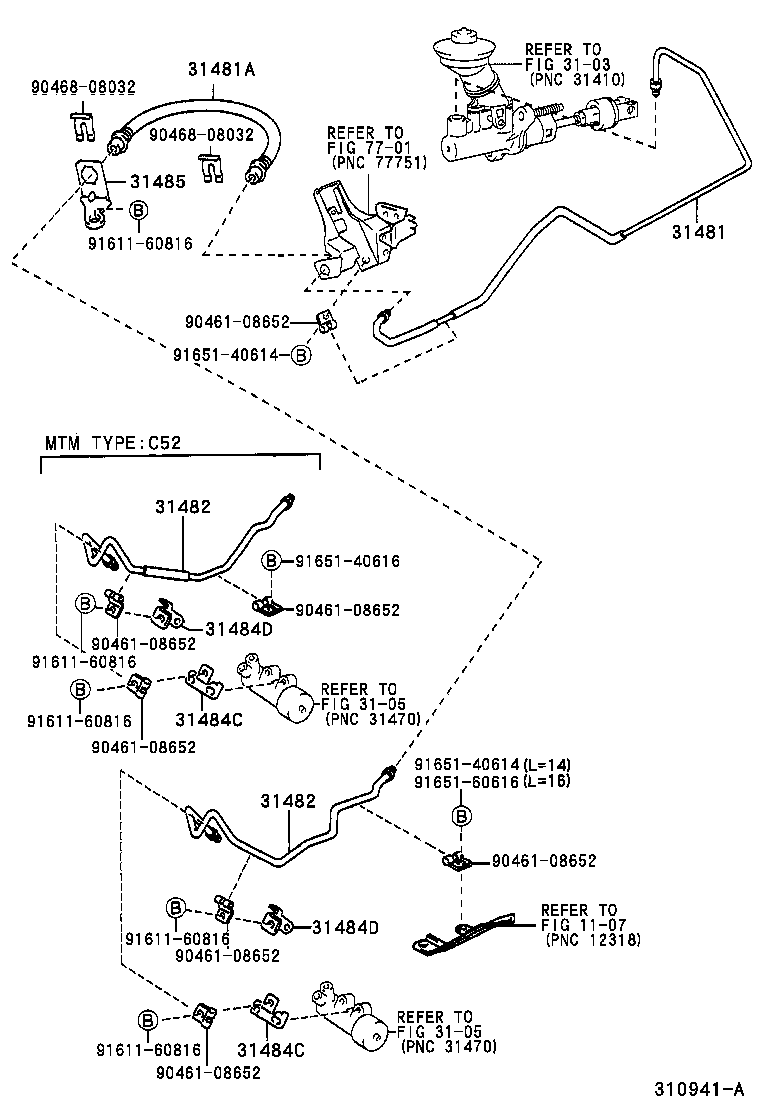

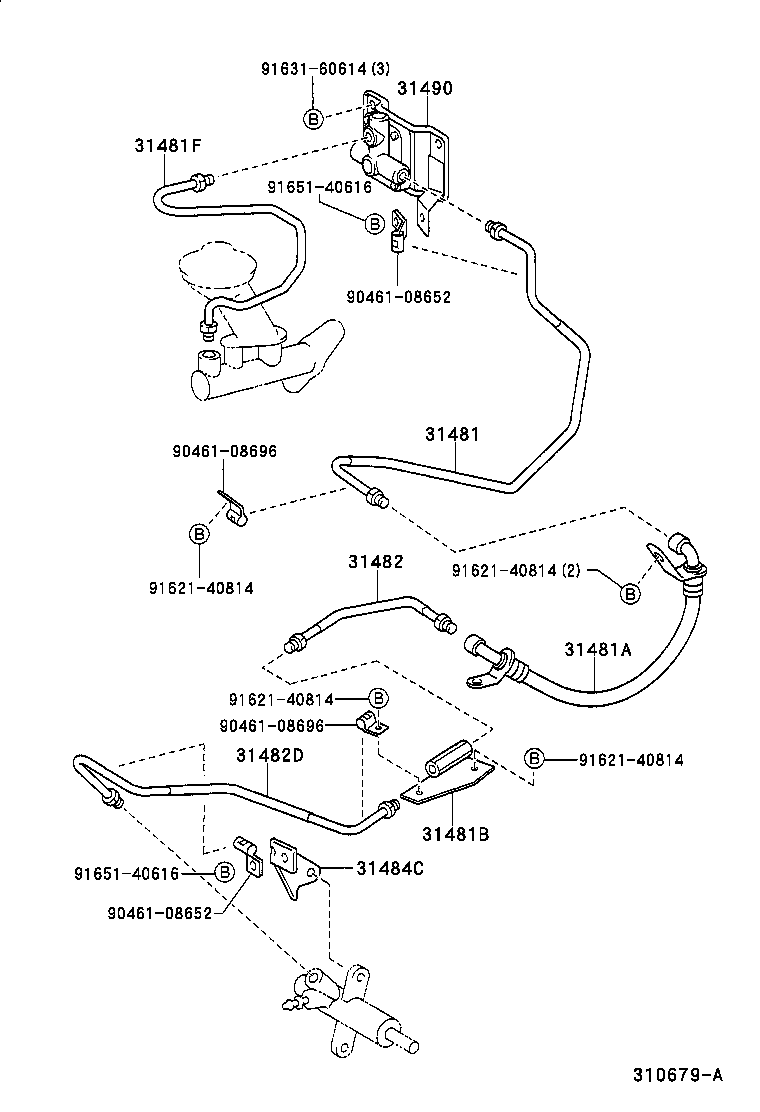

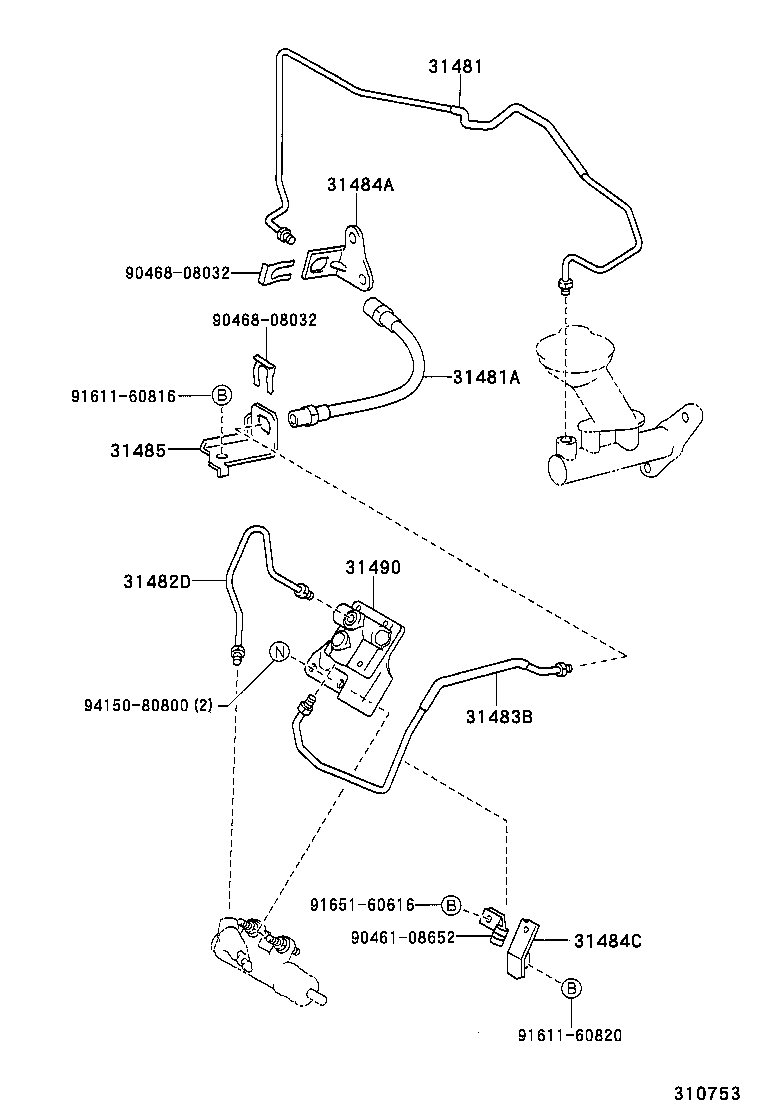

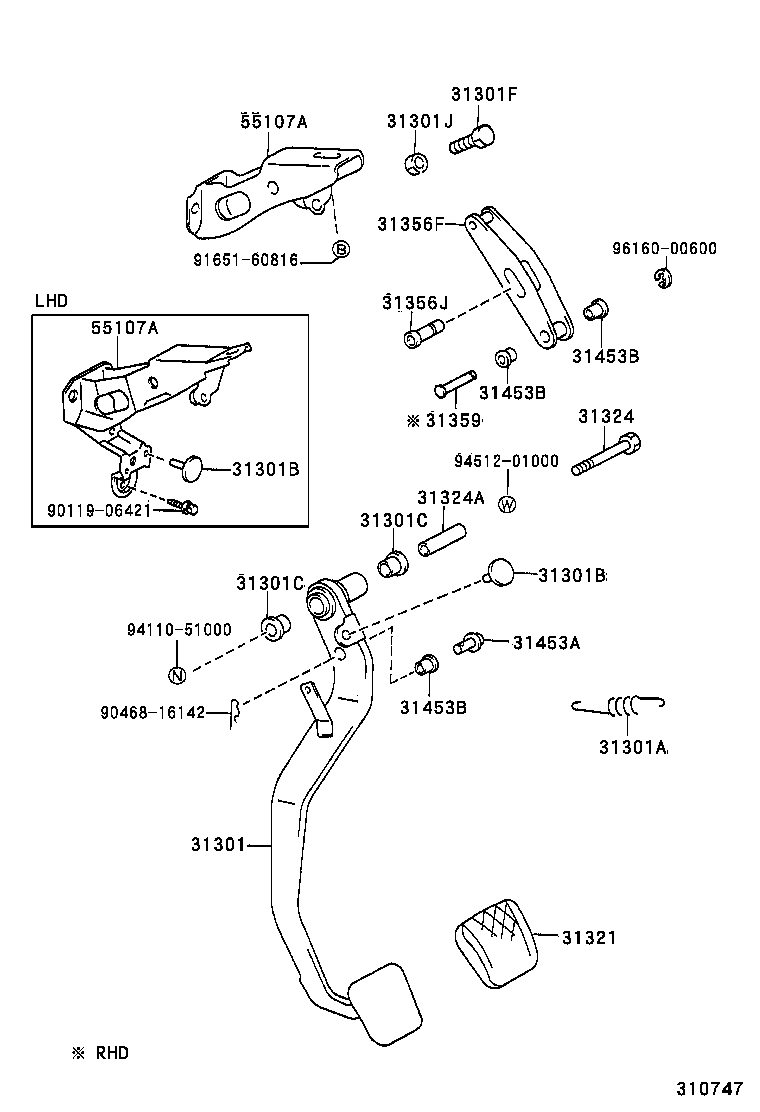

Clutch Pedal & Flexible Hose
28 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31301J | Nut(FOR CLUTCH PEDAL STOPPER) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31356F | Plate, Clutch Pedal Over Center, NO.1 |
| 31356J | Collar(FOR CLUTCH PEDAL OVER CENTER PLATE NO.1) |
| 31359 | Pin, Clutch Pedal Over Center Spring |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481A | Hose, Clutch, NO.1 |
| 31481B | Way(FOR CLUTCH TUBE) |
| 31481F | Tube, Clutch Master Cylinder TO Clutch Accumulator |
| 31481M | Clamp(FOR CLUTCH MASTER CYLINDER TUBE) |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31482D | Tube, Clutch Release Cylinder TO Accumulator |
| 31483B | Tube, Accumulator TO Flexible Hose |
| 31484A | Bracket, Flexible Hose, NO.1(FOR CLUTCH) |
| 31484C | Bracket, Clutch Tube, NO.1 |
| 31484D | Bracket, Clutch Tube, NO.2 |
| 31485 | Bracket, Flexible Hose, NO.2(FOR CLUTCH) |
| 31490 | Accumulator Assy, Clutch |
| 55107A | Support Sub-assy, Clutch Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
