Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

21 part groups · 19 illustrations

Illustrations

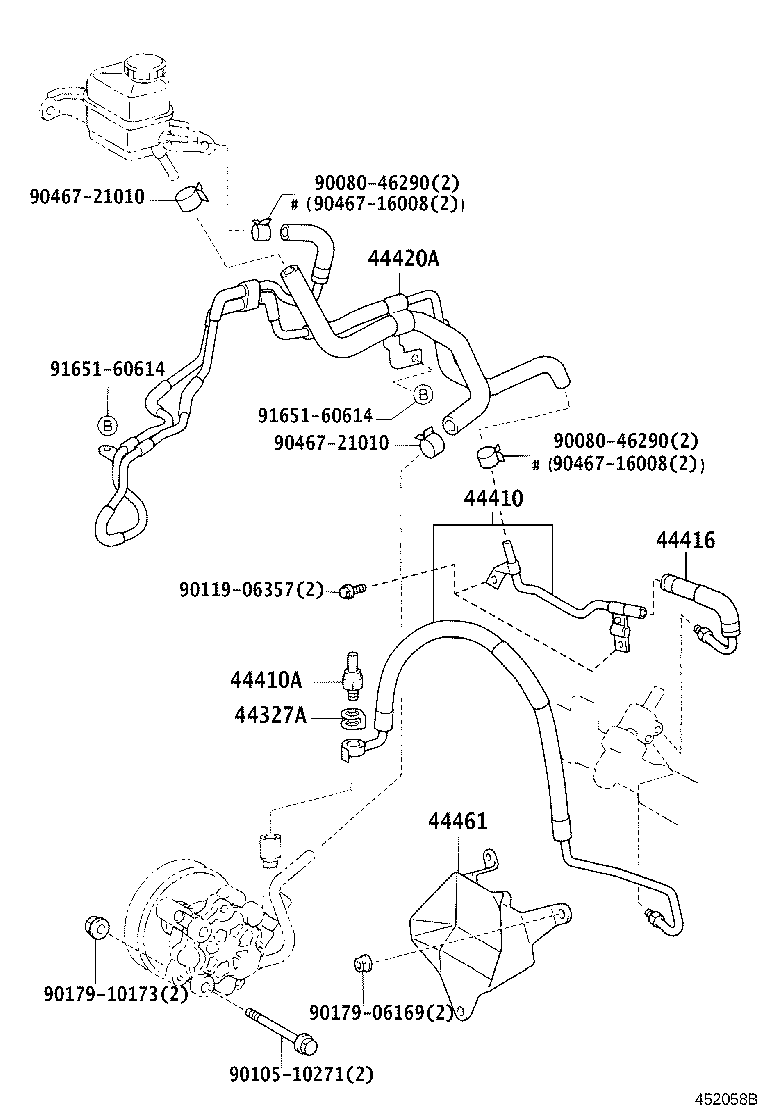

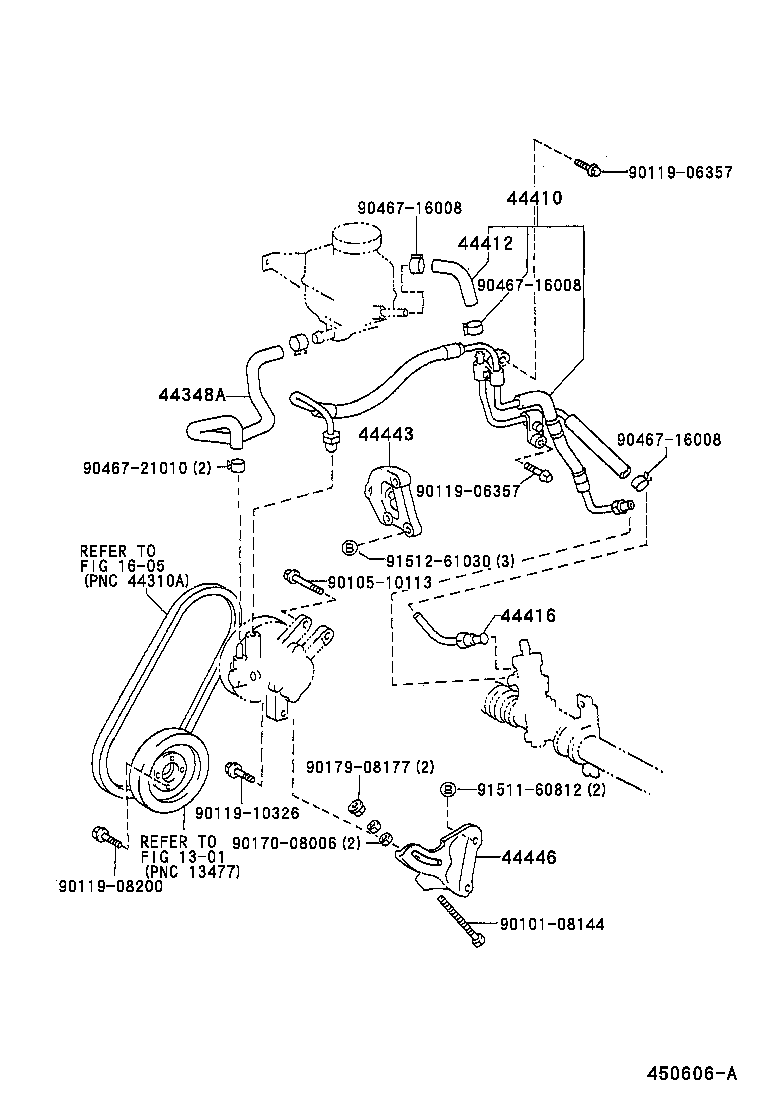

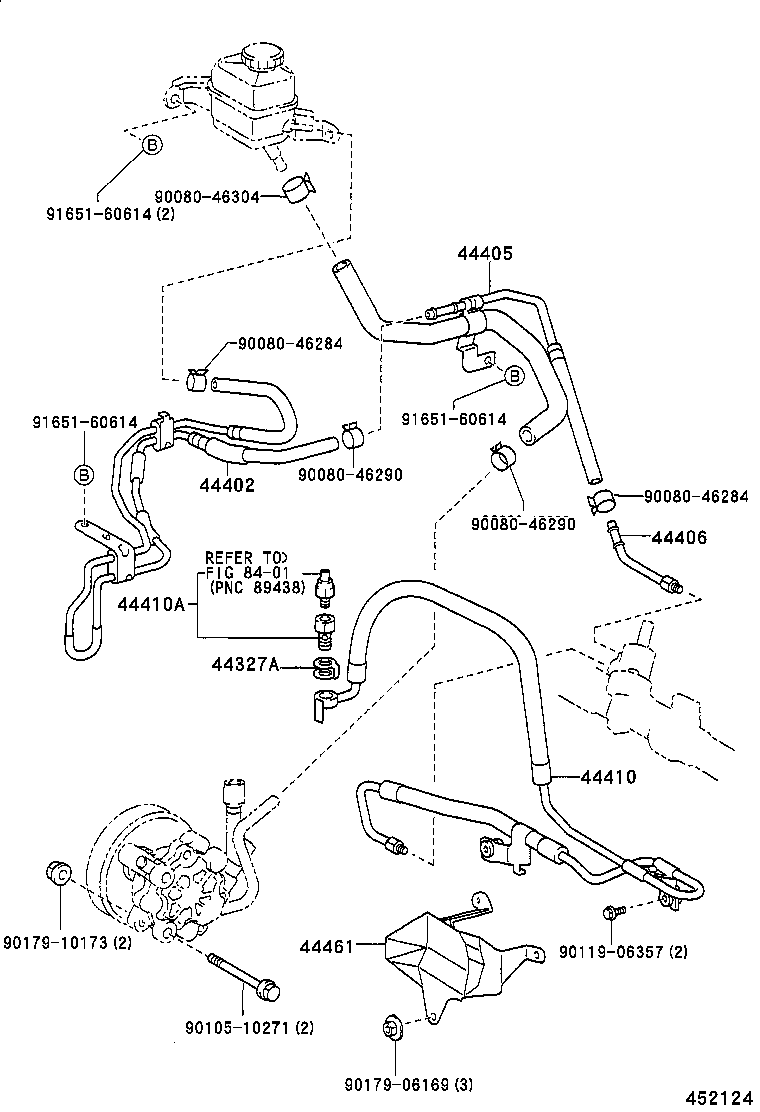

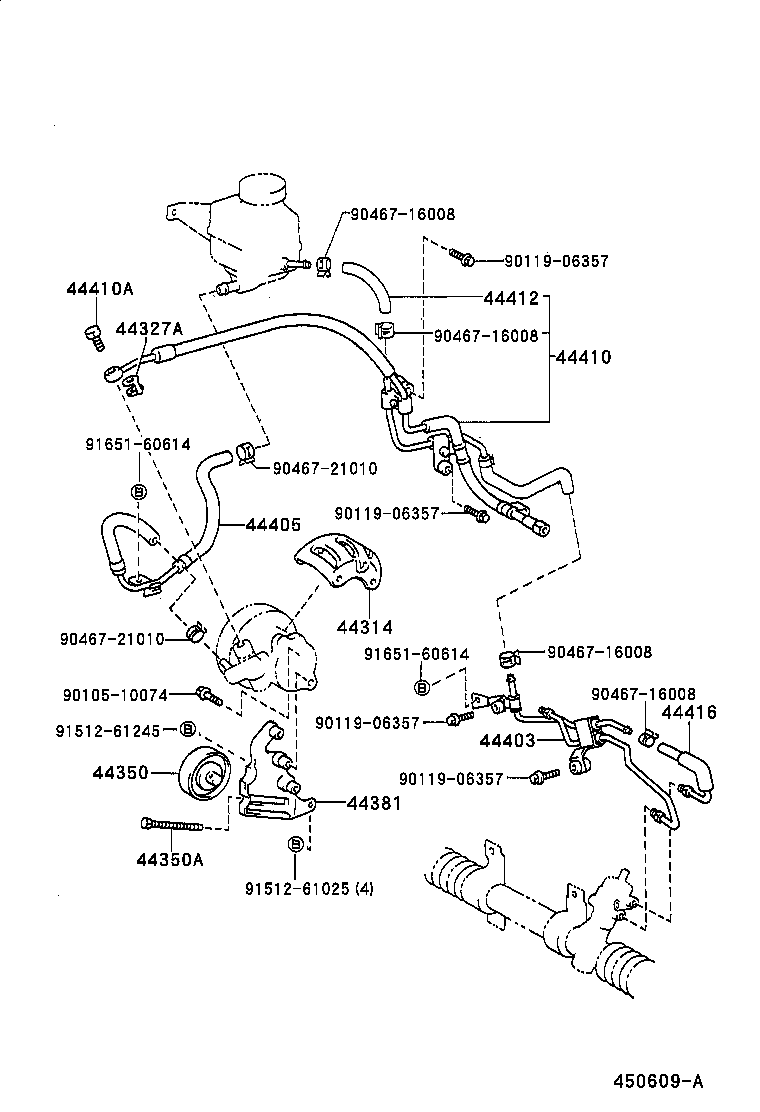

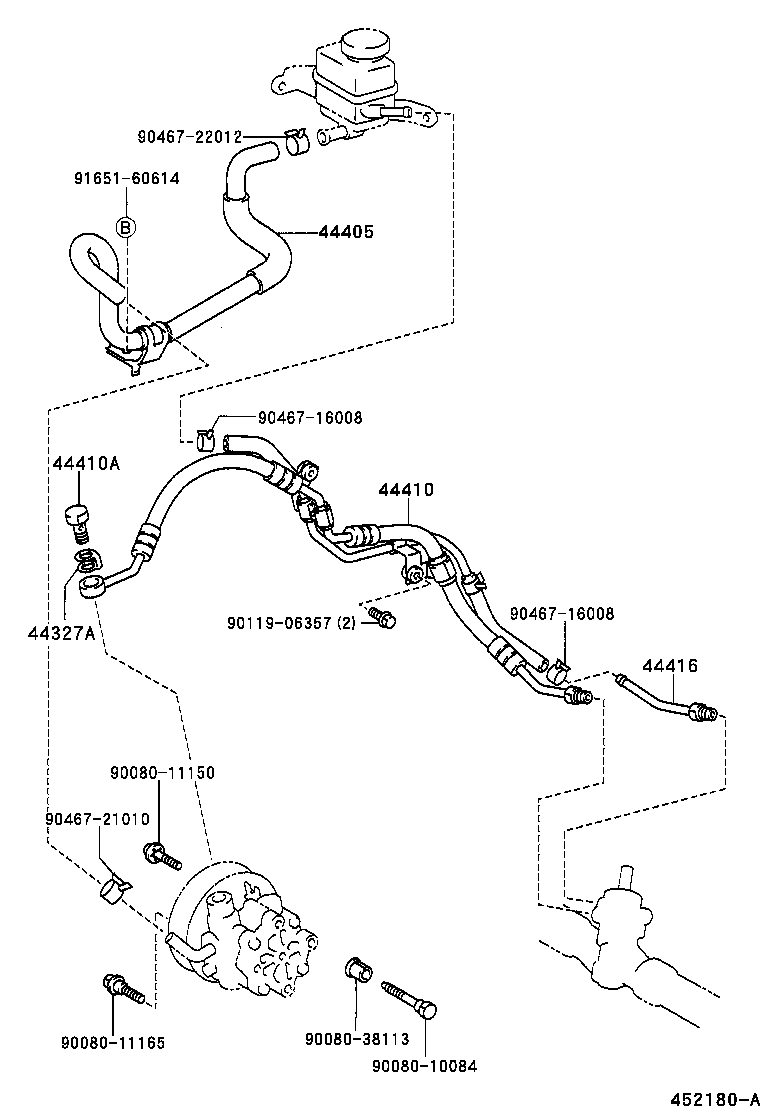

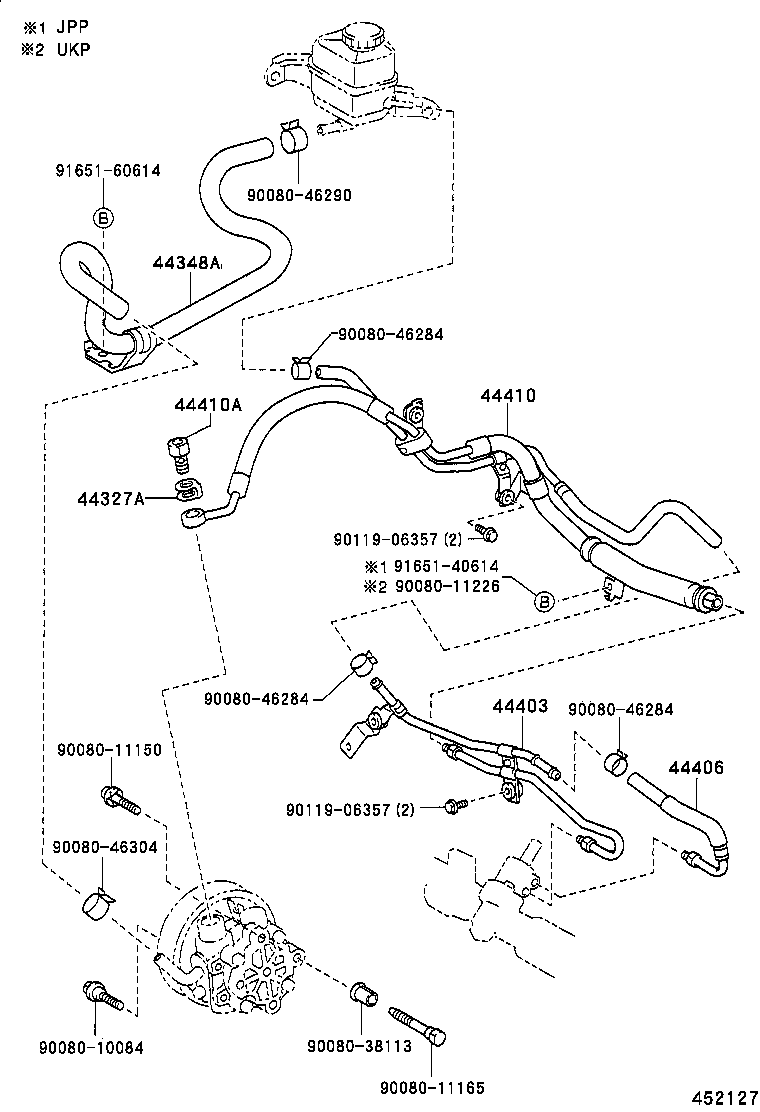

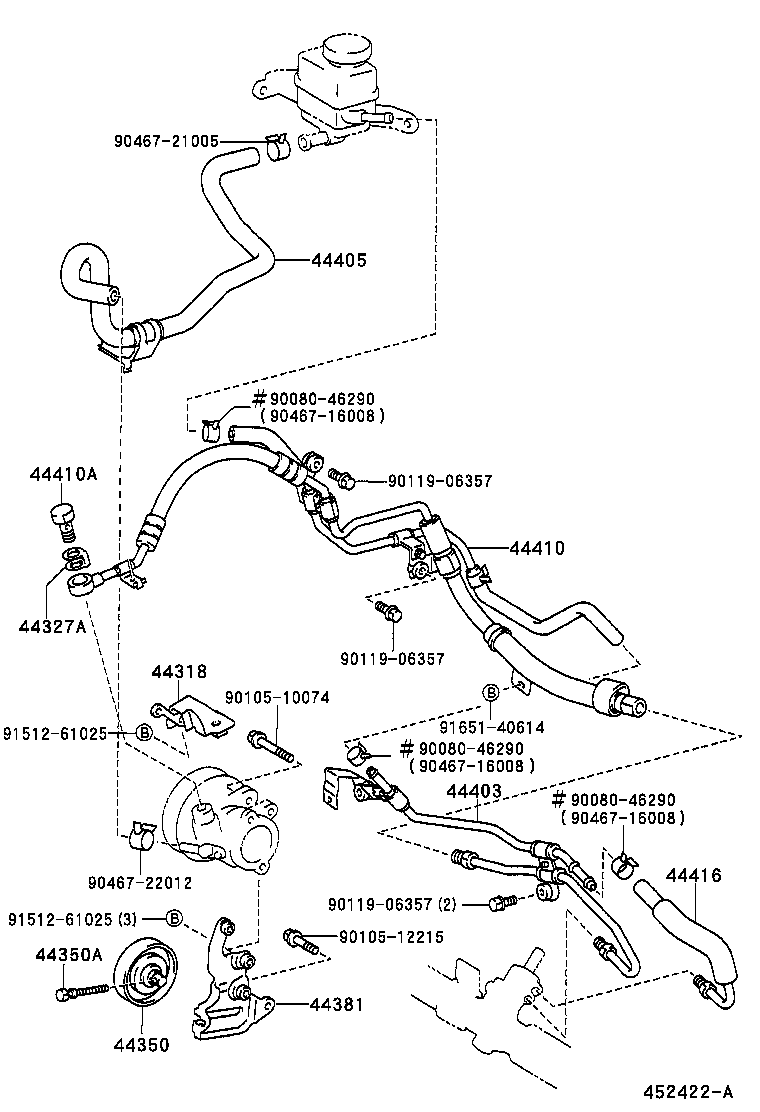

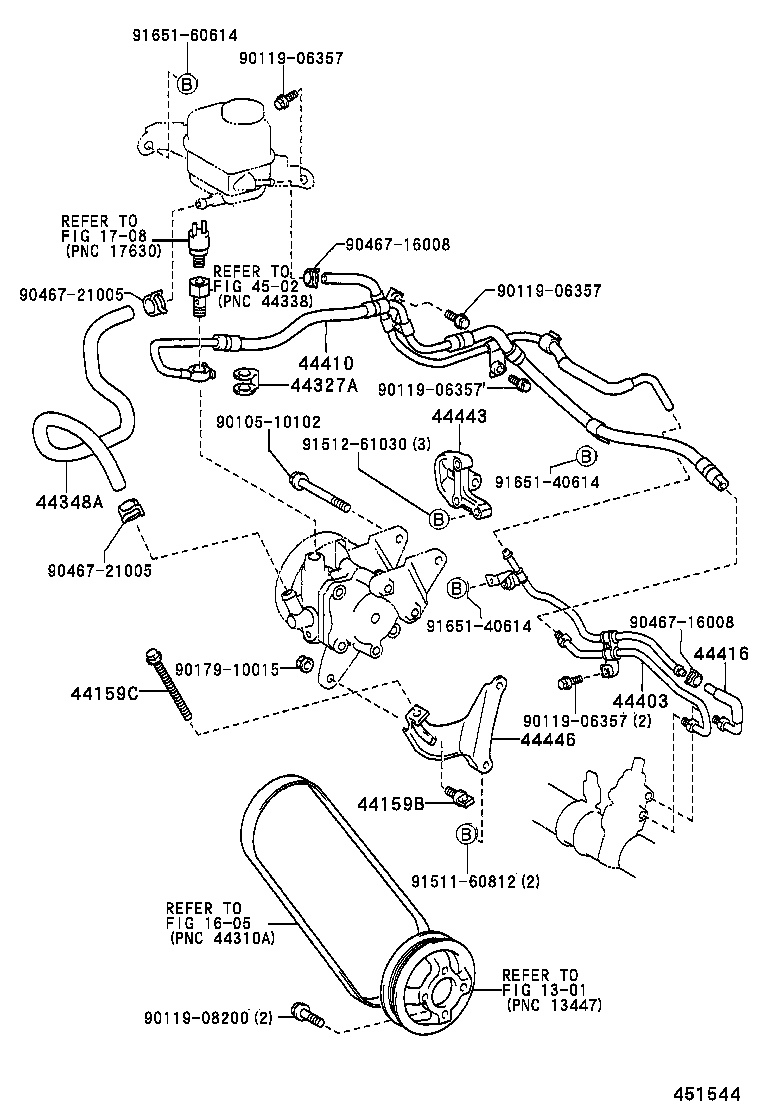

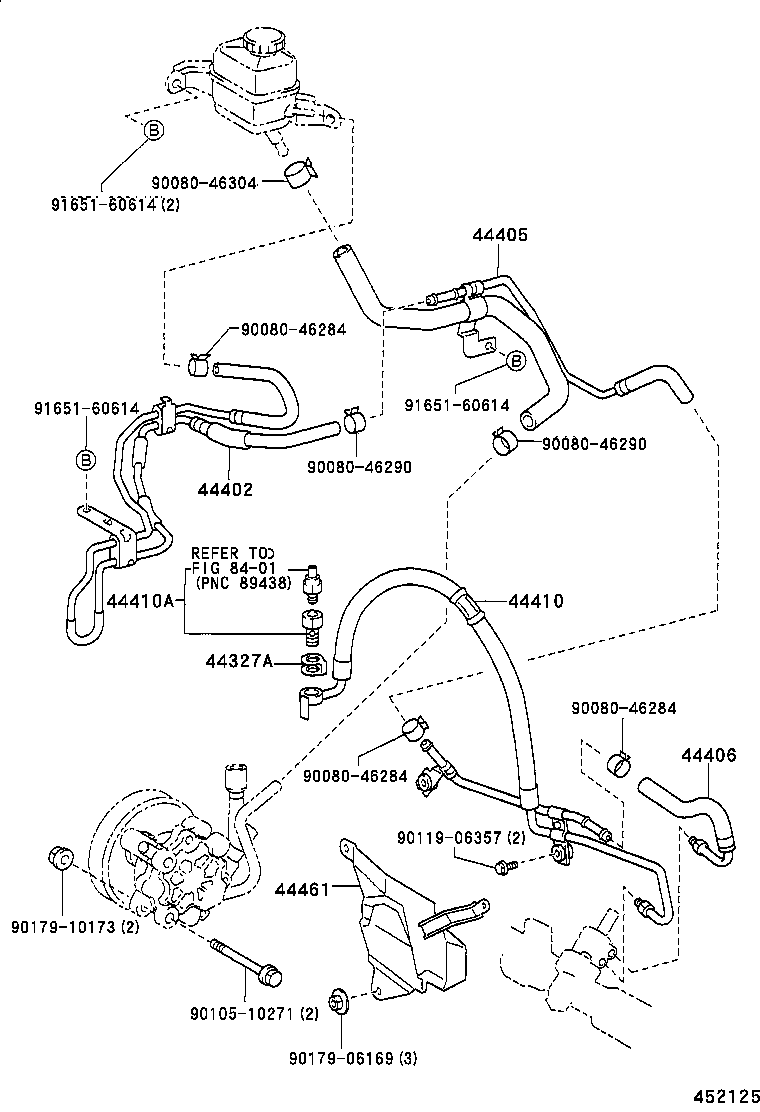

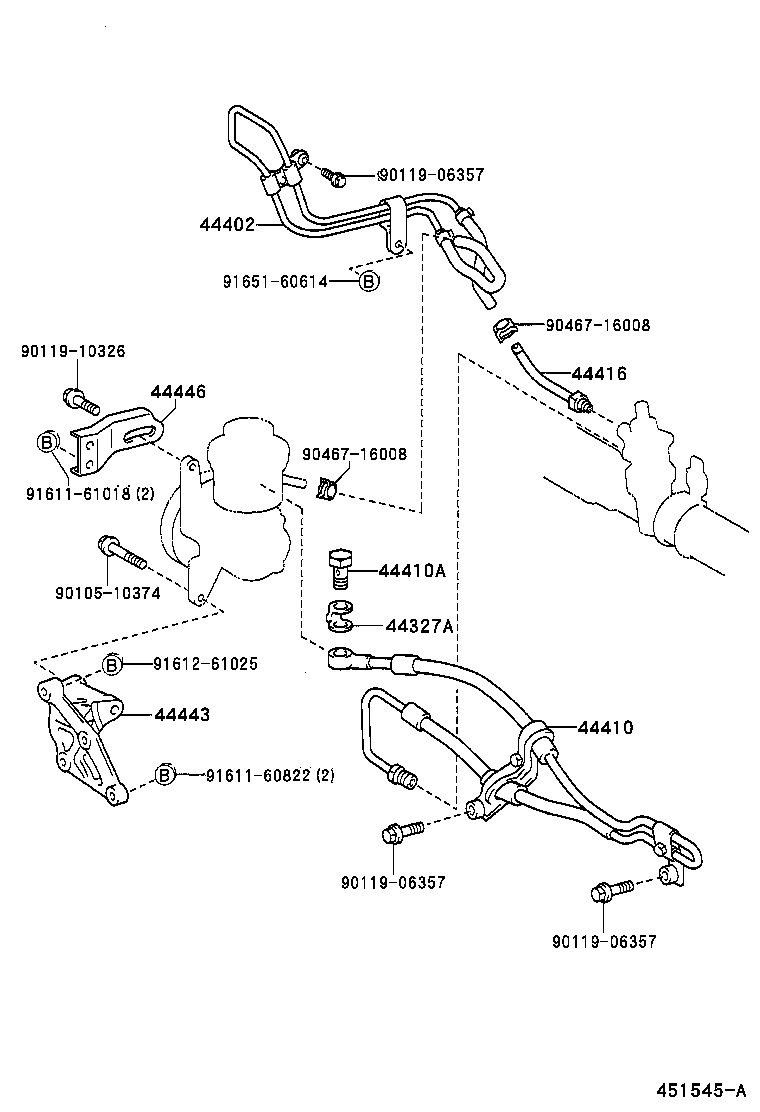

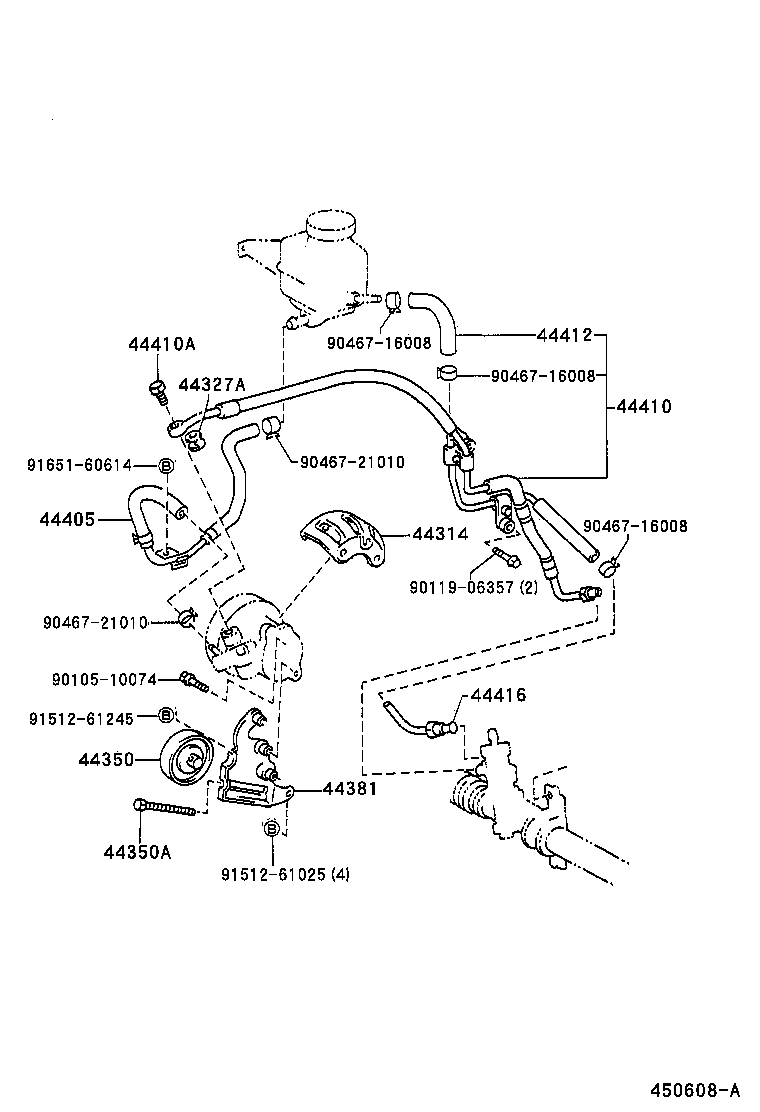

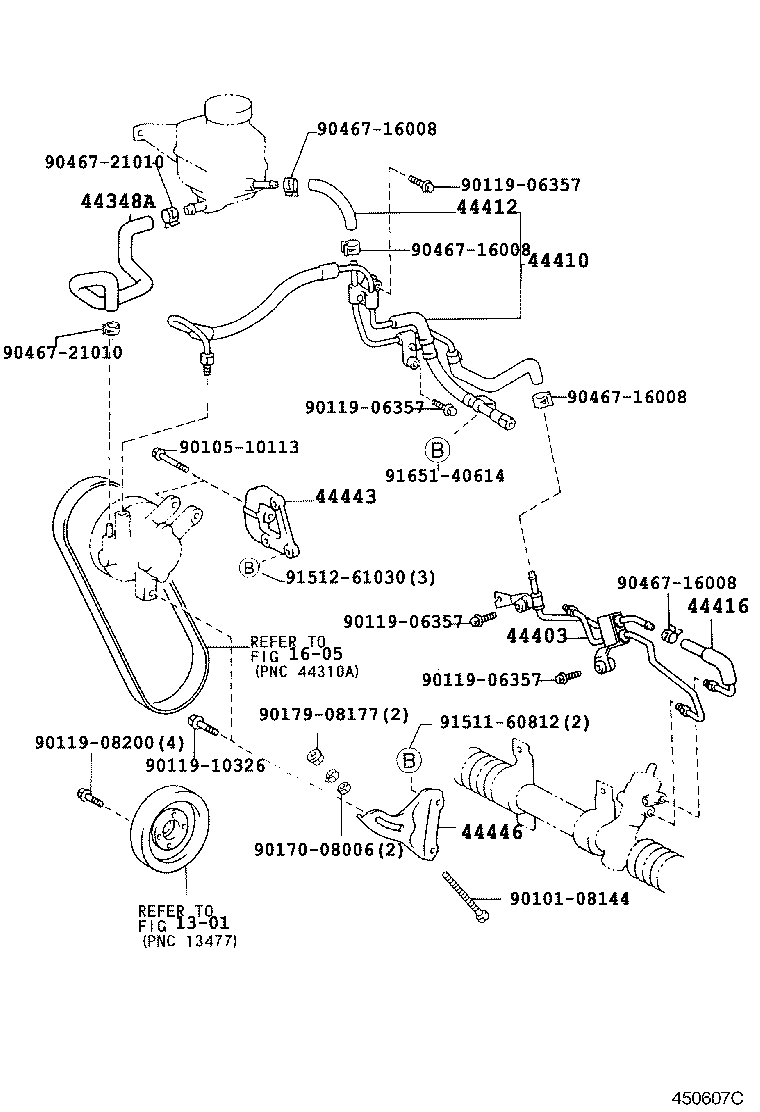

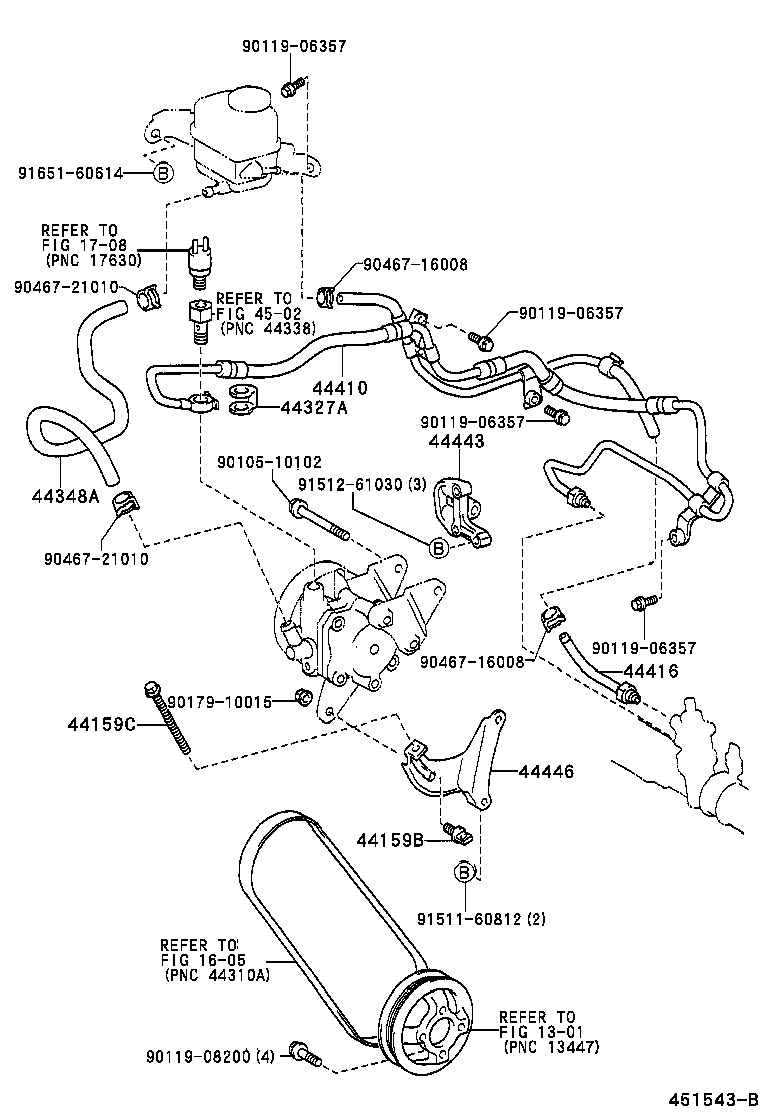

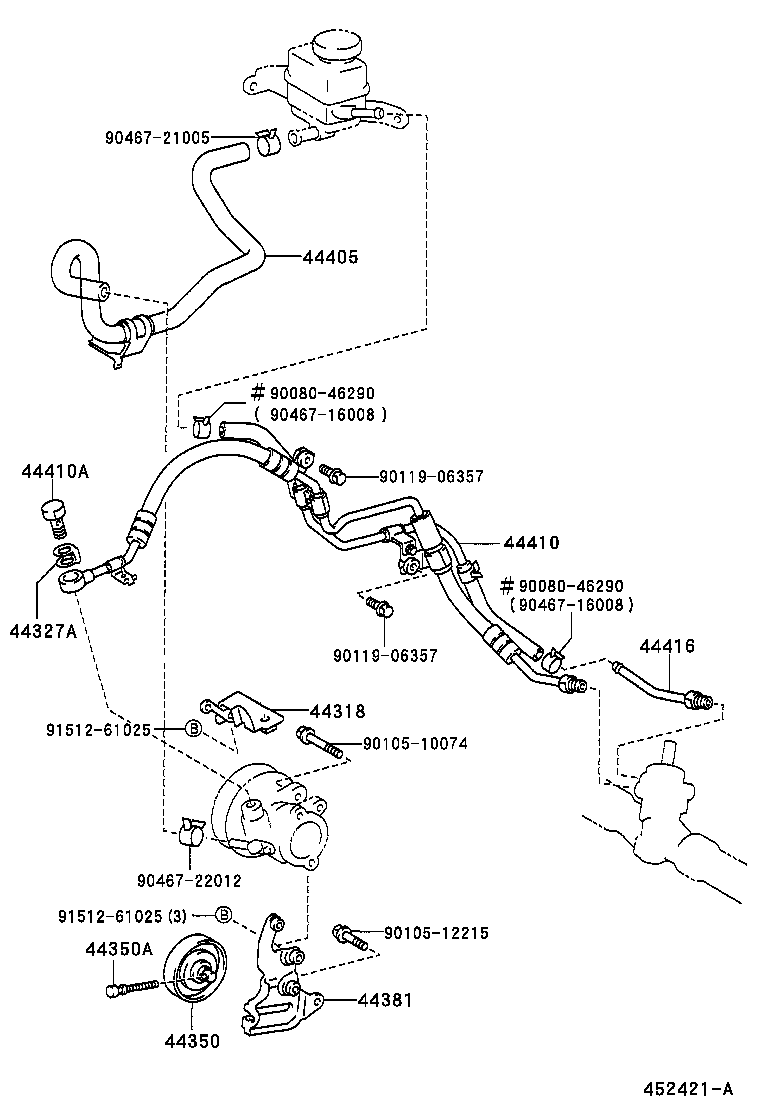

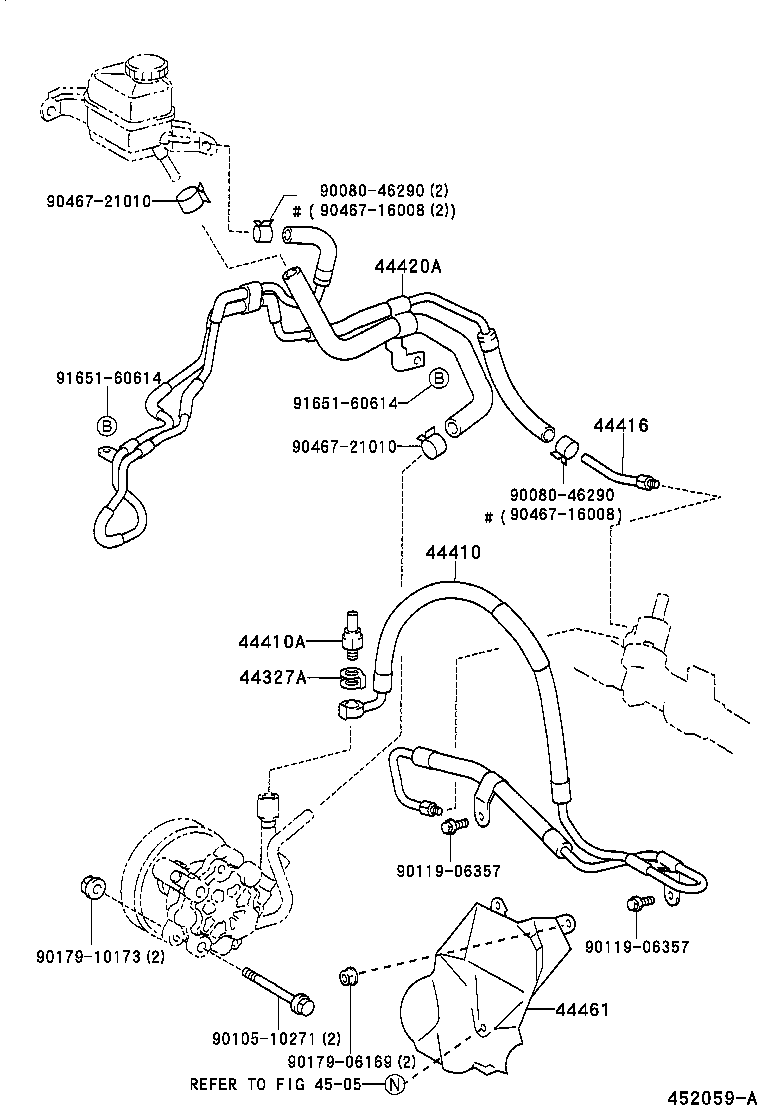

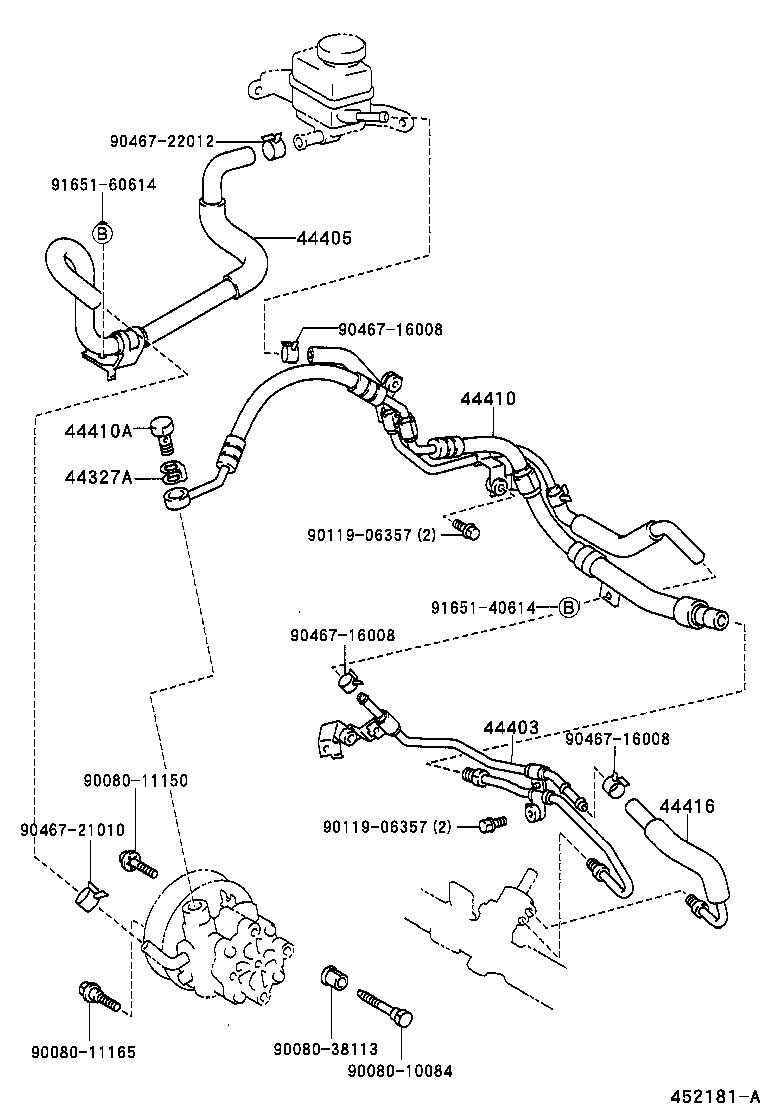

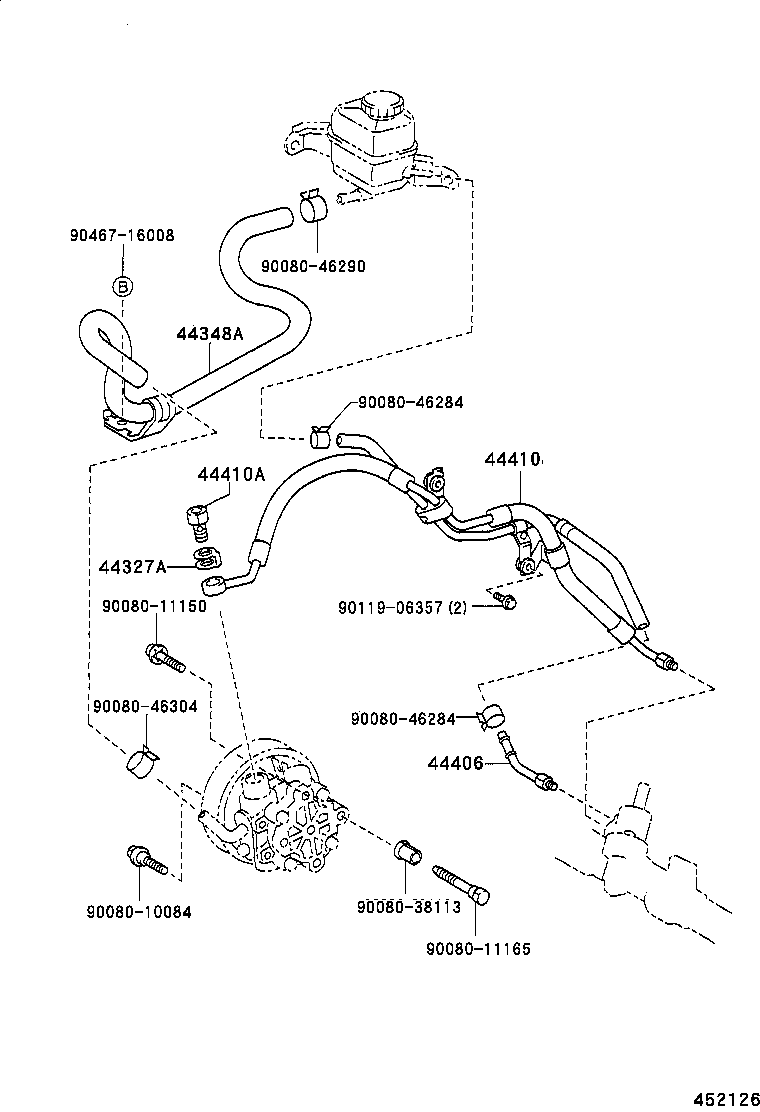

Figure 450605A 450605A 1997-04 → 1999-10 Figure 451545A 451545A 1998-09 → 1999-11 Figure 450604C 450604C 1997-04 → 1999-11 Figure 450606A 450606A 1997-04 → 1999-10 Figure 451543B 451543B 1998-09 → 1999-11 Figure 450607C 450607C 1997-04 → 1999-10 Figure 451544 451544 1998-09 → 1999-11 Figure 450608A 450608A 1997-04 → 1999-10 Figure 450609A 450609A 1997-04 → 1999-10 Figure 452059A 452059A 1999-10 → — Figure 452058B 452058B 1999-10 → — Figure 452124 452124 1999-11 → — Figure 452125 452125 1999-11 → — Figure 452126 452126 1999-12 → — Figure 452127 452127 1999-12 → — Figure 452180A 452180A 2000-01 → — Figure 452181A 452181A 2000-01 → — Figure 452421A 452421A 2000-08 → — Figure 452422A 452422A 2000-08 → —

Part groups

PNCDescription
44159B Bolt, Adjust, NO.1(FOR PUMP BRACKET ASSY)
44159C Bolt, Adjust, NO.2(FOR PUMP BRACKET ASSY)
44314 Cover, Pulley
44318 Spacer, Vane Pump Drive Pulley
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44350A Bolt(FOR POWER STEERING IDLE PULLEY)
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44403 Tube Sub-assy, Pressure Feed, NO.1
44405 Tube Sub-assy, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44412 Hose, Return
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44420A Tube Assy, Return
44443 Bracket, Pump
44446 Strut, Adjusting
44461 Insulator, Tube Refrigerant
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
