Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04

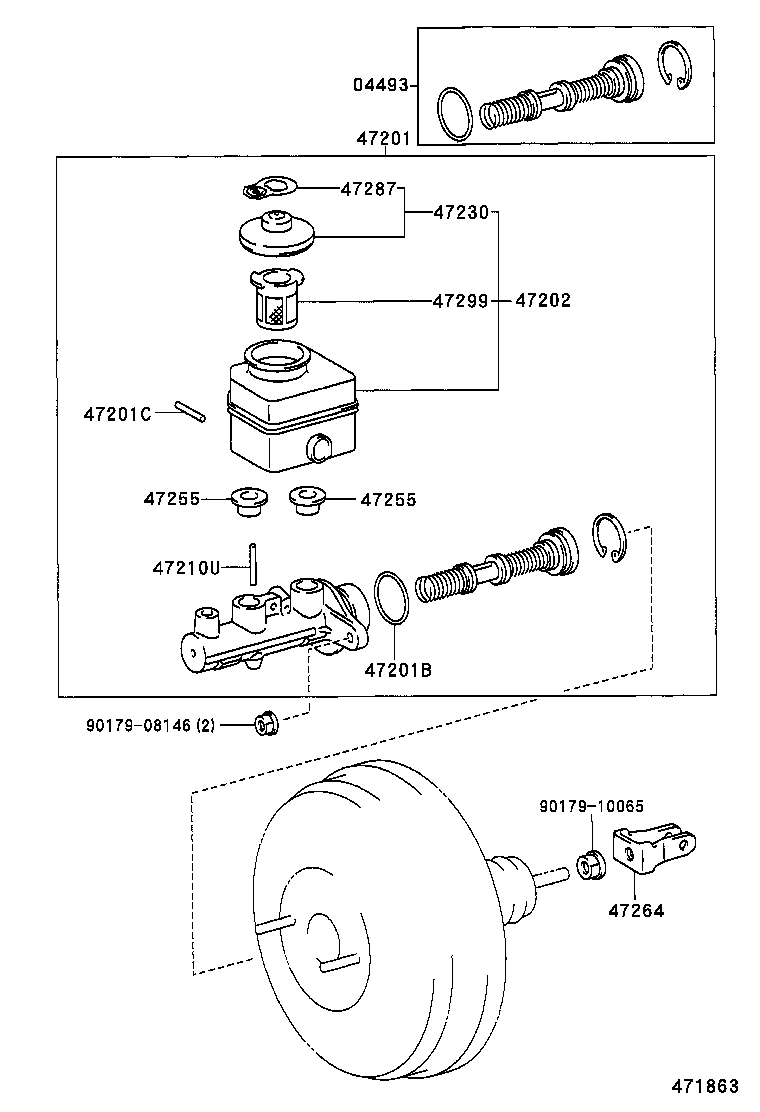

Brake Master Cylinder
19 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 04493 | Cylinder Kit, Brake Master |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47201C | Ring Pin, Brake Master Cylinder |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47210U | Pin, Straight(FOR BRAKE MASTER CYLINDER) |
| 47210V | Union(FOR BRAKE MASTER CYLINDER) |
| 47218B | Bolt, Union(FOR MASTER CYLINDER FLUID OUTLET) |
| 47218C | Gasket(FOR MASTER CYLINDER FLUID OUTLET) |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47262 | Nut, Master Cylinder Push Rod |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47268A | Nut, Brake Master Cylinder |
| 47275 | Gasket, Brake Master Cylinder |
| 47287 | Label, Brake Fluid Information |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
