Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

18 part groups · 17 illustrations

Illustrations

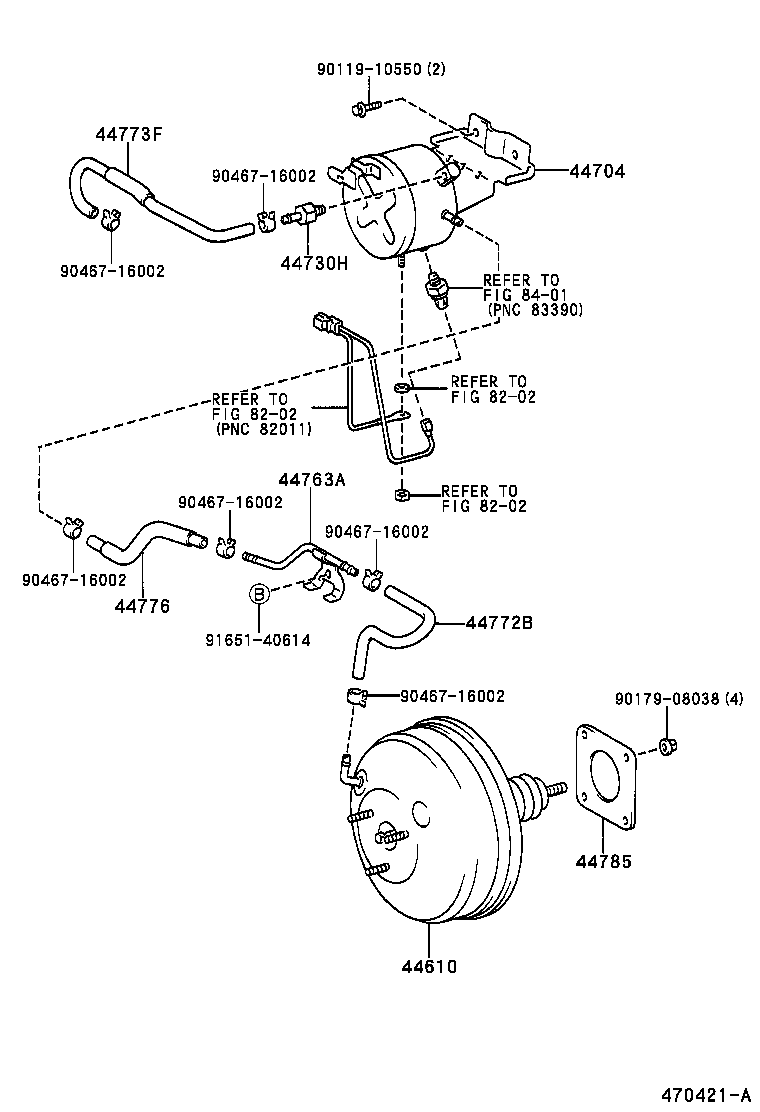

Figure 470405 470405 1997-04 → 1999-10 Figure 470420C 470420C 1997-04 → 1999-10 Figure 470422A 470422A 1997-04 → 1999-10 Figure 470421A 470421A 1997-04 → 1999-10 Figure 471324A 471324A 1998-09 → 1999-11 Figure 471336A 471336A 1998-09 → 1999-11 Figure 471830 471830 1999-10 → — Figure 471831 471831 1999-10 → — Figure 471907 471907 1999-11 → — Figure 471908 471908 1999-11 → — Figure 471909 471909 1999-12 → — Figure 471910 471910 1999-12 → — Figure 471964 471964 2000-01 → — Figure 471965 471965 2000-01 → — Figure 472209 472209 2000-08 → — Figure 472210 472210 2000-08 → — Figure 472211 472211 2000-08 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44675A Boot, Brake Booster
44682C Connector, Booster Inlet
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44756 Bracket, Vacuum Reservoir
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44774B Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44776A Hose, Vacuum Reservoir TO Brake Booster
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
