Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 2 illustrations

Illustrations

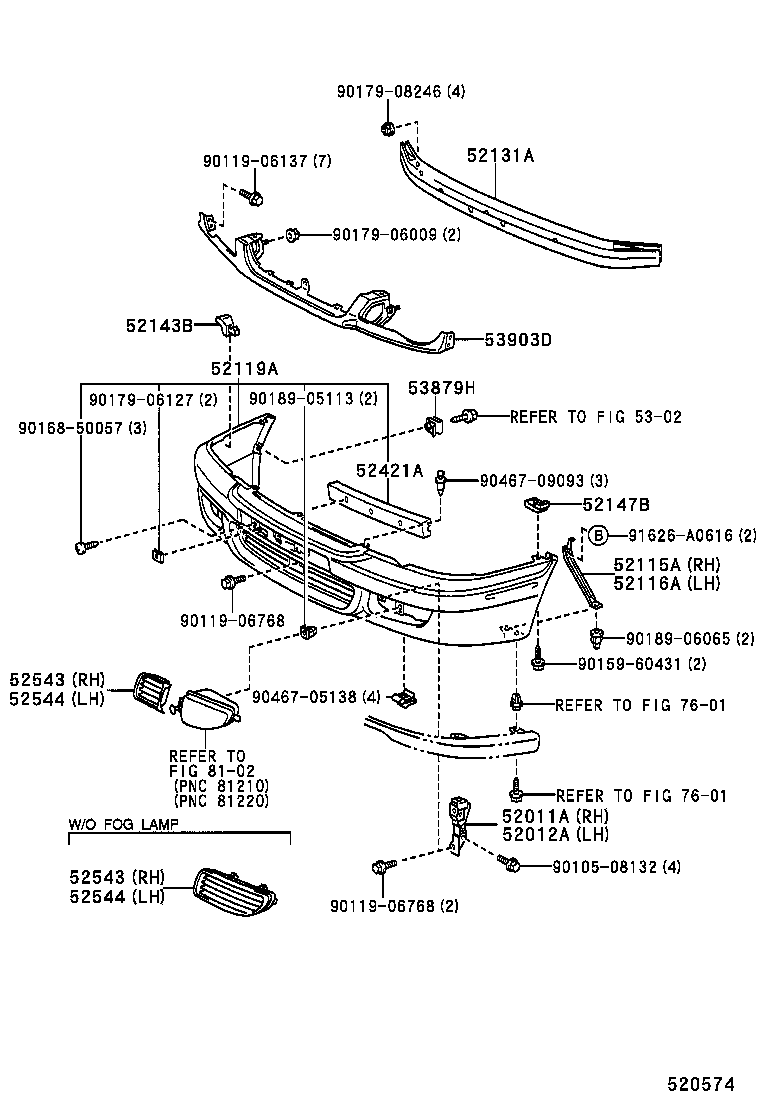

Figure 520186B 520186B 1997-04 → 1999-11 Figure 520574 520574 1999-10 → —

Part groups

PNCDescription
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52143B Bracket, Front Bumper Side
52147B Bracket, Front Bumper Mounting
52421A Pad, Front Bumper
52543 Seal, Front Bumper Side, RH
52544 Seal, Front Bumper Side, LH
53112D Grille, Radiator, Lower RH
53113D Grille, Radiator, Lower LH
53879H Retainer, Front Fender Liner
53903D Extension Sub-assy, Front Bumper, Upr
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
