Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04

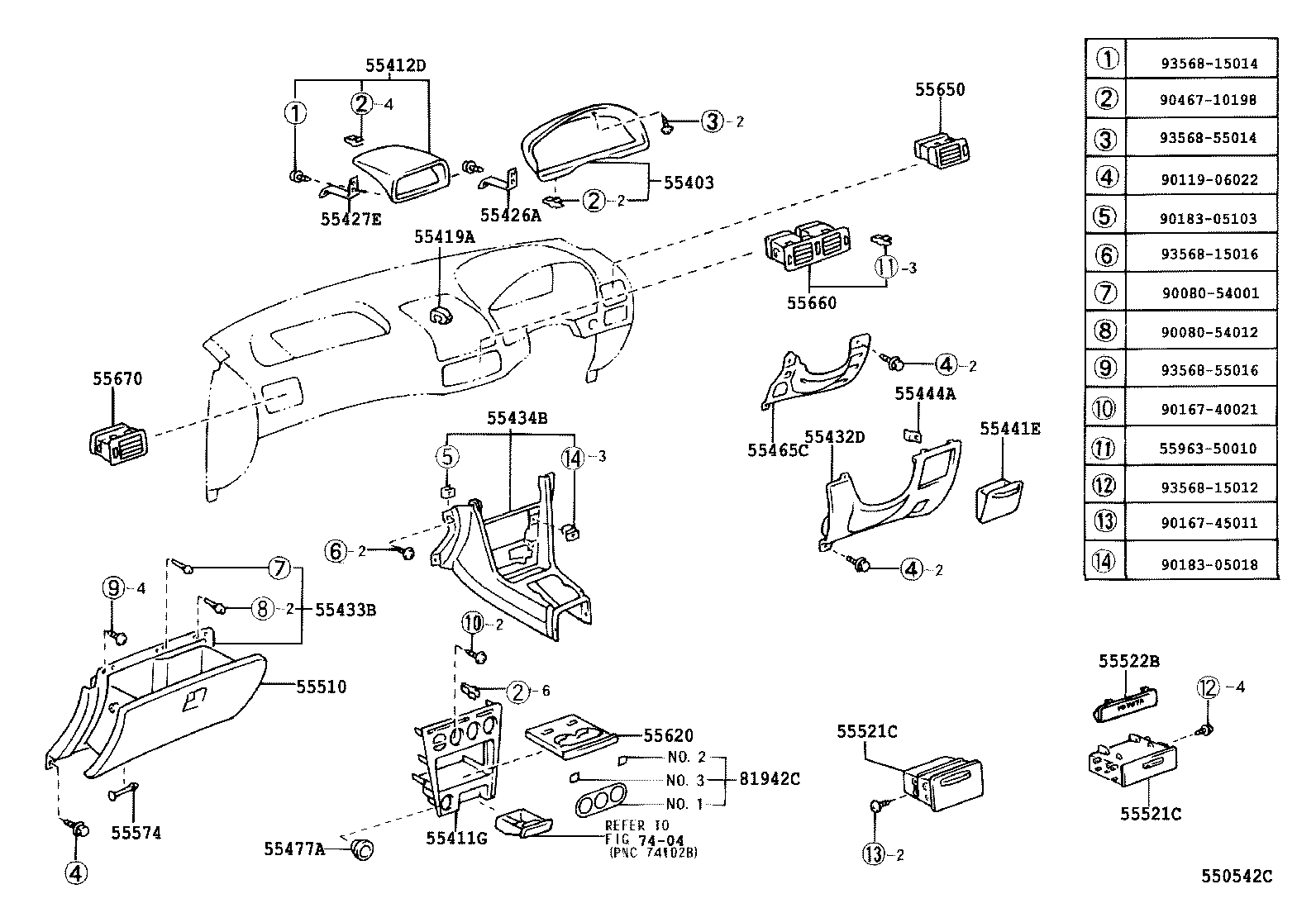

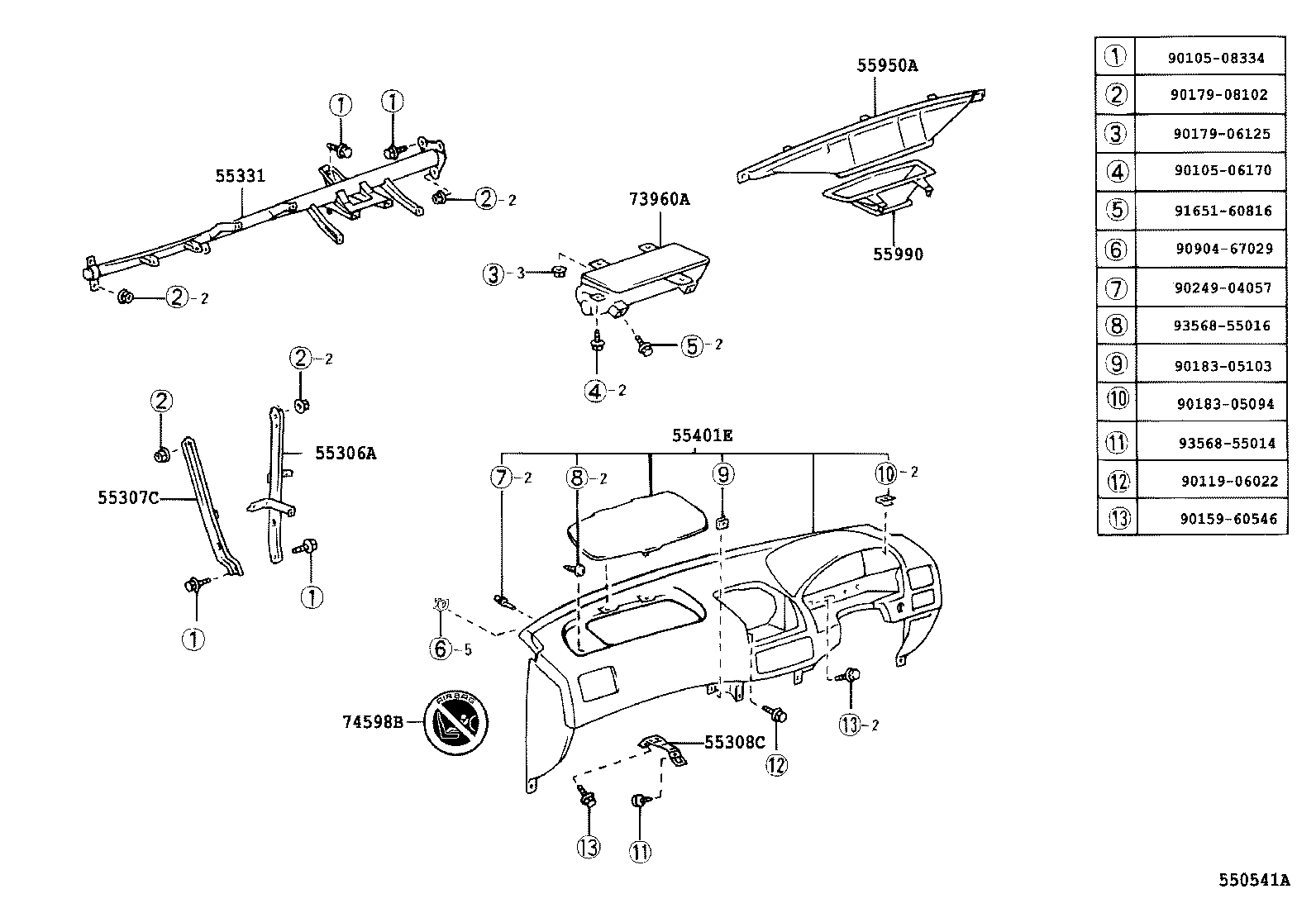

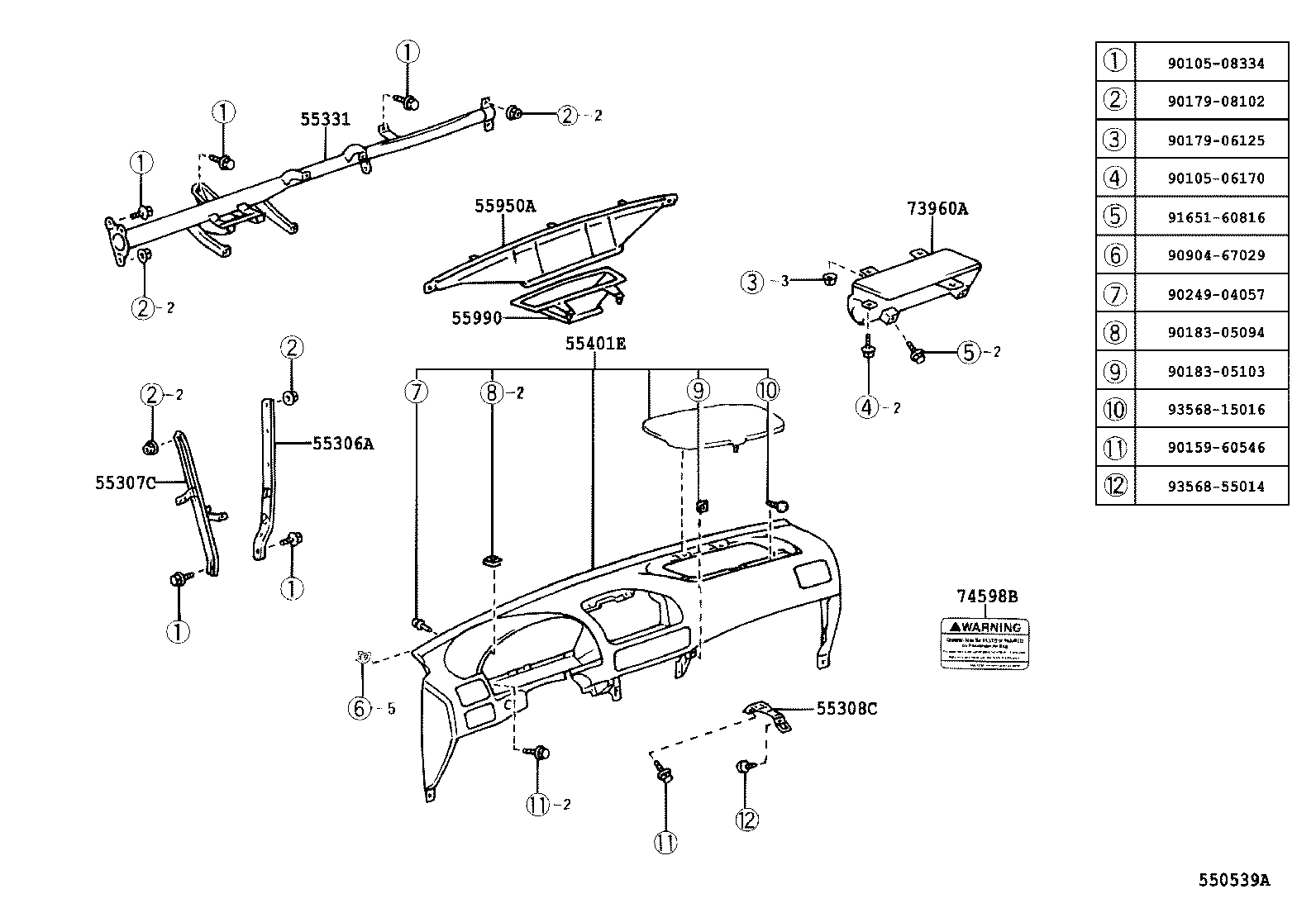

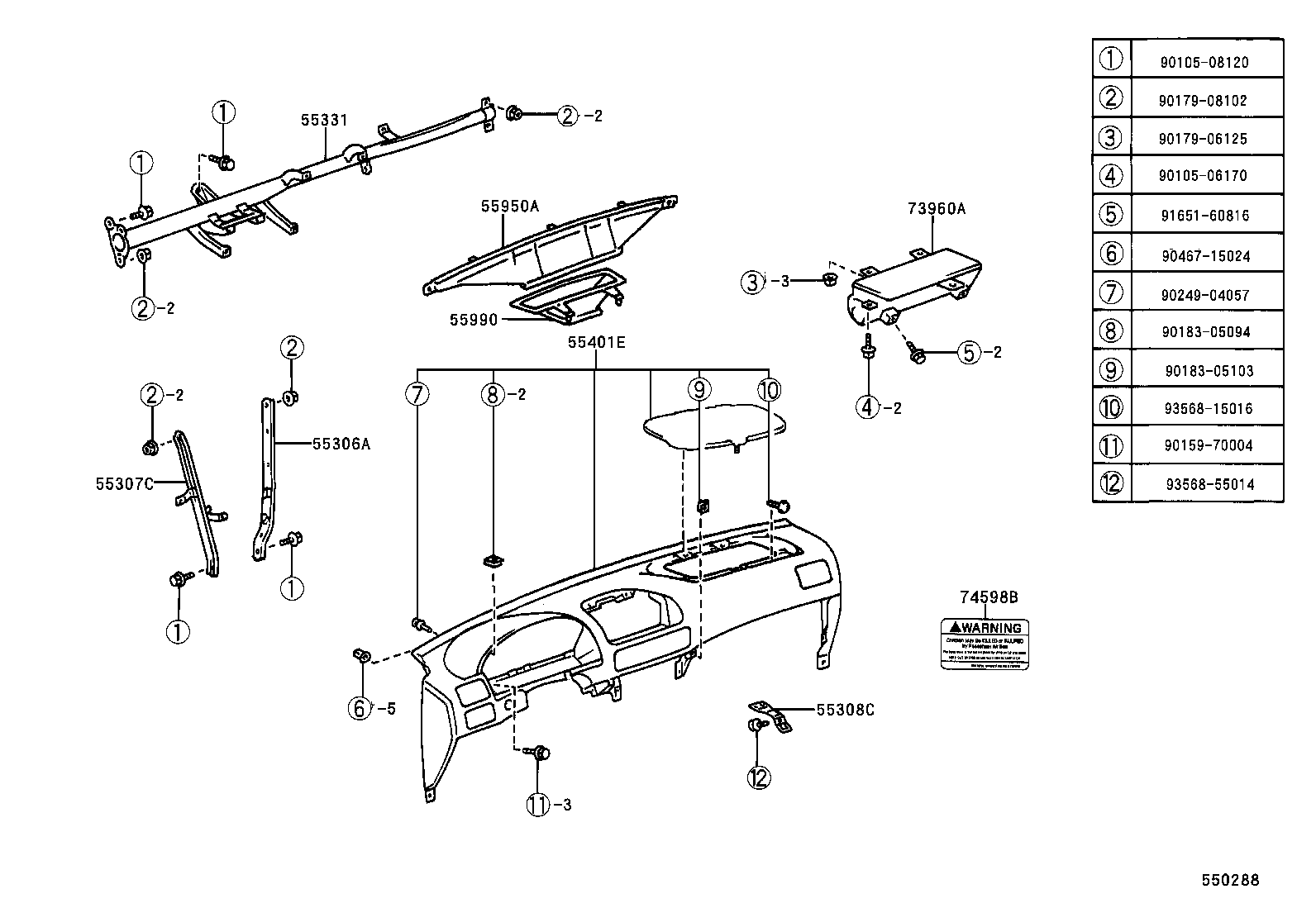

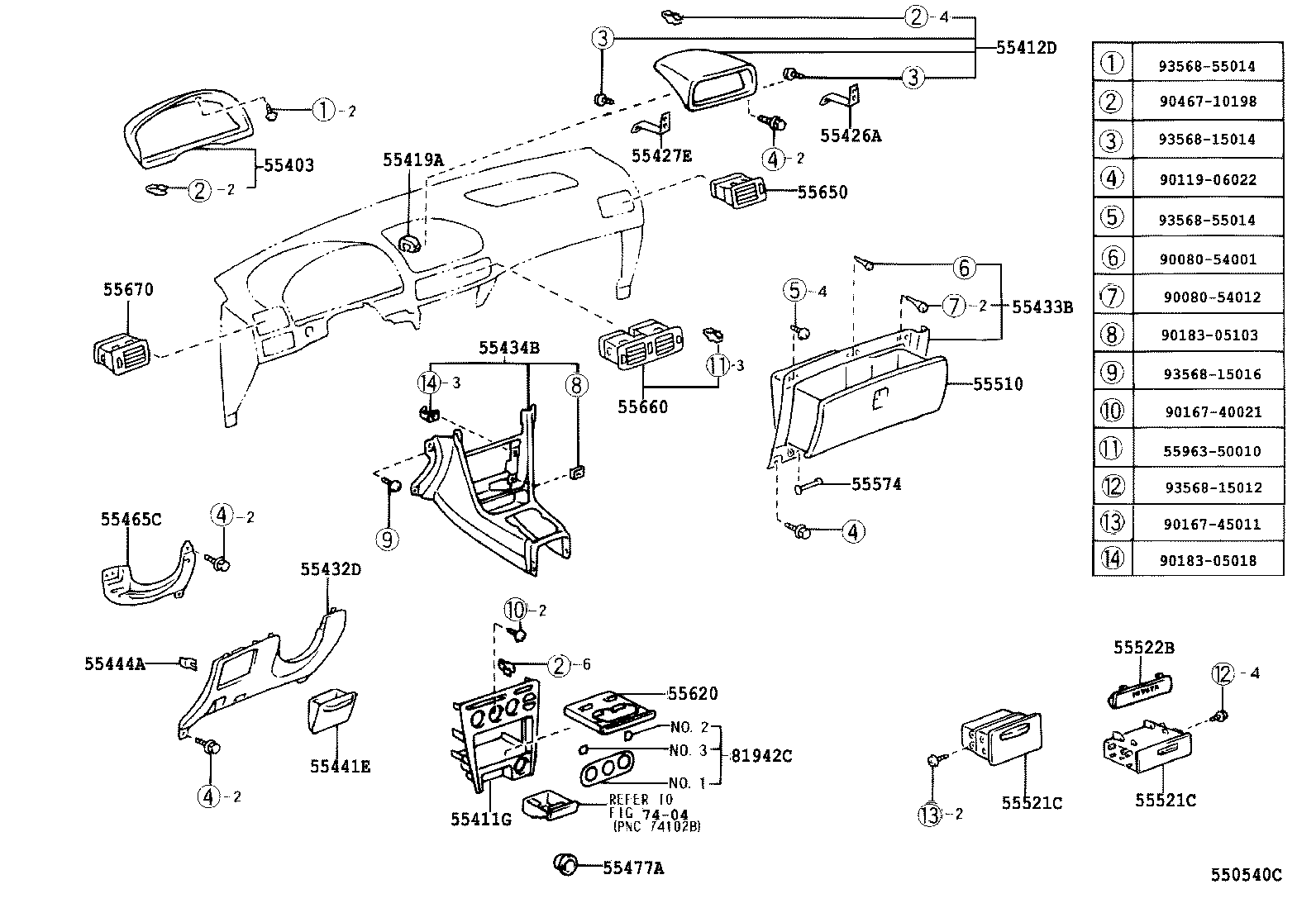

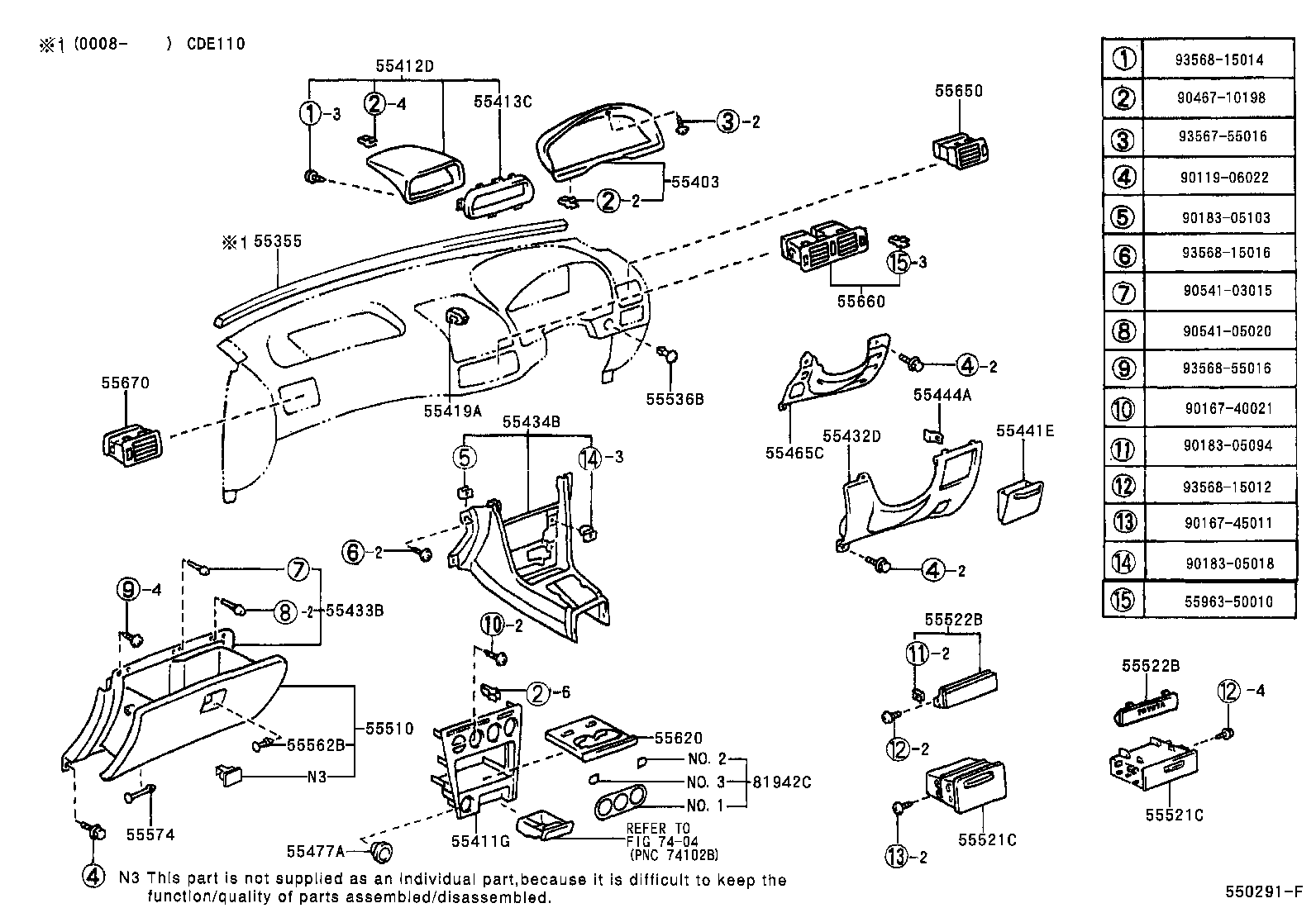

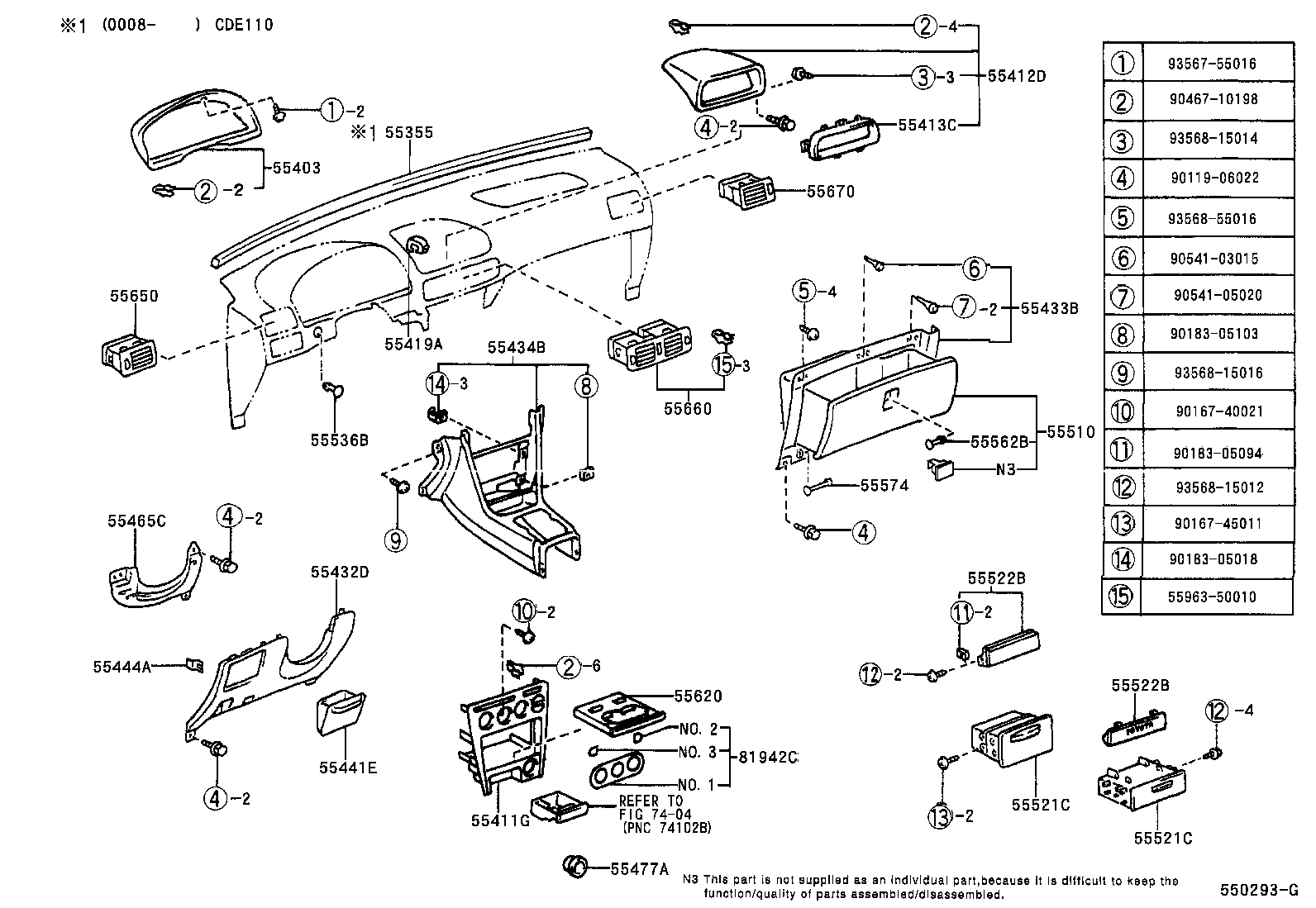

Instrument Panel & Glove Compartment

35 part groups · 8 illustrations

PNC	Description
55306A	Brace Sub-assy, Instrument Panel, NO.1
55307C	Brace Sub-assy, Instrument Panel, NO.2
55308C	Bracket Sub-assy, Instrument Panel, Center
55331	Reinforcement, Instrument Panel
55355	Cushion, Instrument Panel, NO.1
55401E	Pad Sub-assy, Instrument Panel Safety
55403	Hood Sub-assy, Meter
55411G	Panel, Instrument Cluster Finish, NO.1
55412D	Panel, Instrument Cluster Finish, Center
55413C	Panel, Instrument Cluster Finish, Center NO.2
55419A	Cushion, Instrument Cluster Finish Panel
55426A	Bracket, Cluster Finish Panel, NO.1
55427E	Bracket, Cluster Finish Panel, NO.2
55432D	Panel, Instrument Panel Finish, Lower NO.1
55433B	Panel, Instrument Panel Finish, Lower NO.2
55434B	Panel, Instrument Panel Finish, Lower Center
55441E	Box, Instrument Panel
55444A	Spring, Instrument Panel Box
55465C	Insert, Instrument Panel Lower Pad, LH
55477A	Bezel, Cigarette Lighter Hole
55510	Door Assy, Glove Compartment
55521C	Cover, Stereo Opening
55522B	Cover, Radio Tuner Opening
55536B	Cover, Light Control Switch Hole
55562B	Pin, Glove Compartment Door Lock
55574	Shaft, Glove Compartment Door Hinge
55620	Holder Assy, Instrument Panel Cup
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55950A	Nozzle Assy, Defroster
55990	Nozzle Assy, Center Defroster
73960A	Airbag Assy, Instrument Panel Passenger W/O Door
74598B	Label, Passenger Airbag Caution
81942C	Sheet, Heater Control Name

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
