Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04

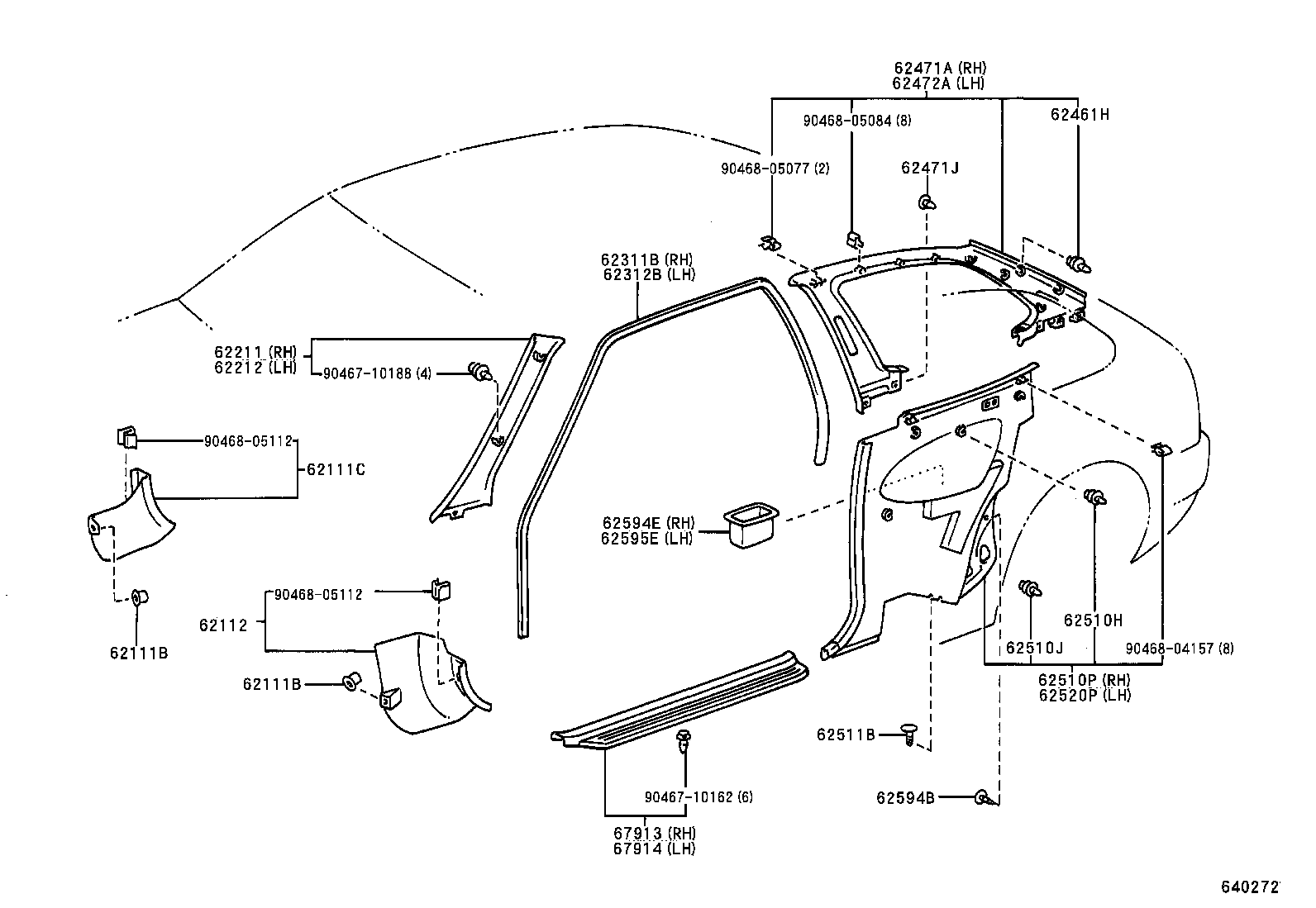

Inside Trim Board & Door Opening Trim Moulding
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331A | Weatherstrip, Rear Door Opening Trim, RH |
| 62332A | Weatherstrip, Rear Door Opening Trim, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62461H | Clip (FOR ROOF SIDE INNER GARNISH) |
| 62471A | Garnish, Roof Side, Inner RH |
| 62471J | Clip (FOR ROOF SIDE GARNISH) |
| 62472A | Garnish, Roof Side, Inner LH |
| 62510H | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62510J | Retainer, Quarter Trim |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62551E | Clip(FOR REAR SEAT SIDE GARNISH) |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 62594B | Clip(FOR QUARTER TRIM POCKET) |
| 62594E | Pocket, Quarter Trim, RH |
| 62595E | Pocket, Quarter Trim, LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
