Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04

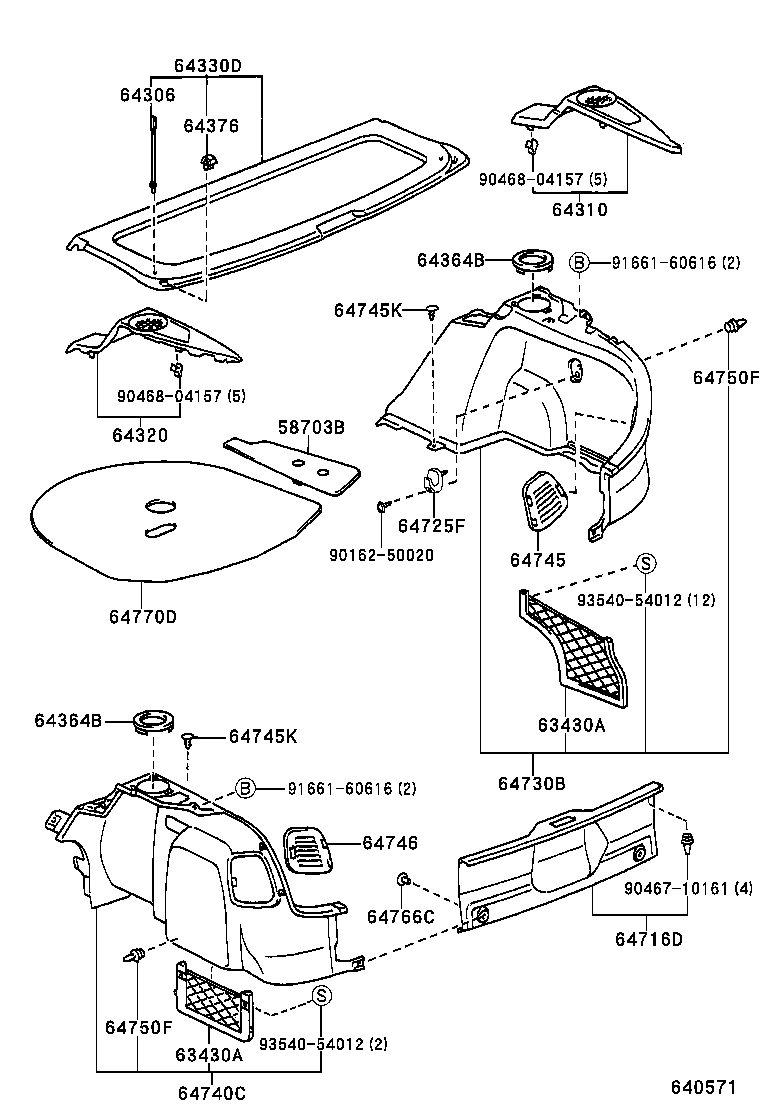

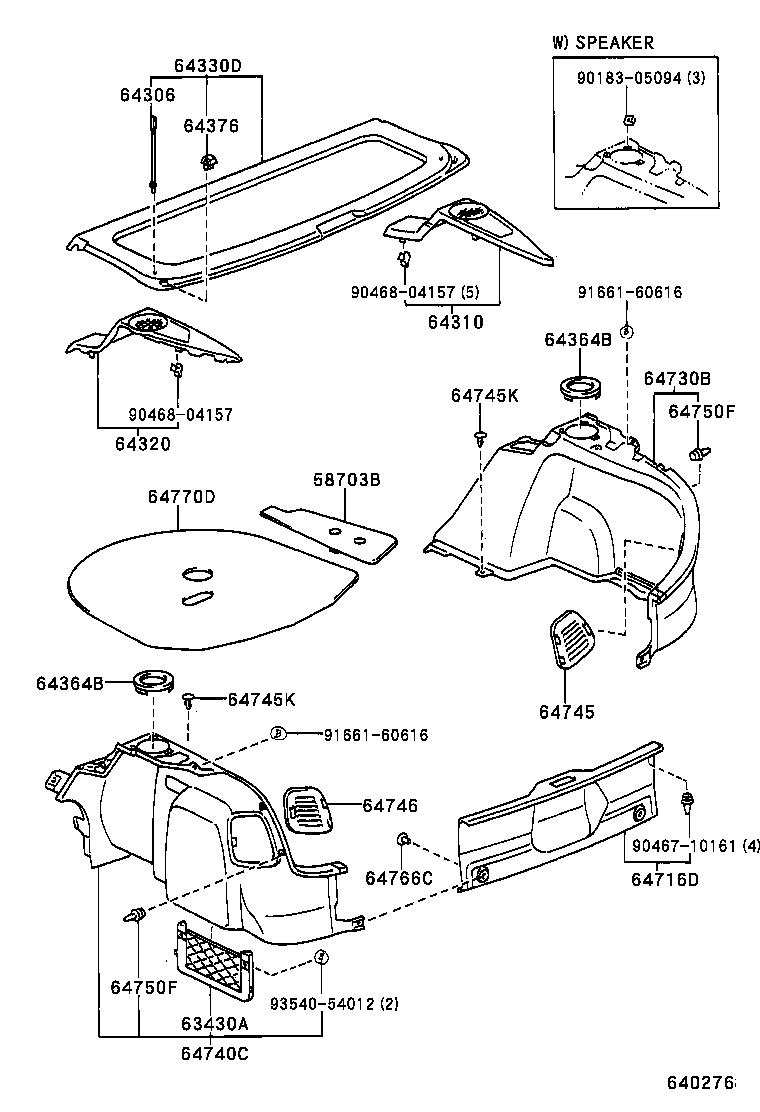

Deck Board & Deck Trim Cover
26 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58460D | Striker Assy, Luggage Hold Belt |
| 58703B | Cover Sub-assy, Luggage Compartment Side, RH |
| 63430A | Rack Assy, Room |
| 63709B | Band Sub-assy, Room Rack |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64310 | Bracket, Package Tray Trim, RH |
| 64320 | Bracket, Package Tray Trim, LH |
| 64330D | Panel Assy, Package Tray Trim |
| 64364B | Cover, Rear Speaker Grille, NO.1 |
| 64376 | Spacer, Package Tray Trim, NO.2 |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64725F | Hook, Luggage Compartment Trim, NO.1 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64735 | Cover, Deck Trim Side Service Hole |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64741B | Box, Deck Side Trim, RH |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64745K | Clip(FOR REAR COMBINATUON LAMP SERVICE COVER) |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 64746A | Cover, Deck Trim Side Lamp Hole |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64766 | Cover Sub-assy, Quarter Trim Jack |
| 64766C | Clip(FOR QUARTER TRIM JACK COVER) |
| 64770D | Cover Assy, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
