Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

36 part groups · 7 illustrations

Illustrations

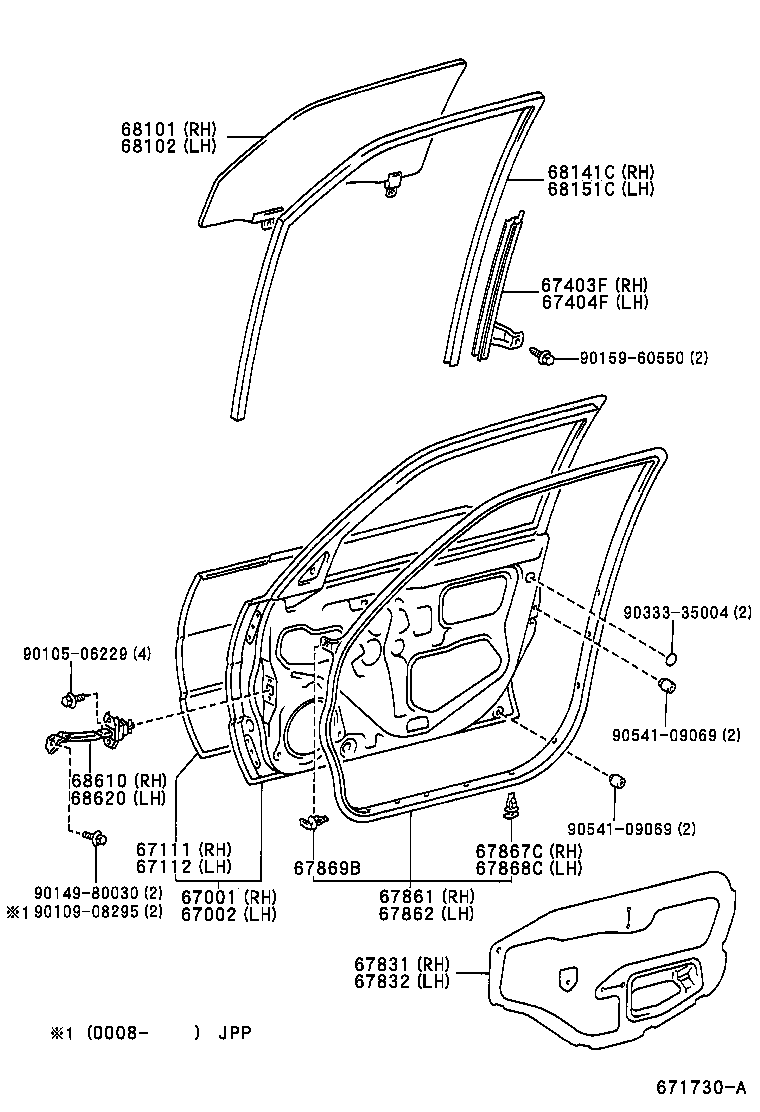

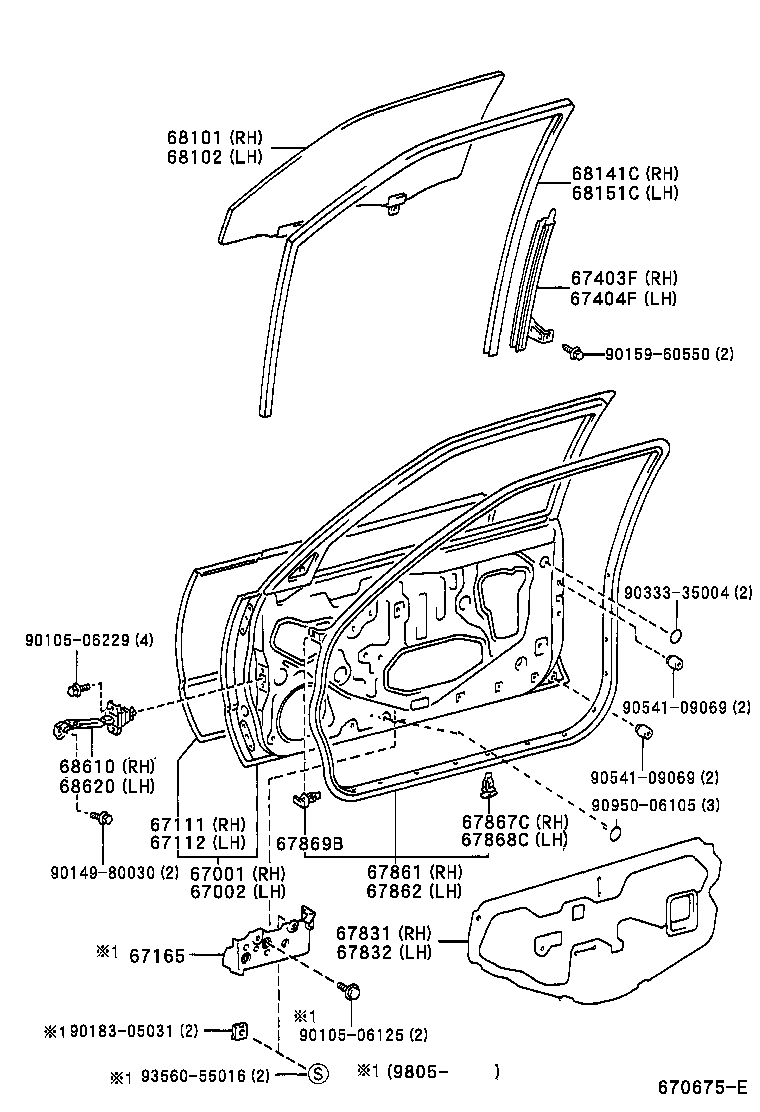

Figure 670736A 670736A 1997-04 → — Figure 671730A 671730A 1997-04 → — Figure 670783 670783 1997-04 → — Figure 670675E 670675E 1997-04 → — Figure 671472 671472 1998-09 → — Figure 670670A 670670A 1997-04 → 1999-10 Figure 671821 671821 1999-10 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67165 Extension,Front Door Inside Panel Reinforcement, Front
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67499 Retainer, Front Door Lower Frame Bracket Garnish
67601 Board Sub-assy, Front Door Trim, RH
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67601H Retainer, Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67602A Retainer, Door Trim, LH
67735 Pad, Front Door Trim, Lower RH
67736 Pad, Front Door Trim, Lower LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867C Retainer, Front Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
67869B Clip, Front Door Weatherstrip
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68151C Run, Front Door Glass, LH
68170 Weatherstrip Assy, Front Door Glass, Inner
68171B Weatherstrip, Front Door Glass, Inner RH
68172A Weatherstrip, Front Door Glass, Inner LH
68610 Check Assy, Front Door
68620 Check Assy, Front Door, LH
69751E Holder, Front Door Lock Control Knob
74241A Plug, Front Door Armrest, RH
74242A Plug, Front Door Armrest, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
