Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04

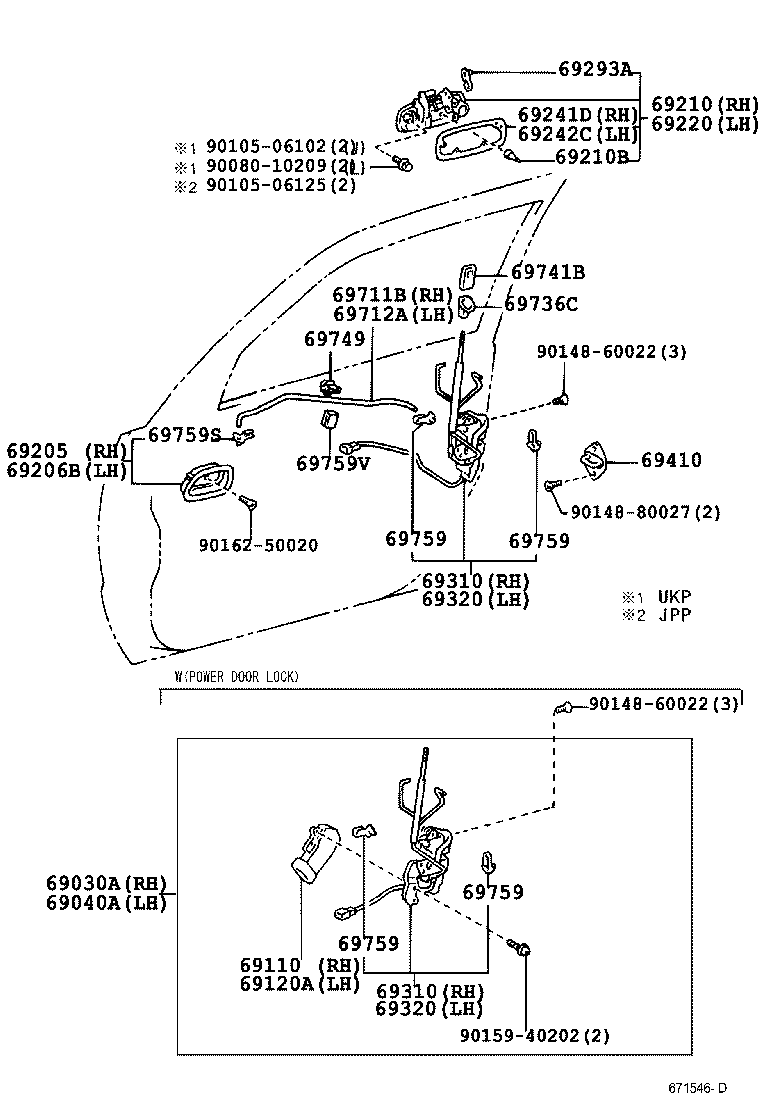

Front Door Lock & Handle
41 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 69030A | Lock Assy, Front Door W/Motor, RH |
| 69040A | Lock Assy, Front Door W/Motor, LH |
| 69110 | Actuator Assy, Front Door Lock, RH |
| 69120A | Actuator Assy, Front Door Lock, LH |
| 69205 | Handle Sub-assy, Front Door Inside, RH |
| 69205B | Cushion(FOR FRONT DOOR INSIDE HANDLE) |
| 69206B | Handle Sub-assy, Front Door Inside, LH |
| 69210 | Handle Assy, Front Door, Outside RH |
| 69210B | Cushion(FOR FRONT DOOR OUTSIDE HANDLE) |
| 69220 | Handle Assy, Front Door Outside, LH |
| 69241D | Pad, Front Door Outside Handle, RH |
| 69242C | Pad, Front Door Outside Handle, LH |
| 69255D | Protector, Door Outside Handle |
| 69256C | Protector, Door Outside Handle, LH |
| 69277B | Bezel, Front Door Inside Handle, RH |
| 69278B | Bezel, Front Door Inside Handle, LH |
| 69283 | Plug, Front Door Inside Handle Bezel, RH |
| 69284C | Plug, Front Door Inside Handle Bezel, LH |
| 69293A | Snap, Front Door Outside Handle |
| 69310 | Lock Assy, Front Door, RH |
| 69320 | Lock Assy, Front Door, LH |
| 69410 | Plate Assy, Front Door Lock Striker |
| 69701C | Link Sub-assy, Front Door Lock Control, RH |
| 69702C | Link Sub-assy, Front Door Lock Control, LH |
| 69711B | Link, Front Door Lock Remote Control, RH |
| 69712A | Link, Front Door Lock Remote Control, LH |
| 69725 | Protector, Front Door Inside Locking Link, RH |
| 69726A | Protecter, Front Door Inside Locking Link, LH |
| 69733 | Link, Front Door Inside Locking, RH |
| 69734 | Link, Front Door Inside Locking, LH |
| 69736C | Guide, Front Door Locking Link |
| 69741B | Knob, Front Door Lock Control |
| 69749 | Clamp, Front Door Lock Link |
| 69750B | Link Assy, Front Door Inside Locking, RH |
| 69753 | Bellcrank, Door Lock Control, RH |
| 69754C | Bellcrank, Door Lock Control, LH |
| 69759 | Snap, Door Lock Control Link, NO.1 |
| 69759H | Snap, Door Lock Control Link, NO.2 |
| 69759S | Snap, Front Door Inside Handle |
| 69759V | Silencer, Front Door Lock Link |
| 69760A | Link Assy, Front Door Inside Locking, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
