Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

14 part groups · 3 illustrations

Illustrations

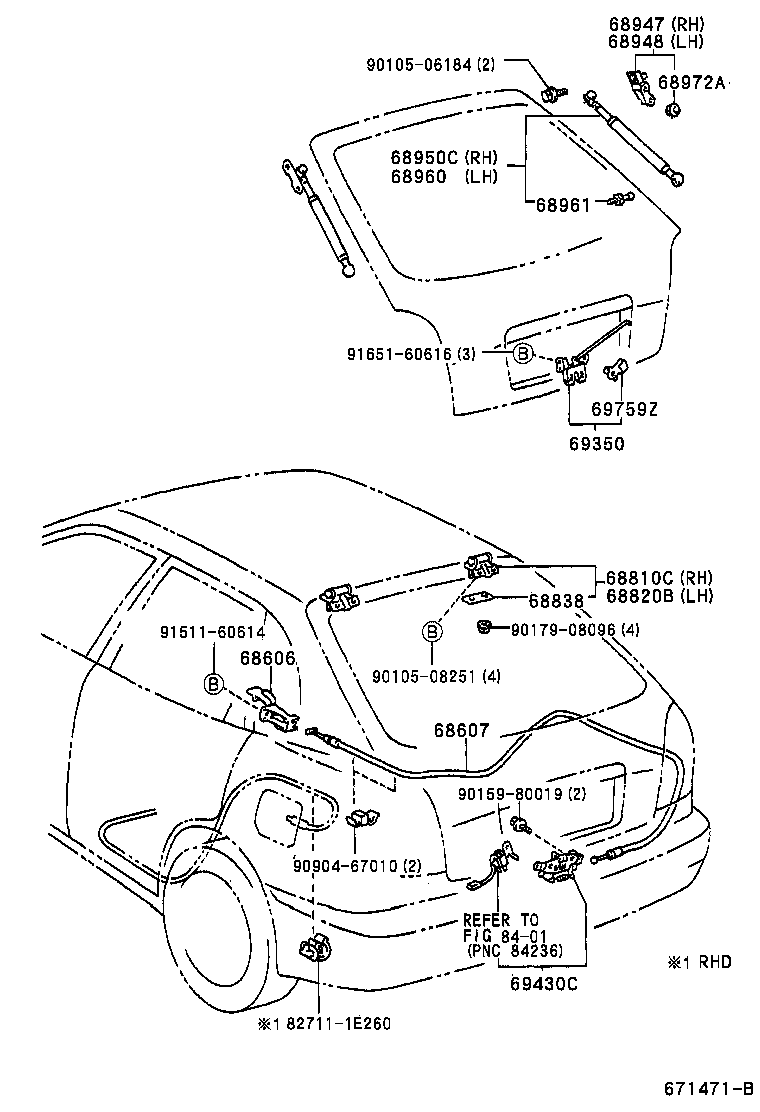

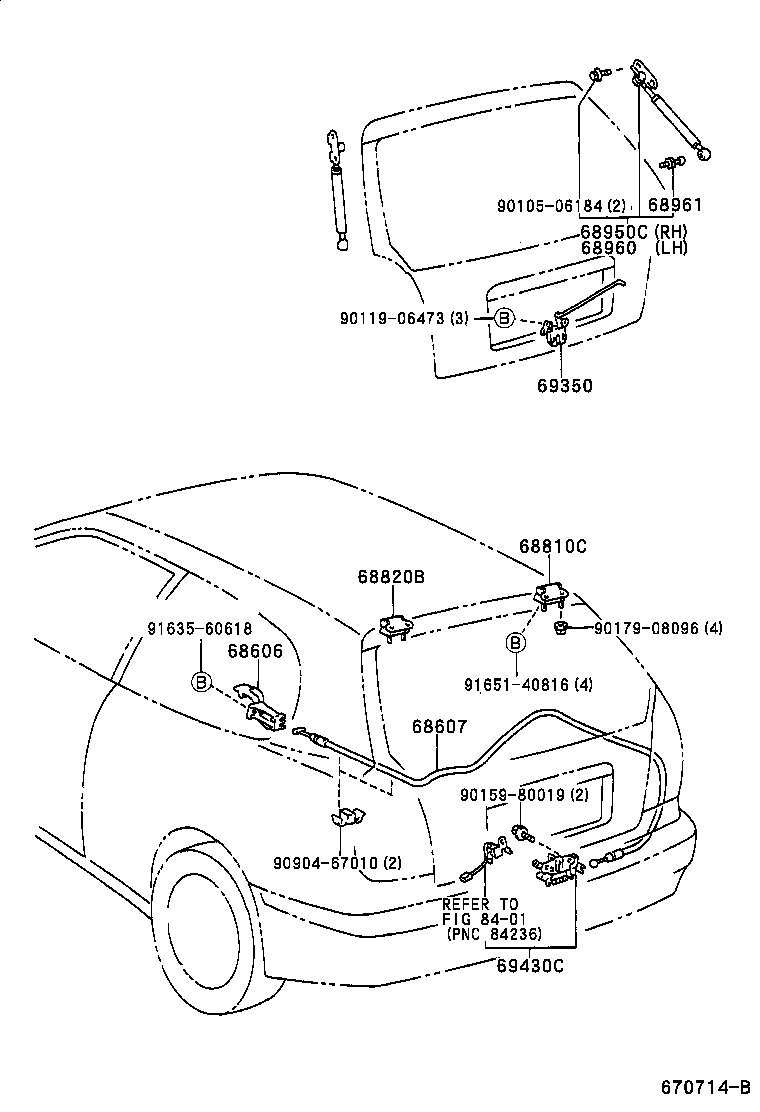

Figure 672258 672258 1997-04 → — Figure 671471B 671471B 1998-09 → — Figure 670714B 670714B 1997-04 → —

Part groups

PNCDescription
68606 Lever Sub-assy, Back Door Lock Open
68607 Cable Sub-assy, Back Door Lock Control
68810C Hinge Assy, Back Door, RH
68820B Hinge Assy, Back Door, LH
68838 Pad, Back Door Hinge, NO.1
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
68961 Bolt, Back Door Stay
68972A Packing, Back Door Stay, NO.2
69350 Lock Assy, Back Door
69430C Striker Assy, Back Door Lock
69759Z Snap, Door Lock Control Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
