Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

9 part groups · 2 illustrations

Illustrations

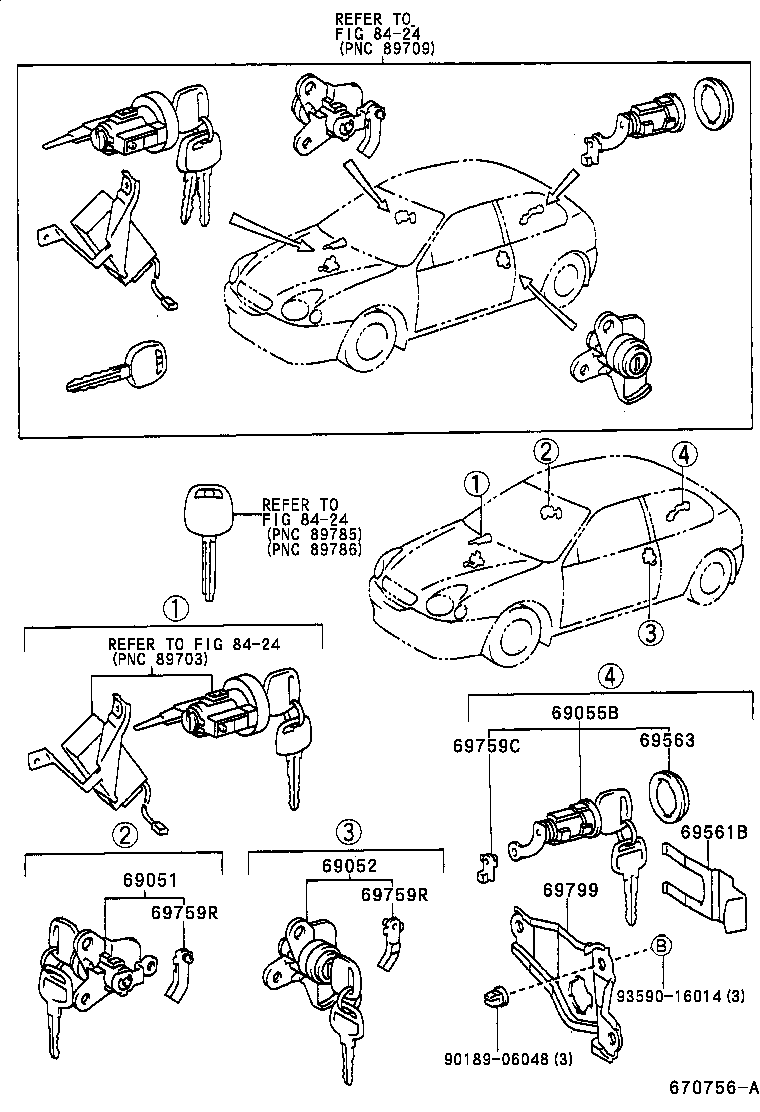

Figure 670757A 670757A 1997-04 → — Figure 670756A 670756A 1997-04 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69503B Key, Cut
69561B Retainer, Back Door Lock Cylinder
69563 Pad, Back Door Lock Cylinder
69759C Snap, Back Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
69799 Bracket, Back Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
