Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

16 part groups · 3 illustrations

Illustrations

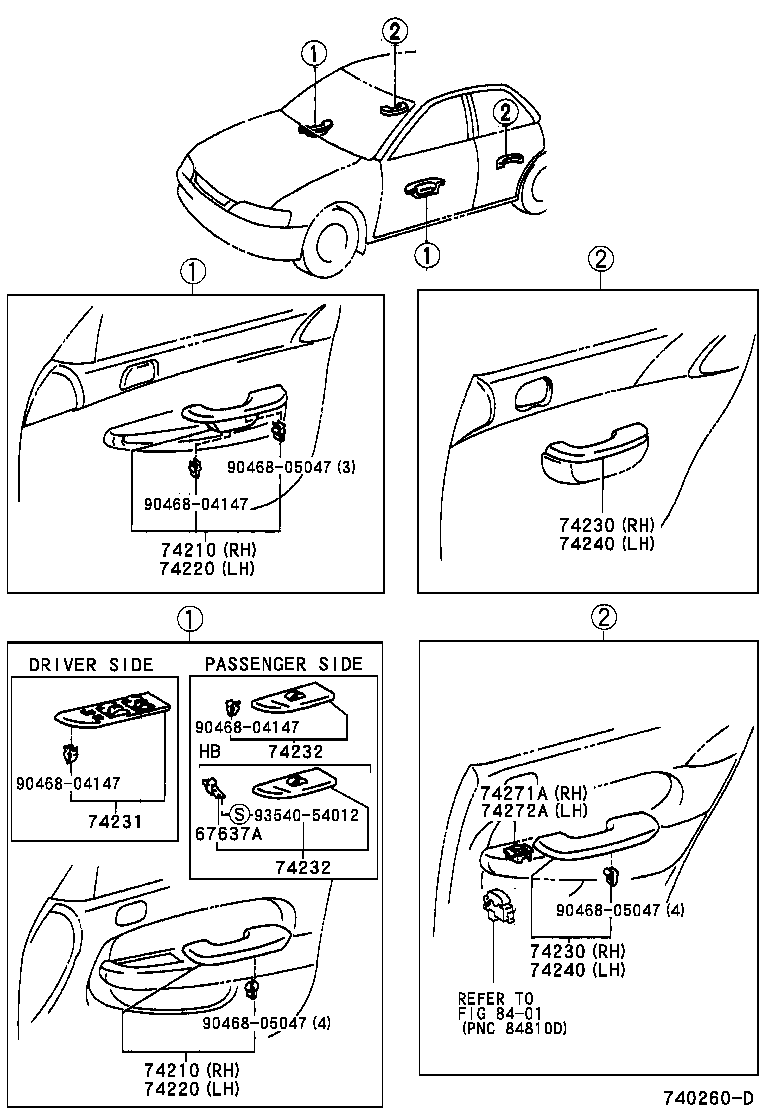

Figure 741081 741081 1997-04 → — Figure 740260D 740260D 1997-04 → — Figure 740257E 740257E 1997-04 → —

Part groups

PNCDescription
67637A Plate, Front Door Trim
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74230 Armrest Assy, Rear, RH
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74240 Armrest Assy, Rear, LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74619A Cushion, Assist Grip
74631B Hook, Coat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
