Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

16 part groups · 2 illustrations

Illustrations

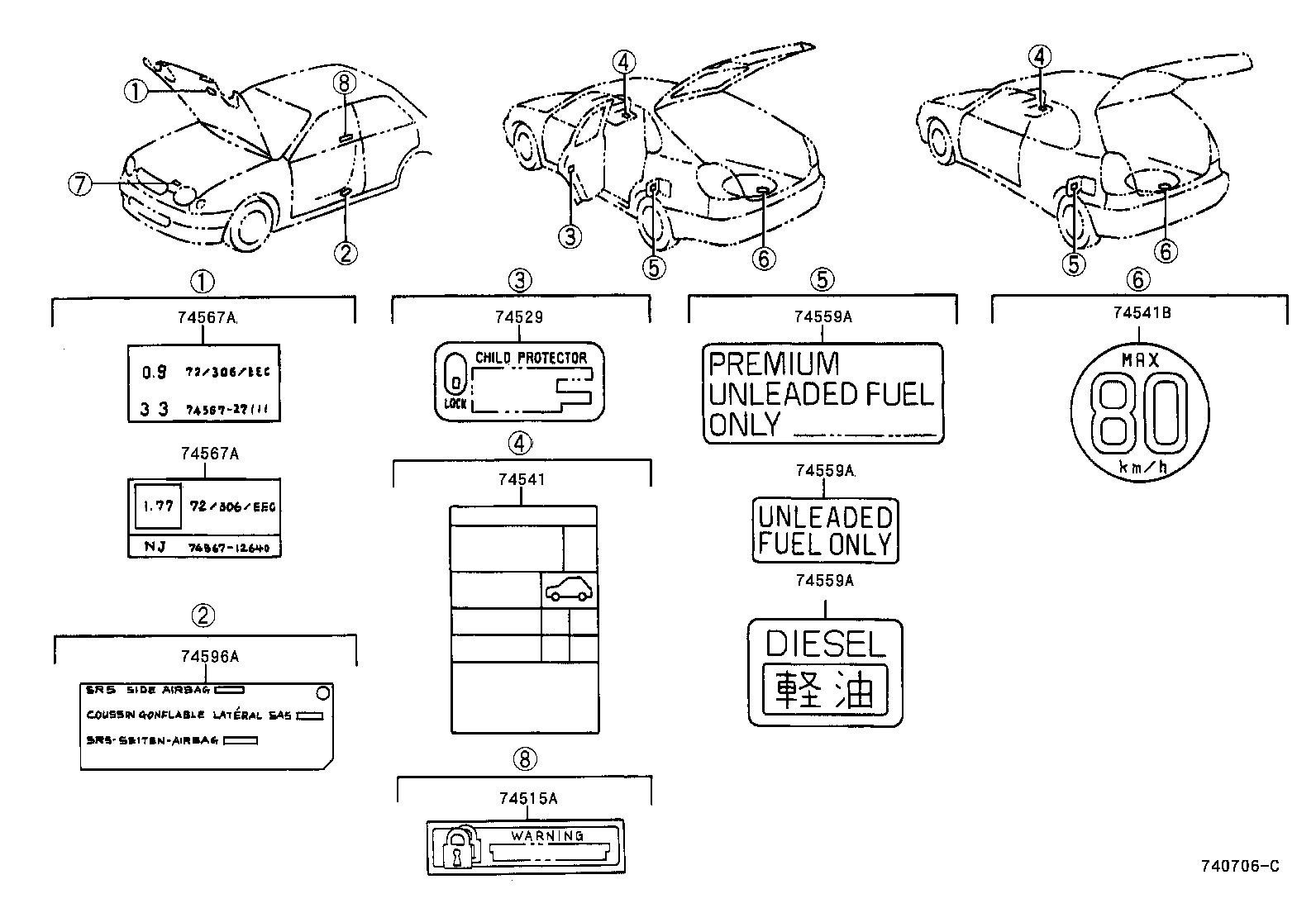

Figure 745496 745496 1997-04 → — Figure 740706C 740706C 1997-04 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11286B Plate, Engine Specification
11289B Label, Spark Plug Notice
11291B Plate, Engine Name
11293C Label, Tune-up Specification Information
11296C Label, Engine Service Information
13564 Label, Timing Belt Replacement Information
17791A Label, Maintenance Information
74515A Plate, Theft Warning
74529 Plate, Child Proof OR Child Protector Lock Caution
74541 Plate, Tire Pressure Caution
74541B Plate, Compact Spare Tire Caution
74559A Plate, Fuel Caution
74567A Plate, E.C.E Approved Number
74596A Label, Side Airbag Caution
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
