Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

15 part groups · 2 illustrations

Illustrations

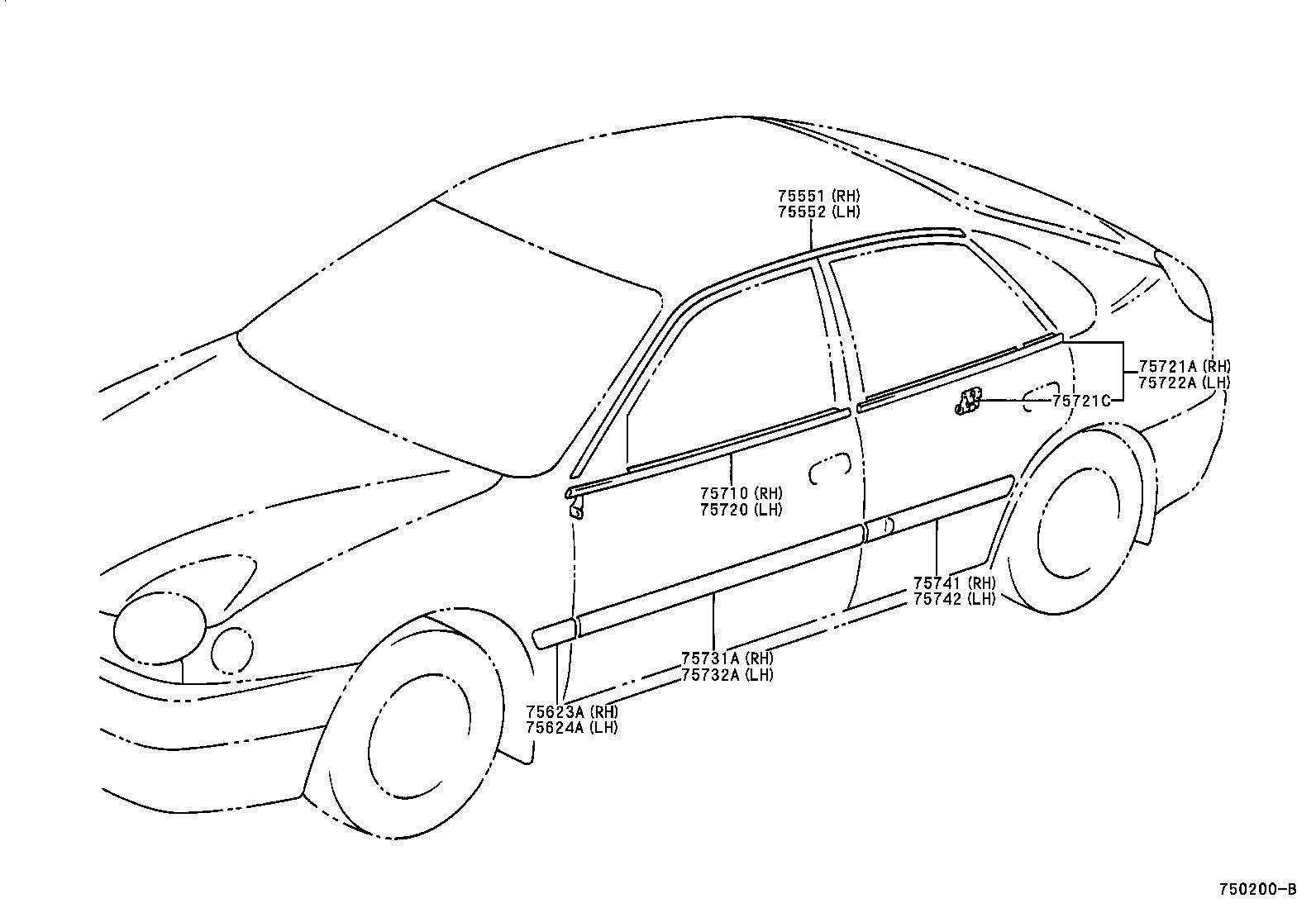

Figure 750201A 750201A 1997-04 → — Figure 750200B 750200B 1997-04 → —

Part groups

PNCDescription
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75721A Moulding, Rear Door Belt, RH
75721C Clip, Door Glass Weatherstrip
75722A Moulding, Rear Door Belt, LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
