Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

7 part groups · 2 illustrations

Illustrations

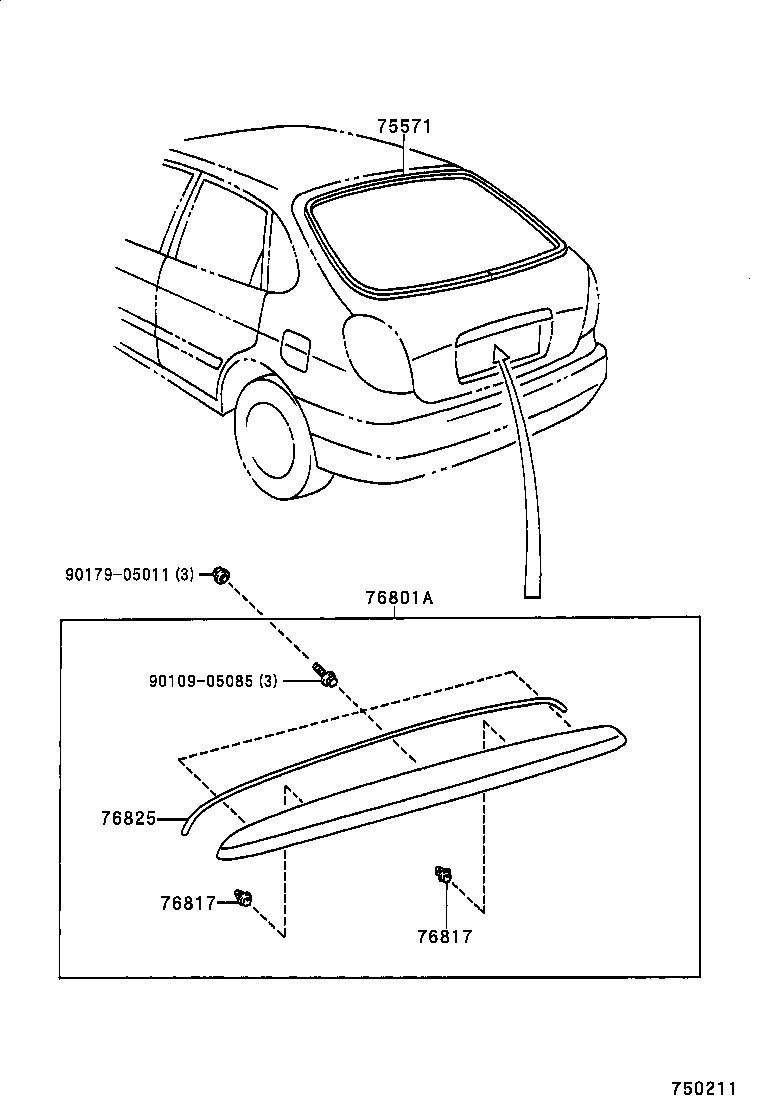

Figure 750212A 750212A 1997-04 → — Figure 750211 750211 1997-04 → —

Part groups

PNCDescription
75571 Moulding, Back Window, Outside Upper
75573A Moulding, Back Window, Outside RH
75574A Moulding, Back Window, Outside LH
75575A Moulding, Back Window, Outside Lower
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
