Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

30 part groups · 6 illustrations

Illustrations

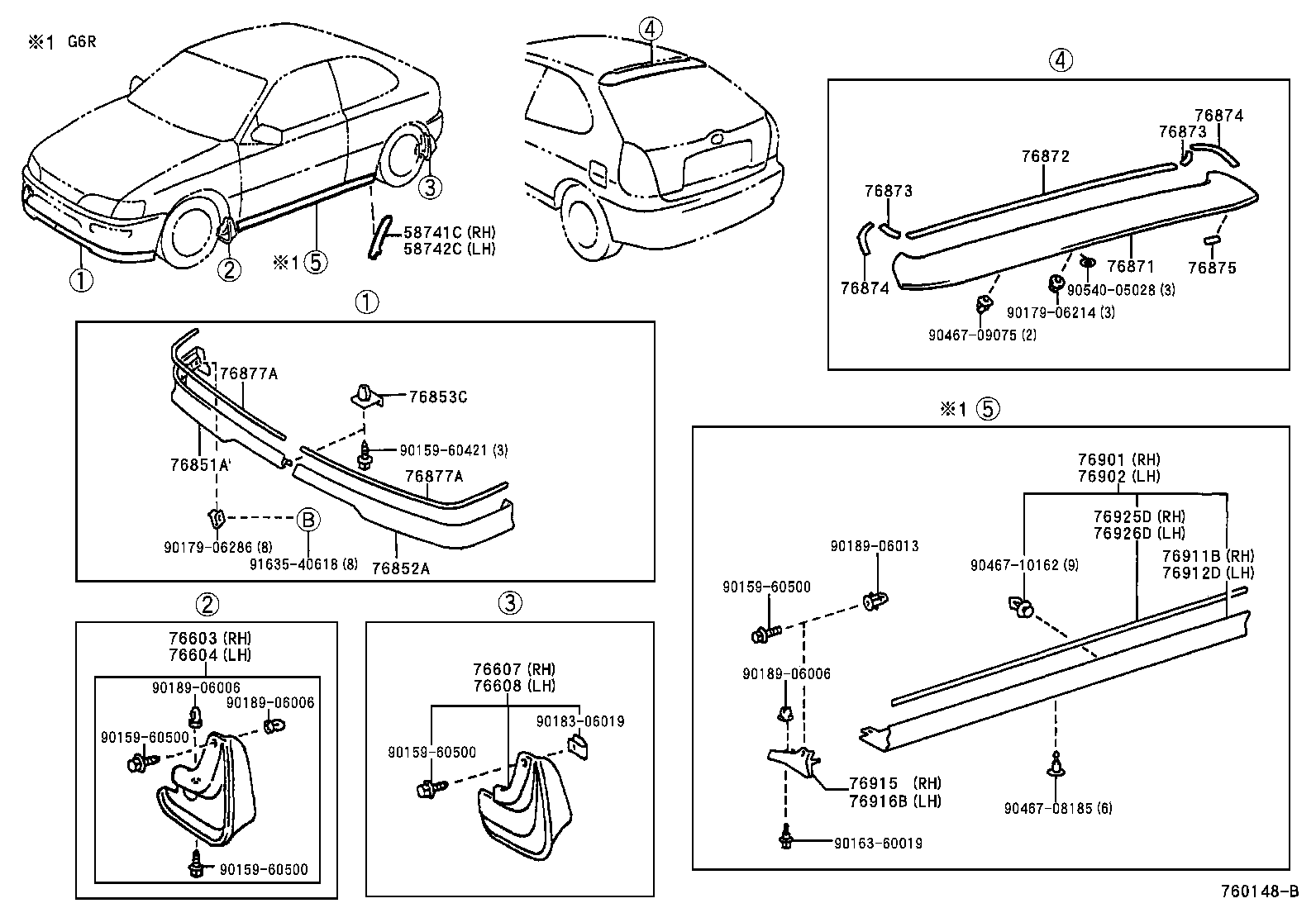

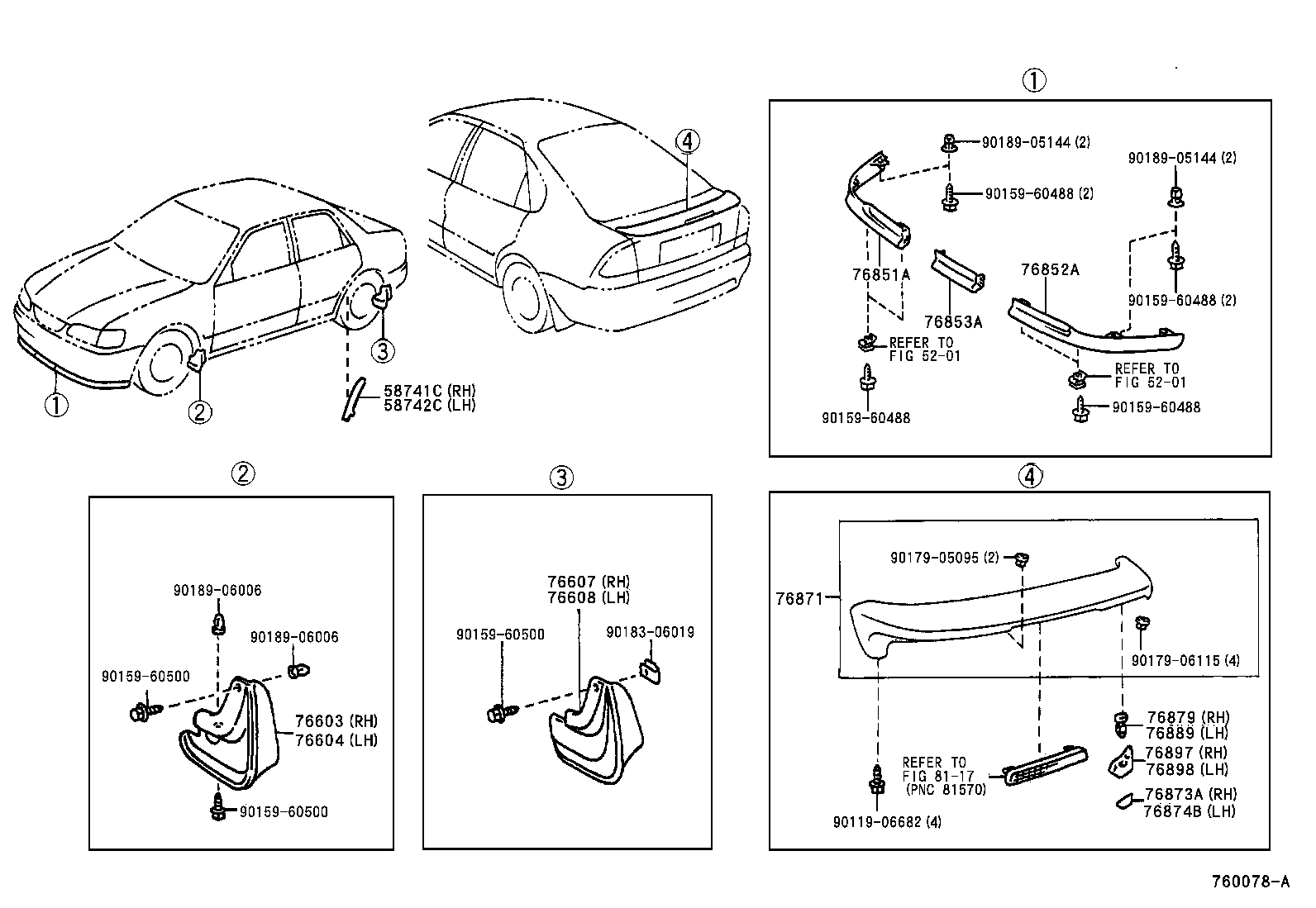

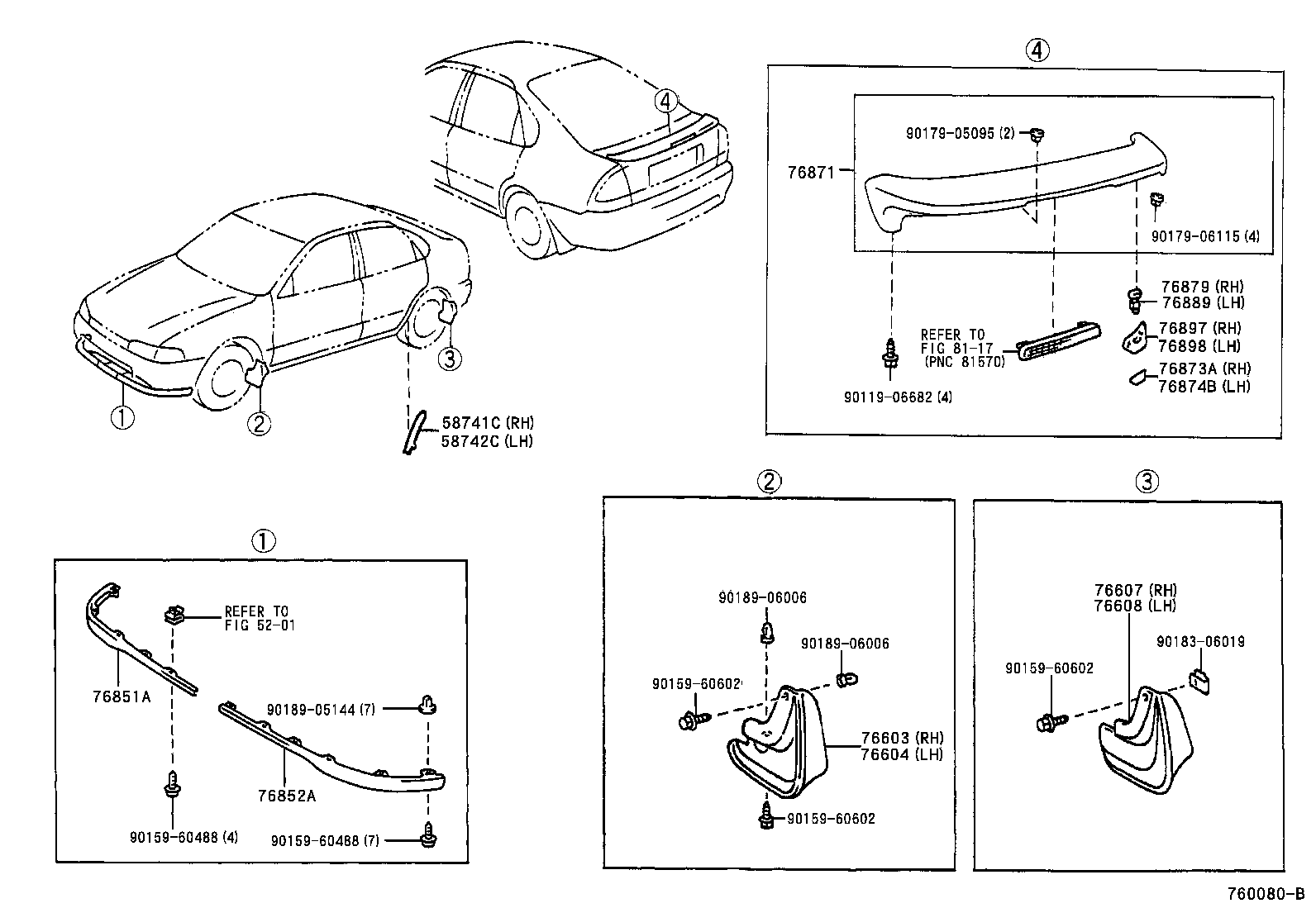

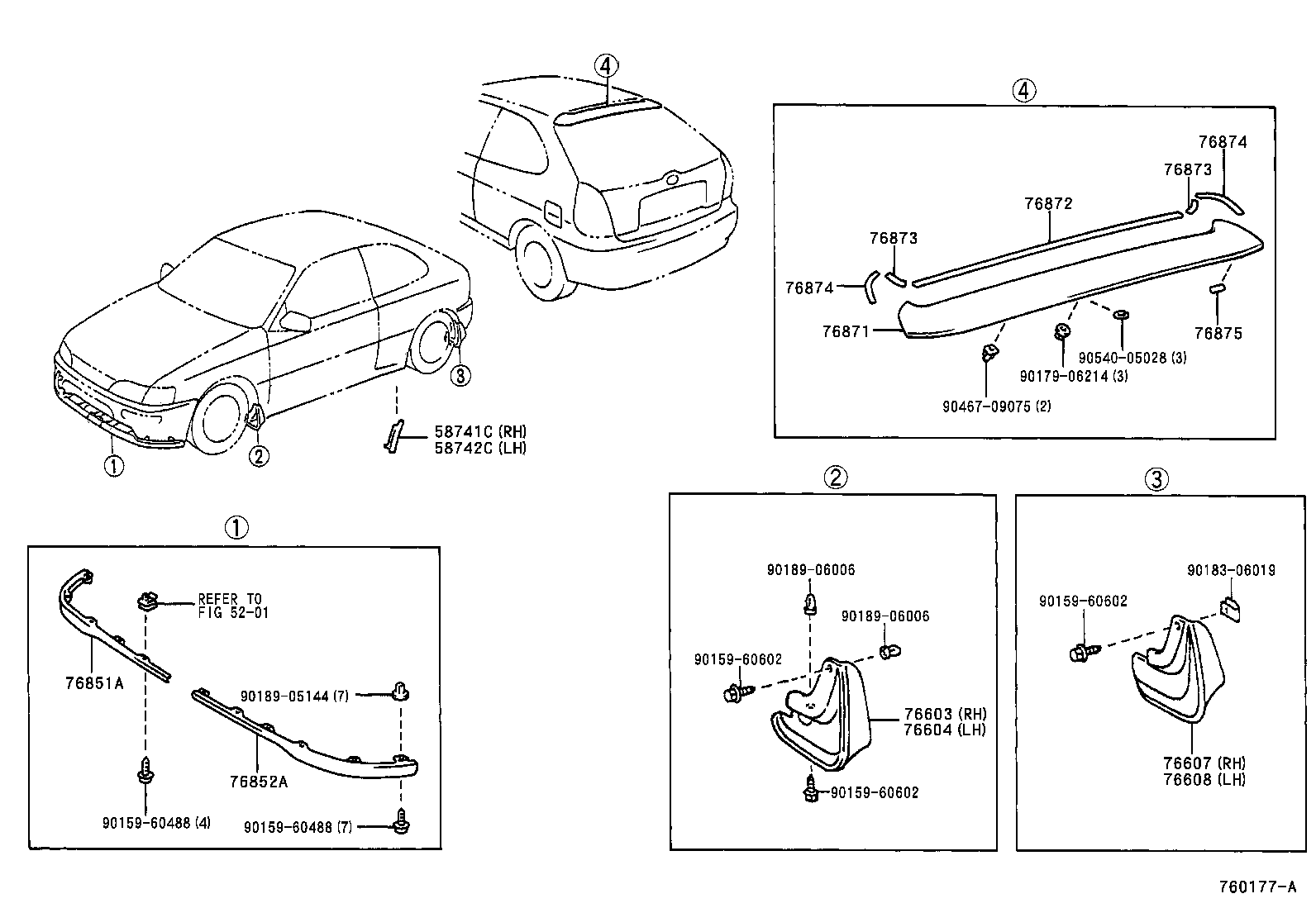

Figure 760079B 760079B 1997-04 → 1999-10 Figure 760078A 760078A 1997-04 → 1999-10 Figure 760078A 760078A 1999-10 → 1999-11 Figure 760148B 760148B 1998-08 → 1999-10 Figure 760177A 760177A 1999-10 → — Figure 760080B 760080B 1999-10 → —

Part groups

PNCDescription
58741C Protector, Quarter Panel, RH
58742C Protector, Quarter Panel, LH
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76853A Retainer, Front Spoiler, Upper NO.1
76853C Retainer, Front Spoiler, NO.1
76871 Spoiler, Rear
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76873A Protector, Rear Spoiler, RH
76874 Protector, Rear Spoiler, NO.3
76874B Protector, Rear Spoiler, LH
76875 Protector, Rear Spoiler, NO.4
76877A Protector, Front Spoiler
76879 Clip, Rear Spoiler, NO.1
76889 Clip, Rear Spoiler, NO.2
76897 Protector, Rear Spoiler, Side RH
76898 Protector, Rear Spoiler, Side LH
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76911B Mudguard, Side, RH
76912D Mudguard, Side, LH
76915 Mudguard, Rear Door, RH
76916B Mudguard, Rear Door, LH
76925D Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
