Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

8 part groups · 4 illustrations

Illustrations

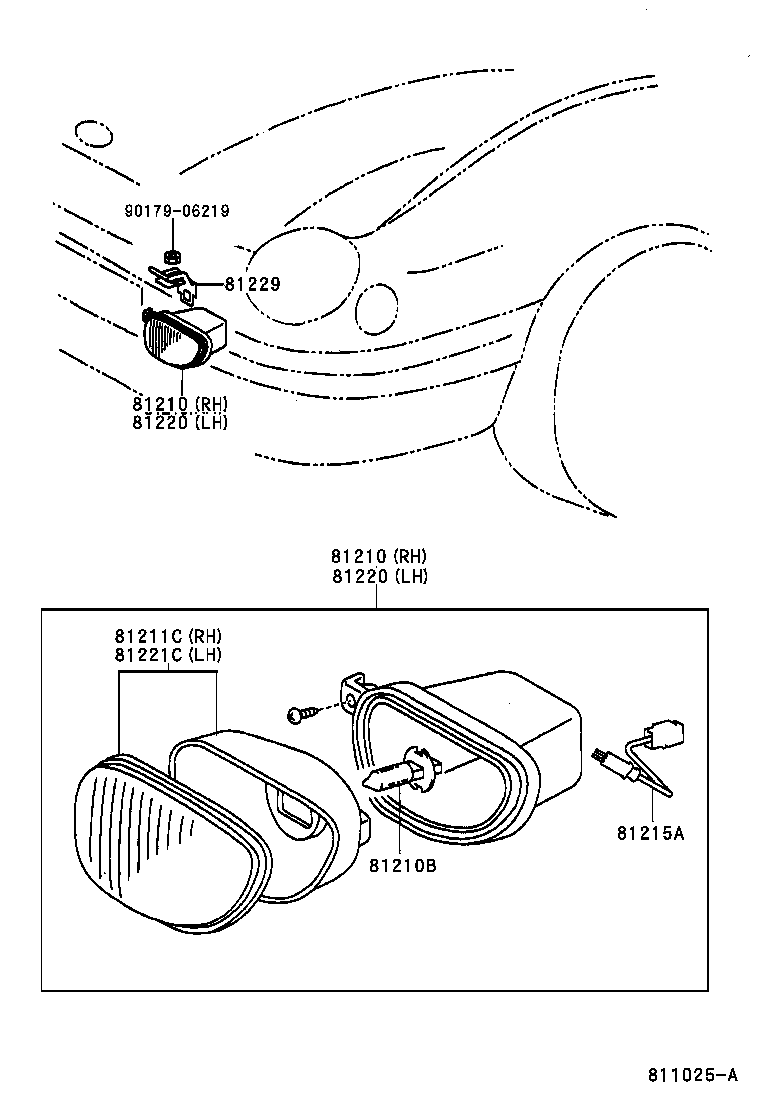

Figure 810463 810463 1997-04 → 1999-10 Figure 811025A 811025A 1998-09 → 1999-11 Figure 811305 811305 1999-10 → 1999-11 Figure 811305 811305 1999-11 → —

Part groups

PNCDescription
81210 Lamp Assy, Fog
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81212C Cover, Fog Lamp
81215A Socket & Wire, Fog Lamp
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81229 Bracket, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
