Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

45 part groups · 25 illustrations

Illustrations

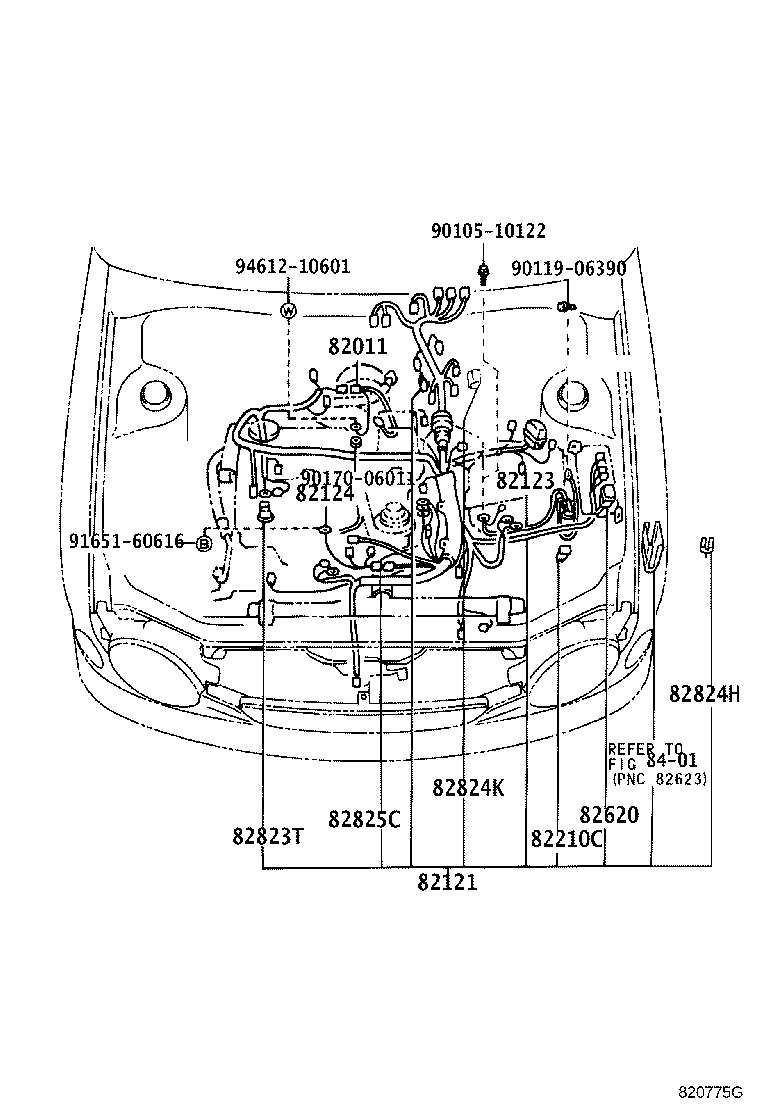

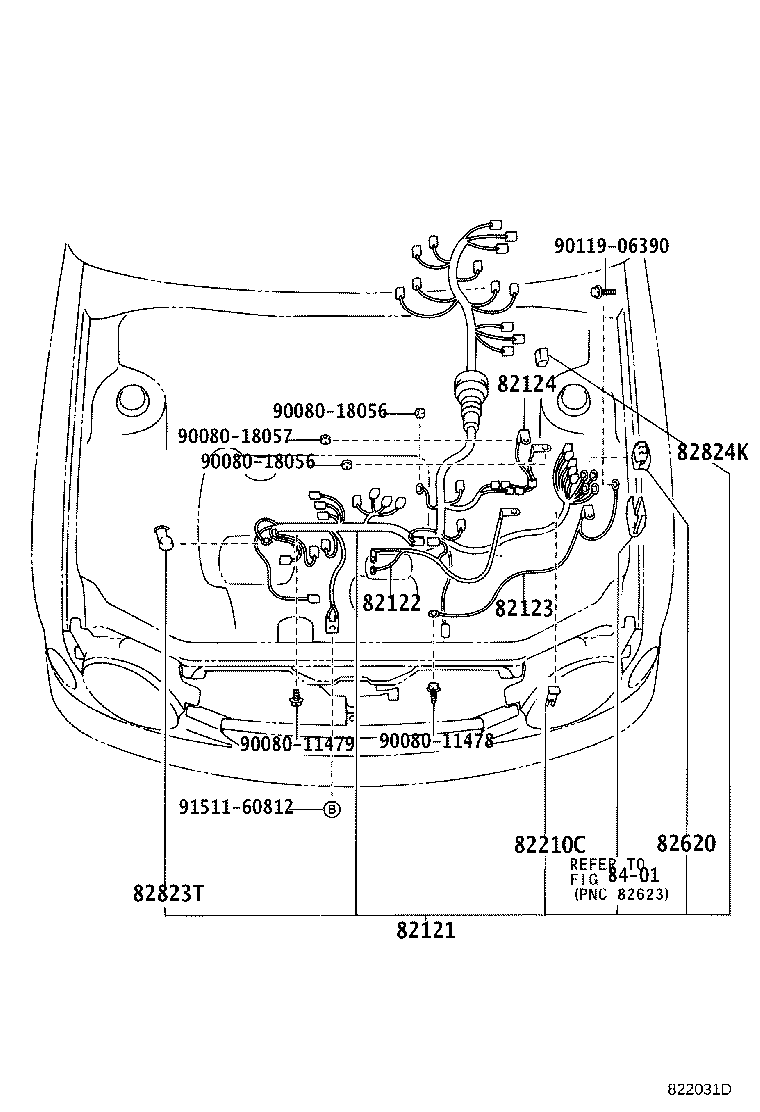

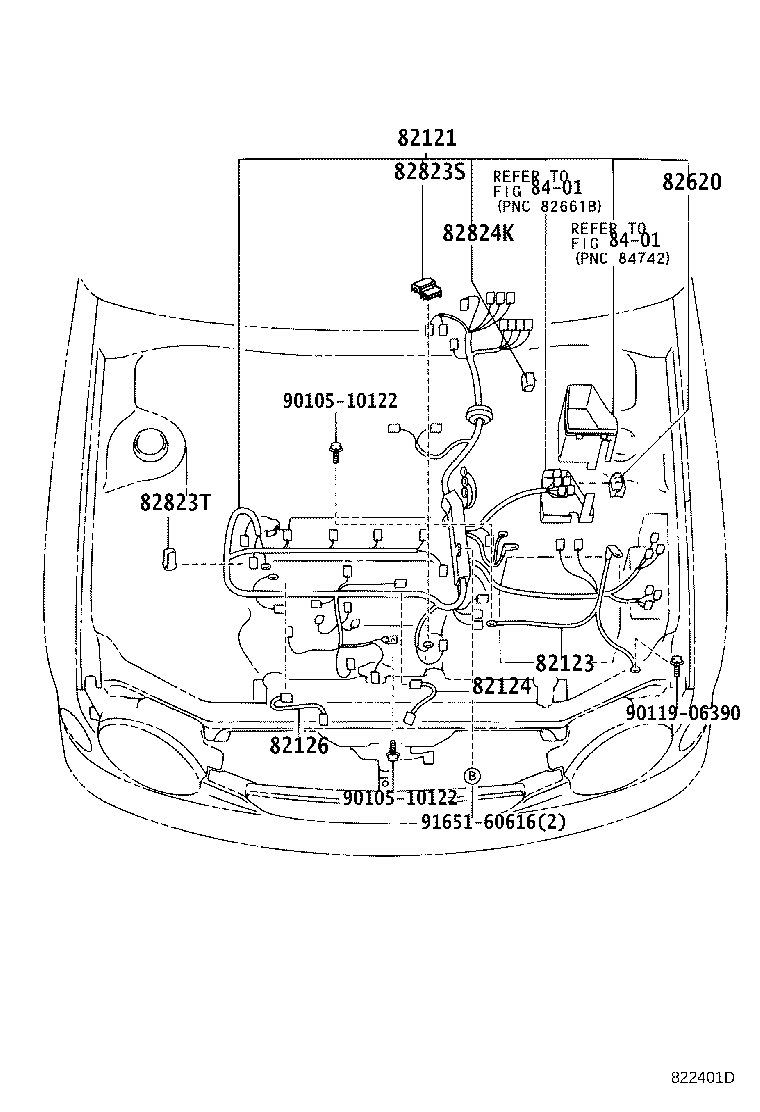

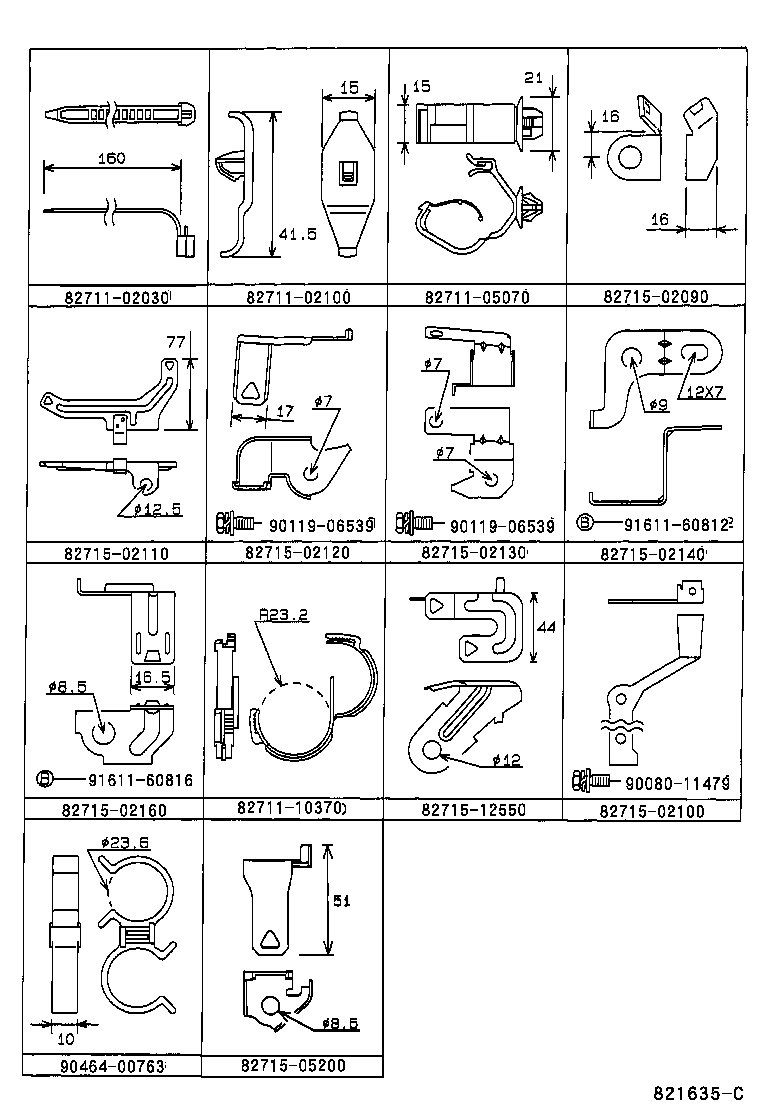

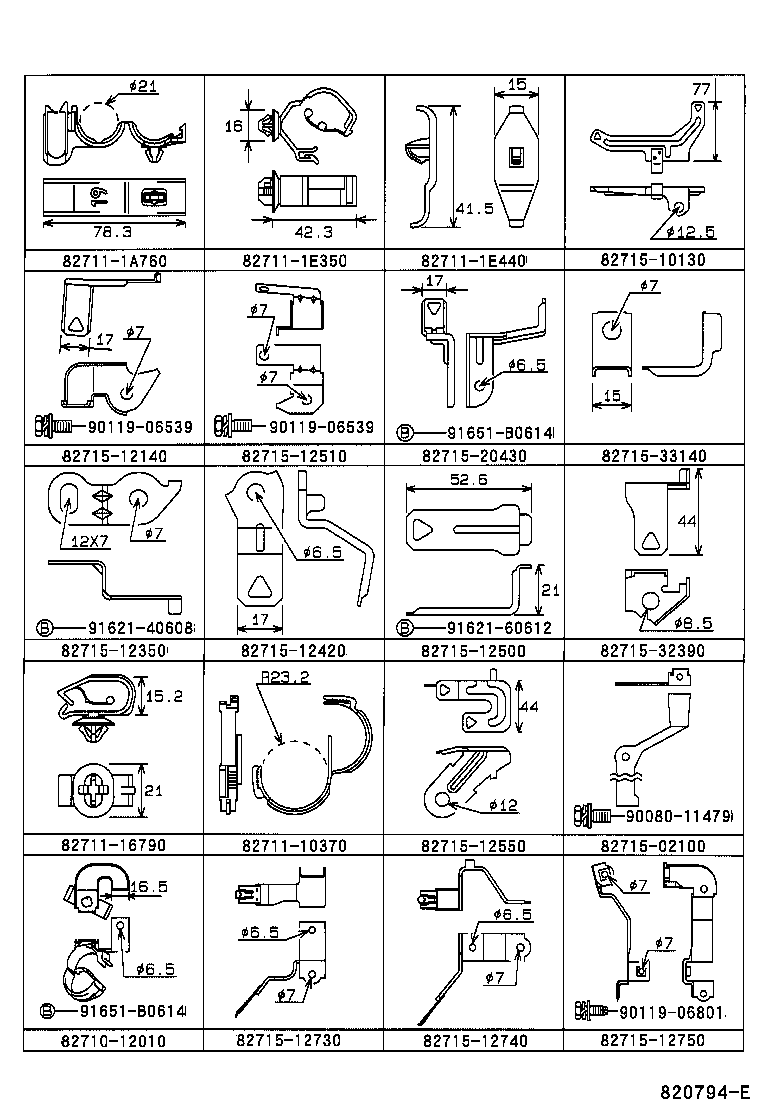

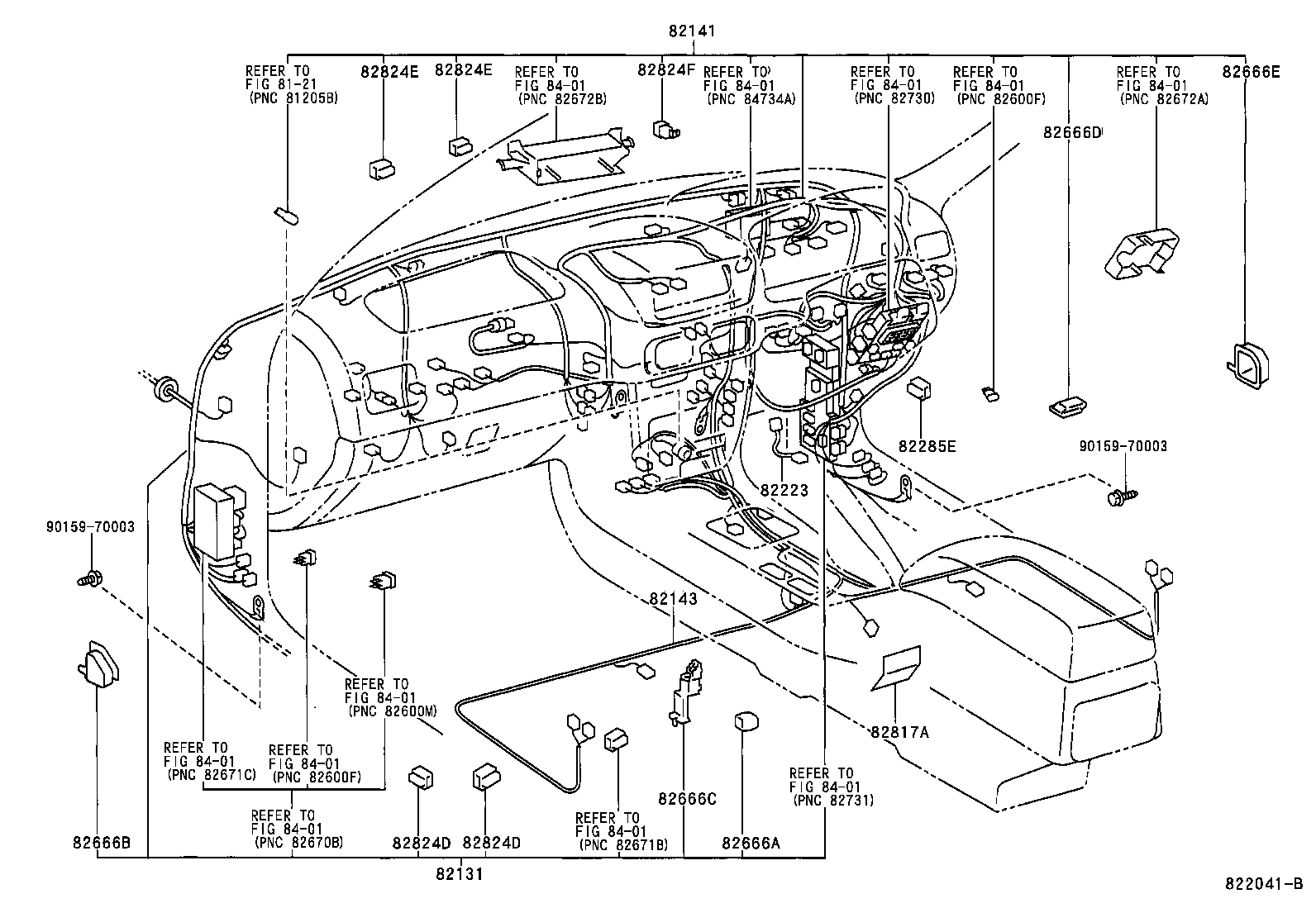

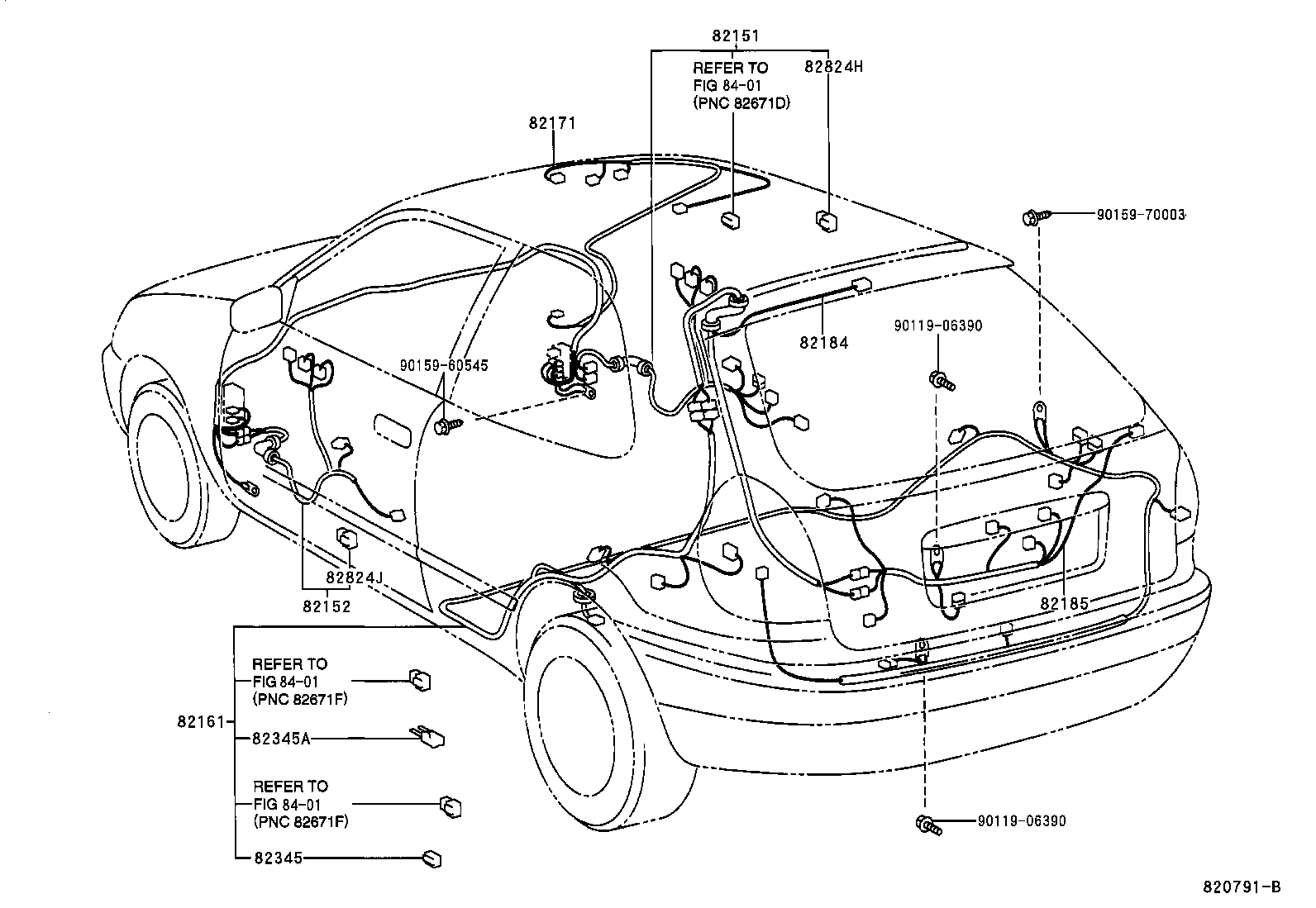

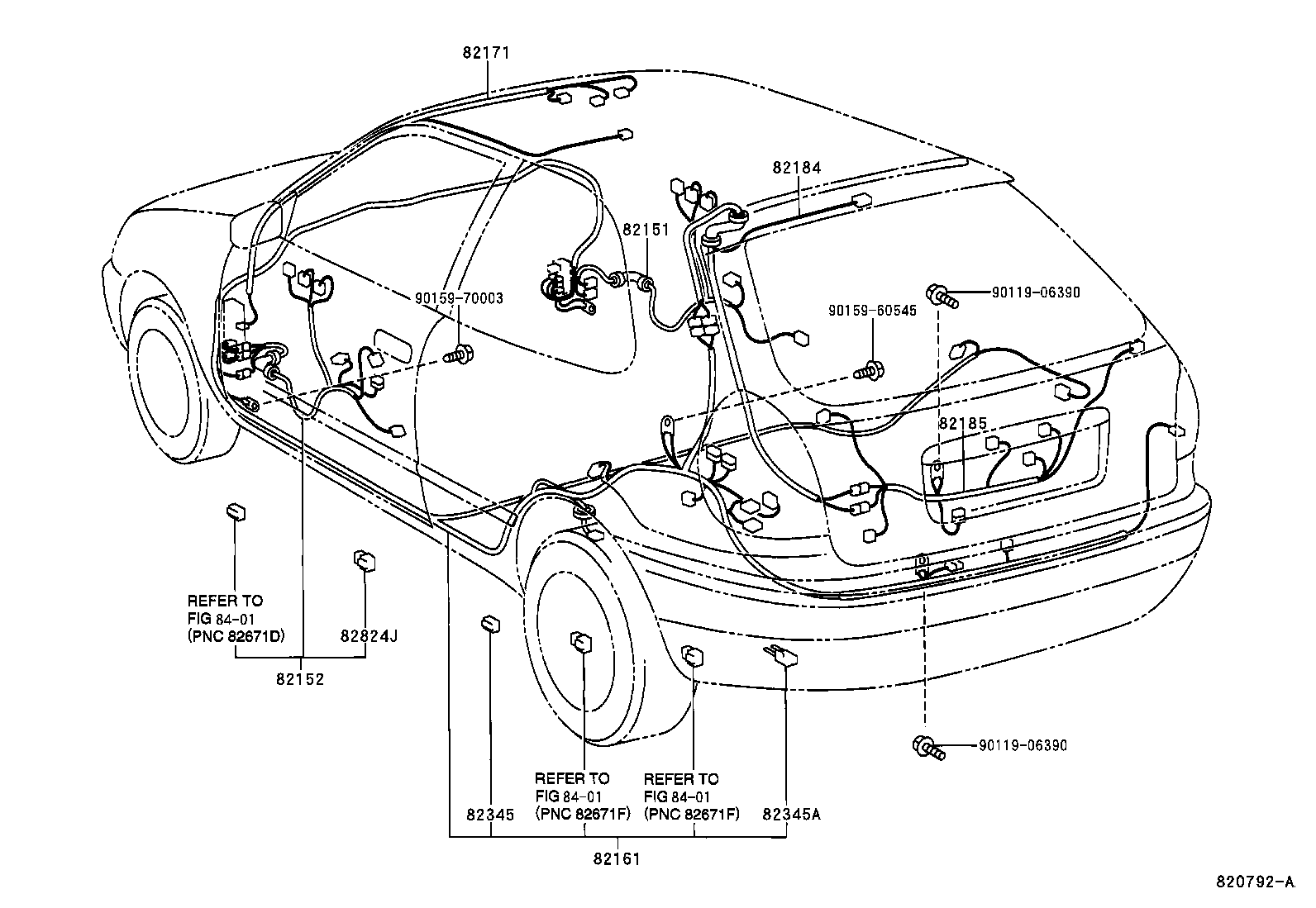

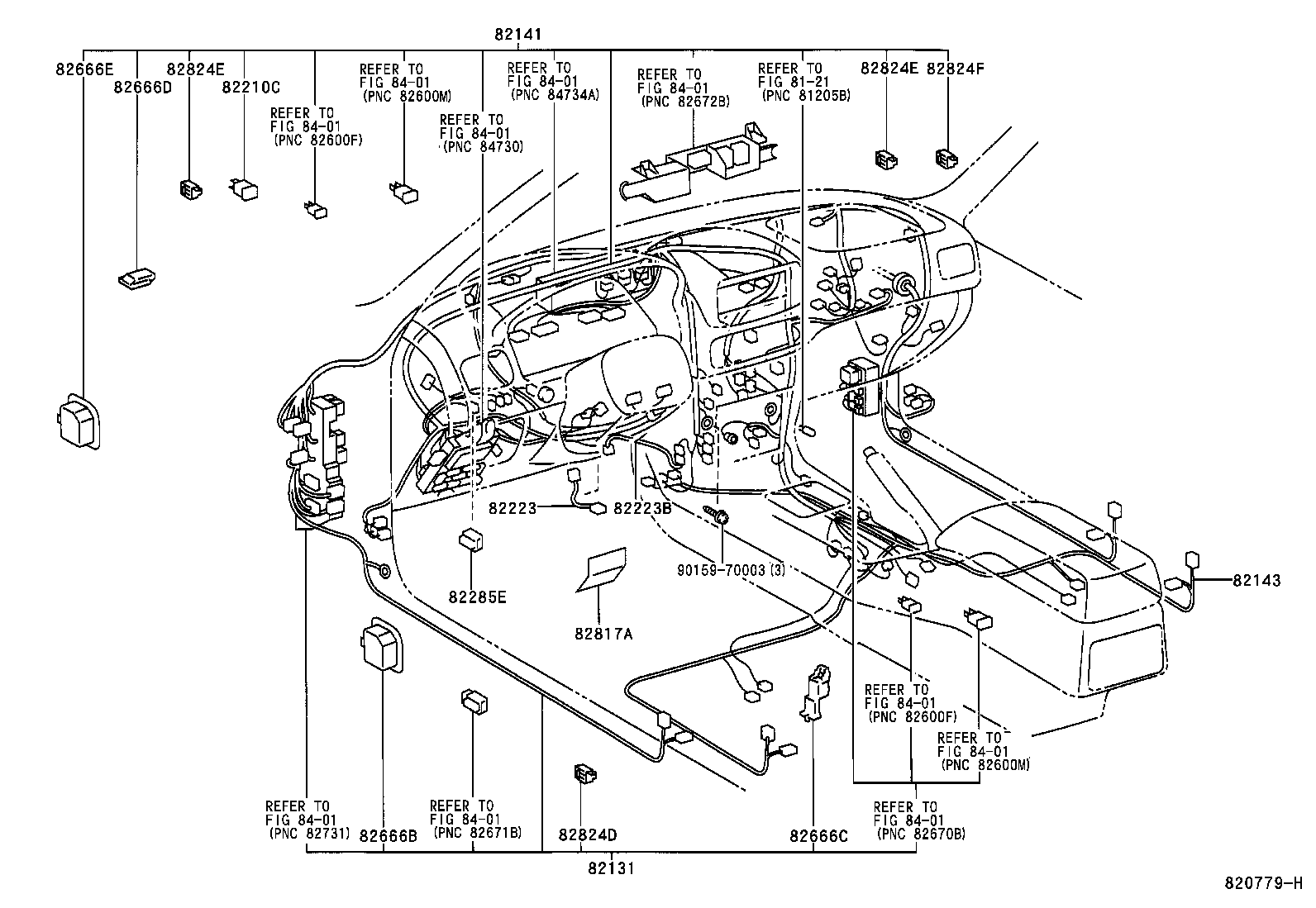

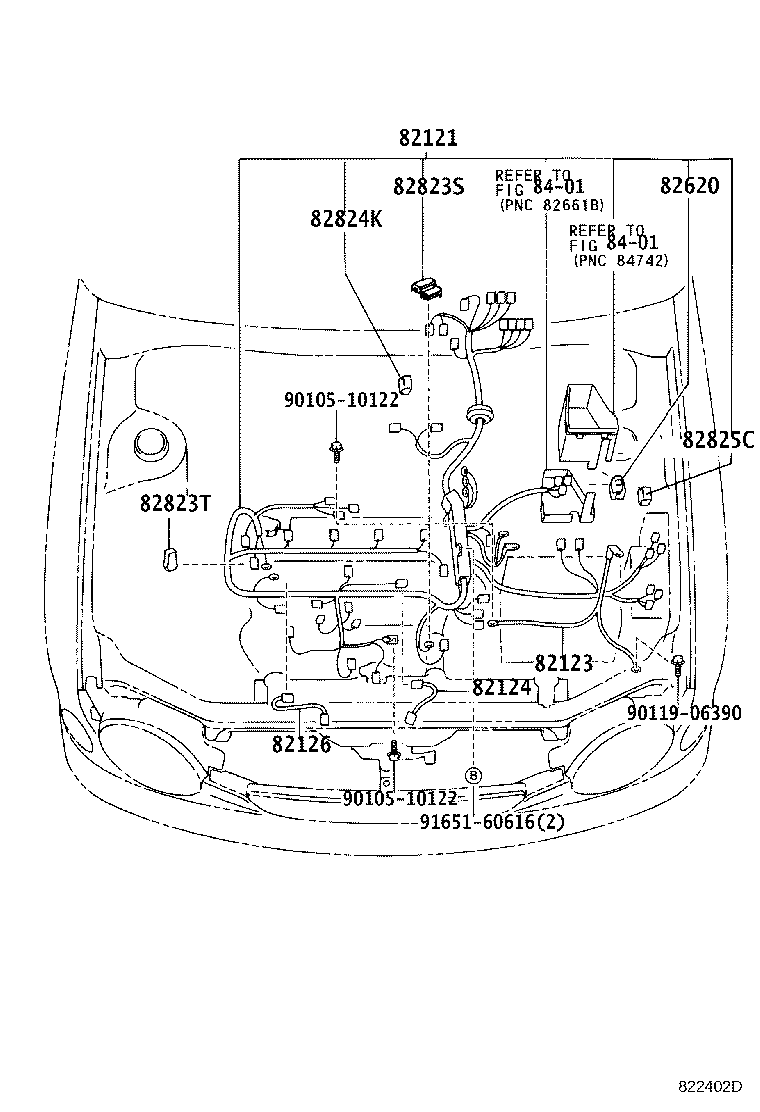

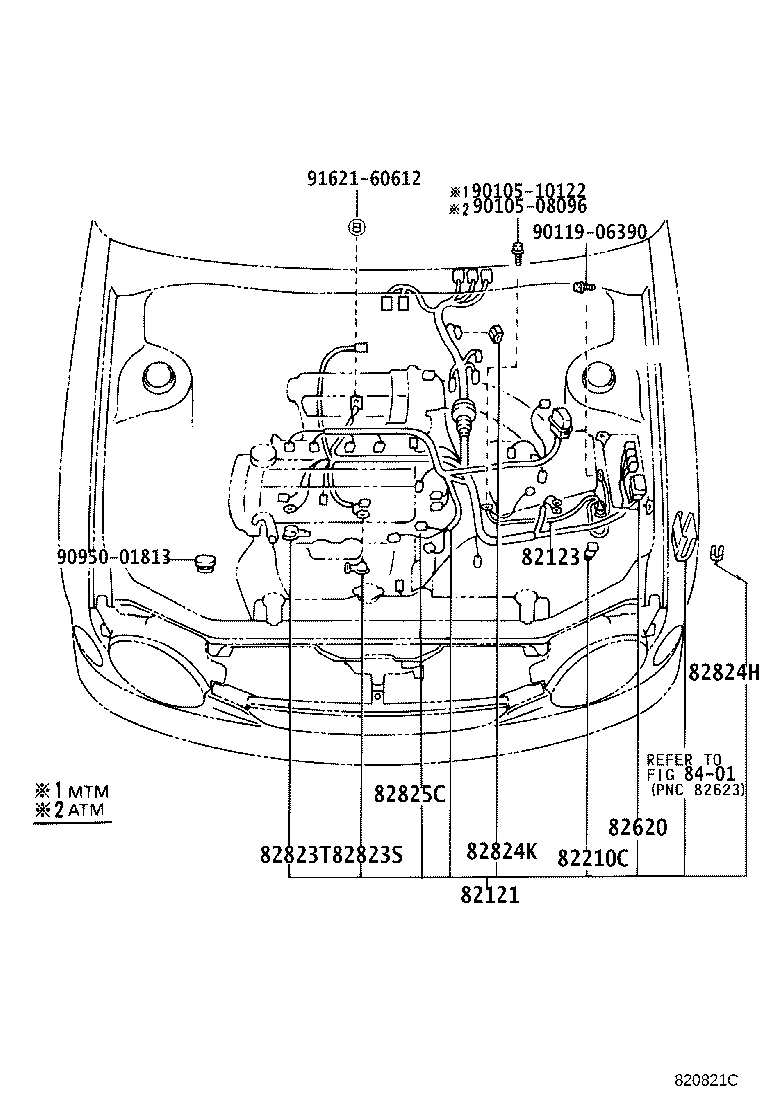

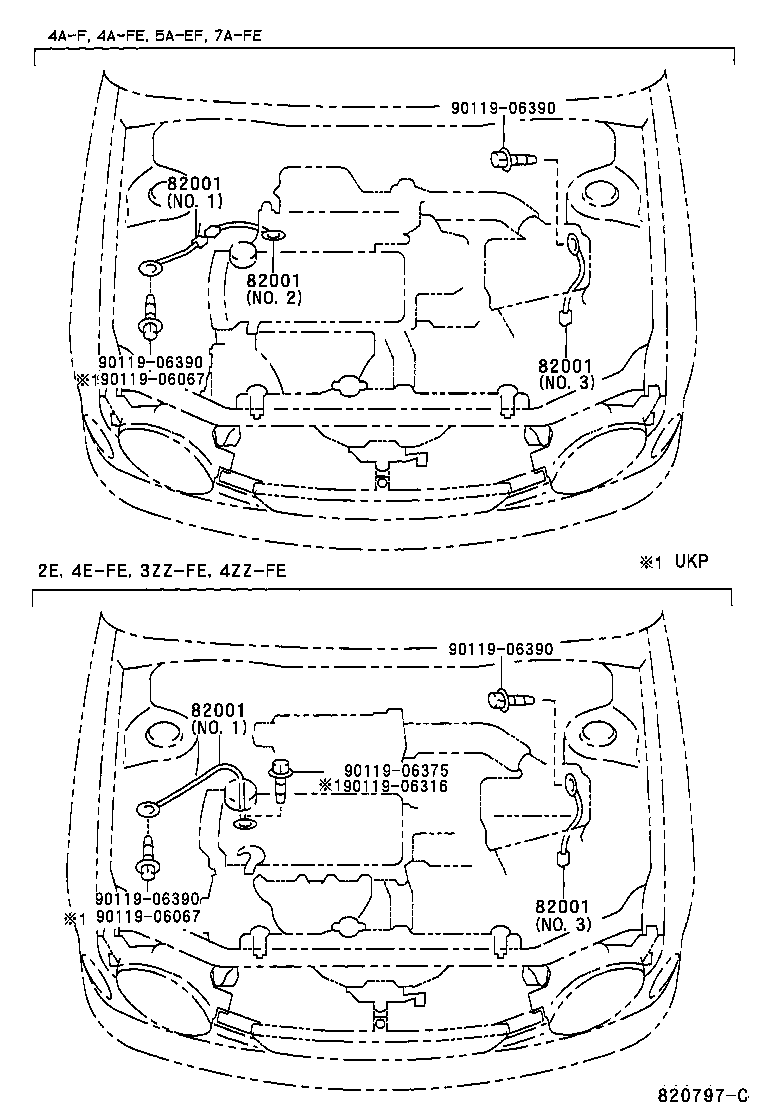

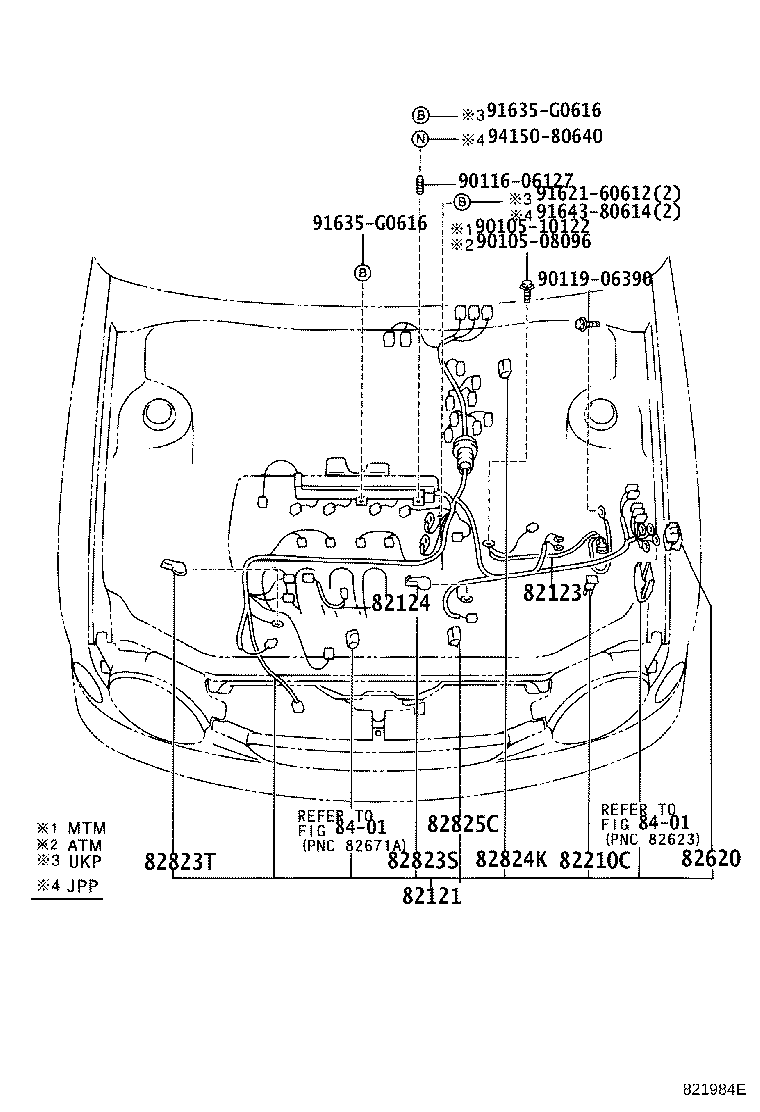

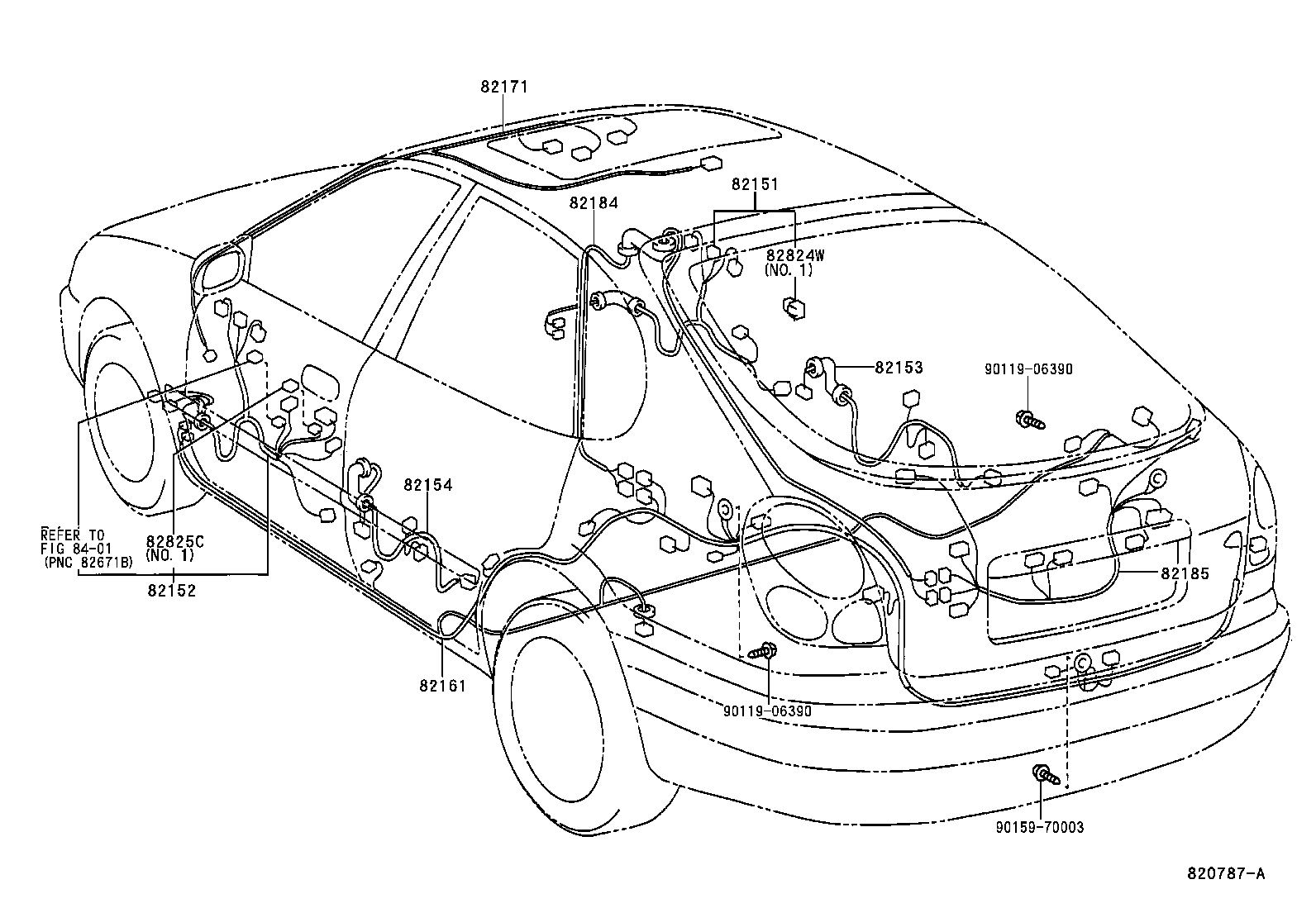

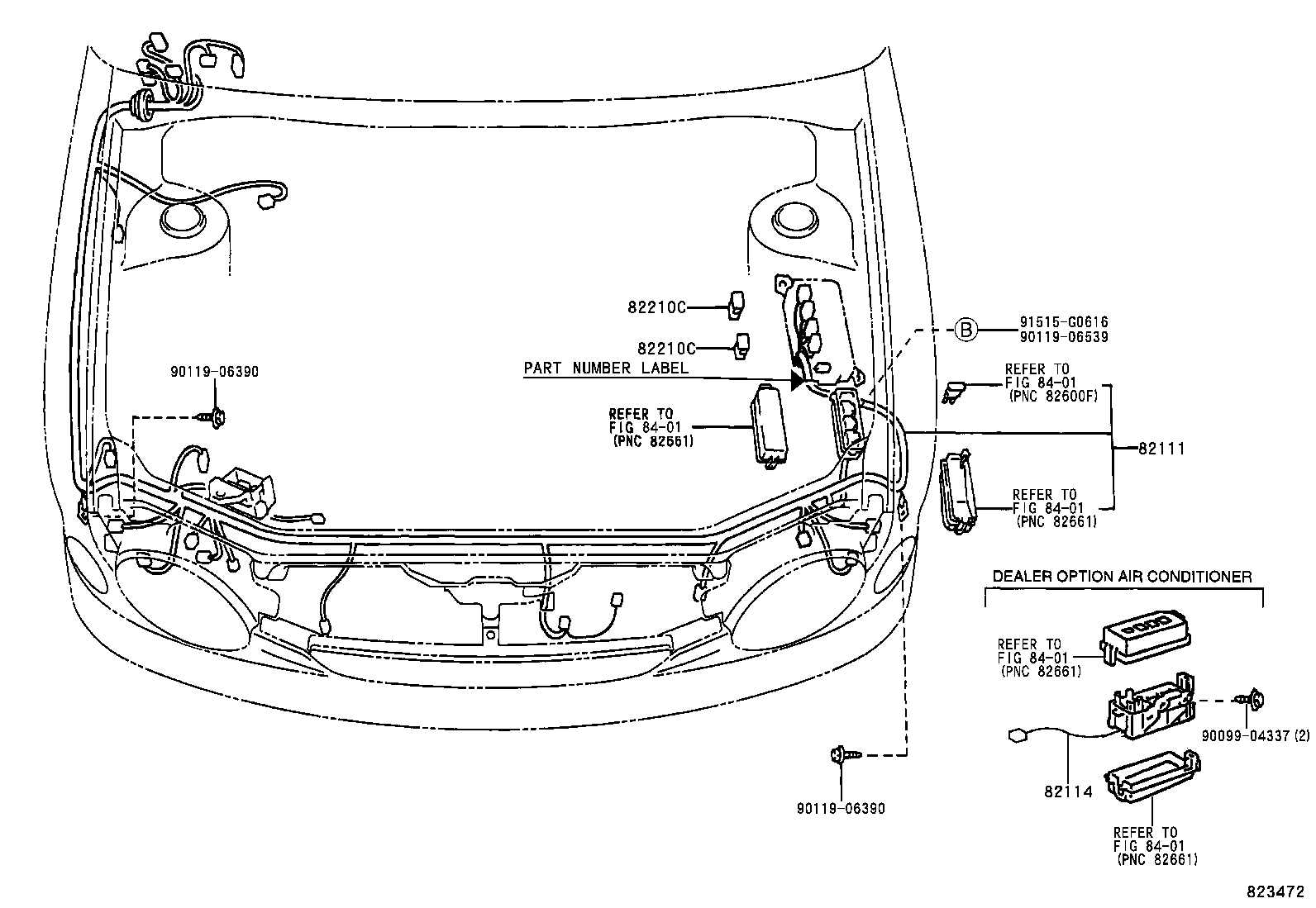

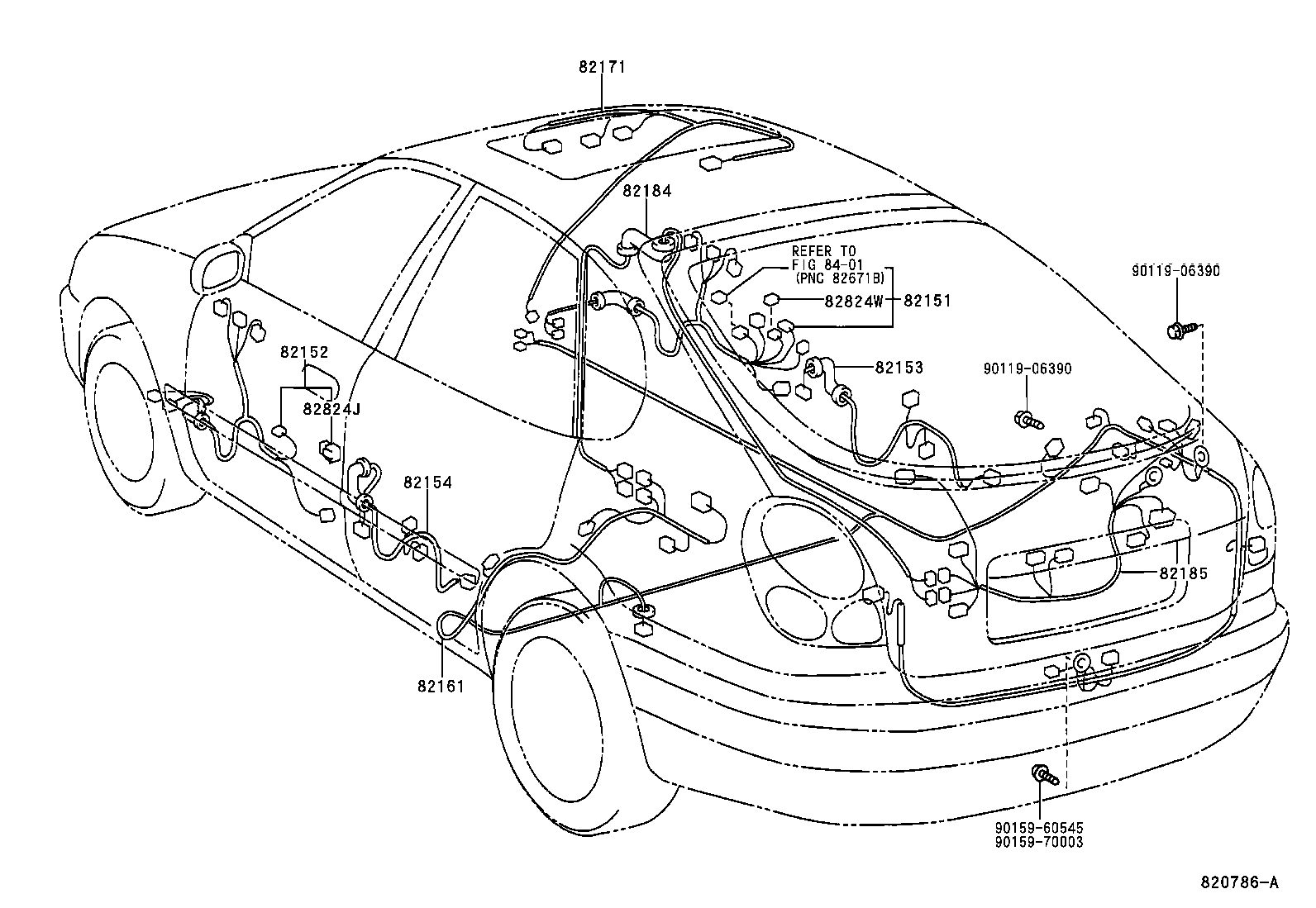

Figure 820820C 820820C 1997-04 → — Figure 820775G 820775G 1997-04 → — Figure 820821C 820821C 1997-04 → — Figure 821984E 821984E 1999-10 → — Figure 822031D 822031D 1999-11 → — Figure 822401D 822401D 2000-08 → — Figure 822402D 822402D 2000-08 → — Figure 823472 823472 1997-04 → — Figure 822041B 822041B 1997-04 → — Figure 820779H 820779H 1997-04 → — Figure 820786A 820786A 1997-04 → — Figure 820787A 820787A 1997-04 → — Figure 820791B 820791B 1997-04 → — Figure 820792B 820792B 1997-04 → — Figure 820793B 820793B 1997-04 → — Figure 820794E 820794E 1997-04 → — Figure 822391 822391 1997-04 → — Figure 821635C 821635C 1998-09 → — Figure 820797C 820797C 1997-04 → — Figure 820797C 820797C 1999-12 → — Figure 820797C 820797C 2000-01 → — Figure 820805 820805 1997-04 → — Figure 820600 820600 1997-04 → — Figure 820600 820600 1999-12 → — Figure 820600 820600 2000-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82126 Wire, Engine
82131 Wire, Cowl
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82223 Wire, Switch
82223B Wire, Switch, NO.2
82285E Wire, Illumination
82345 Diode
82345A Diode
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824W Connector, Wiring Harness
82825C Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
