Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04
Switch & Relay & Computer
121 part groups · 20 illustrations
Illustrations
Part groups

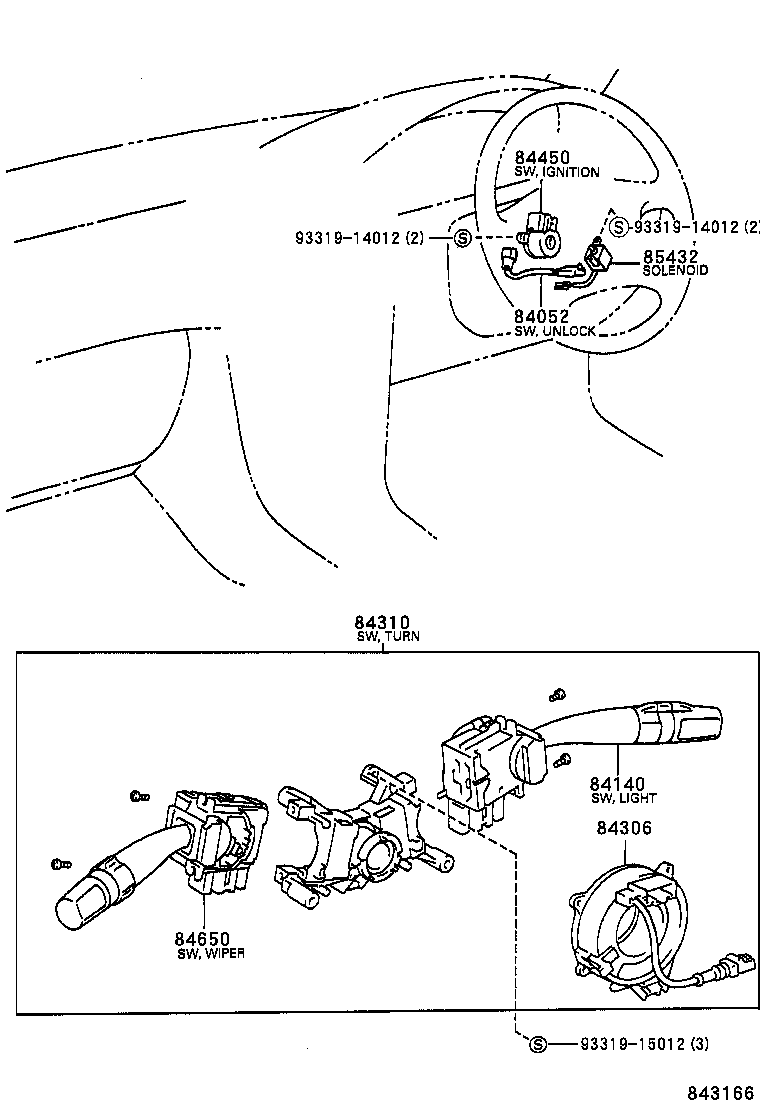

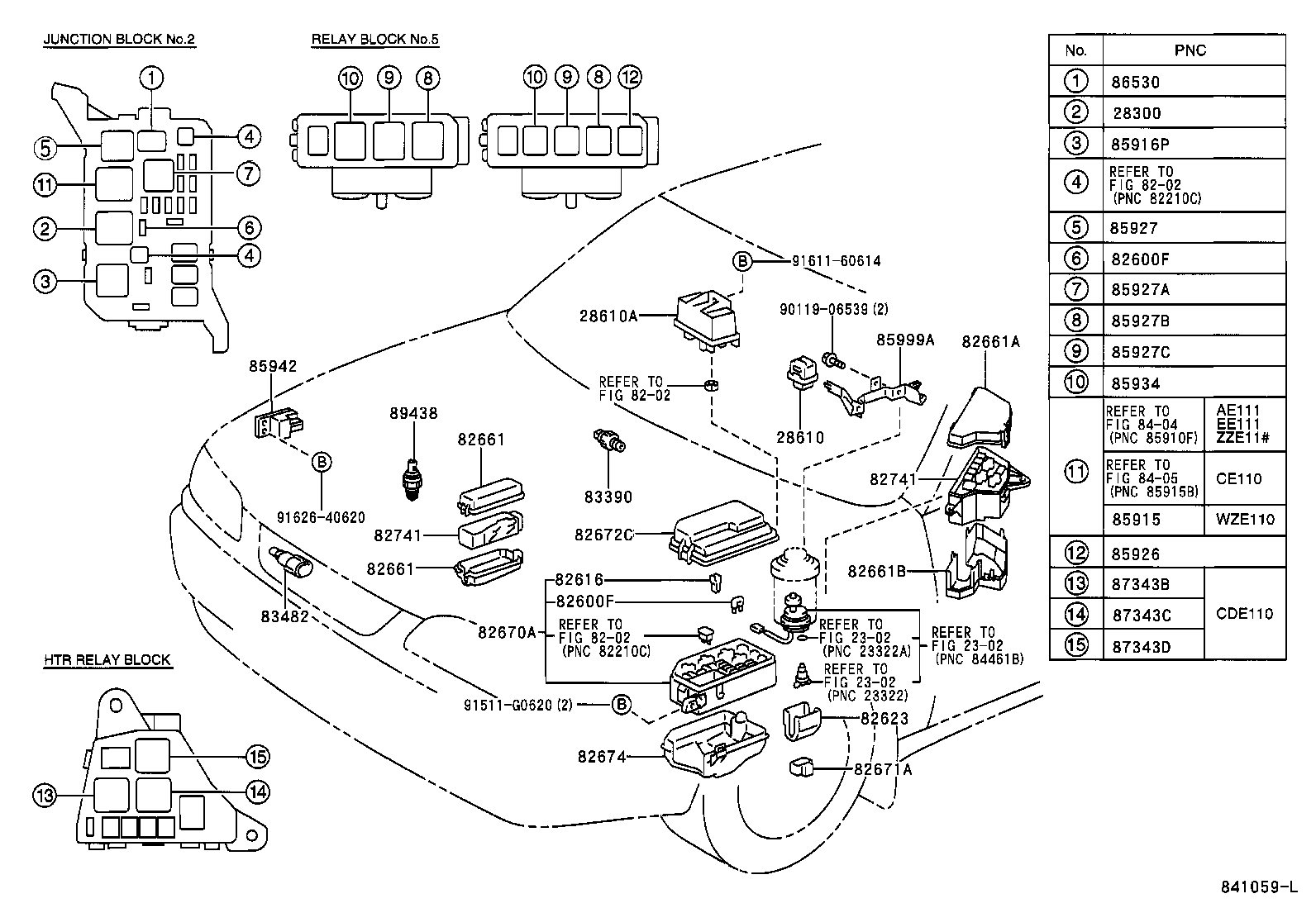

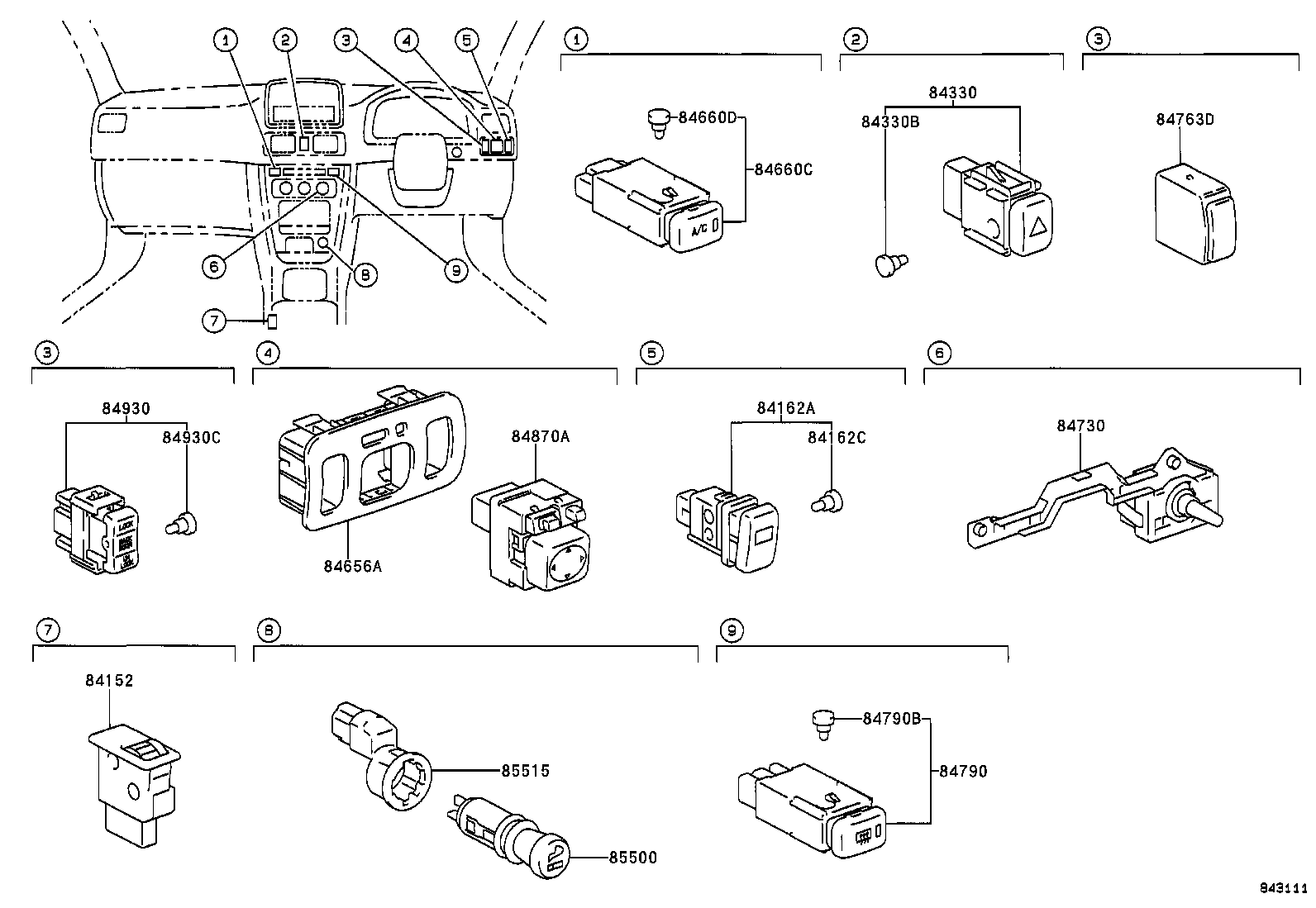

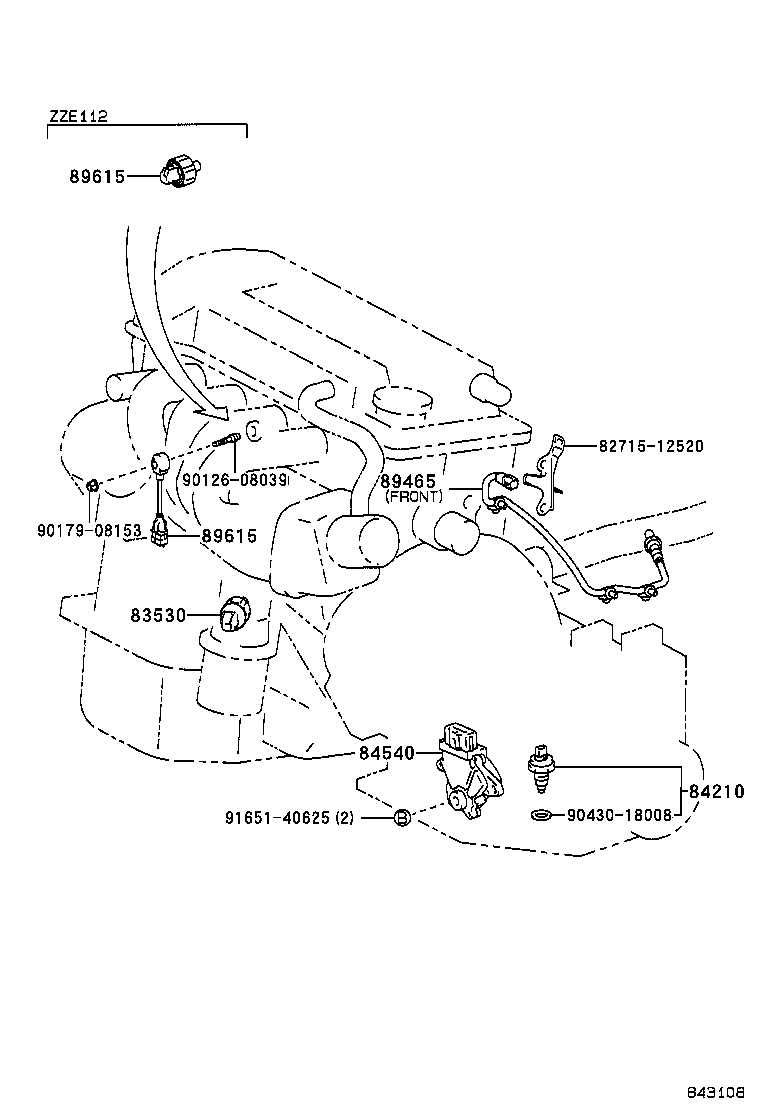

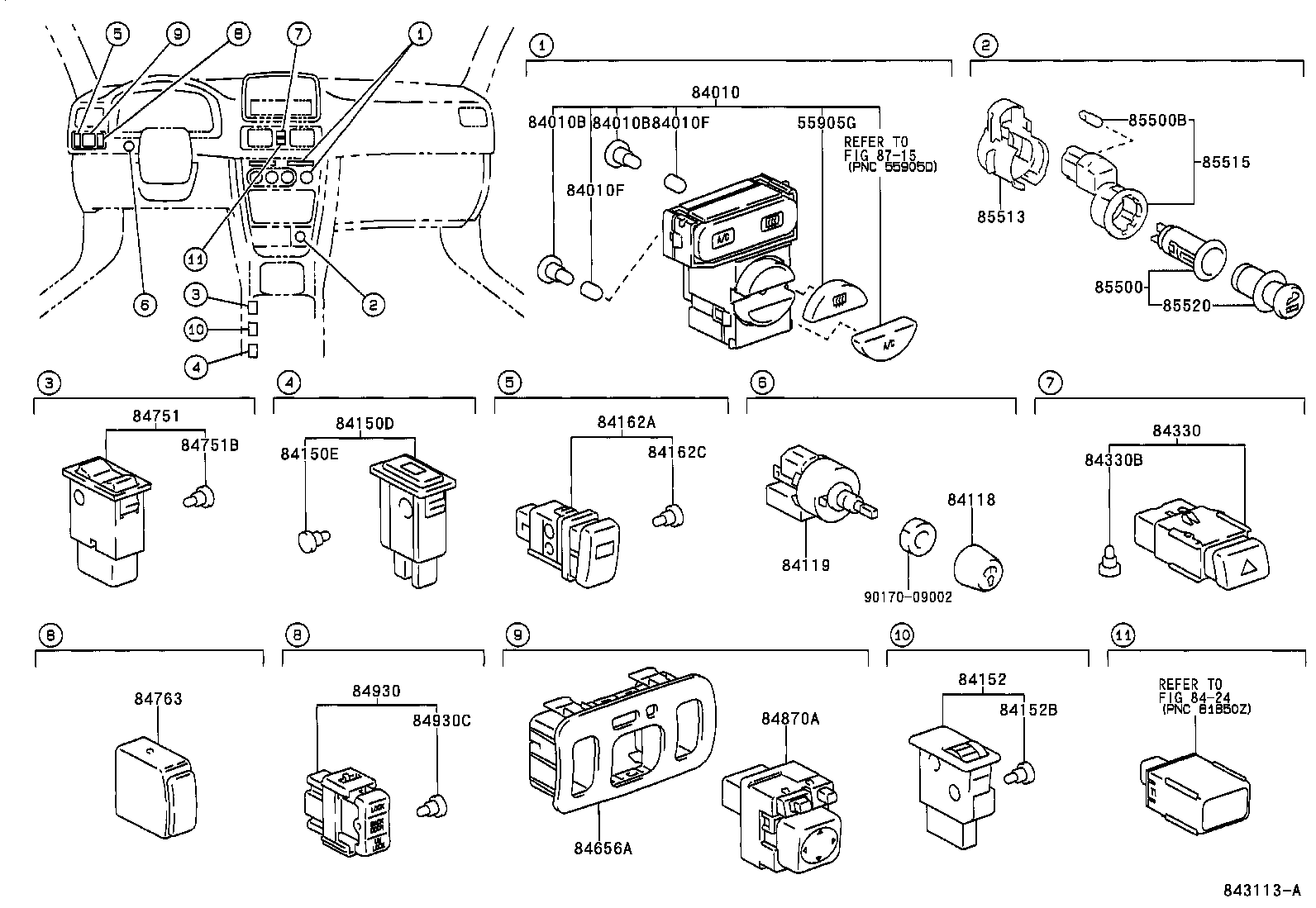

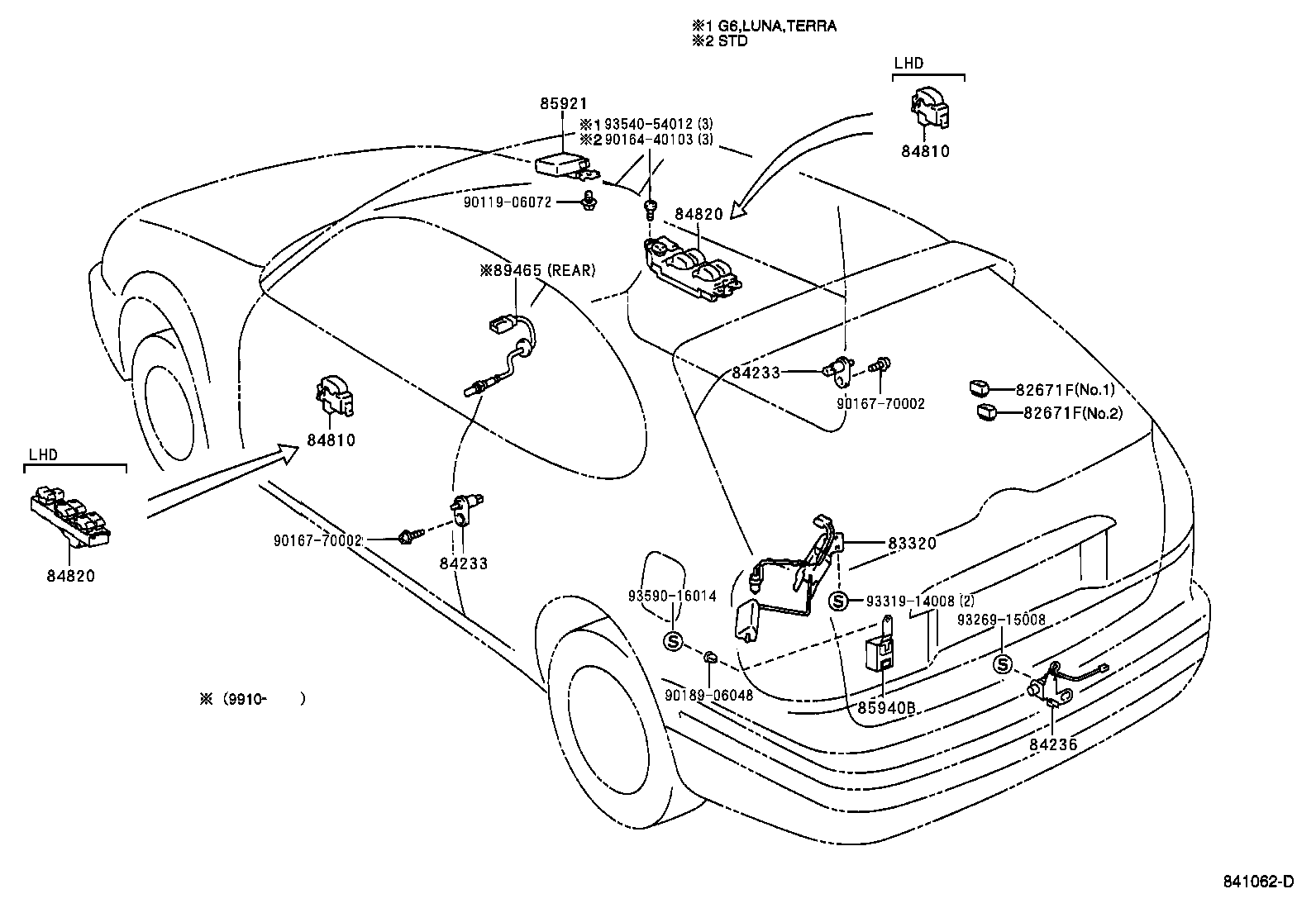

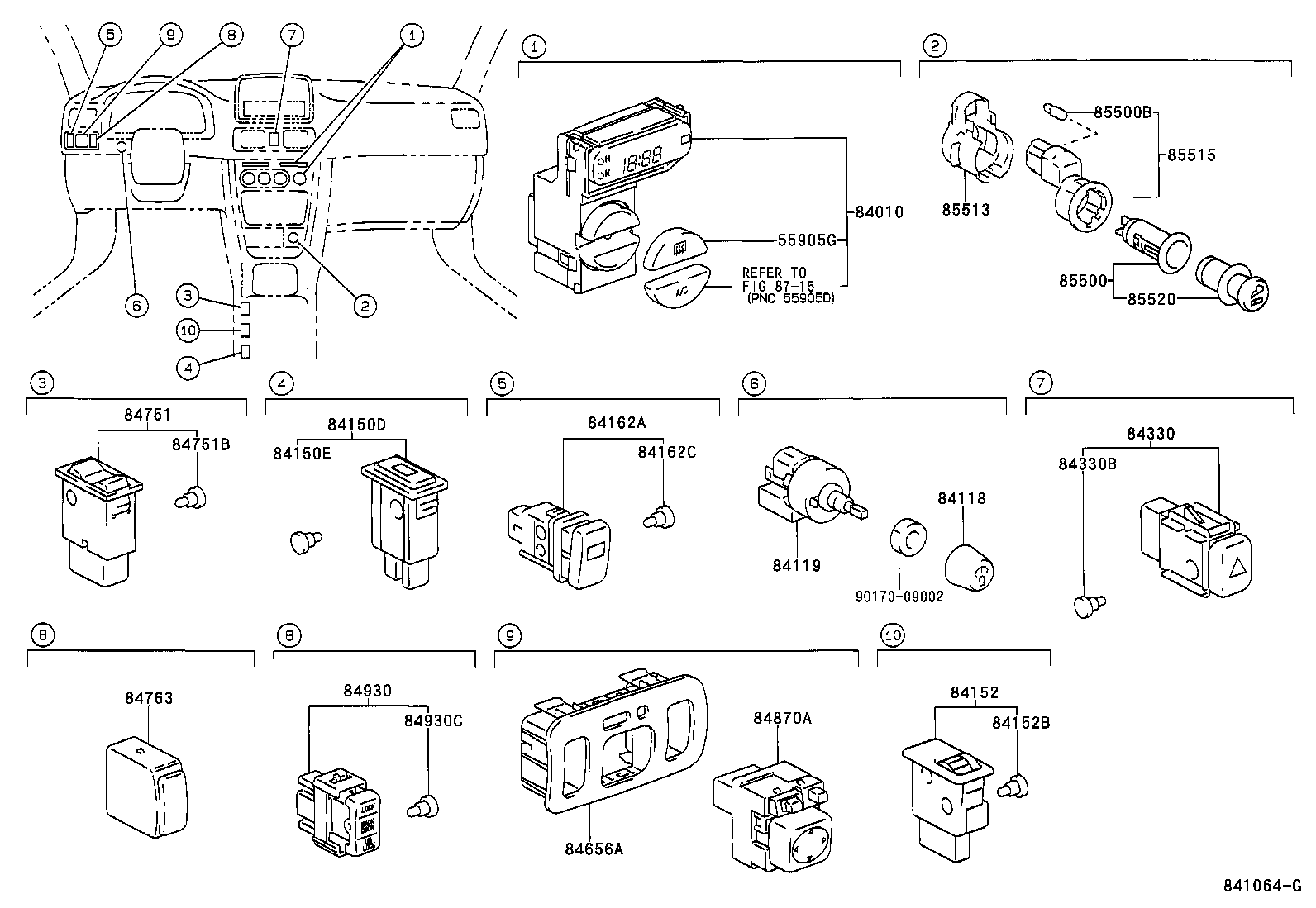

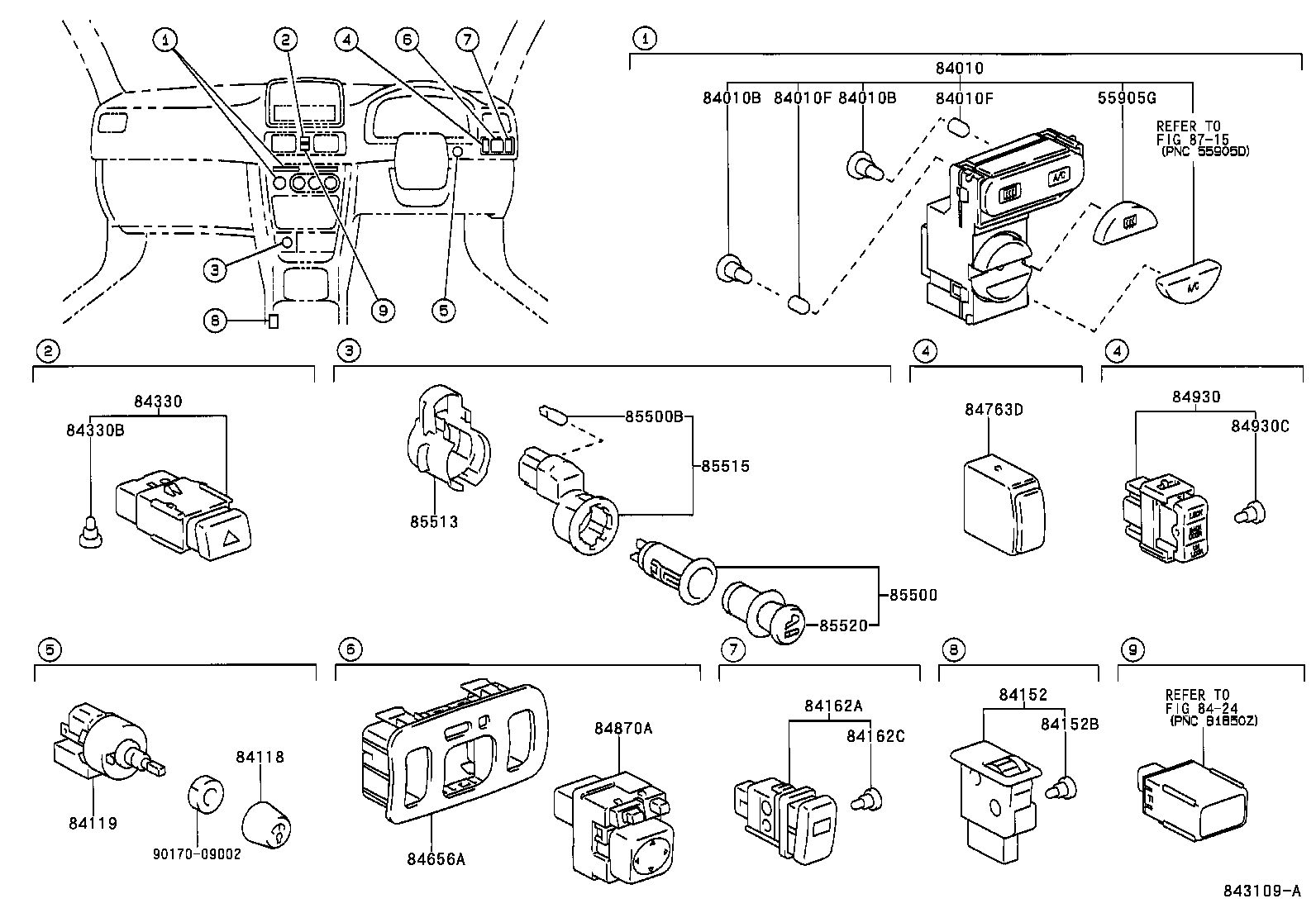

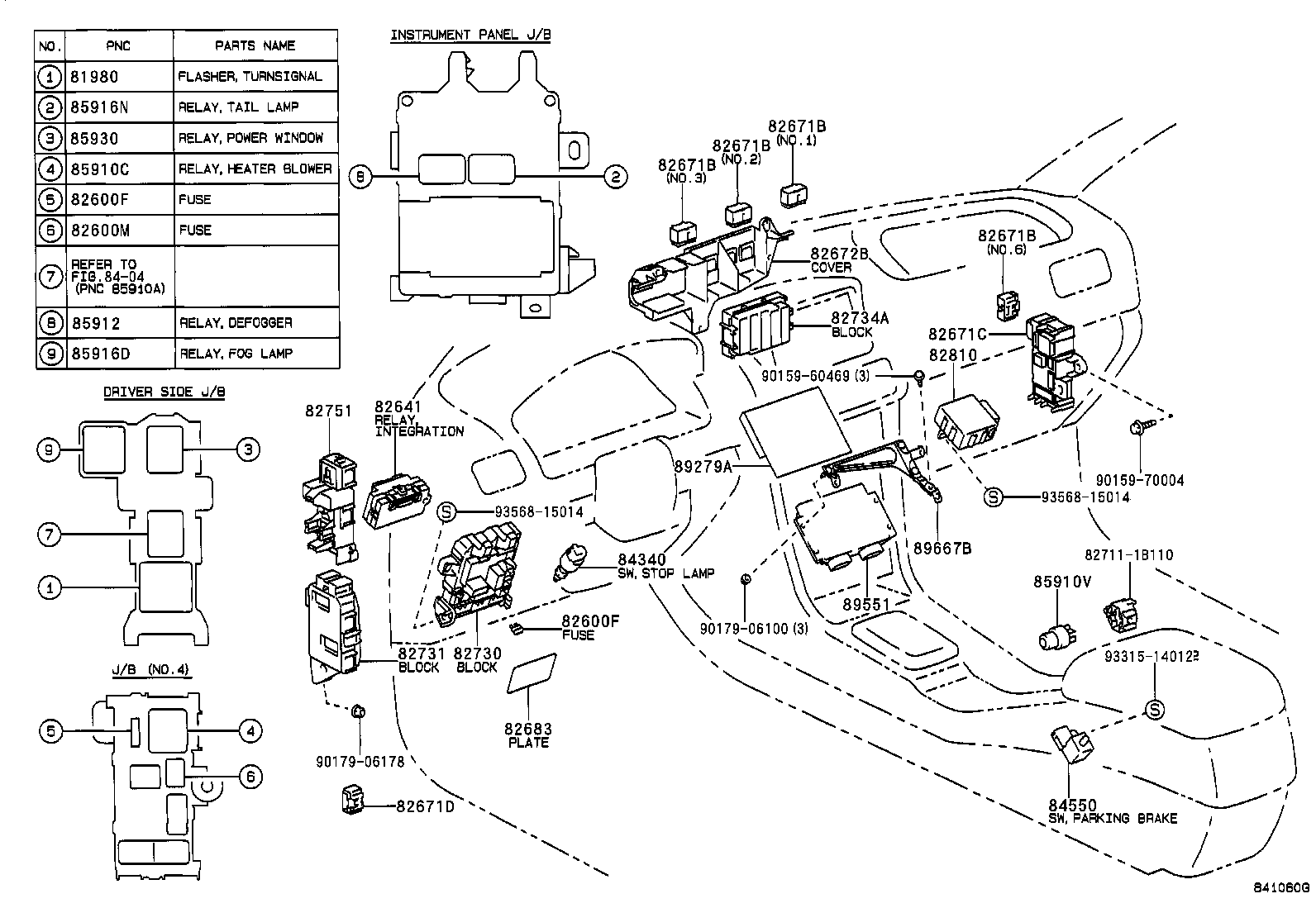

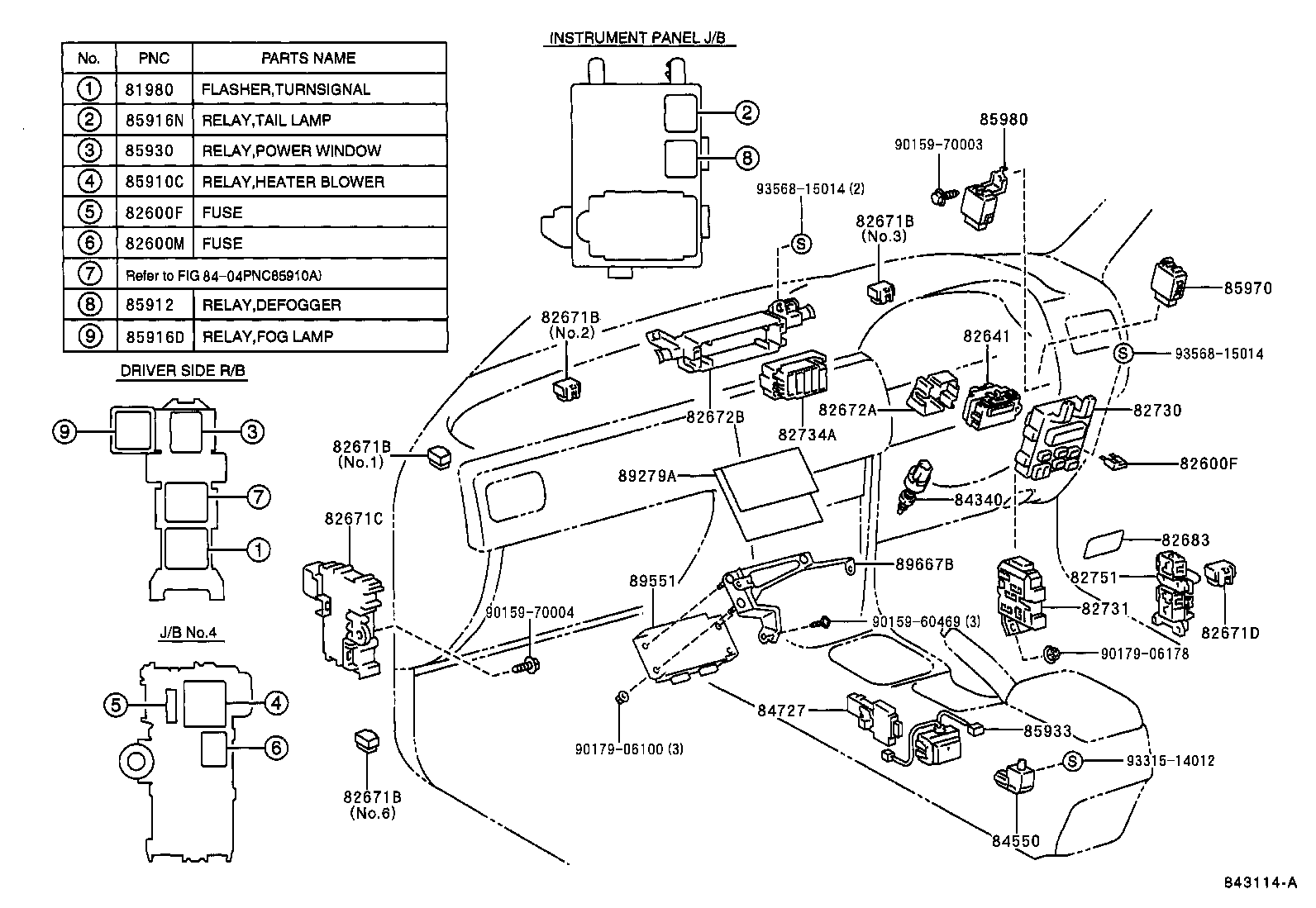

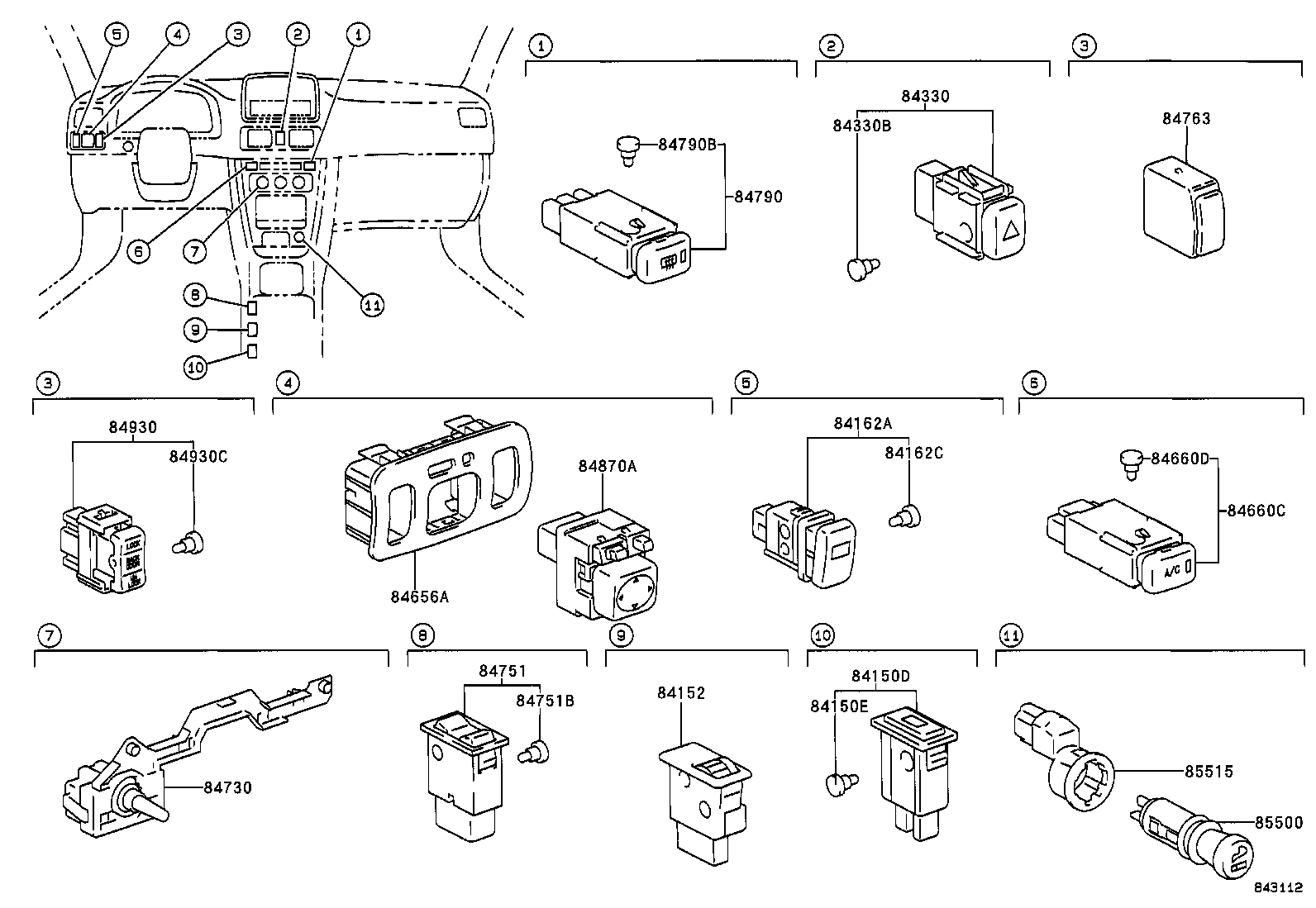

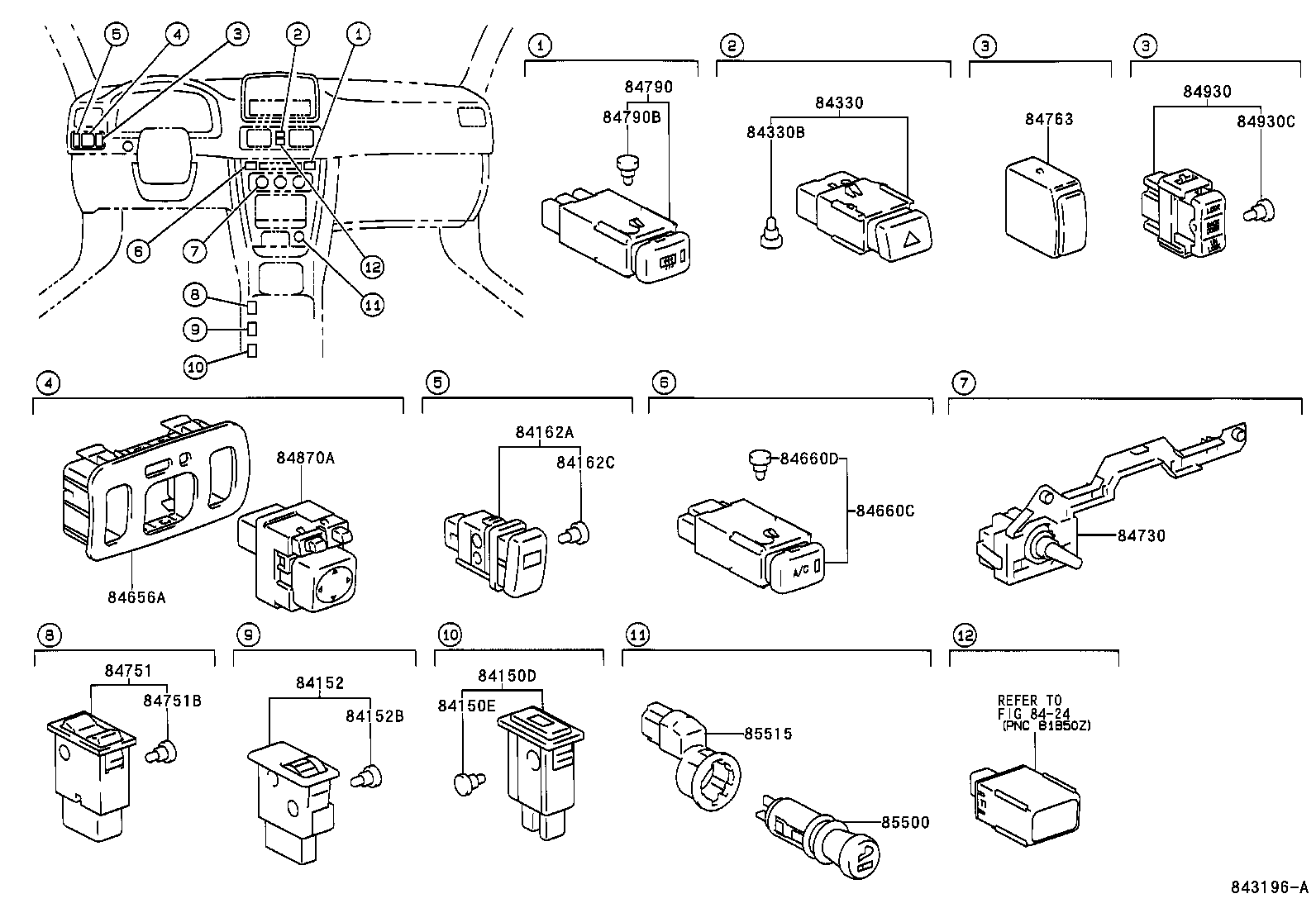

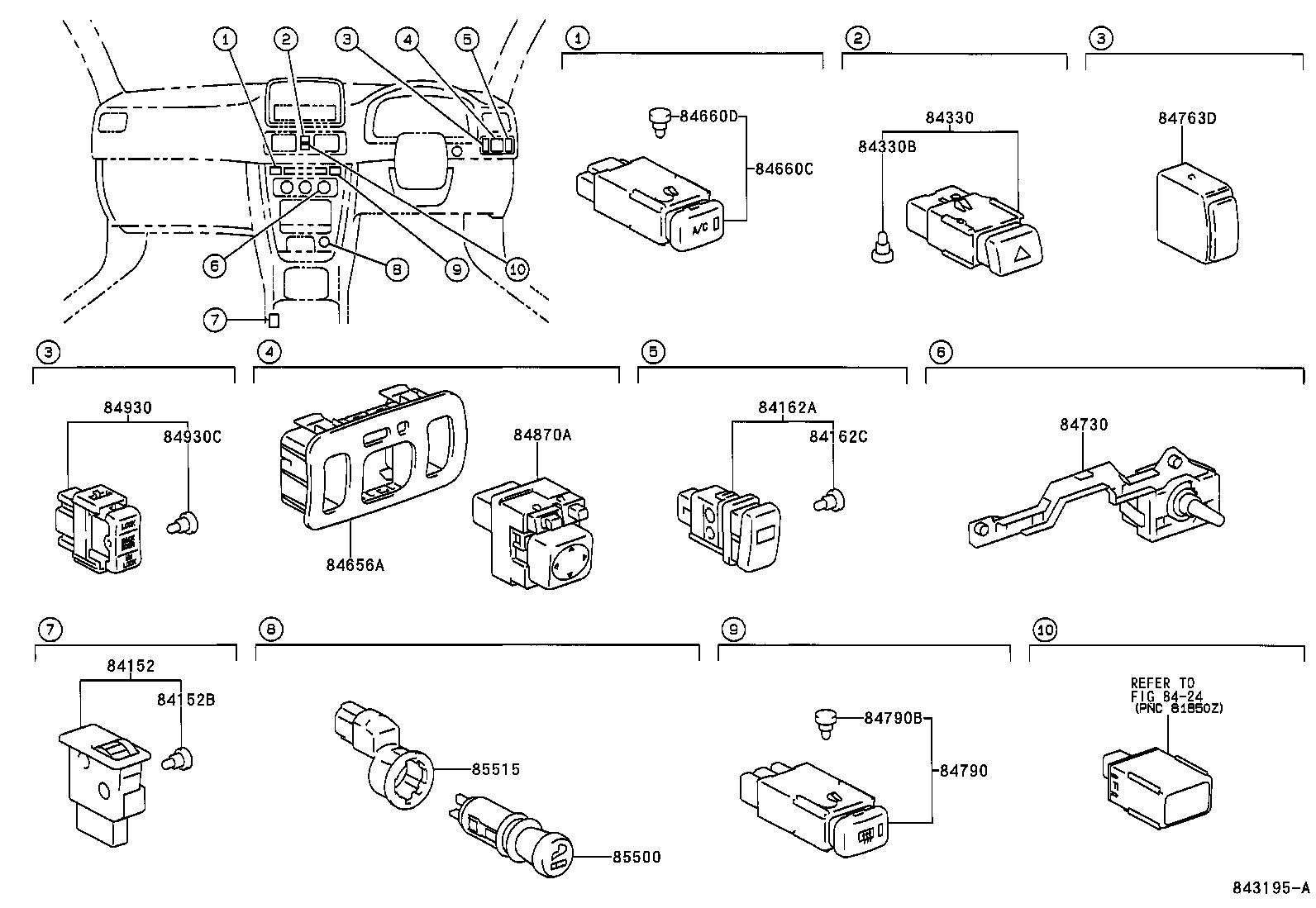

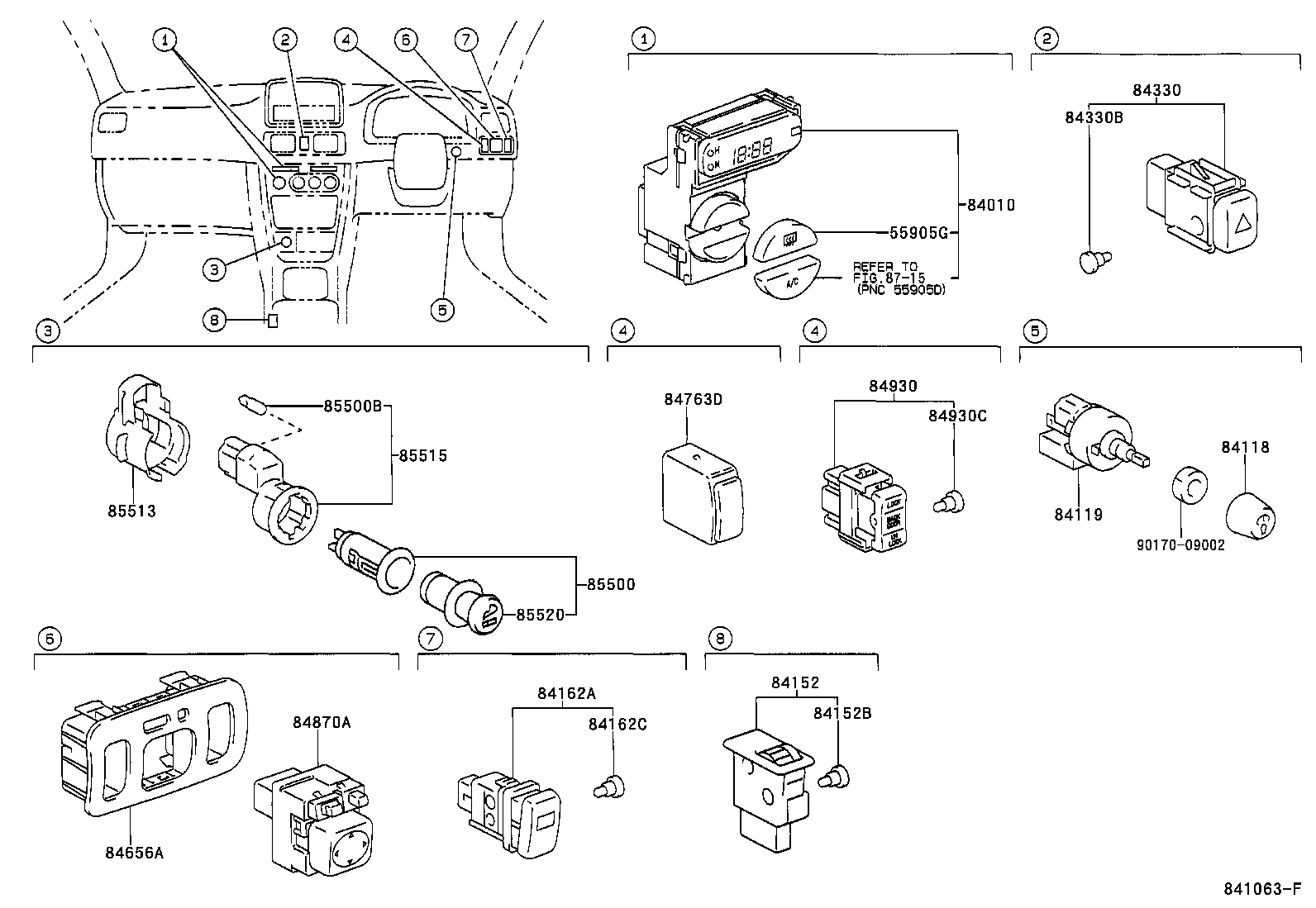

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28610A | Relay Assy, Glow Plug(SUB) |
| 55905G | Knob Sub-assy, Control |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600M | Fuse, Medium Current |
| 82616 | Puller, Fuse |
| 82623 | Cover, Fusible Link, Lower |
| 82641 | Relay, Integration NO.1 |
| 82661 | Cover, Relay Block, NO.1 |
| 82661A | Cover, Relay Block, NO.2 |
| 82661B | Cover, Relay Block, NO.3 |
| 82670A | Block Assy, Junction, NO.1 |
| 82671A | Block, Junction |
| 82671B | Block, Junction |
| 82671C | Block, Junction |
| 82671D | Block, Junction |
| 82671F | Block, Junction |
| 82672A | Cover, Junction Block |
| 82672B | Cover, Junction Block |
| 82672C | Cover, Junction Block |
| 82674 | Cover, Junction Block Lower |
| 82683 | Plate, Fuse Block Caution |
| 82730 | Block Assy, Instrument Panel Junction |
| 82731 | Block, Driver Side Junction |
| 82734A | Block, Center Junction |
| 82741 | Block, Engine Room Relay |
| 82751 | Block, Driver Side Relay |
| 82810 | Relay Assy, Running Light |
| 83320 | Gage Assy, Fuel Sender |
| 83390 | Switch Assy, Vacuum Warning |
| 83420 | Gage Assy, Water Temperature Sender |
| 83482 | Sensor, Outer Ambient Temperature |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84010 | Switch Assy, Center Cluster Integration |
| 84010B | Bulb, Integration Control & Panel |
| 84010F | Socket, Integration Control & Panel Bulb |
| 84052 | Switch Assy, Un-lock Warning |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150D | Switch Assy, Headlamp Cleaner |
| 84150E | Bulb, Headlamp Cleaner Switch |
| 84152 | Switch, Headlamp Leveling |
| 84152B | Bulb (FOR HEADLAMP LEVELING SWITCH) |
| 84162A | Switch, Rear Fog Lamp |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84236 | Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) |
| 84306 | Cable Sub-assy, Spiral |
| 84310 | Switch Assy, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84656A | Bezel, Switch |
| 84660C | Switch, Cooler |
| 84660D | Bulb(FOR COOLER SWITCH) |
| 84727 | Switch, Shift Lock Control |
| 84730 | Switch Assy, Heater Blower |
| 84751 | Switch, Seat Heater |
| 84751B | Bulb, Seat Heater Switch |
| 84763 | Plate, Switch |
| 84763D | Plate, Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |

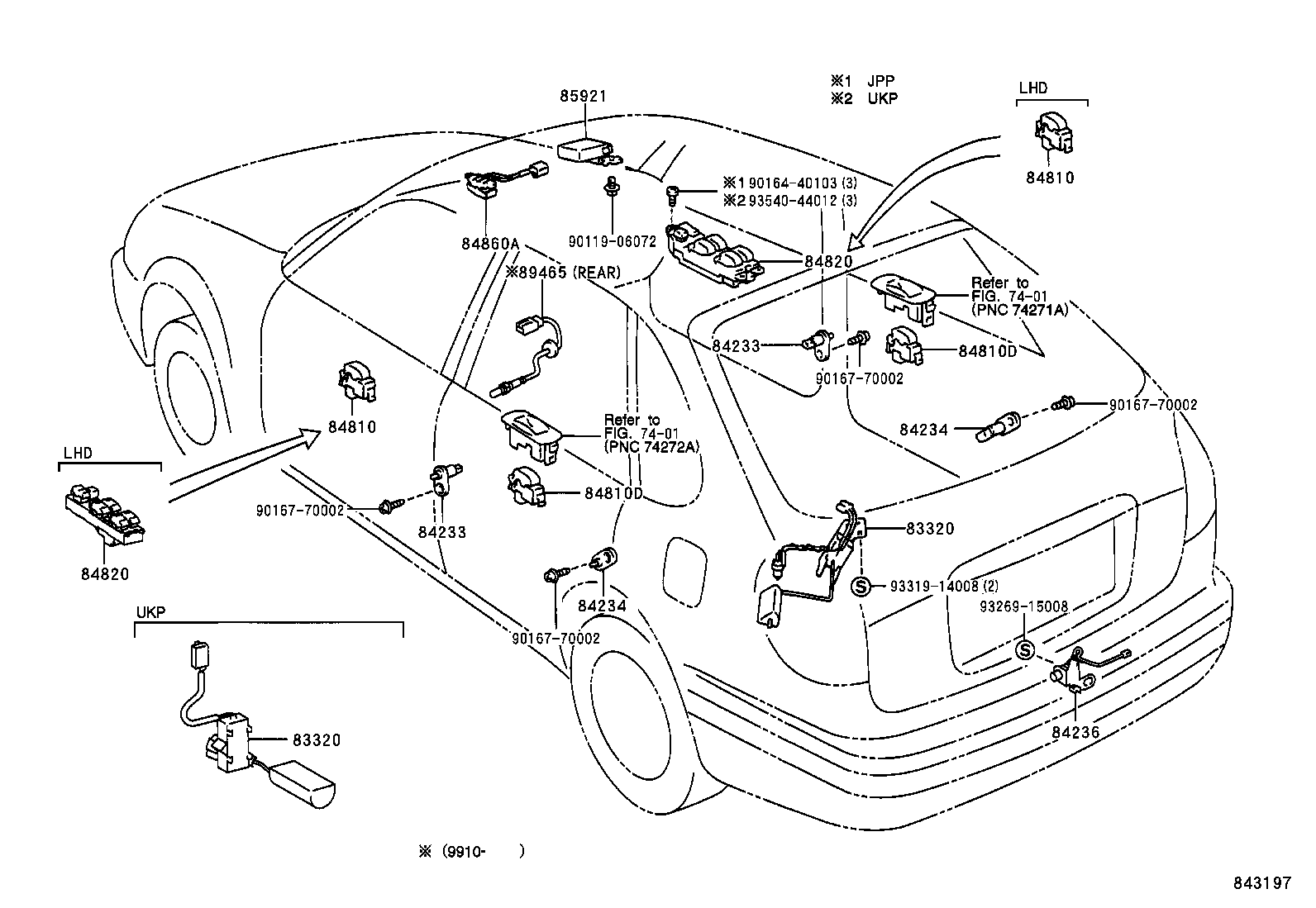

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84860A | Switch Assy, Sliding Roof |
| 84870A | Switch Assy, Outer Mirror |
| 84930 | Switch Assy, Door Control |
| 84930C | Bulb(FOR DOOR CONTROL SWITCH) |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85910V | Relay, Seat Heater |
| 85912 | Relay, Defogger |
| 85915 | Relay, Main |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85921 | Relay, Sliding Roof Control |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85927C | Relay, Cooling Fan, NO.4 |
| 85930 | Relay Assy, Power Window |
| 85933 | Computer, Shift Lock Control |
| 85934 | Relay, Magnet-clutch |
| 85940B | Relay Assy, Rear Wiper |
| 85942 | Relay, Headlamp Cleaner Control |
| 85970 | Relay Assy, Door Opening |
| 85980 | Relay Assy, Door Control |
| 85999A | Bracket, Relay, NO.2 |
| 86530 | Relay Assy, Horn |
| 87343B | Relay, Heater Sub, NO.1(FOR GLOW PLUG HEATER) |
| 87343C | Relay, Heater Sub, NO.2(FOR GLOW PLUG HEATER) |
| 87343D | Relay, Heater Sub, NO.3(FOR GLOW PLUG HEATER) |
| 89279A | Cover, Computer |
| 89422A | Sensor, Water Temperature |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89438 | Switch, Power Steering Oil Pressure |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89551 | Computer, Emission Control |
| 89615 | Sensor, Knock Control |
| 89667B | Bracket, Engine Control Computer, NO.1 |
