Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04

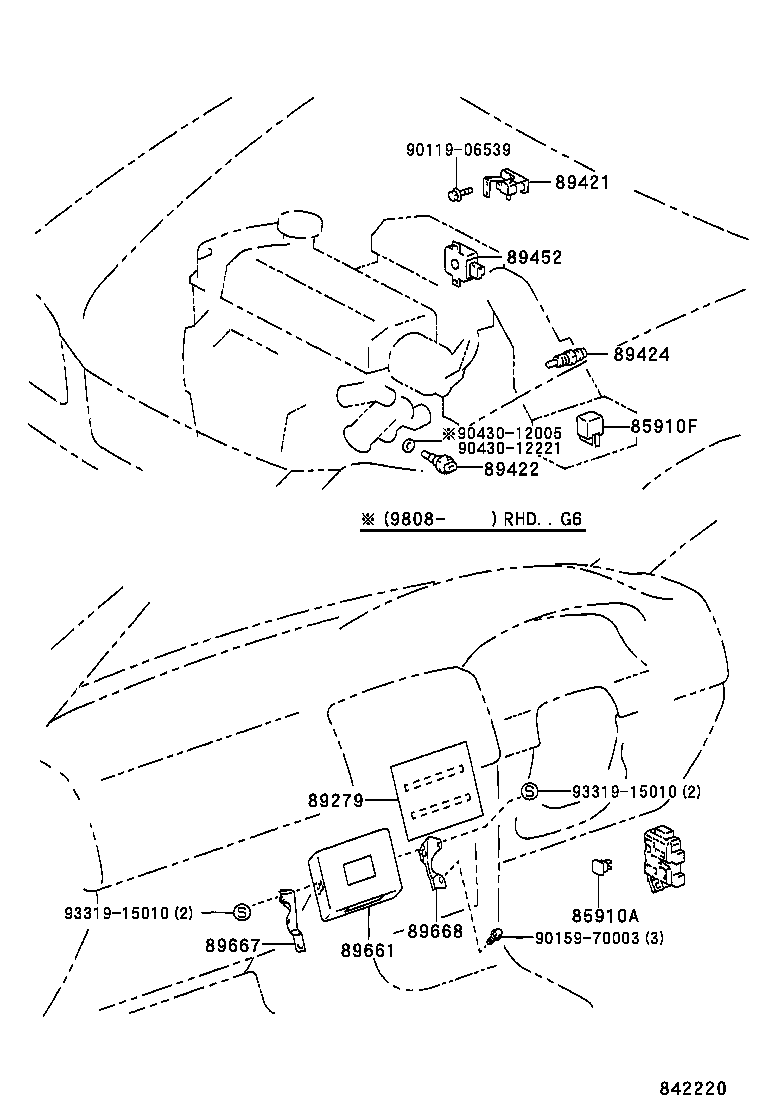

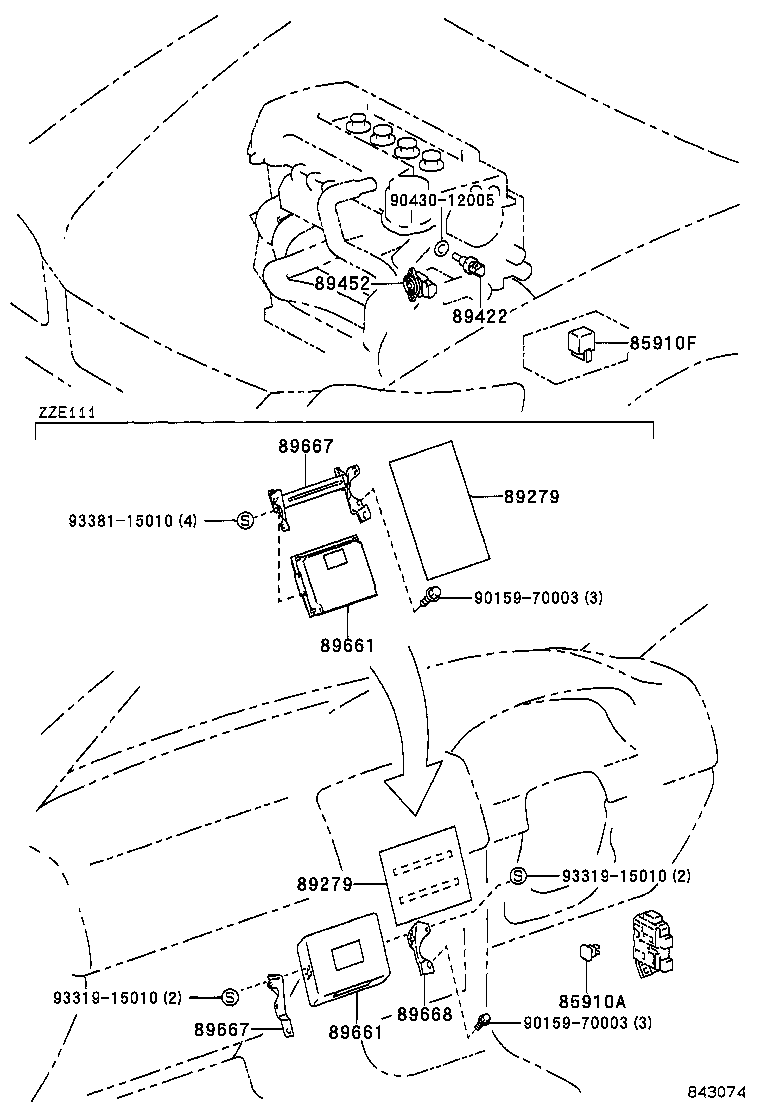

Electronic Fuel Injection System
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85910F | Relay, Computer (FOR EFI) |
| 89279 | Cover, Engine Control Computer |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89424 | Sensor, Inlet Air Temperature (FOR E.F.I.) |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
