Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04

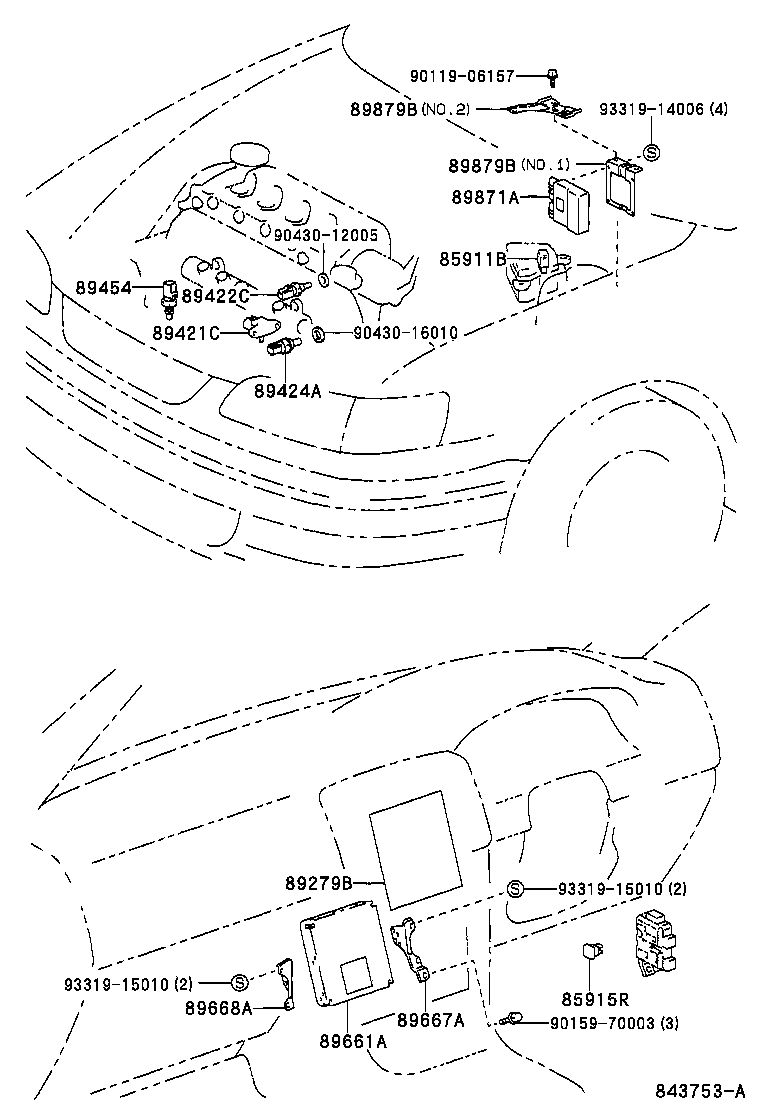

Electronic Controled Diesel (ECD)
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85911B | Relay, Computer (FOR DIESEL TURBO) |
| 85915Q | Relay, Computer (FOR DIESEL) |
| 85915R | Relay Assy, Circuit Opening (FOR DIESEL) |
| 89279B | Cover, Diesel Engine Control Computor |
| 89421C | Sensor, Turbo Pressure (FOR DIESEL TURBO) |
| 89421E | Sensor, Vacuum |
| 89422C | Sensor, Diesel Engine Water Temperature |
| 89424A | Sensor, Inlet Air Temperature (FOR DIESEL TURBO) |
| 89424D | Sensor, Inlet Air Temperature |
| 89426B | Bracket, Vacuum Sensor |
| 89452B | Sensor, Throttle Position |
| 89454 | Sensor, Fuel Temperature |
| 89661A | Computer, Engine Control |
| 89667A | Bracket, Engine Control Computer, NO.1 |
| 89668A | Bracket, Engine Control Computer, NO.2 |
| 89871A | Driver, Injector |
| 89879B | Bracket, Injector Driver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
