Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

11 part groups · 3 illustrations

Illustrations

843083 1997-04 → —

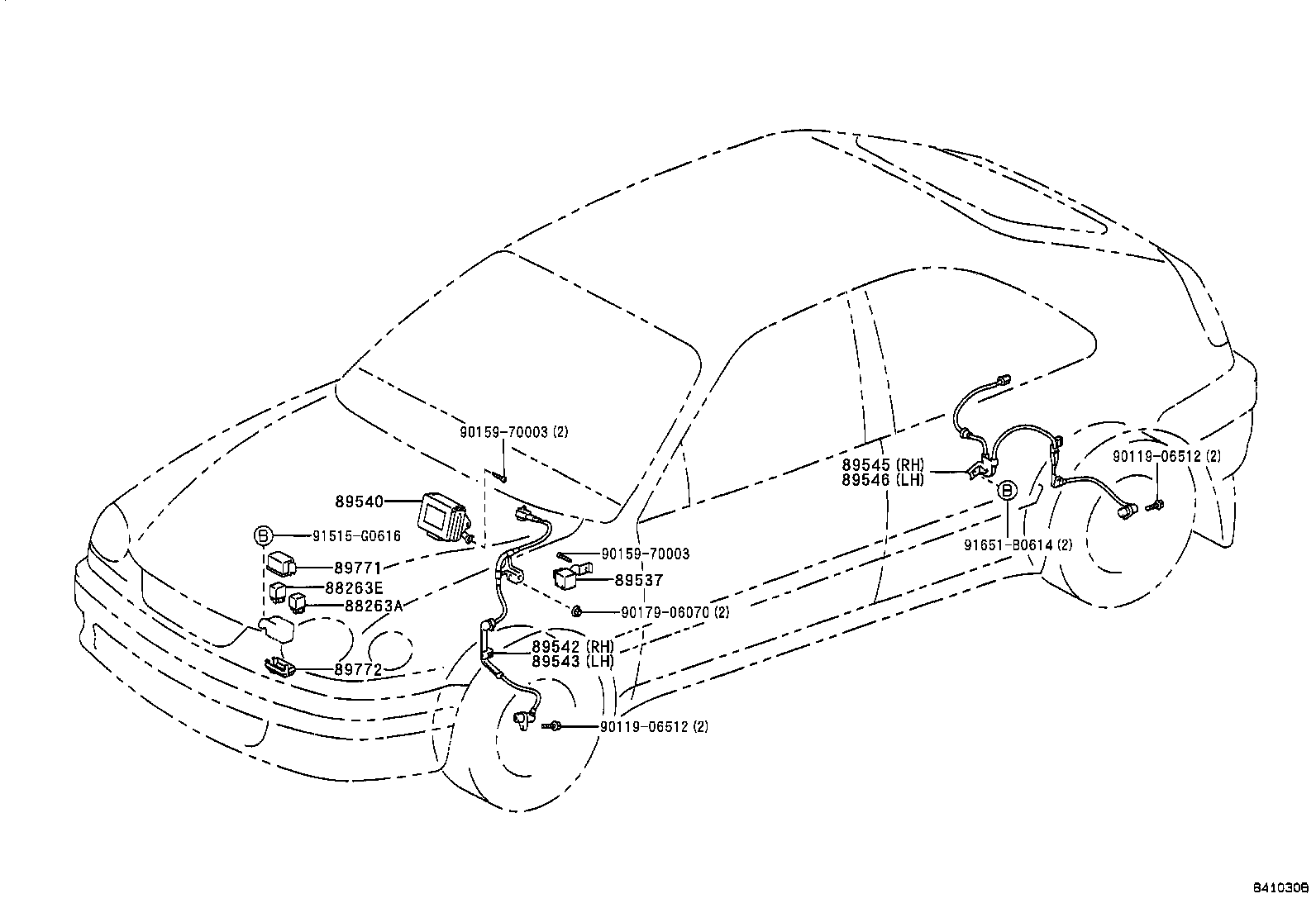

Figure 841030B

841030B 1997-04 → —

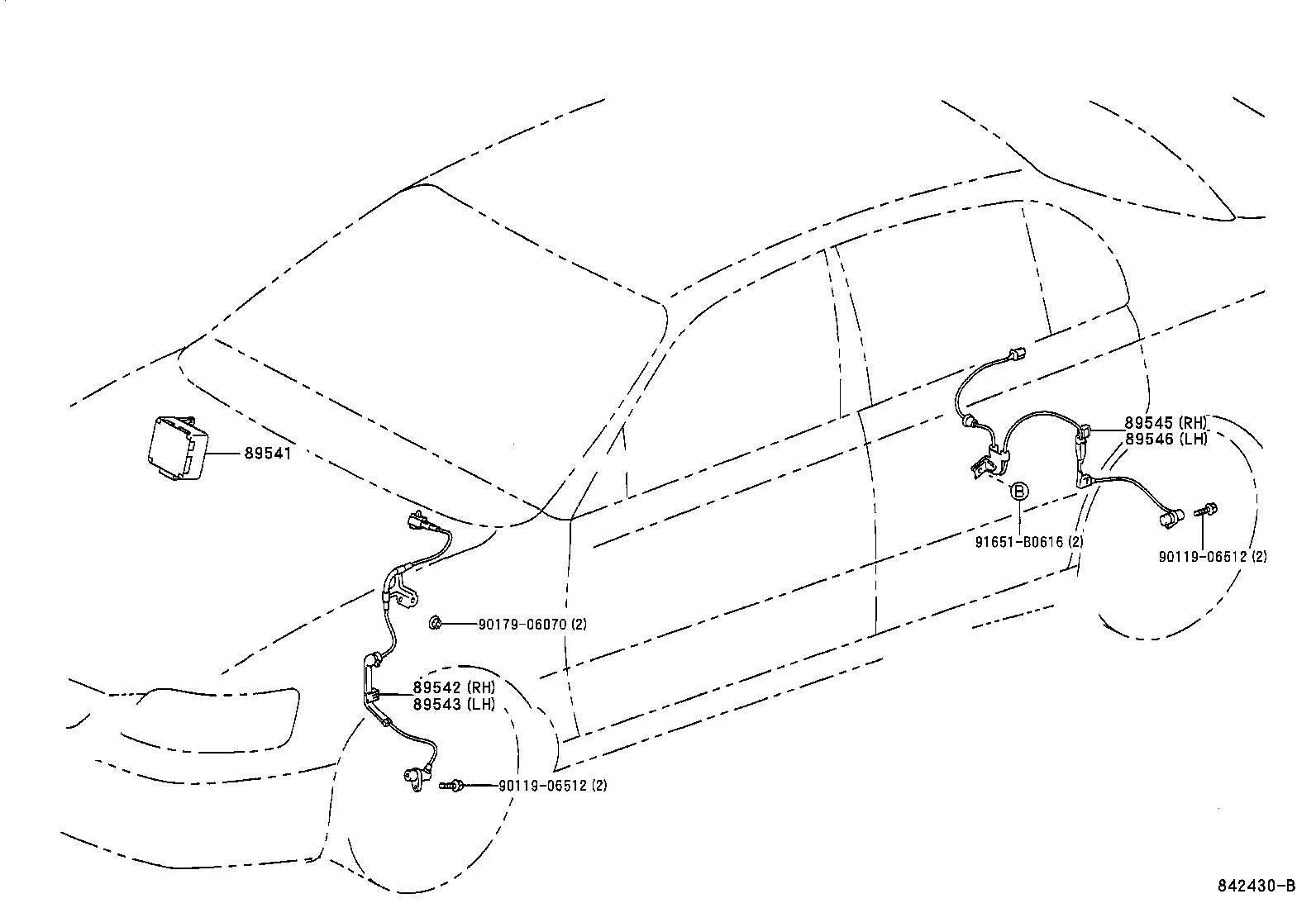

Figure 842430B

842430B 1998-09 → —

Part groups

PNC	Description
88263A	Relay, Skid Control
88263E	Relay, Skid Control NO.2
89537	Relay, Active Lamp
89540	Computer Assy, Skid Control
89541	Computer, Skid Control
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89771	Cover, Abs Relay Block, Upper
89772	Cover, Abs Relay Block, Lower

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
