Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

8 part groups · 7 illustrations

Illustrations

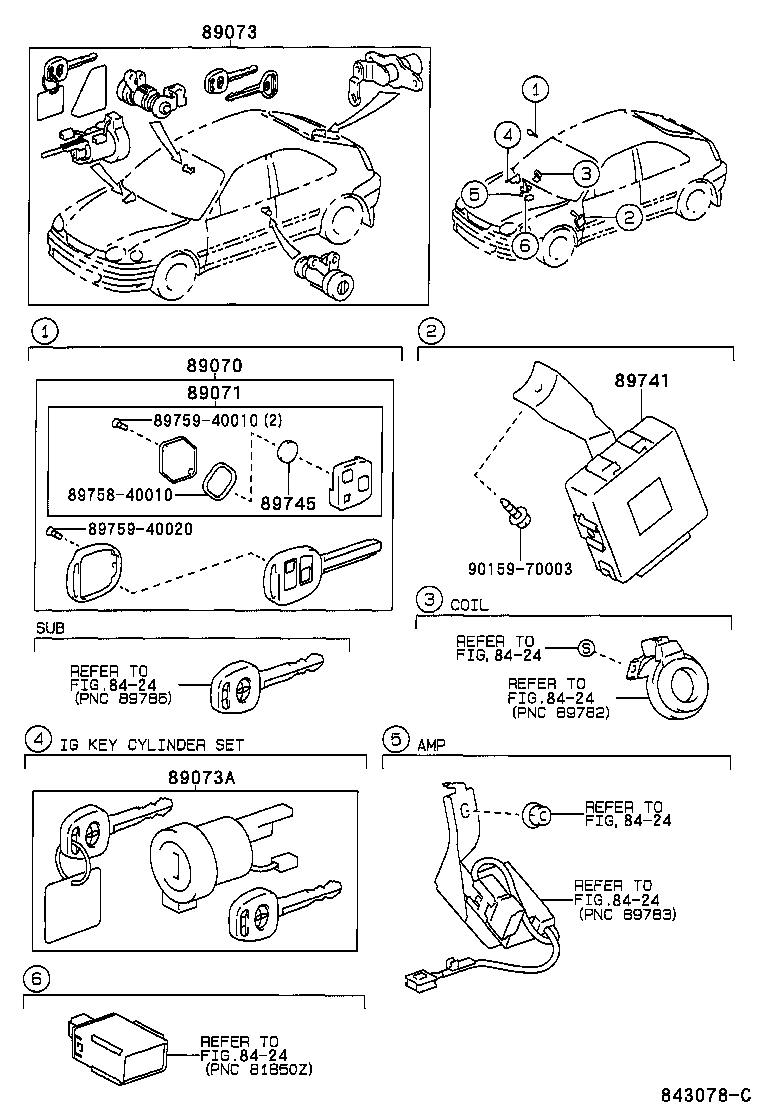

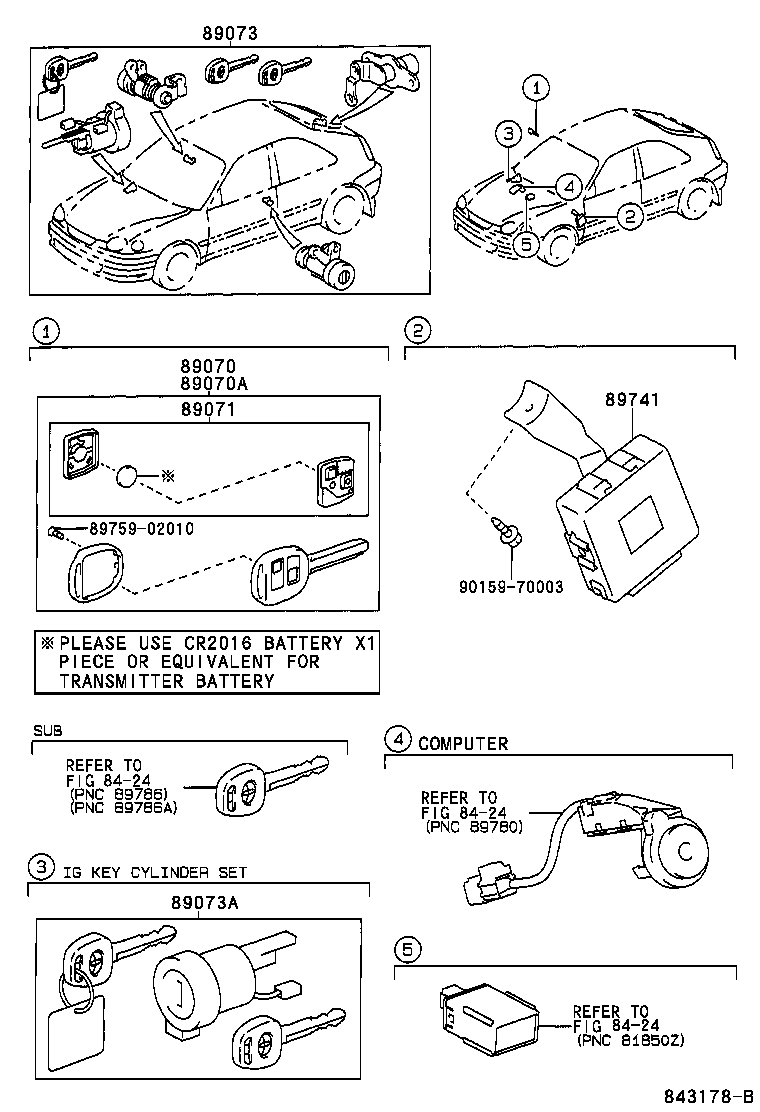

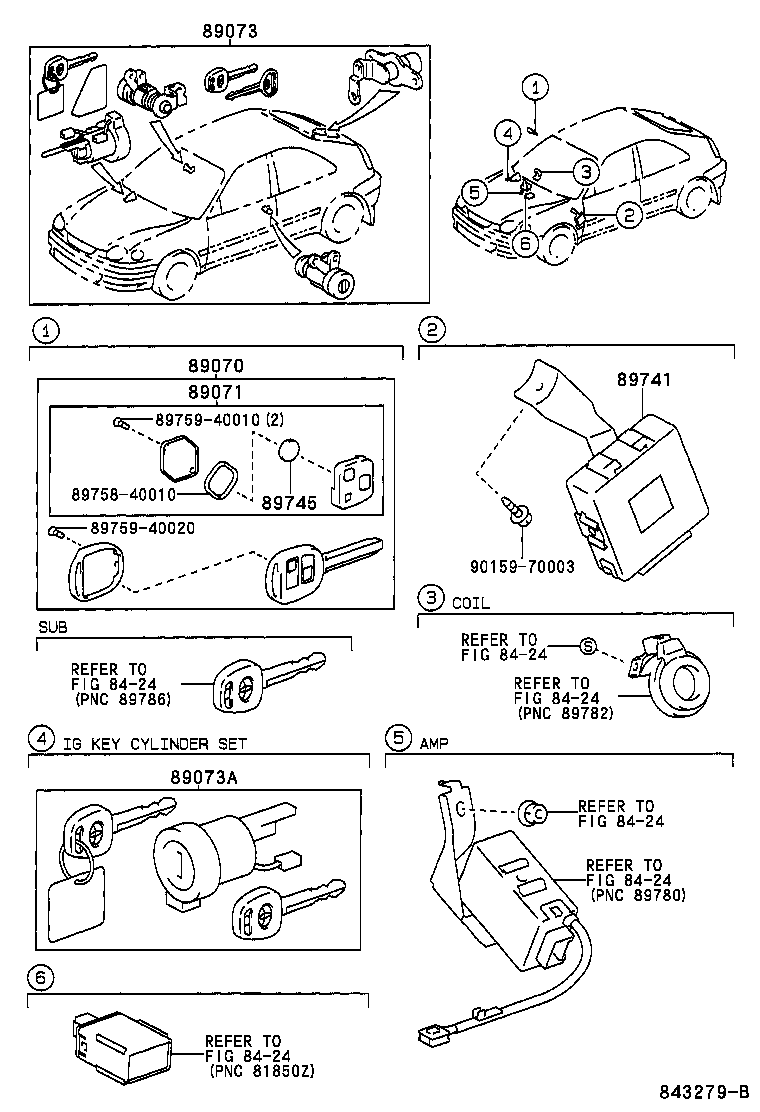

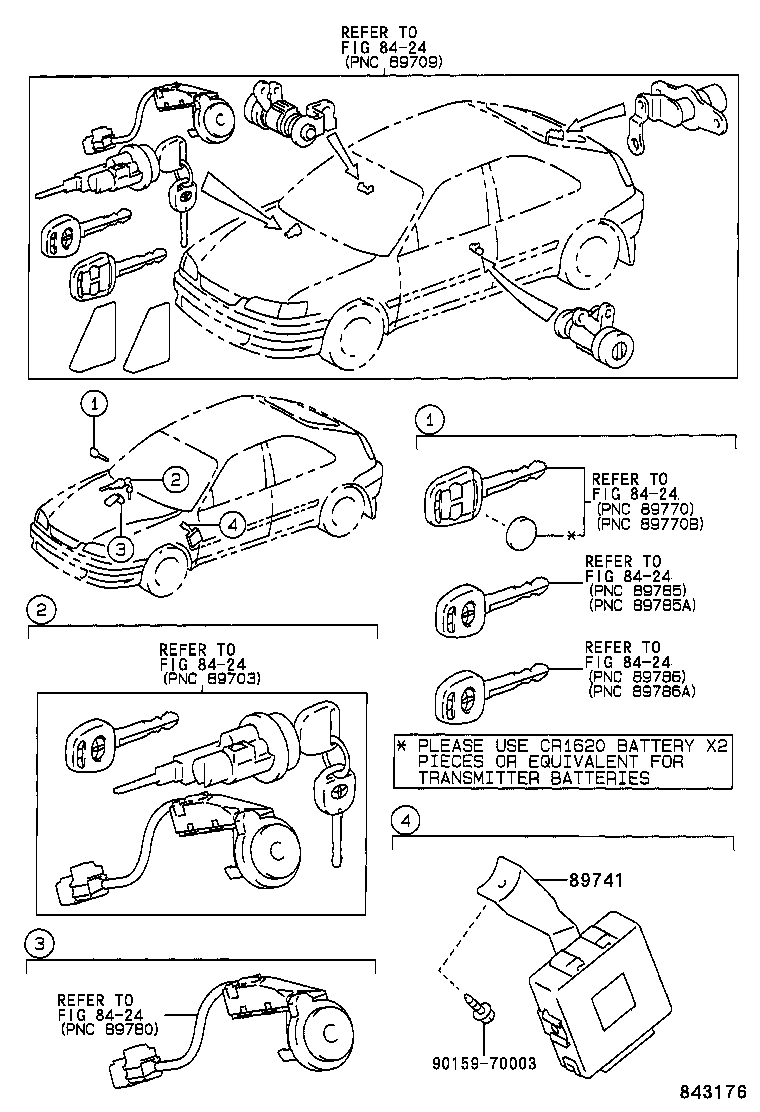

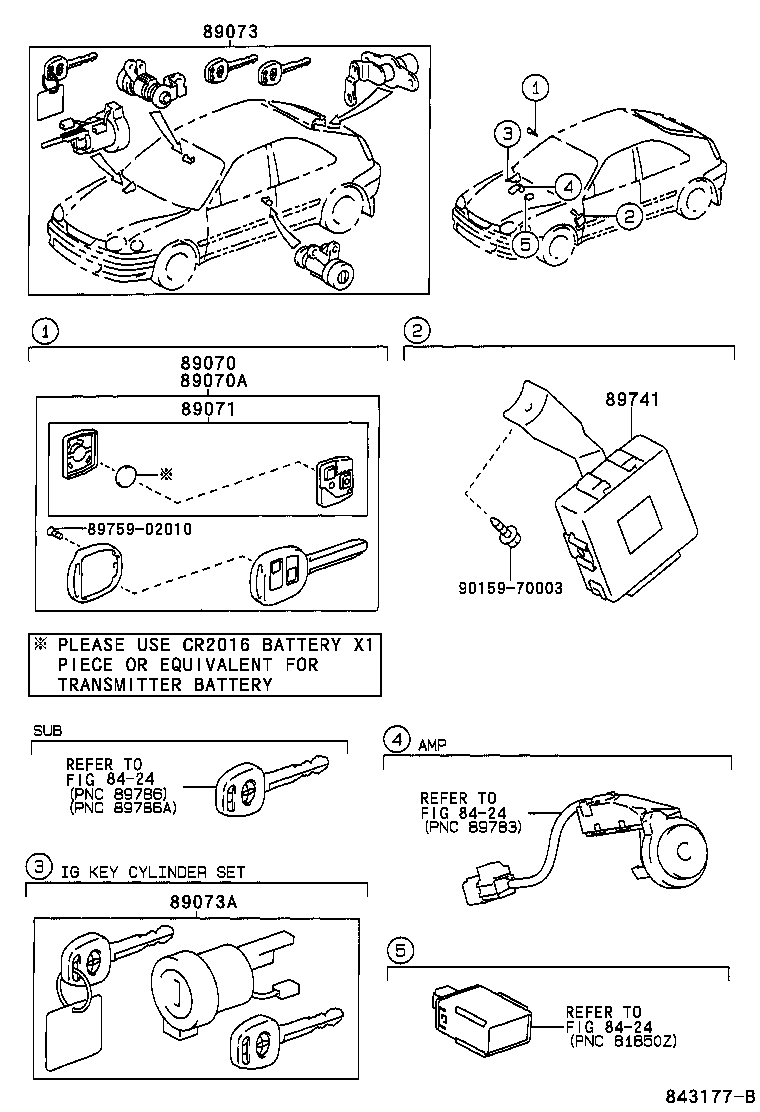

Figure 843077 843077 1997-04 → 1999-10 Figure 843078C 843078C 1999-10 → — Figure 843279B 843279B 2000-01 → — Figure 843279B 843279B 2000-08 → — Figure 843176 843176 1998-09 → 1999-11 Figure 843177B 843177B 1999-11 → — Figure 843178B 843178B 1999-11 → —

Part groups

PNCDescription
89070 Transmitter Assy, Door Control
89070A Transmitter, Door Control (CUT KEY)
89071 Module Set, Transmitter Sub-assy, Door Control
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89073A Ign Cylinder Set Lock W/Transmitter Housing (CUT KEY)
89741 Receiver, Door Control
89742 Transmitter, Door Control
89745 Battery, Transmitter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
