Factory parts data · Europe

Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

6 part groups · 2 illustrations

Illustrations

842111 1997-04 → —

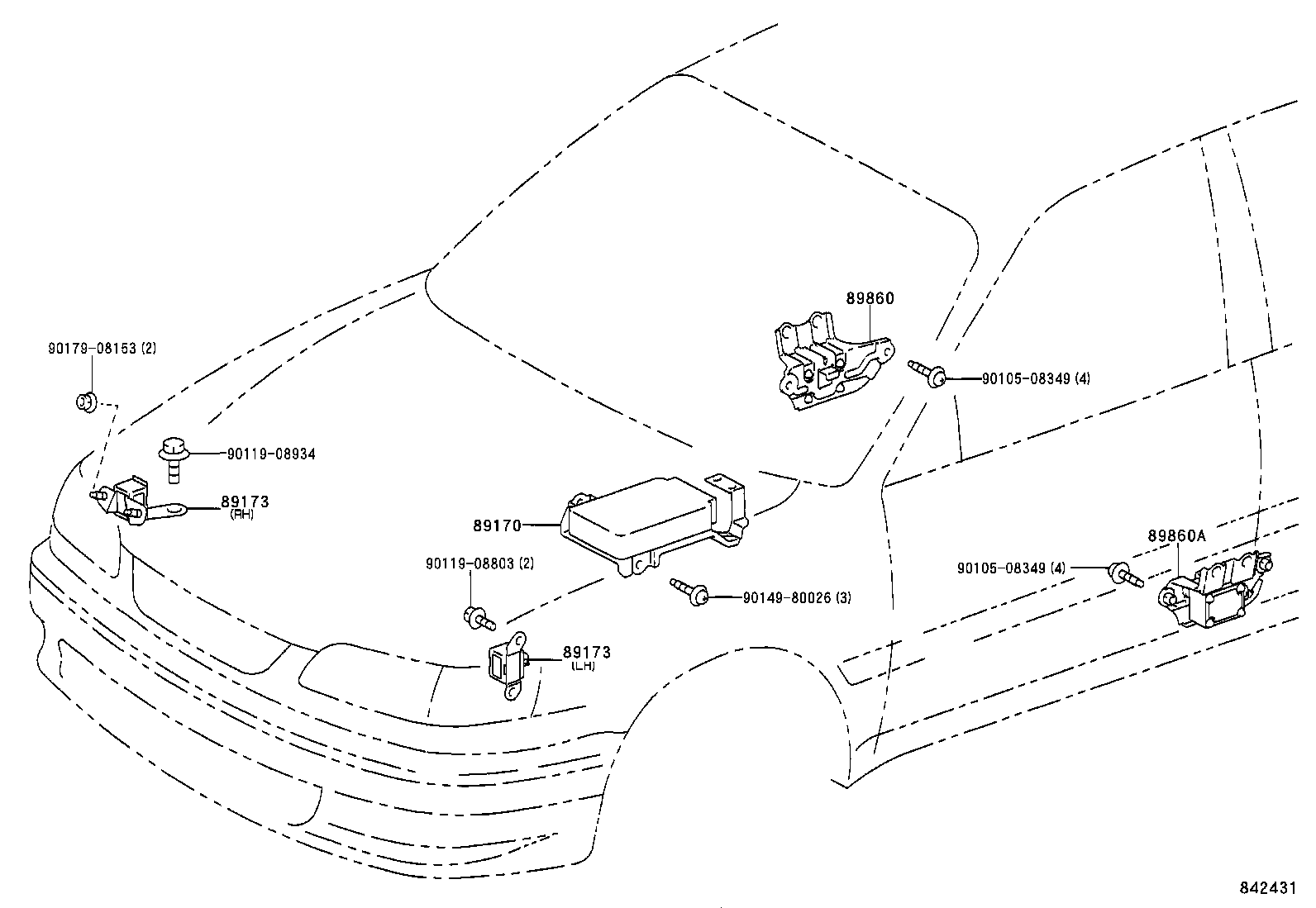

842431 1998-09 → —

Part groups

PNC	Description
89170	Sensor Assy, Airbag
89173	Sensor, Airbag, Front
89835	Sensor, Door Side Airbag, LH
89860	Sensor Assy, Side Airbag, RH
89860A	Sensor Assy, Side Airbag, LH
89865	Sensor, Door Side Airbag, RH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
