Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

13 part groups · 12 illustrations

Illustrations

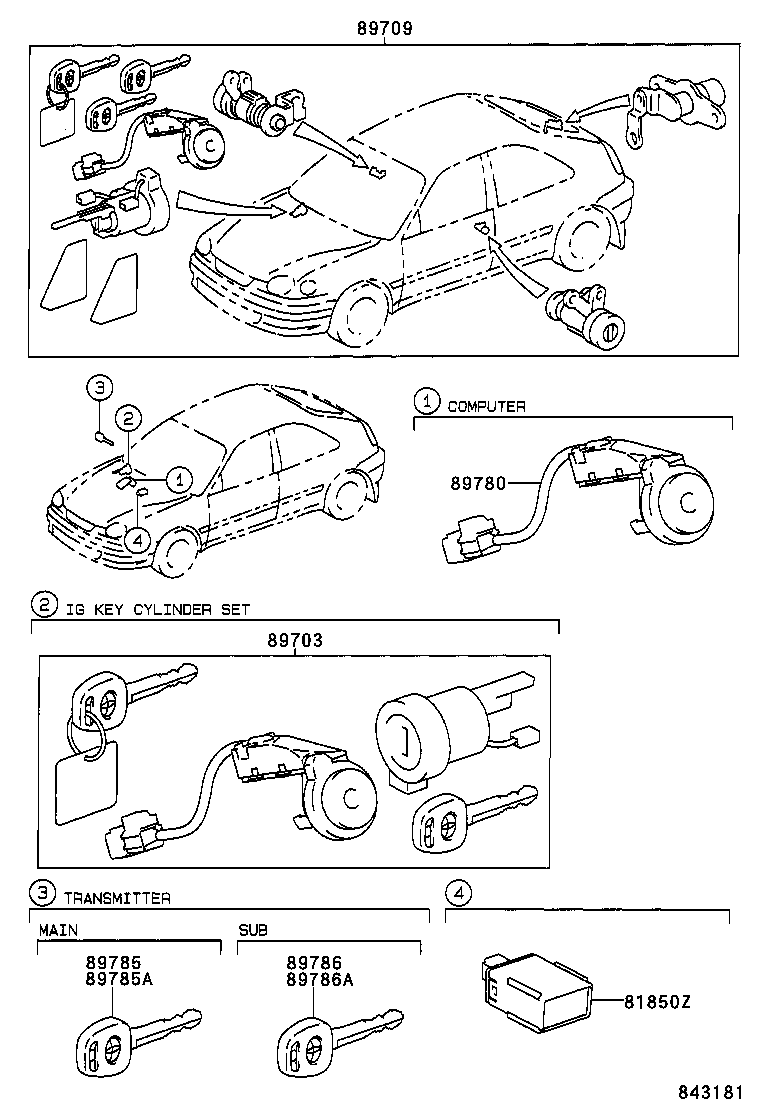

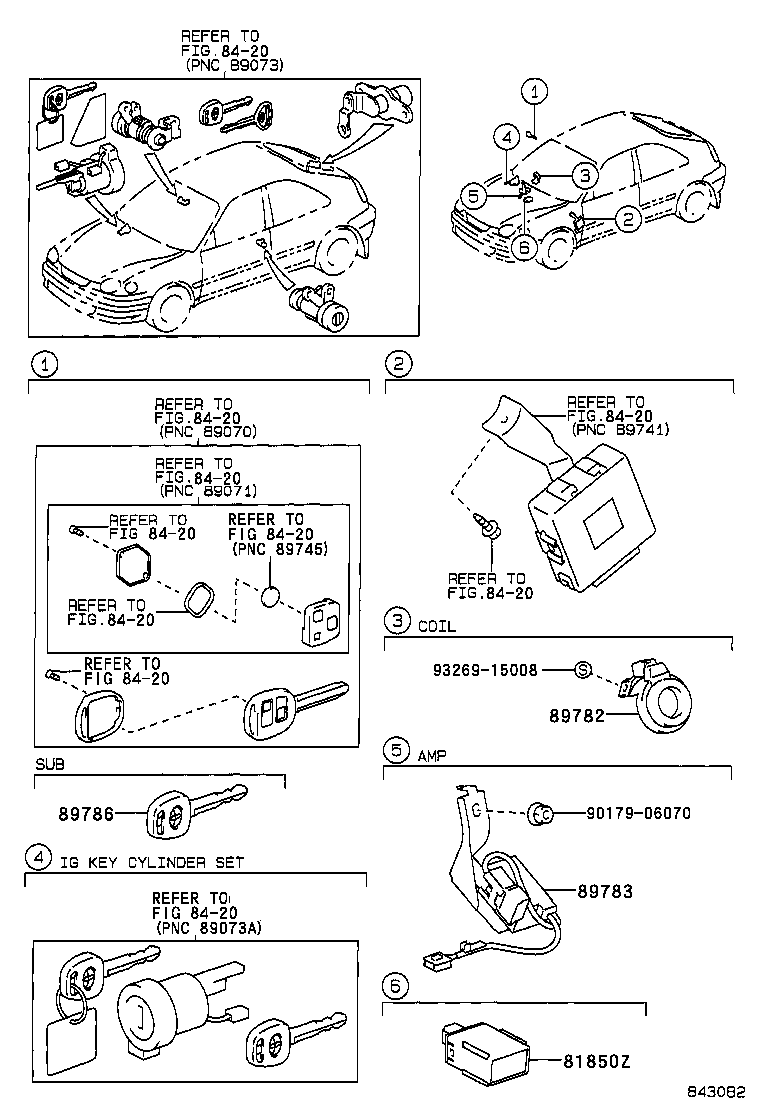

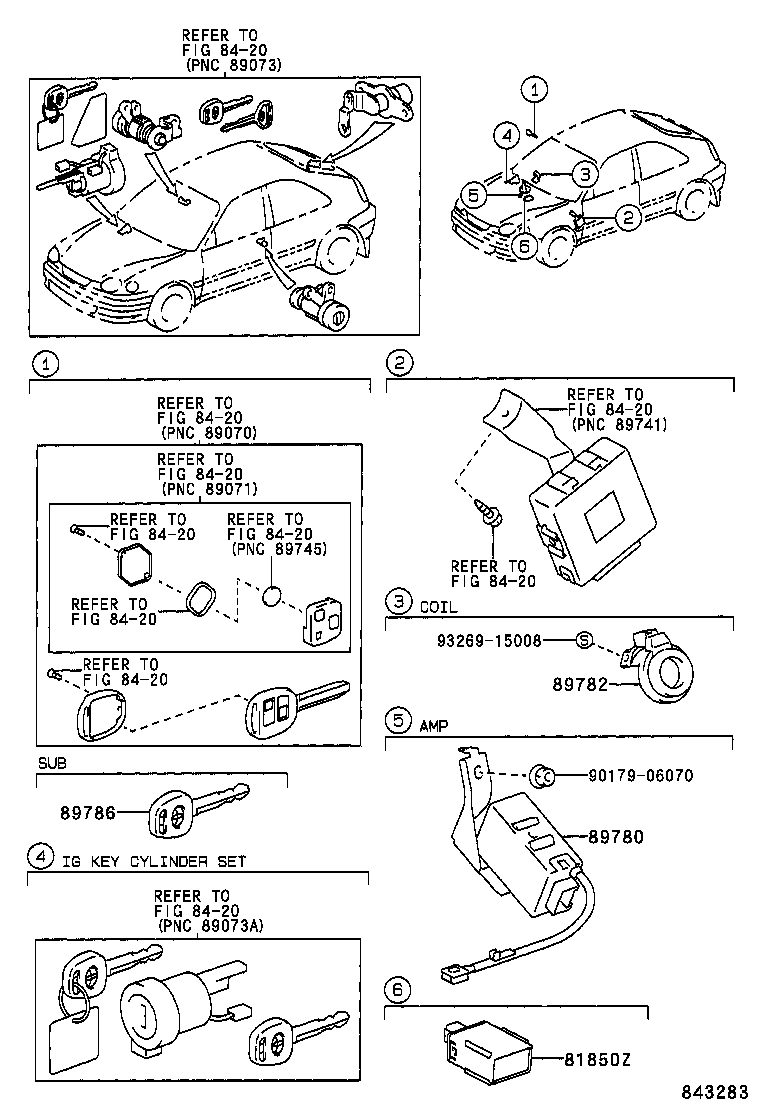

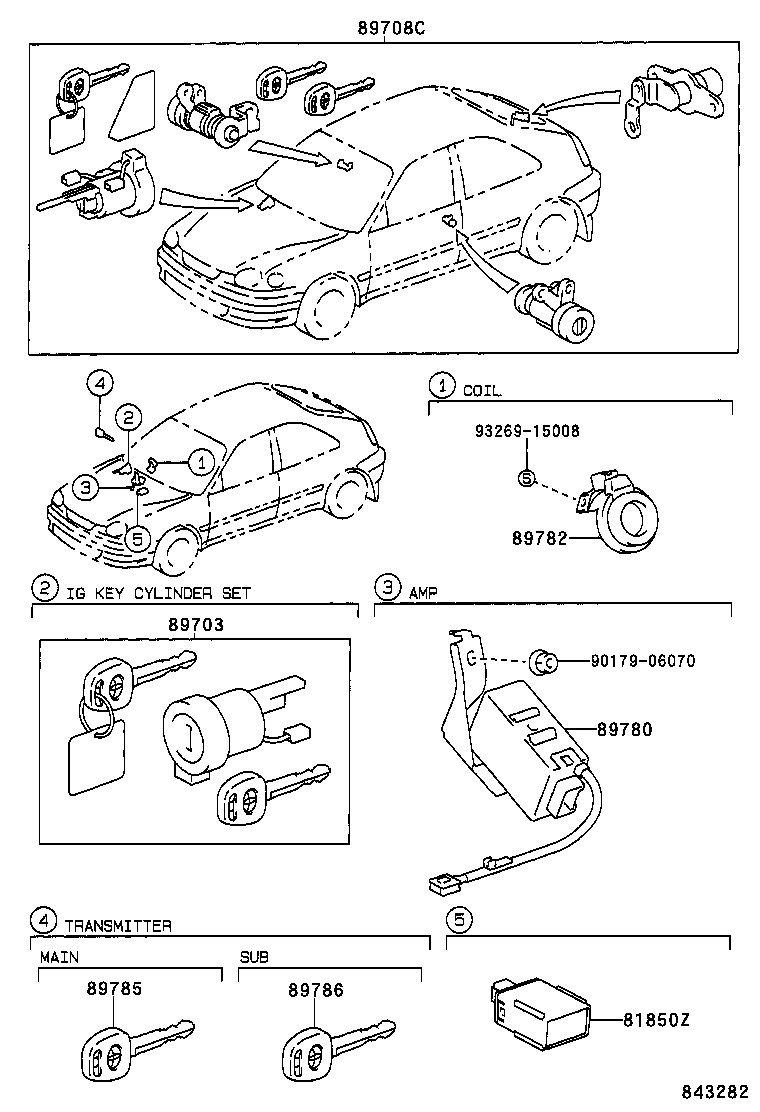

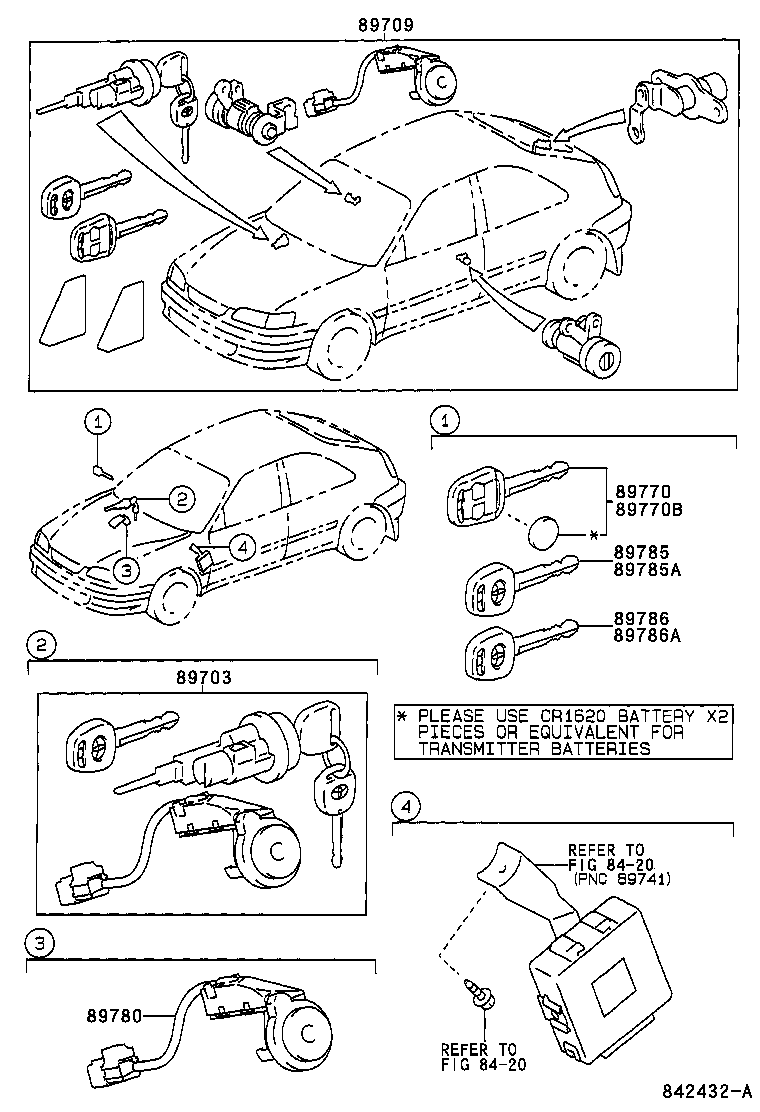

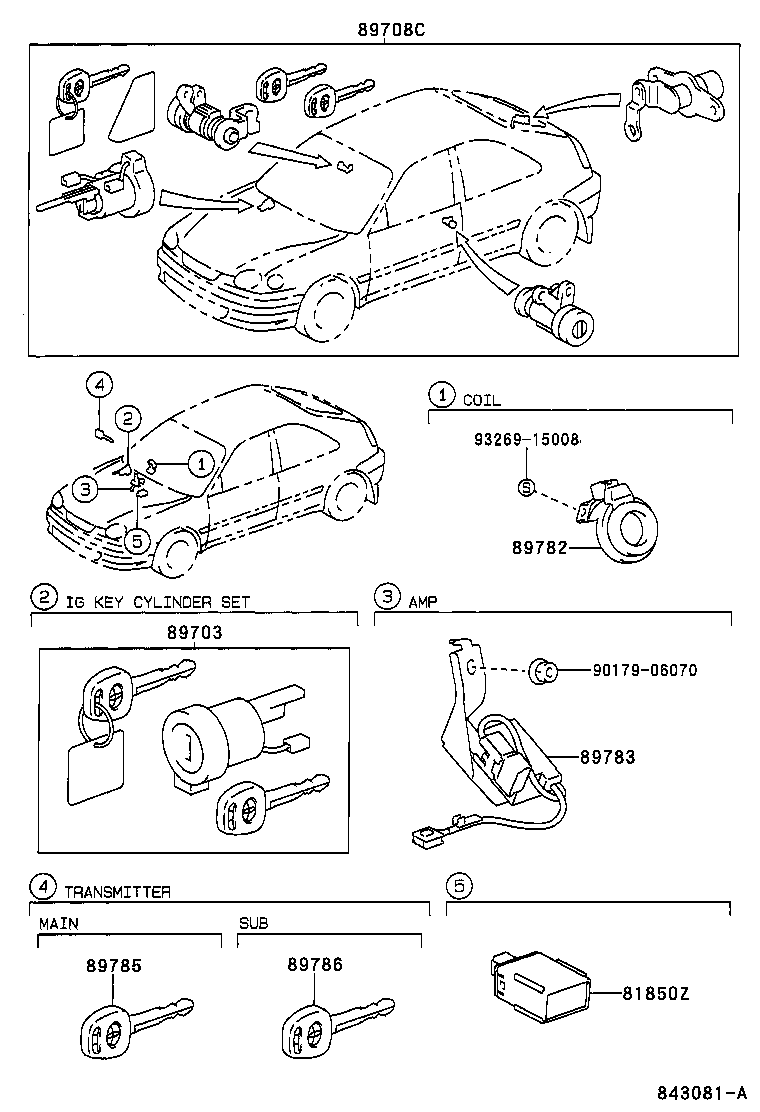

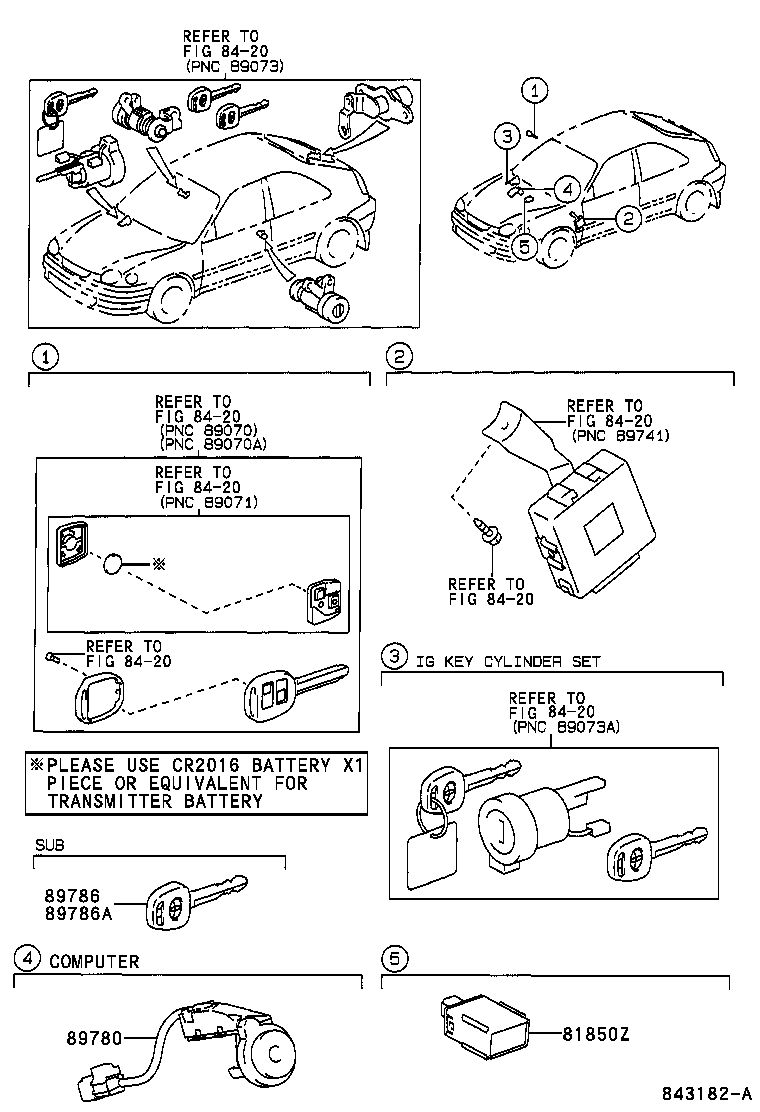

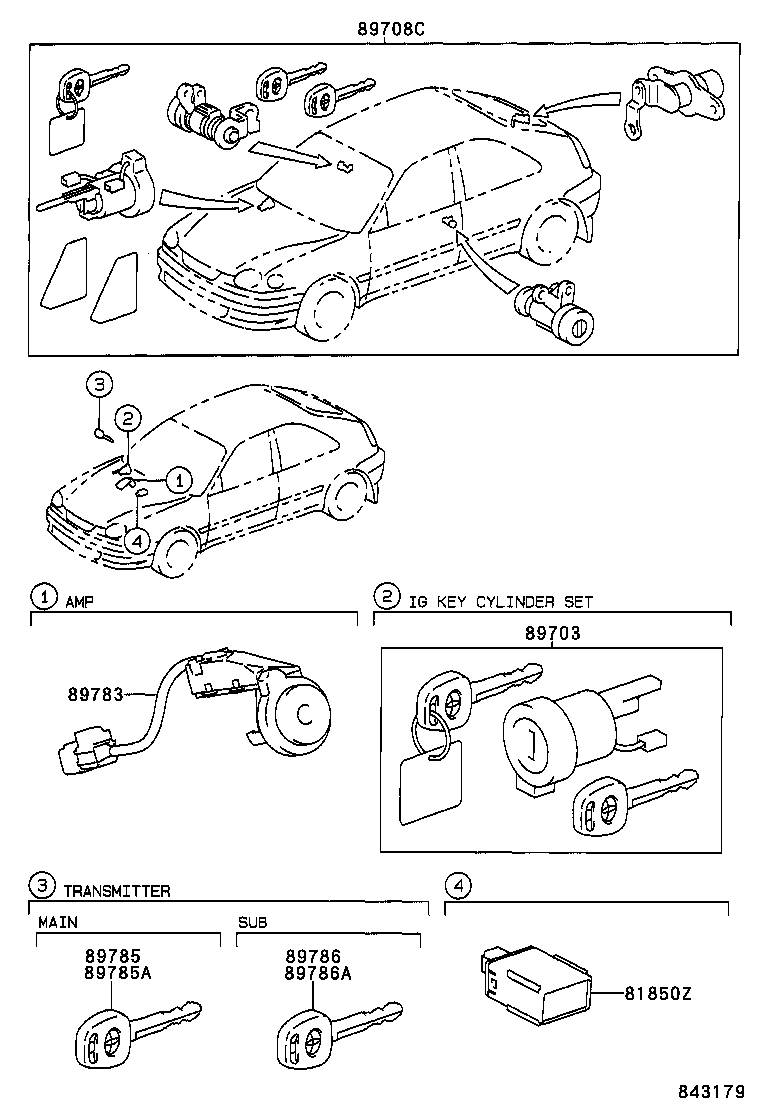

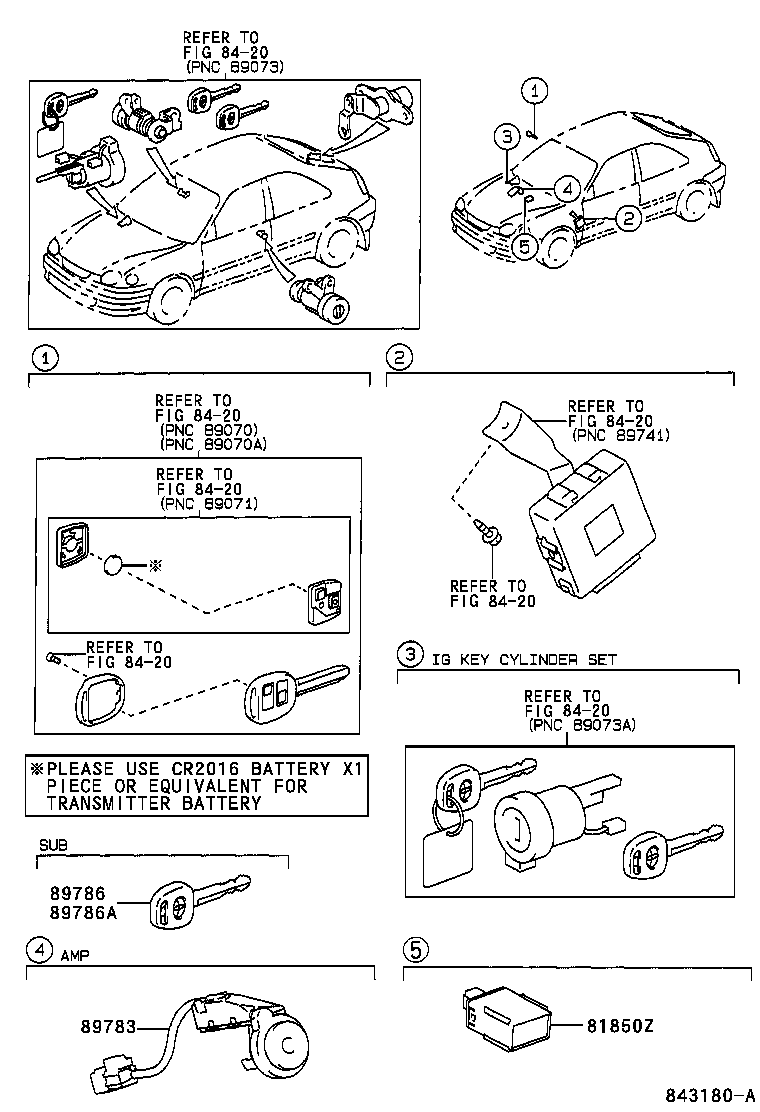

Figure 841033A 841033A 1997-04 → 1999-10 Figure 843081A 843081A 1999-10 → — Figure 843282 843282 2000-01 → — Figure 843282 843282 2000-08 → — Figure 843082 843082 1999-10 → — Figure 843283 843283 2000-01 → — Figure 842432A 842432A 1998-09 → 1999-11 Figure 843179 843179 1999-11 → — Figure 843180A 843180A 1999-11 → — Figure 843181 843181 1999-11 → — Figure 843182A 843182A 1999-11 → — Figure 843182A 843182A 2000-08 → —

Part groups

PNCDescription
81850Z Lamp Assy, Theft Warning Indicator
89703 Cylinder & Key Set, Ignition W/Transponder
89708C Cylinder Set, Lock W/Transponder Key Transmitter
89709 Computer Set, Transponder Key
89770 Transmitter Assy,Transponder Immobilizer&Wireless(BLANK)
89770B Transmitter Assy, Transponder W/Immobilizer & Wireless(CUT)
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
89785 Transmitter, Transponder Key Master
89785A Transmitter, Transponder Cut Key Master
89786 Transmitter, Transponder Key Sub
89786A Transmitter, Transponder Cut Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
