Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

20 part groups · 4 illustrations

Illustrations

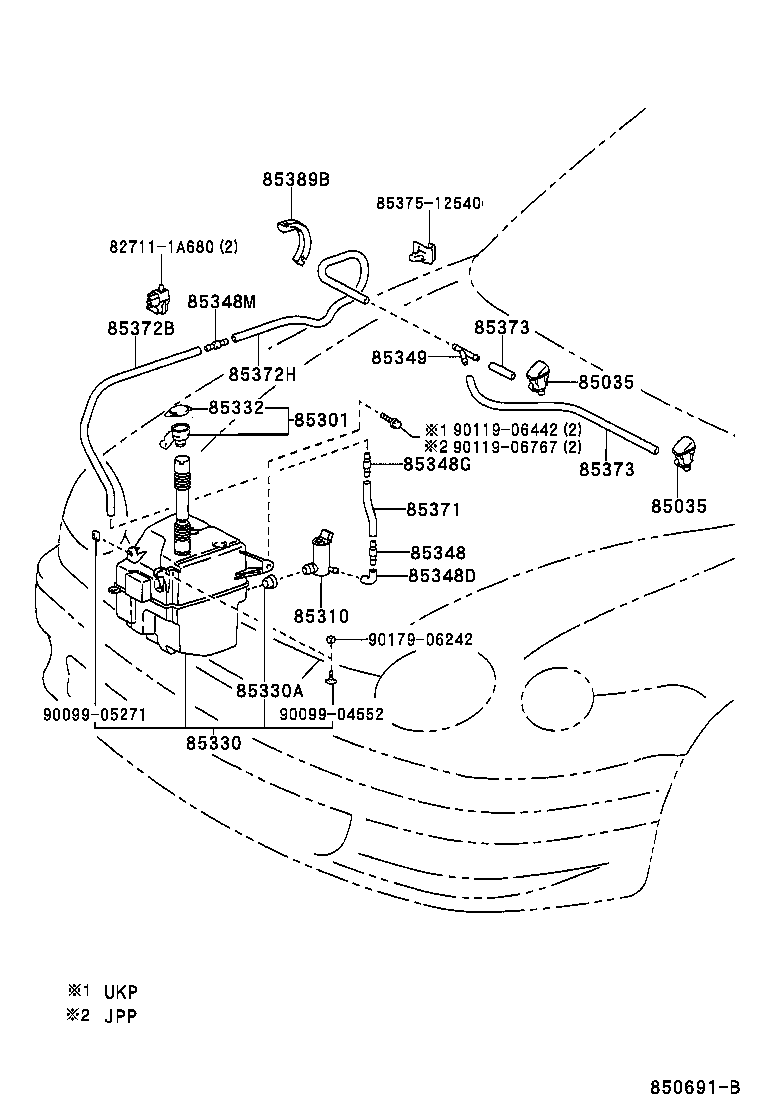

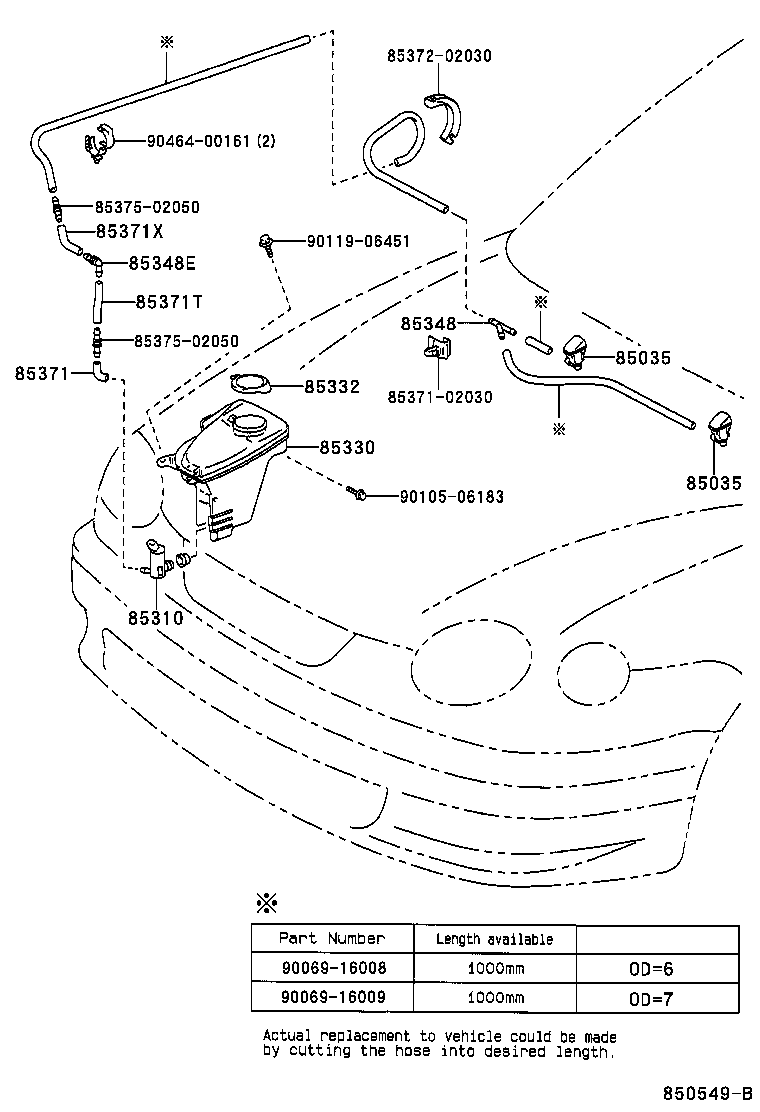

Figure 850249A 850249A 1997-04 → — Figure 850549B 850549B 1998-09 → — Figure 850691B 850691B 1999-10 → — Figure 850691B 850691B 1999-11 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85301 Inlet Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85348G Joint, Windshield Washer Hose, NO.2
85348M Joint, Windshield Washer Hose, NO.3
85349 Joint, Windshield Washer Hose, NO.1
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85371T Hose, Windshield Washer (FROM JOINT TO JOINT)
85371X Hose, Windshield Washer(FROM JOINT TO TOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85389B Protector, Windshield Washer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
