Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04

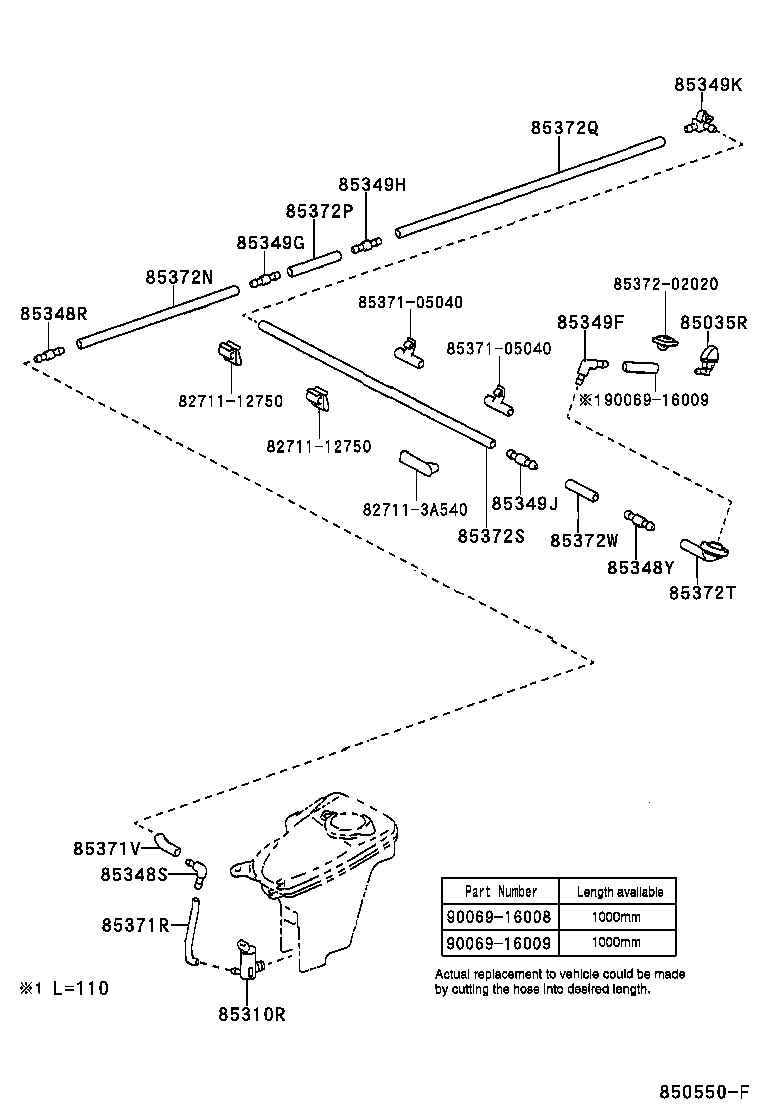

Rear Washer
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 85035R | Nozzle Sub-assy, Rear Washer |
| 85310R | Motor Assy, Rear Washer |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85348S | Joint, Rear Washer Elbow, NO.1 |
| 85348T | Joint, Rear Washer Hose, NO.2 |
| 85348U | Joint, Rear Washer Hose, NO.3 |
| 85348V | Joint, Rear Washer Hose, NO.4 |
| 85348Y | Joint, Rear Washer Hose, NO.5 |
| 85349F | Joint, Rear Washer Hose, NO.1 |
| 85349G | Joint, Rear Washer Hose, NO.2 |
| 85349H | Joint, Rear Washer Hose, NO.3 |
| 85349J | Joint, Rear Washer Hose, NO.4 |
| 85349K | Joint, Rear Washer Elbow, NO.2 |
| 85349P | Joint, Rear Washer Elbow, NO.3 |
| 85349R | Joint, Rear Washer Hose, NO.5 |
| 85349W | Joint, Rear Washer Elbow, NO.4 |
| 85371R | Hose, Rear Washer (FROM MOTOR TO JOINT) |
| 85371V | Hose, Rear Washer (FROM JOINT TO JOINT) |
| 85372N | Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 |
| 85372P | Hose, Rear Washer (FROM JOINT TO JOINT), NO.2 |
| 85372Q | Hose, Rear Washer (FROM JOINT TO JOINT), NO.3 |
| 85372R | Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE) |
| 85372S | Hose, Rear Washer (FROM JOINT TO JOINT), NO.4 |
| 85372T | Grommet, Washer |
| 85372W | Hose, Rear Washer (FROM JOINT TO JOINT), NO.5 |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
