Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04

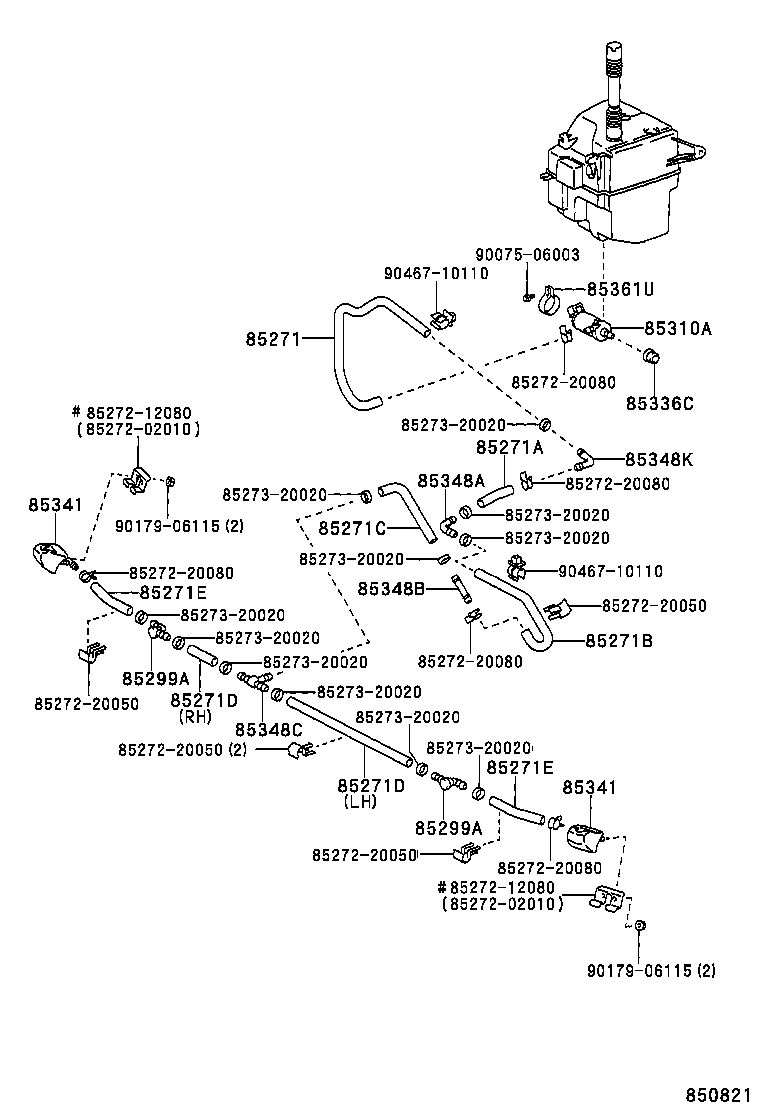

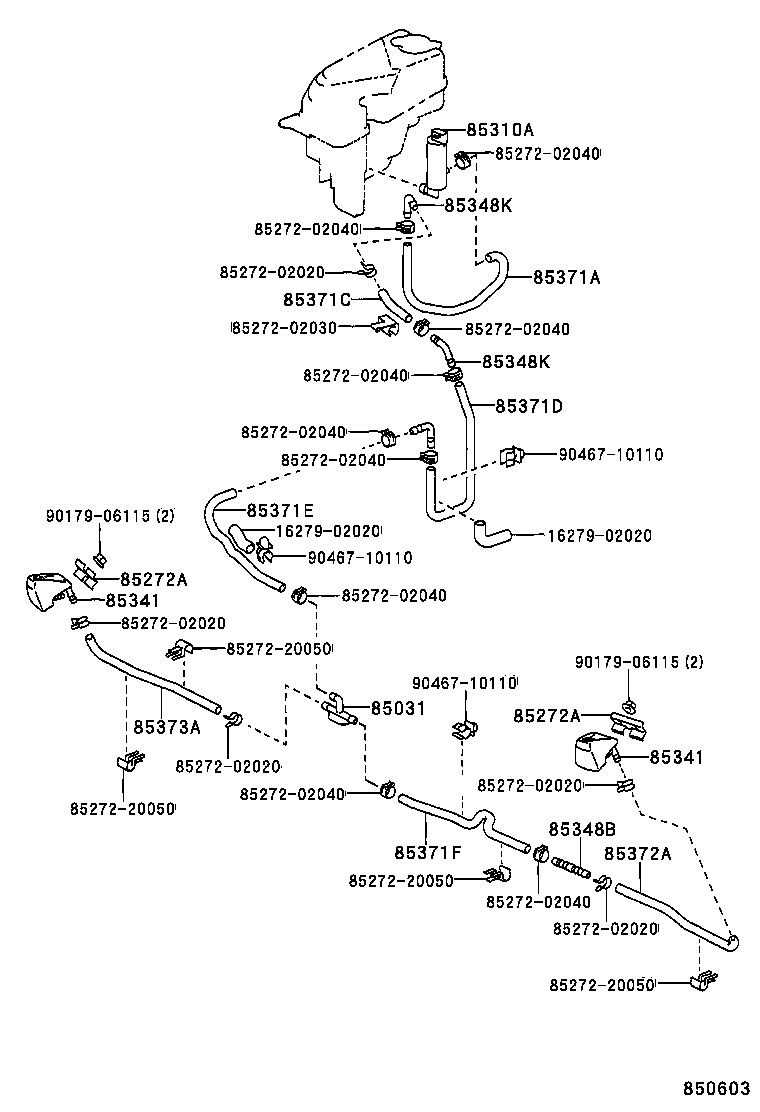

Headlamp Cleaner
28 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031 | Valve, Headlamp Cleaner Washer Hose |
| 85271 | Hose, Headlamp Cleaner, NO.1 |
| 85271A | Hose, Headlamp Cleaner, NO.2 |
| 85271B | Hose, Headlamp Cleaner, NO.3 |
| 85271C | Hose, Headlamp Cleaner, NO.4 |
| 85271D | Hose, Headlamp Cleaner, NO.5 |
| 85271E | Hose, Headlamp Cleaner, NO.6 |
| 85271F | Hose, Headlamp Cleaner, NO.7 |
| 85271G | Hose, Head Lamp |
| 85272A | Clamp, Headlamp Cleaner, NO.1 |
| 85299A | Valve Assy, Check |
| 85310A | Motor And Pump Assy, Headlamp Cleaner Washer |
| 85336C | Packing, Headlamp Cleaner Motor |
| 85341 | Nozzle, Headlamp Cleaner Washer |
| 85348A | Joint, Headlamp Cleaner Hose, NO.1 |
| 85348B | Joint, Headlamp Cleaner Hose, NO.2 |
| 85348C | Joint, Headlamp Cleaner Hose, NO.3 |
| 85348H | Joint, Headlamp Cleaner Hose, NO.4 |
| 85348K | Joint, Headlamp Cleaner Elbow, NO.1 |
| 85348L | Joint, Headlamp Cleaner Elbow, NO.2 |
| 85361U | Bracket, Headlamp Cleaner Washer |
| 85371A | Hose, Headlamp Cleaner(FROM MOTOR TO JOINT) |
| 85371C | Hose, Headlamp Cleaner, NO.1 |
| 85371D | Hose, Headlamp Cleaner, NO.2 |
| 85371E | Hose, Headlamp Cleaner, NO.3 |
| 85371F | Hose, Headlamp Cleaner, NO.4 |
| 85372A | Hose, Headlamp Cleaner (FROM JOINT TO JOINT OR NOZZLE) |
| 85373A | Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
