Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

16 part groups · 5 illustrations

Illustrations

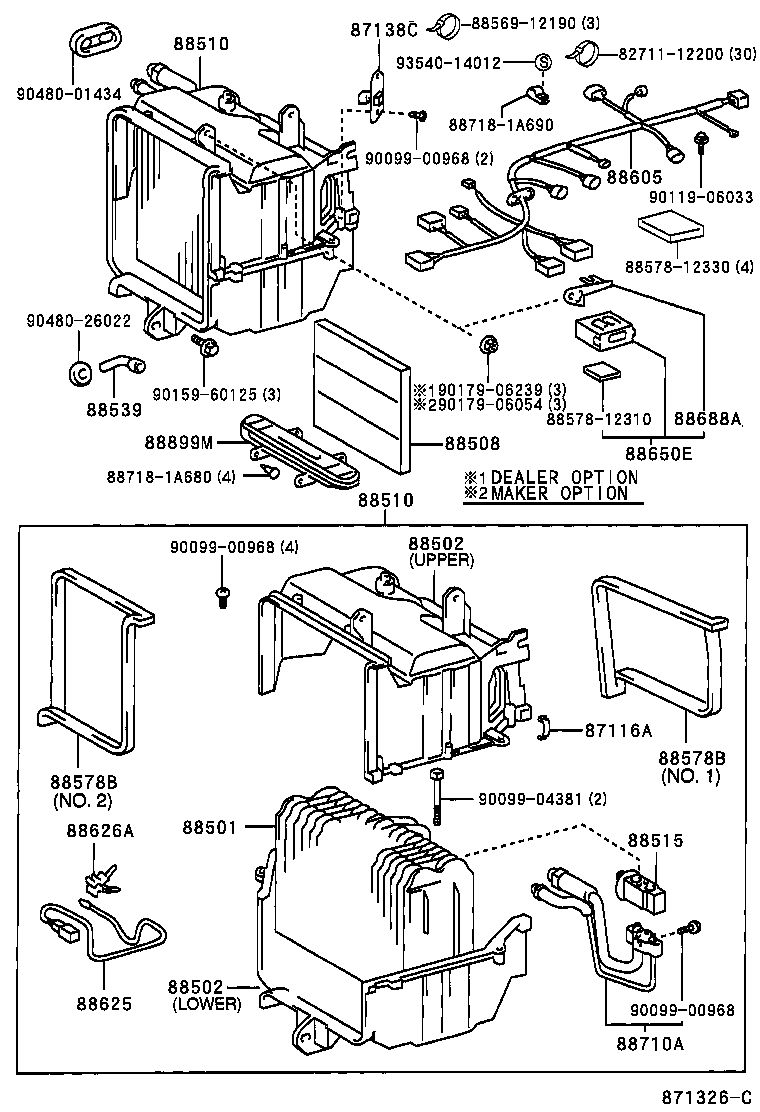

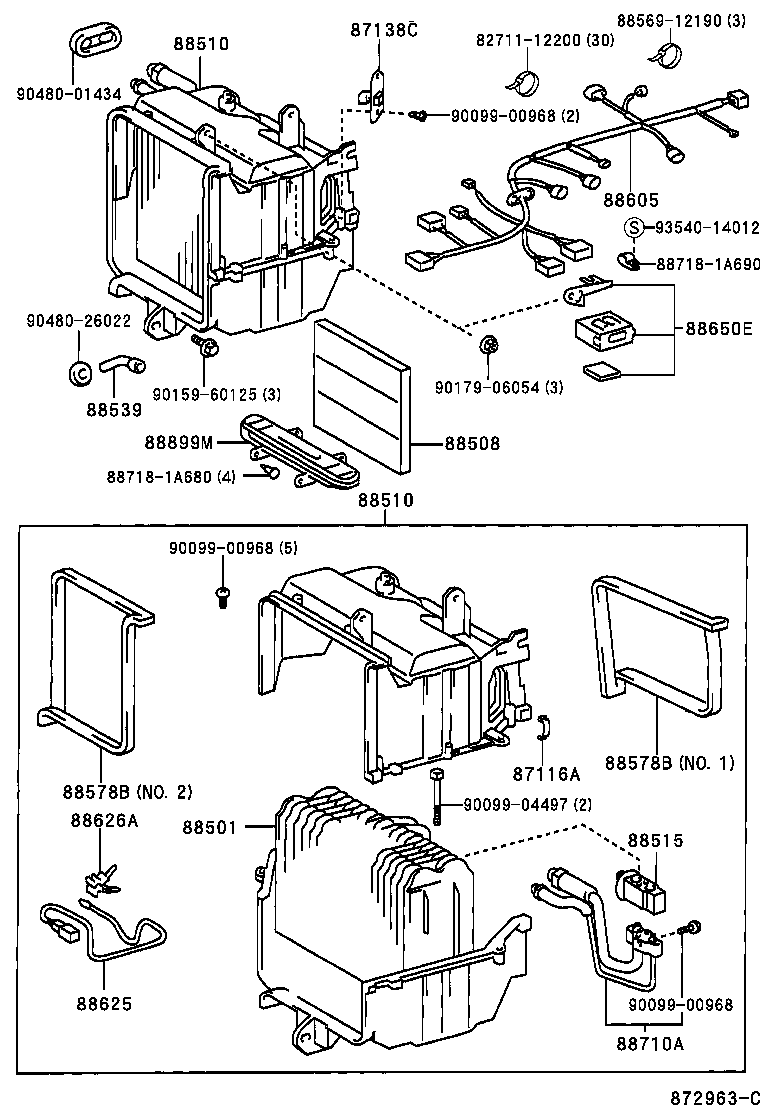

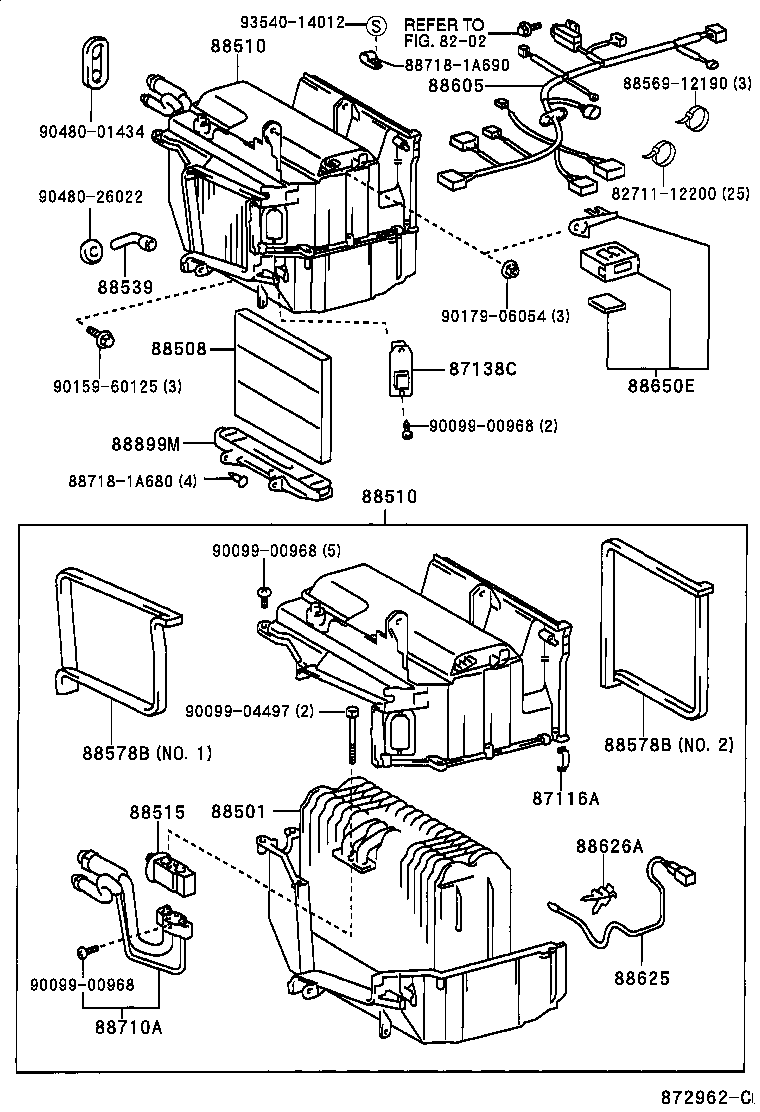

Figure 871325D 871325D 1997-04 → — Figure 872962C 872962C 1998-09 → — Figure 871326C 871326C 1997-04 → — Figure 872963C 872963C 1998-09 → — Figure 870233 870233 1997-04 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
87138C Resistor, Blower
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88508 Filter Sub-assy, Clean Air
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88578B Packing, Cooling Unit, NO.1
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88626A Holder, Thermistor
88650E Amplifier Assy, Air Conditioner, NO.1
88688A Bracket, Cooler Stabilizer Amplifier
88710A Tube Assy, Air Conditioner
88899M Plate, Cover(FOR AIR FILTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
