Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04
Heating & Air Conditioning - Control & Air Duct
24 part groups · 4 illustrations
Part groups

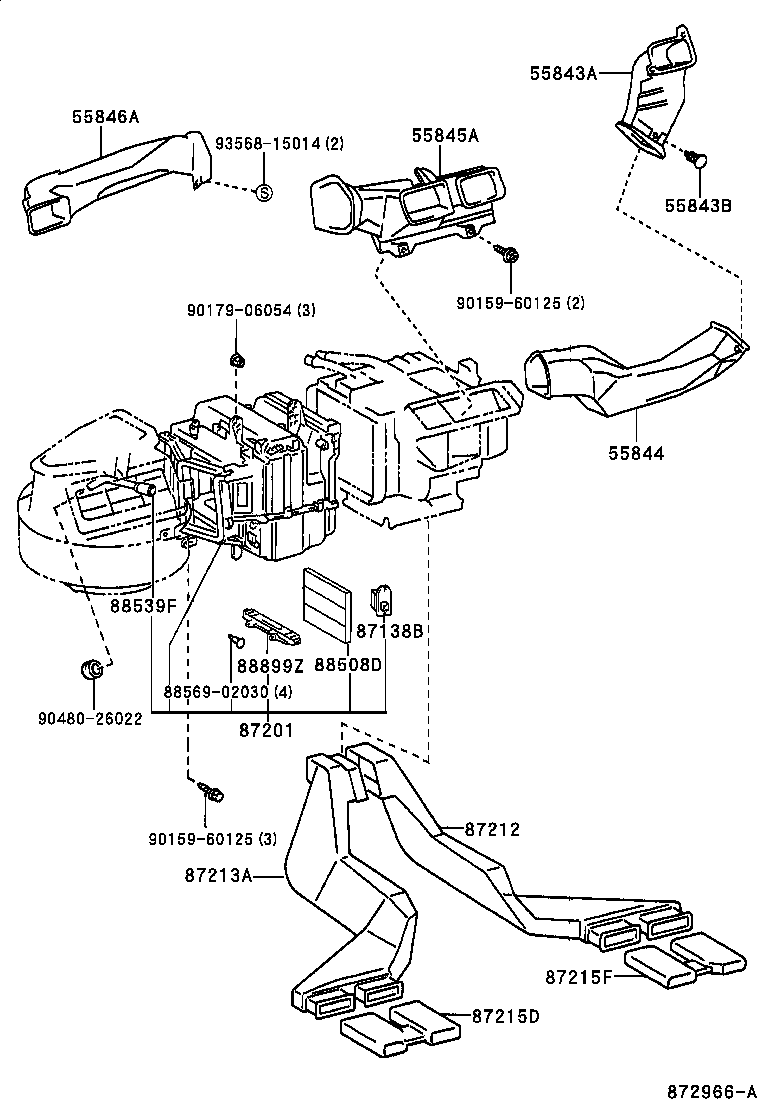

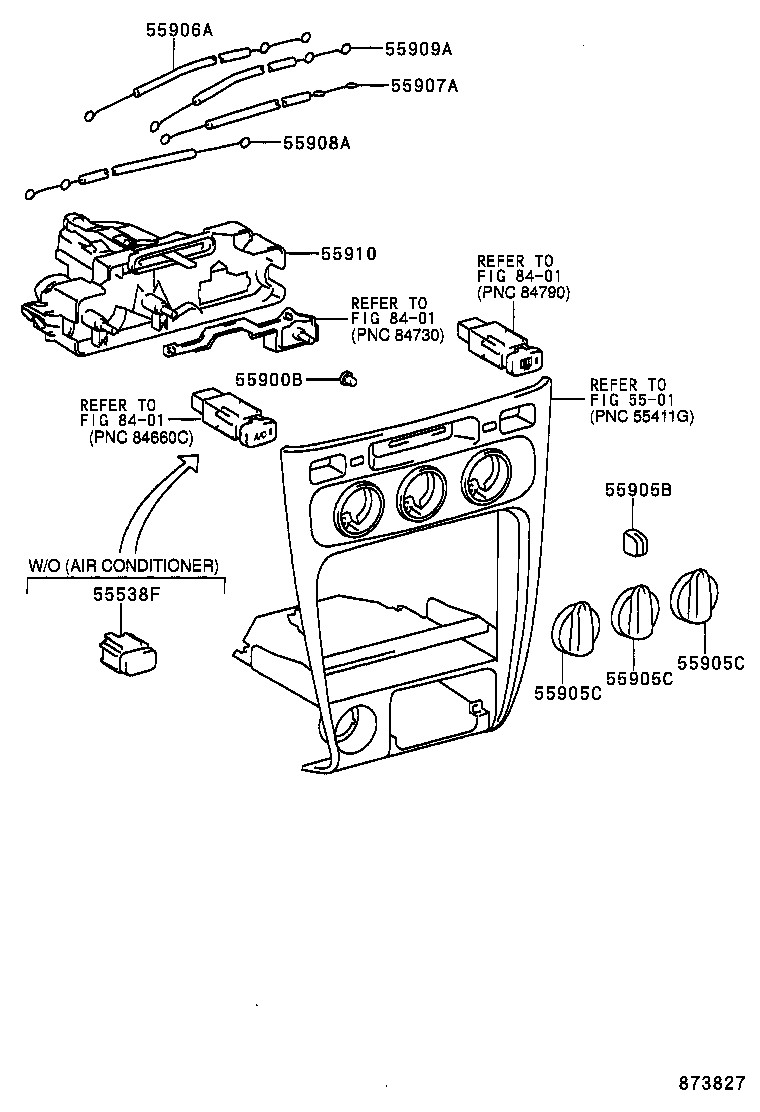

| PNC | Description |
|---|---|
| 55538F | Cover, Cooler Switch Hole |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55843B | Clip, Heater TO Register Duct |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55846A | Duct, Heater TO Register, NO.4 |
| 55900B | Bulb, Air Conditioner Control |
| 55905B | Knob, Heater Control, NO.2 |
| 55905C | Knob, Heater Control, NO.3 |
| 55905D | Knob Sub-assy, Control |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55907A | Cable Sub-assy, Water Valve Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 87138B | Resistor, Heater Blower |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213A | Duct, Air Rear NO.2 |
| 87215D | Duct, Air, Rear NO.4 |
| 87215F | Duct, Air, Rear NO.3 |
| 88508D | Filter Sub-assy, Air |
| 88539F | Hose, Drain |
| 88899Z | Plate, Cover(FOR AIR FILTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
