Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

39 part groups · 13 illustrations

Illustrations

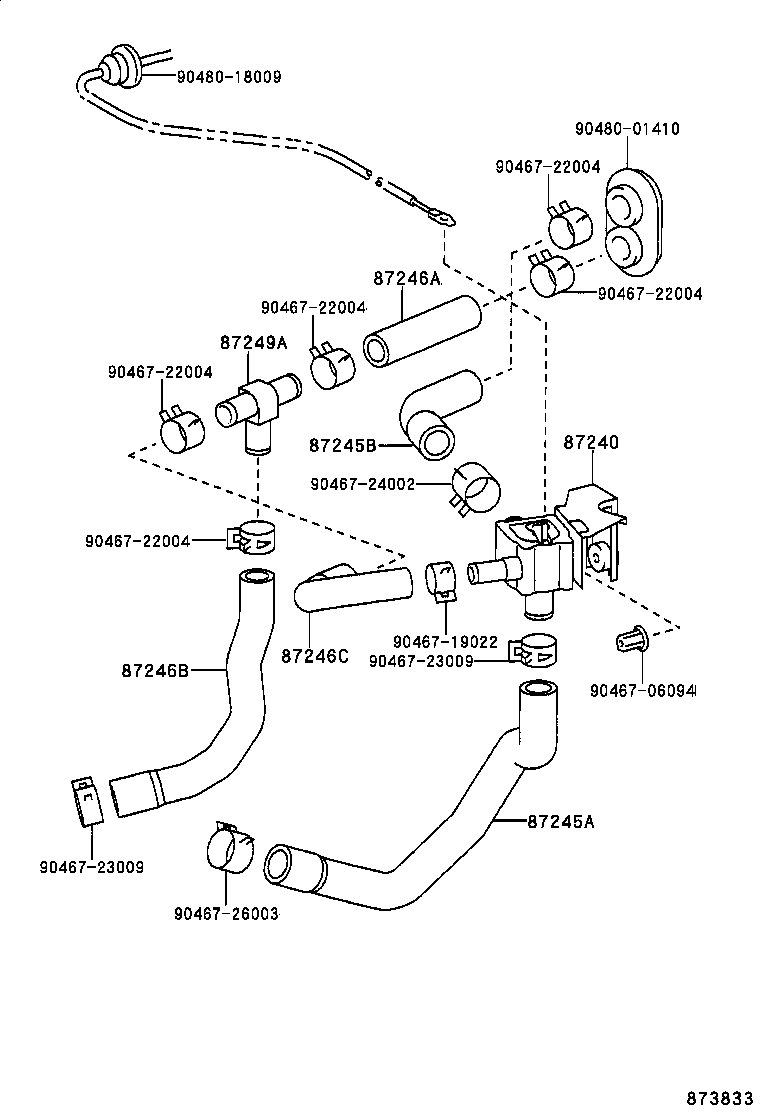

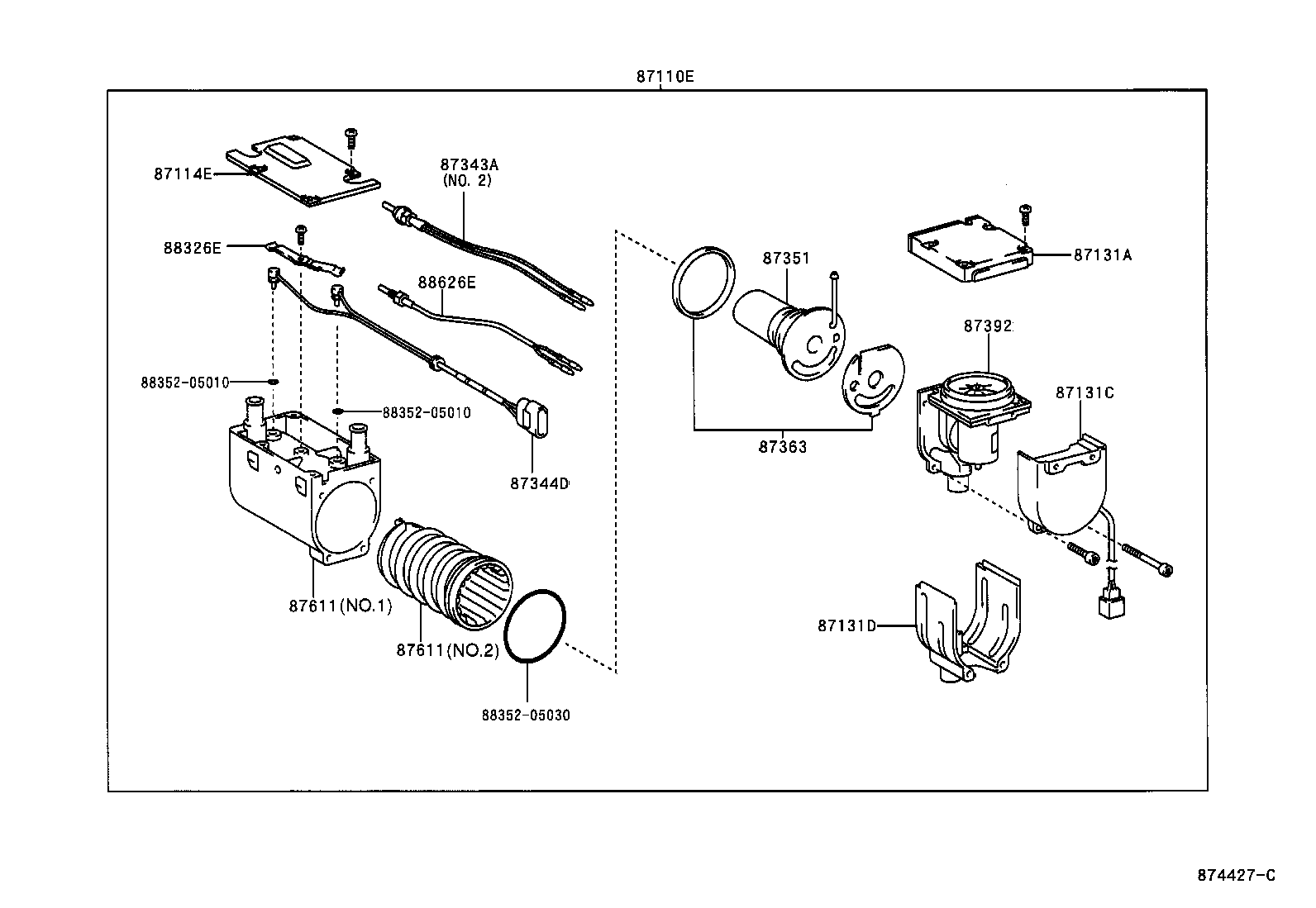

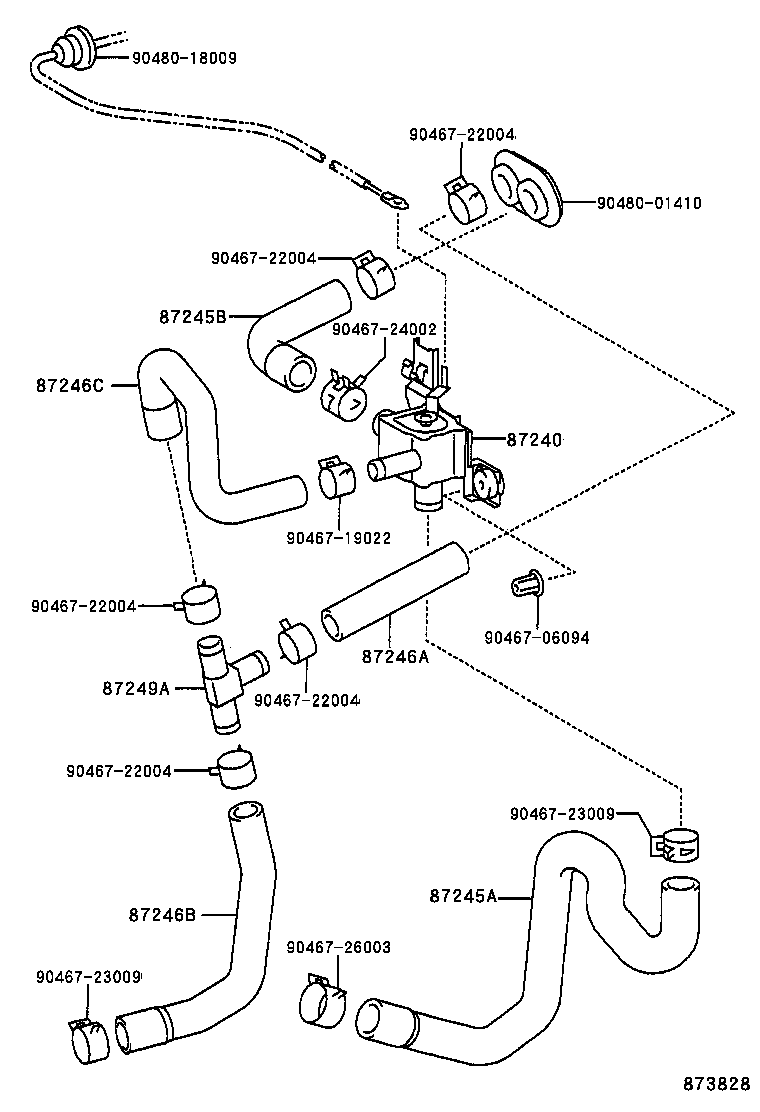

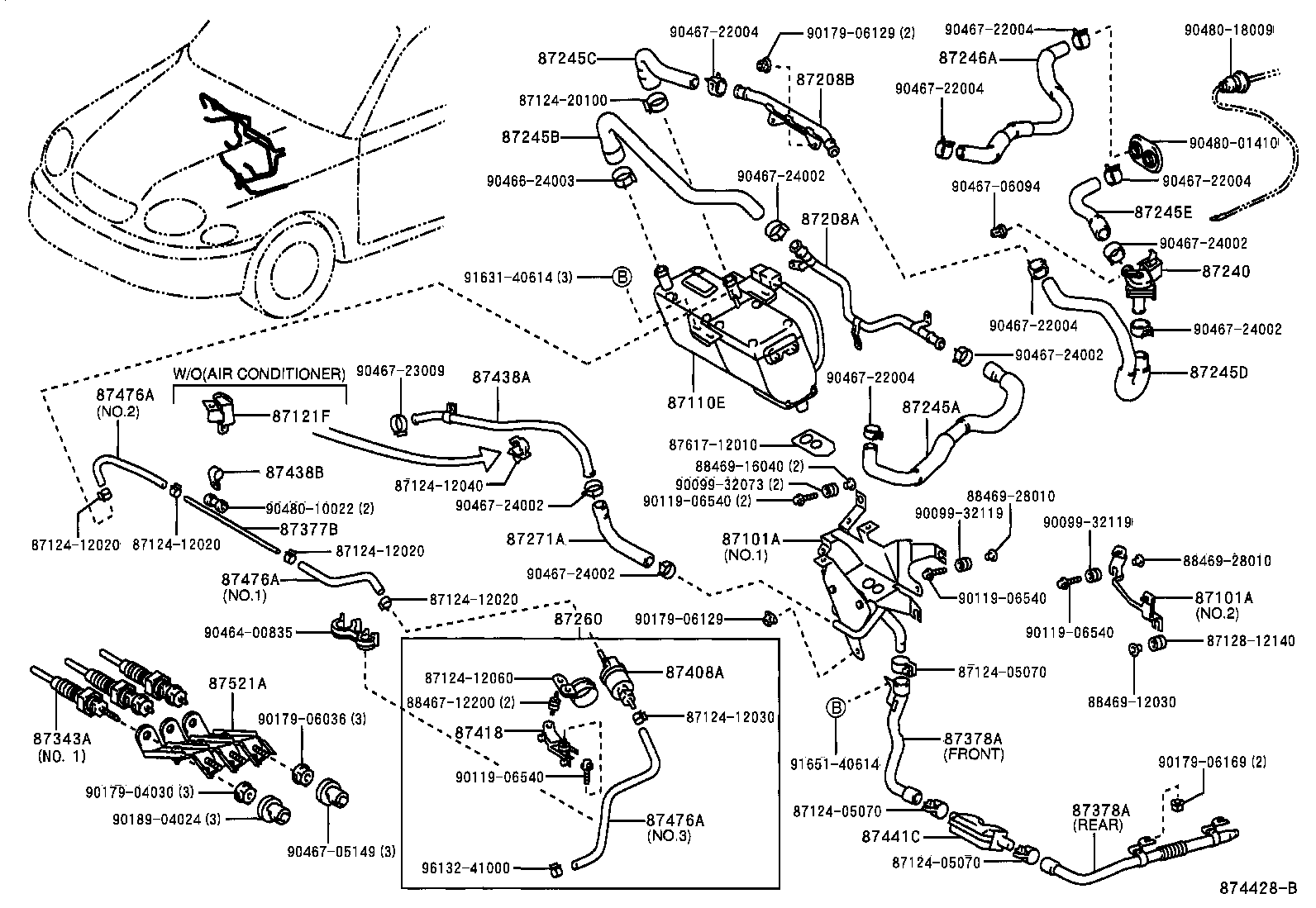

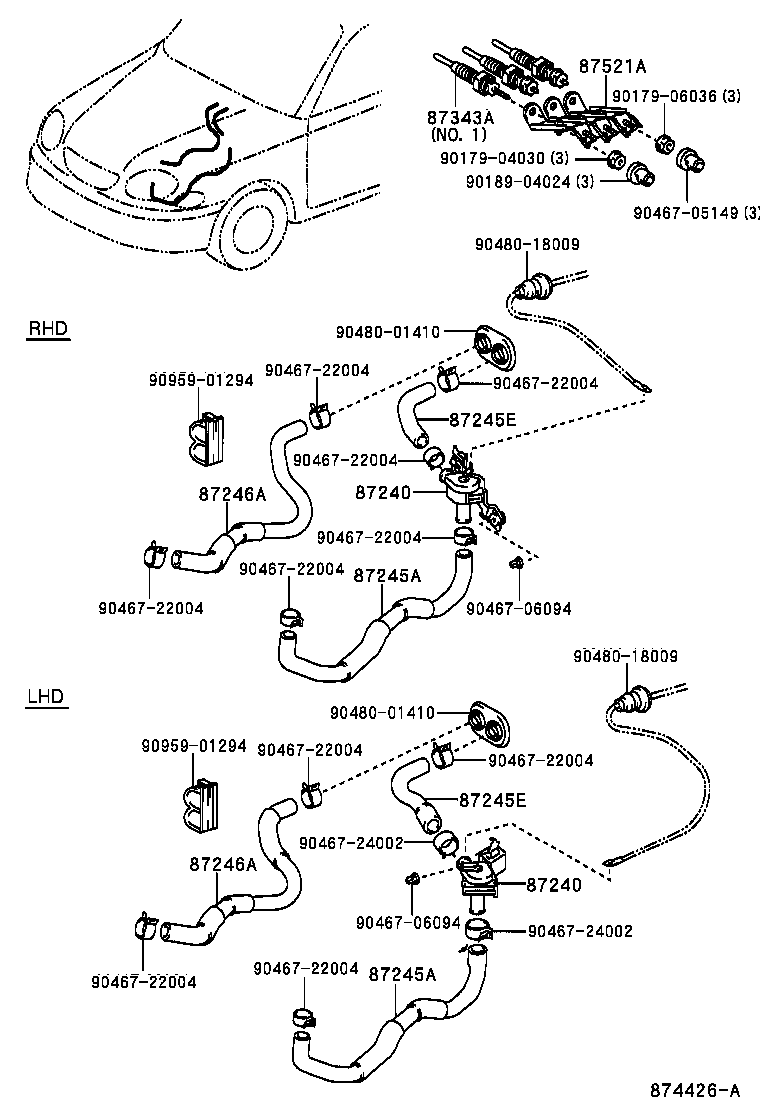

Figure 871334 871334 1997-04 → — Figure 871335 871335 1997-04 → — Figure 871044 871044 1997-04 → — Figure 871336 871336 1997-04 → — Figure 871045 871045 1997-04 → — Figure 871337 871337 1997-04 → — Figure 873746 873746 1999-10 → — Figure 873747 873747 1999-10 → — Figure 873828 873828 1999-12 → — Figure 873833 873833 1999-12 → — Figure 874426A 874426A 2000-08 → — Figure 874428B 874428B 2000-08 → — Figure 874427C 874427C 2000-08 → —

Part groups

PNCDescription
87101A Bracket Sub-assy, Heater NO.1
87110E Heater Assy
87114E Cover, Heater, NO.1
87121F Bracket, Heater
87131A Housing, Heater Blower
87131C Housing, Heater Blower, NO.2
87131D Housing, Heater Blower, NO.3
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87249A Pipe, Heater Water Outlet, A
87260 Pump Assy, Heater
87271A Hose, Heater Vacuum, NO.1
87343A Plug, Combustion Heater Glow
87344D Wiring, Heater
87351 Chamber, Fuel Regulator Body
87363 Gasket, Fuel Regulator Cover
87377B Pipe, Fuel
87378A Pipe, Exhaust
87392 Housing, Motor
87408A Pump Sub-assy, Fuel
87418 Adapter, Fuel
87438A Pipe, Inlet Air
87438B Bracket, Heater Pipe, C
87441C Muffler
87476A Hose, Heater Fuel, NO.1
87521A Bracket, Engine Block Heater
87611 Case, Heat Exchanger
88326E Plate, Cover
88626E Sensor, Water Temperature
