Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

27 part groups · 37 illustrations

Illustrations

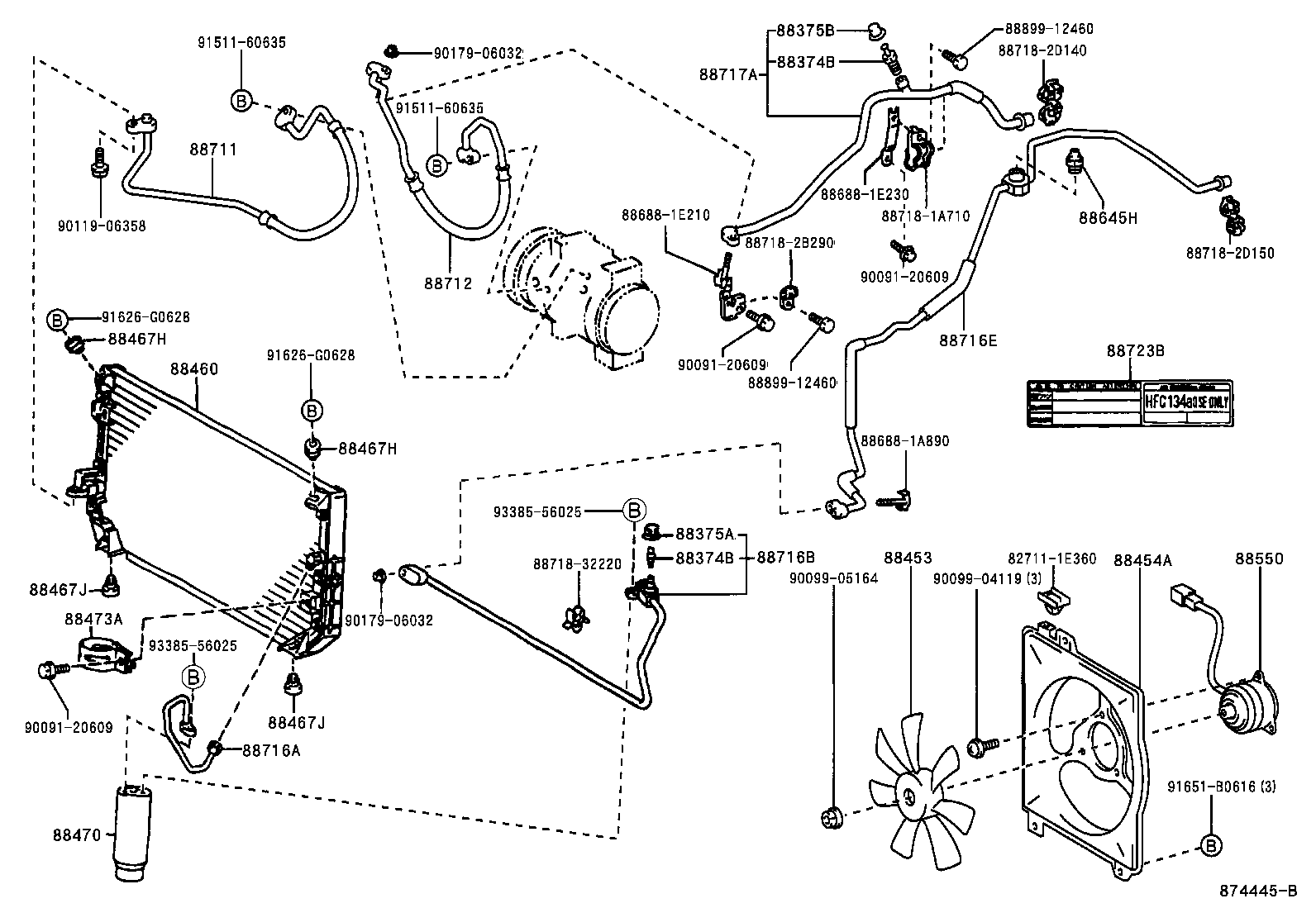

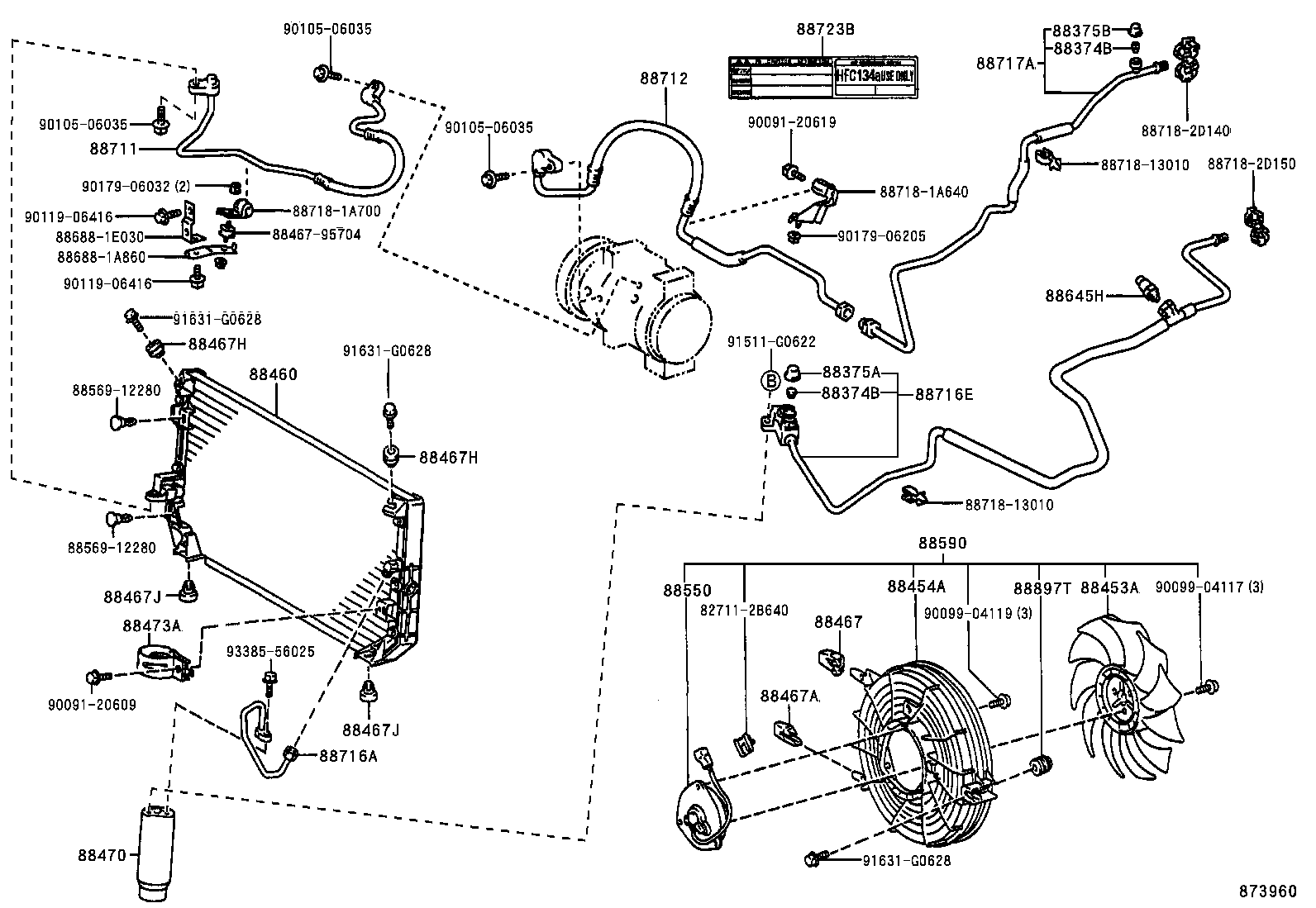

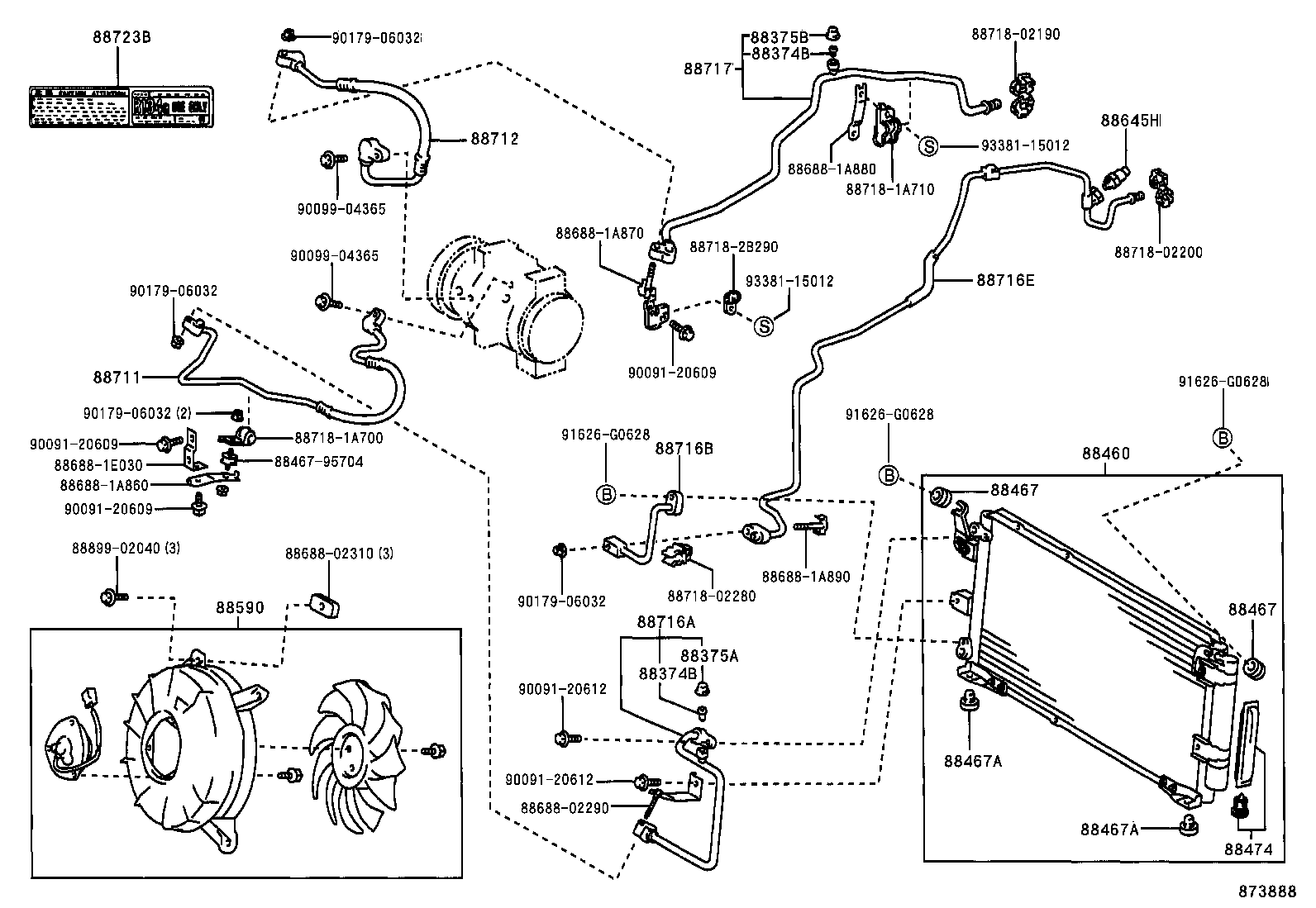

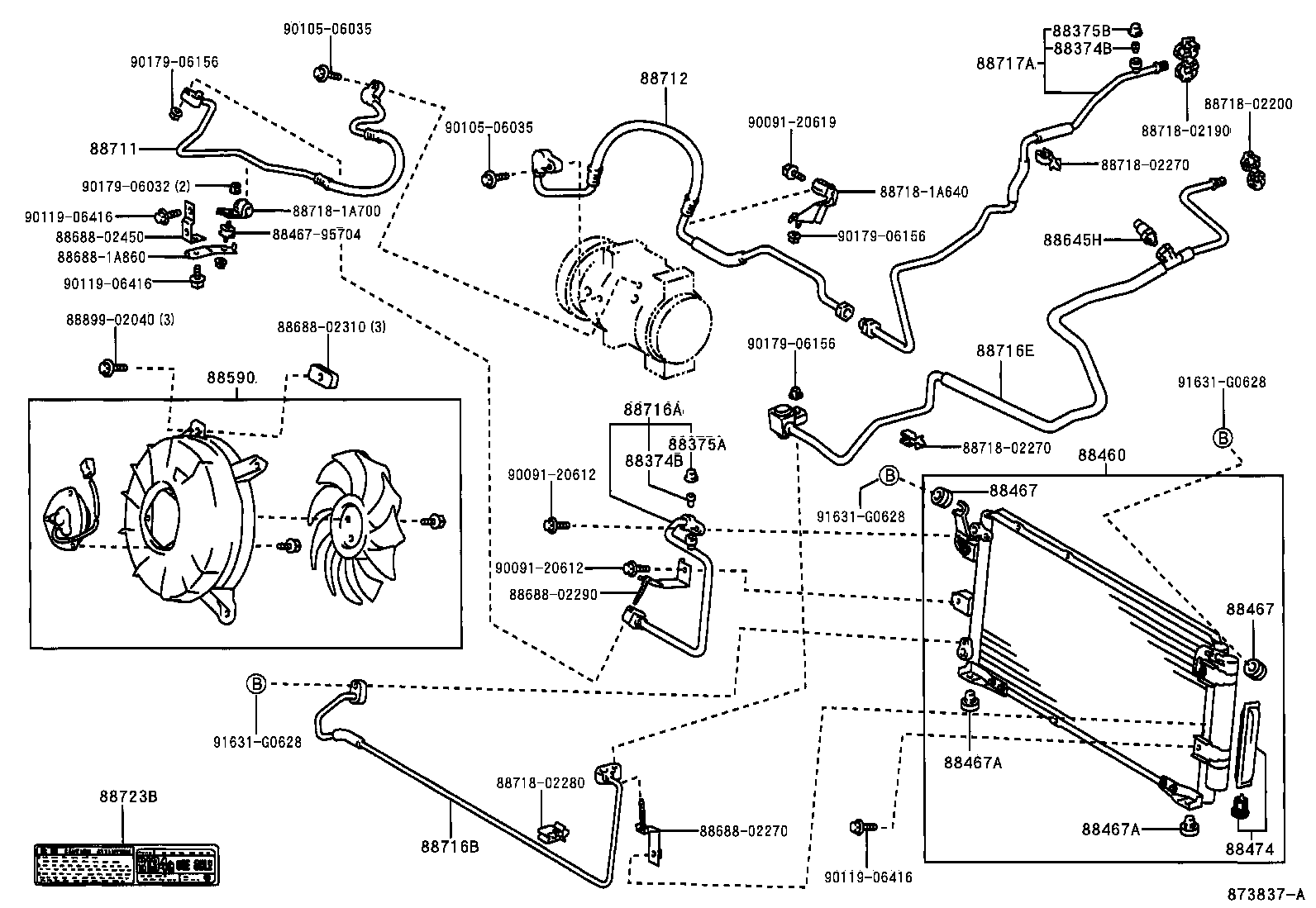

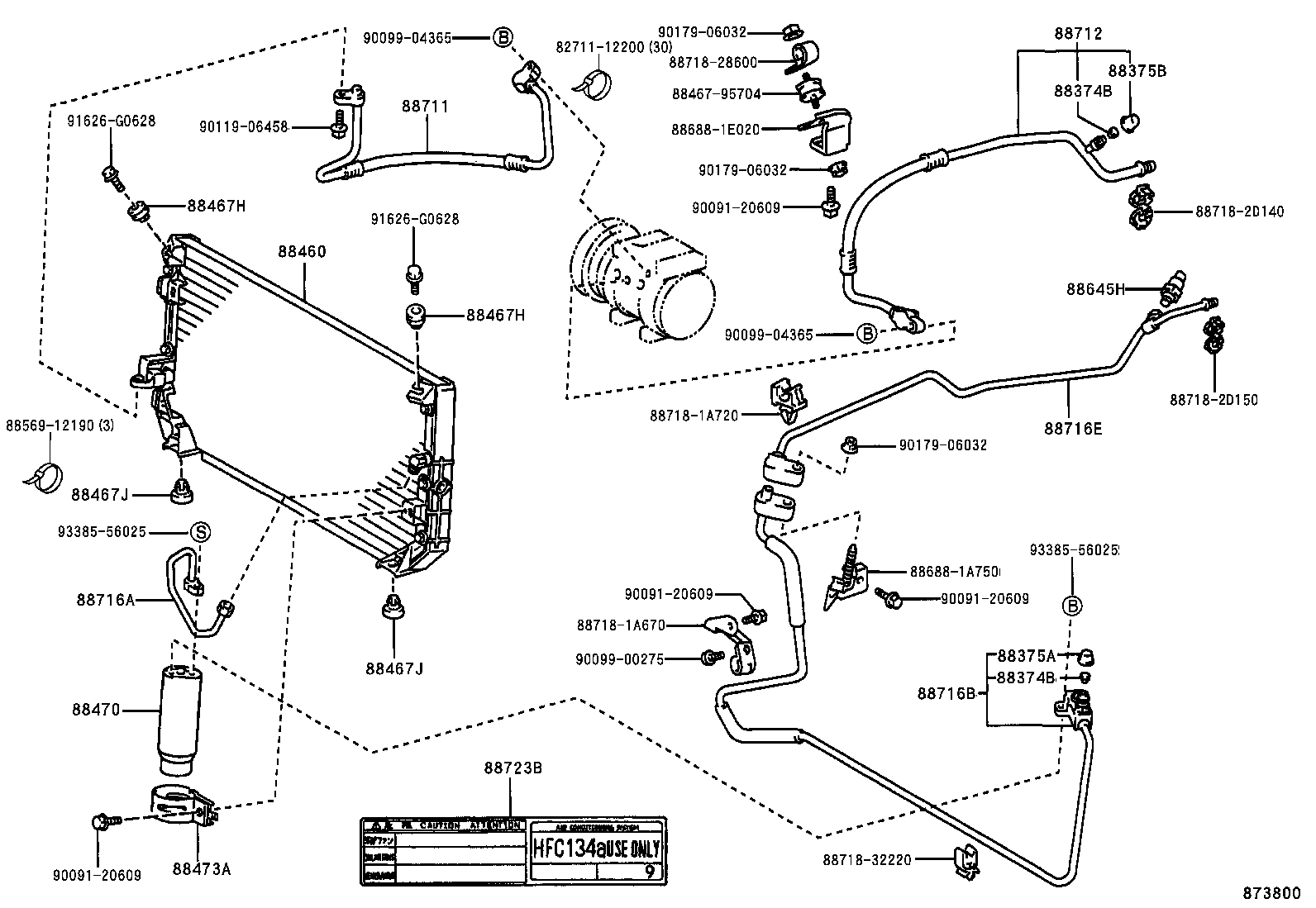

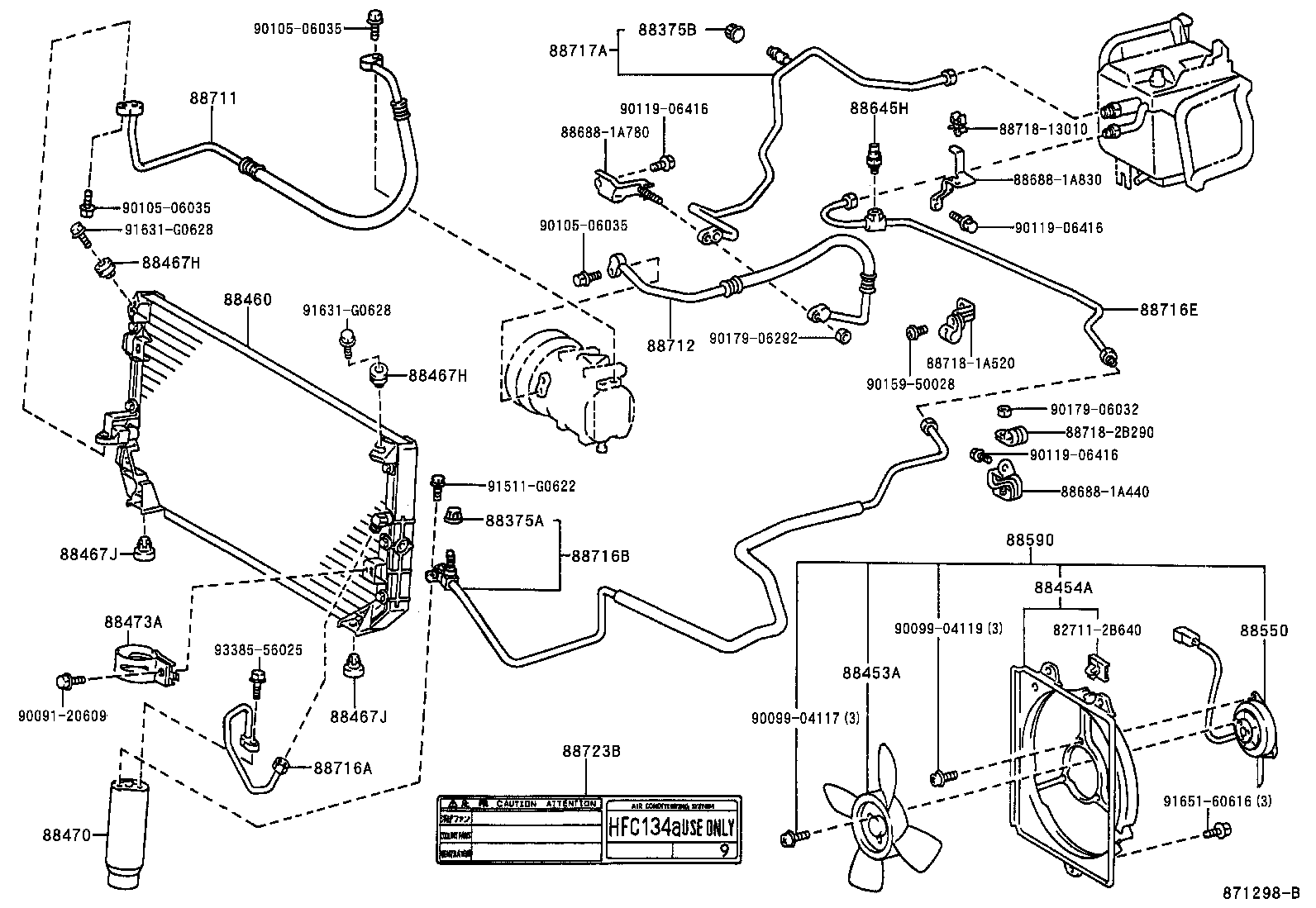

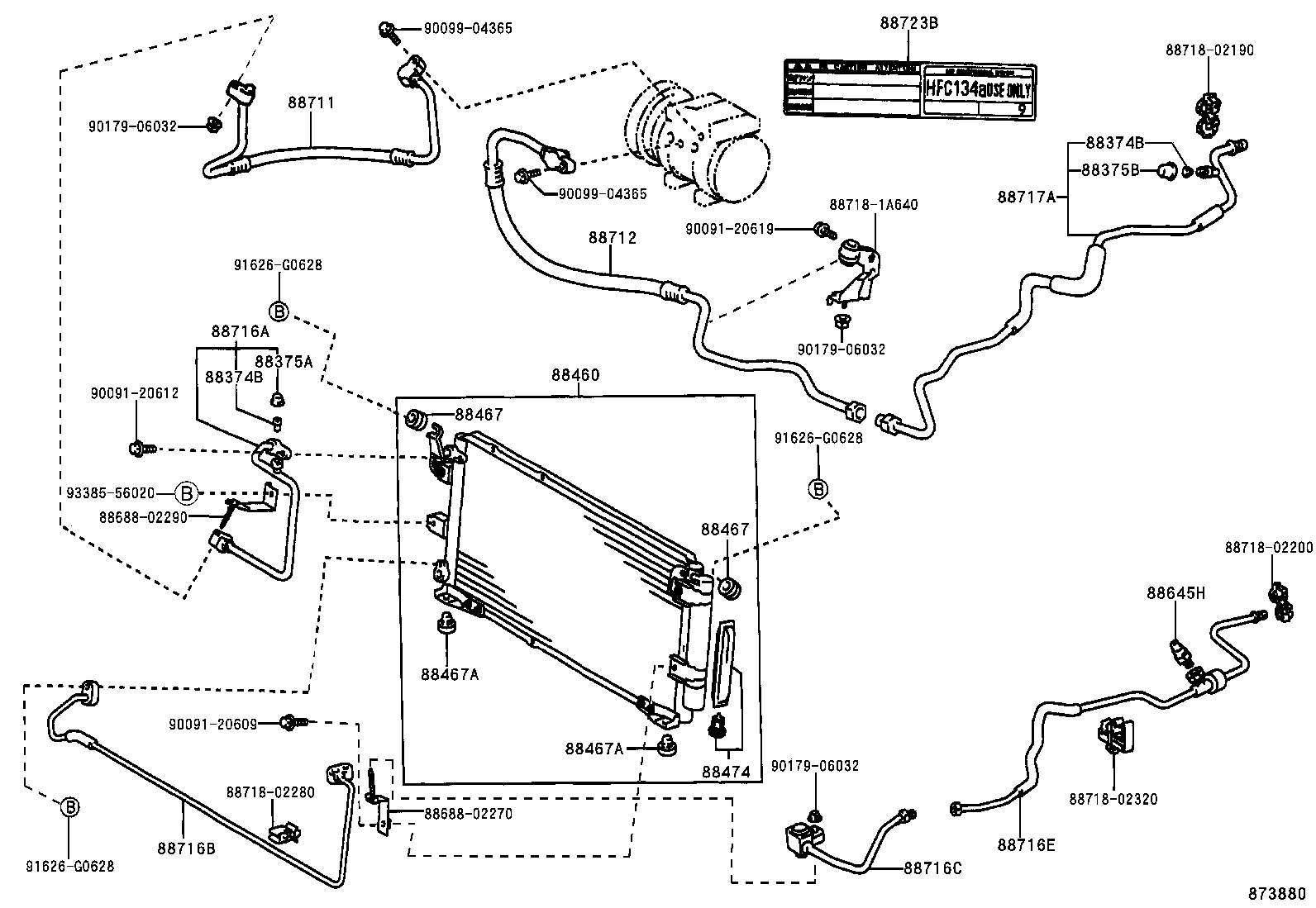

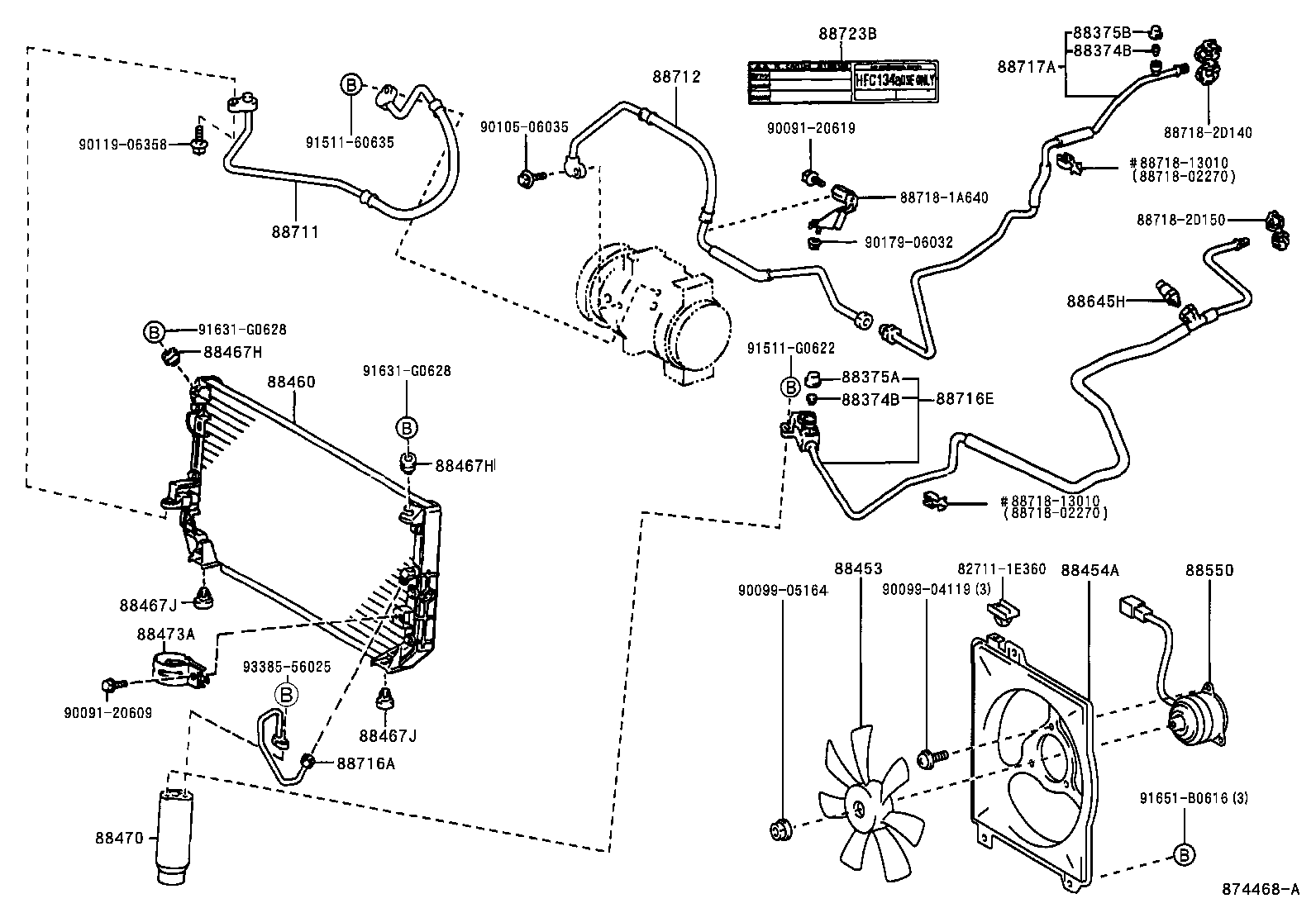

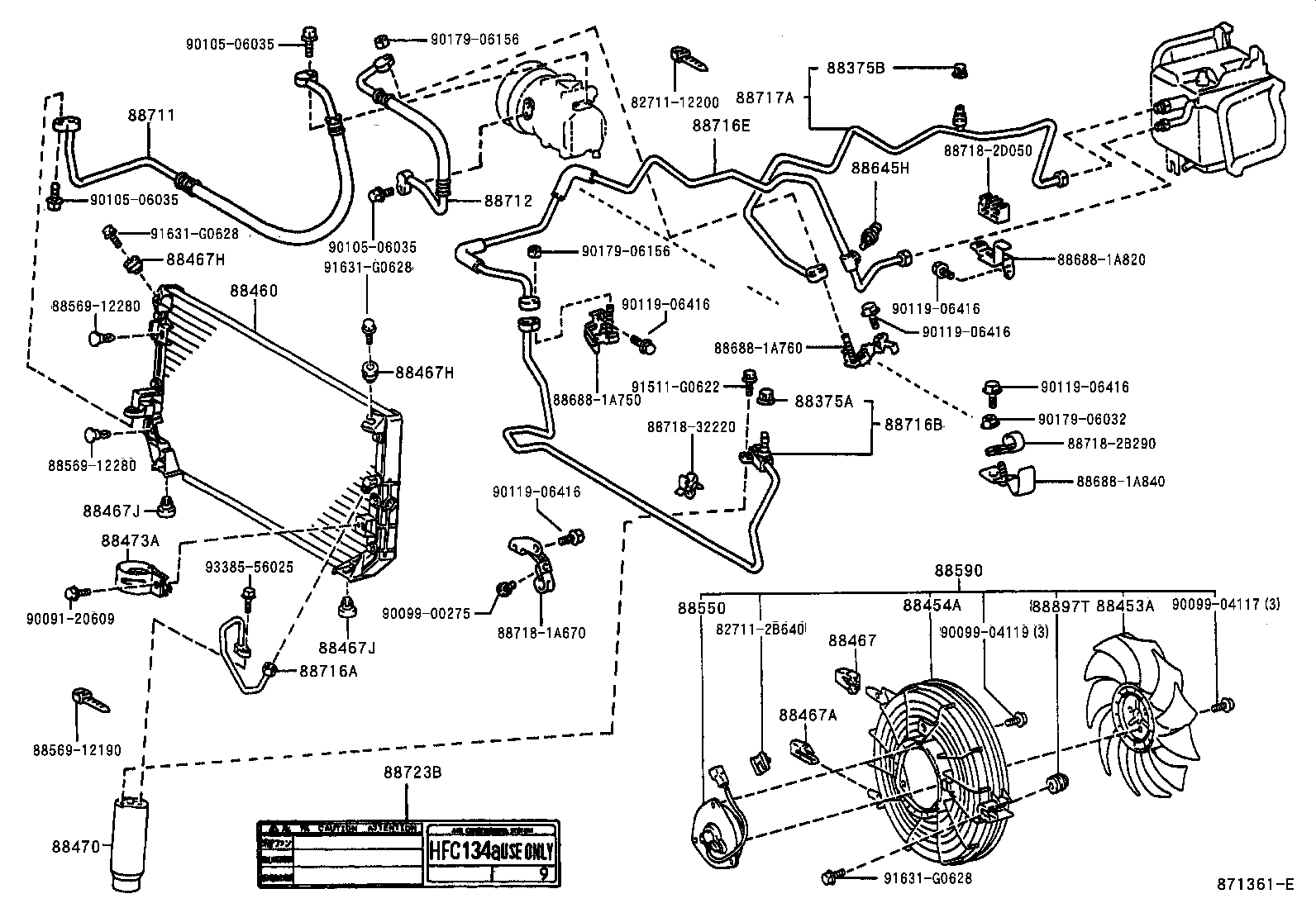

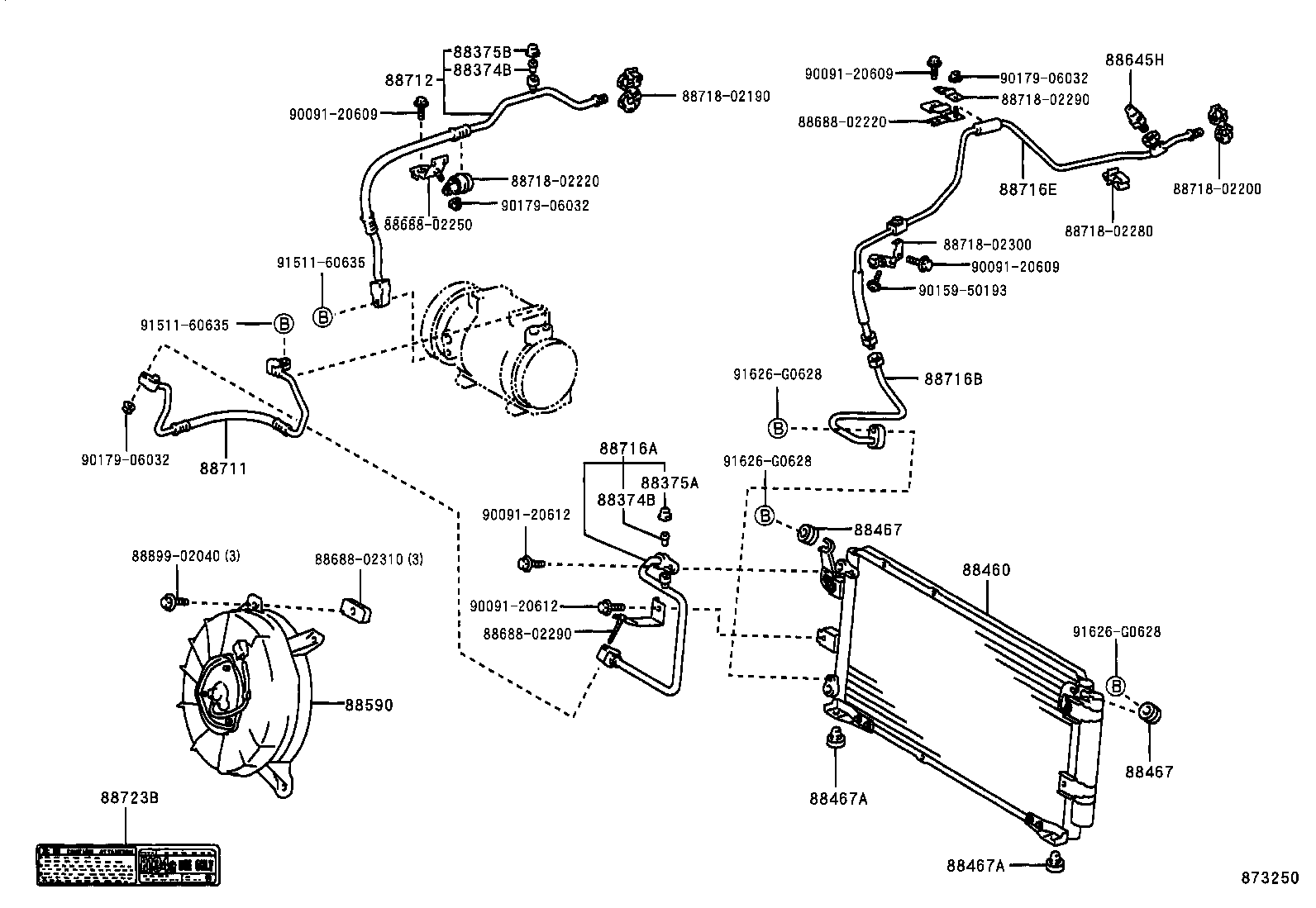

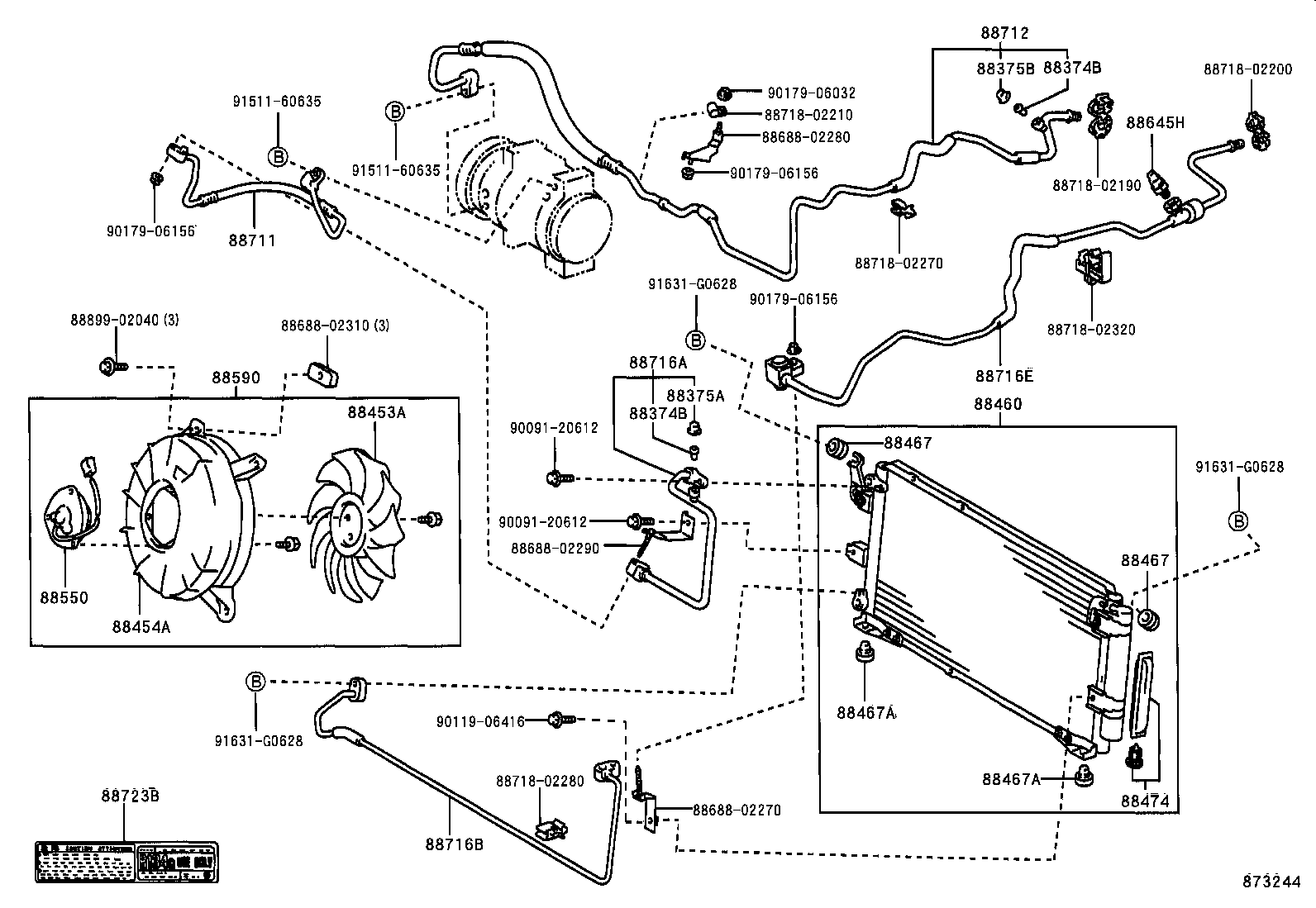

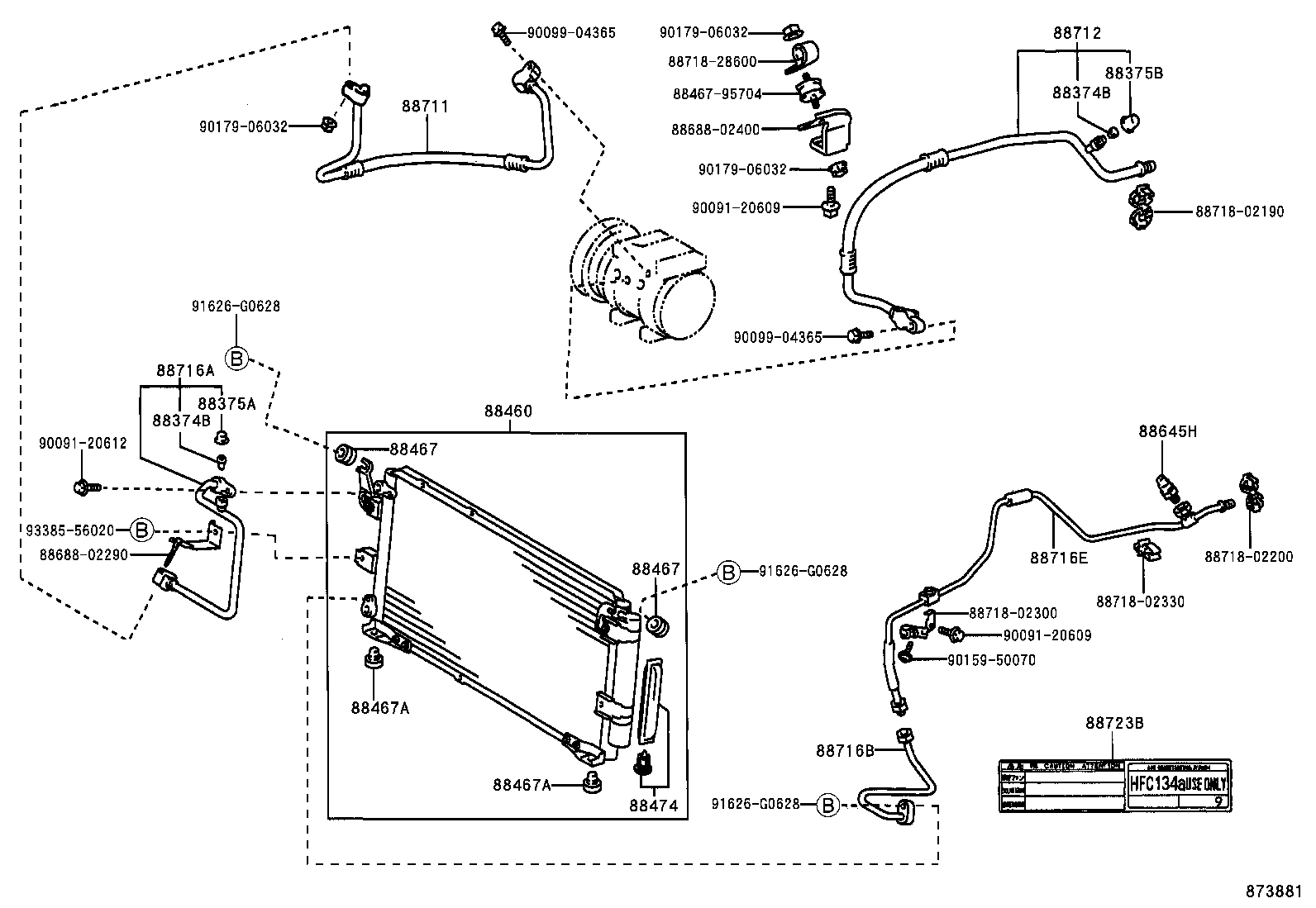

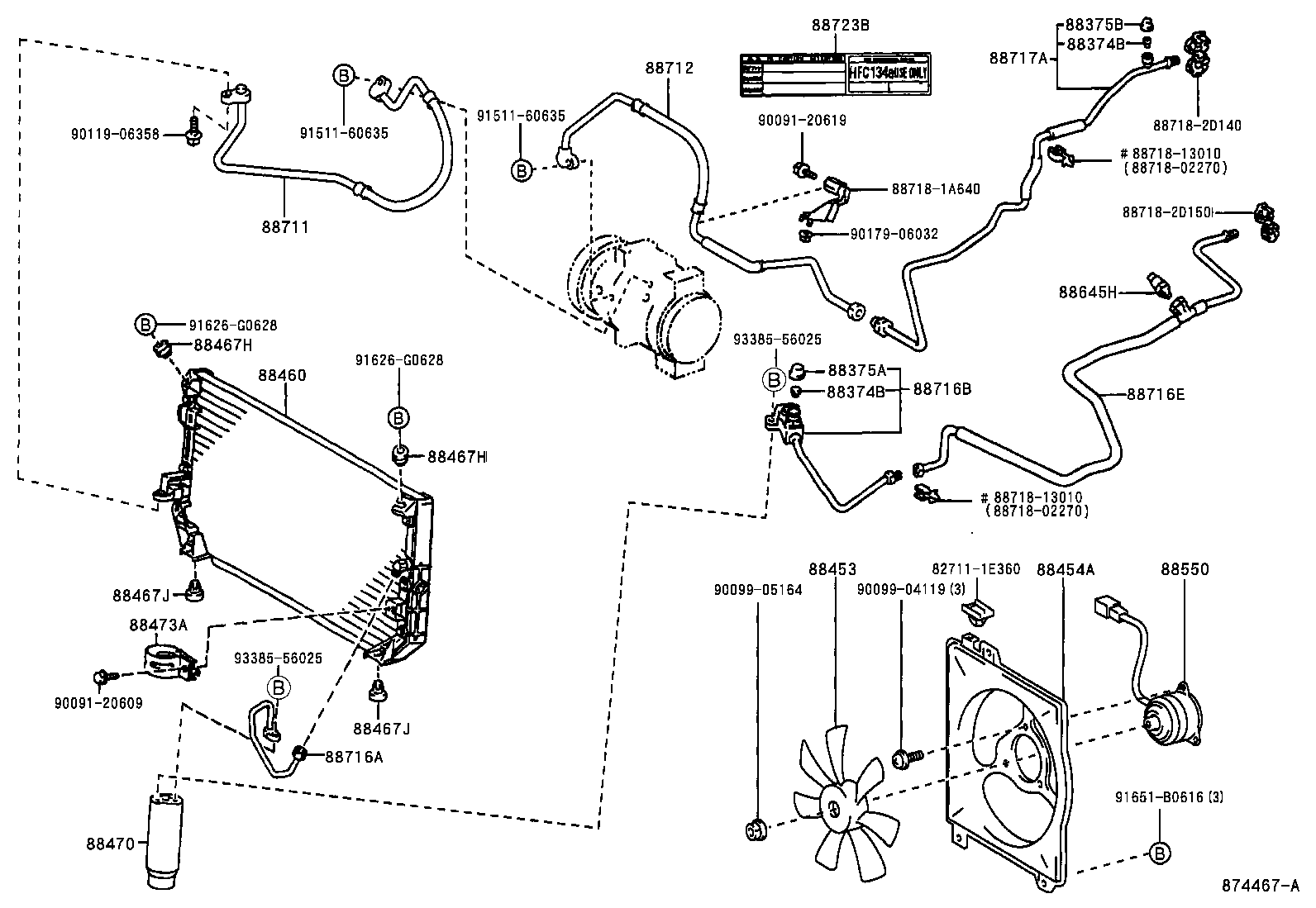

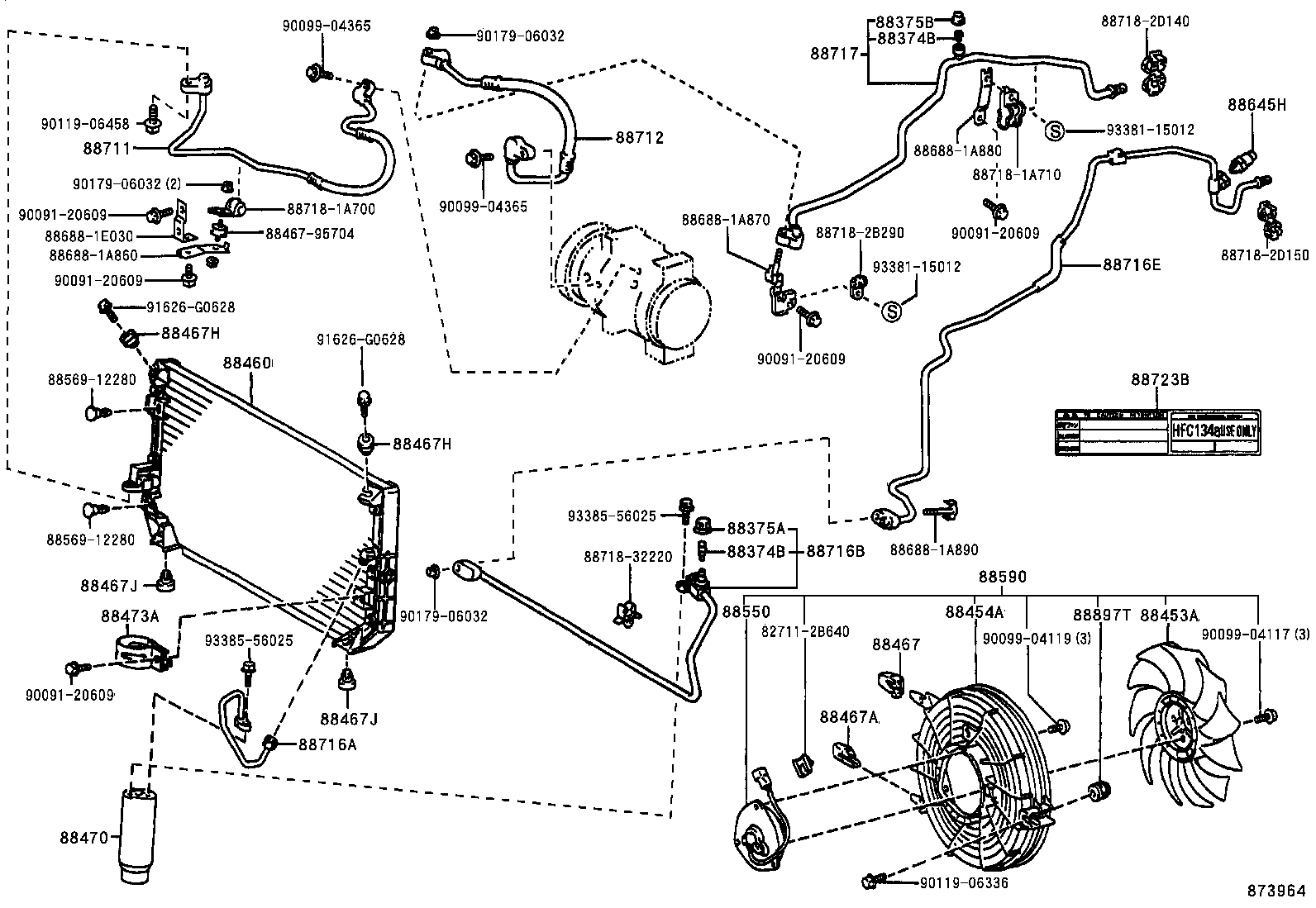

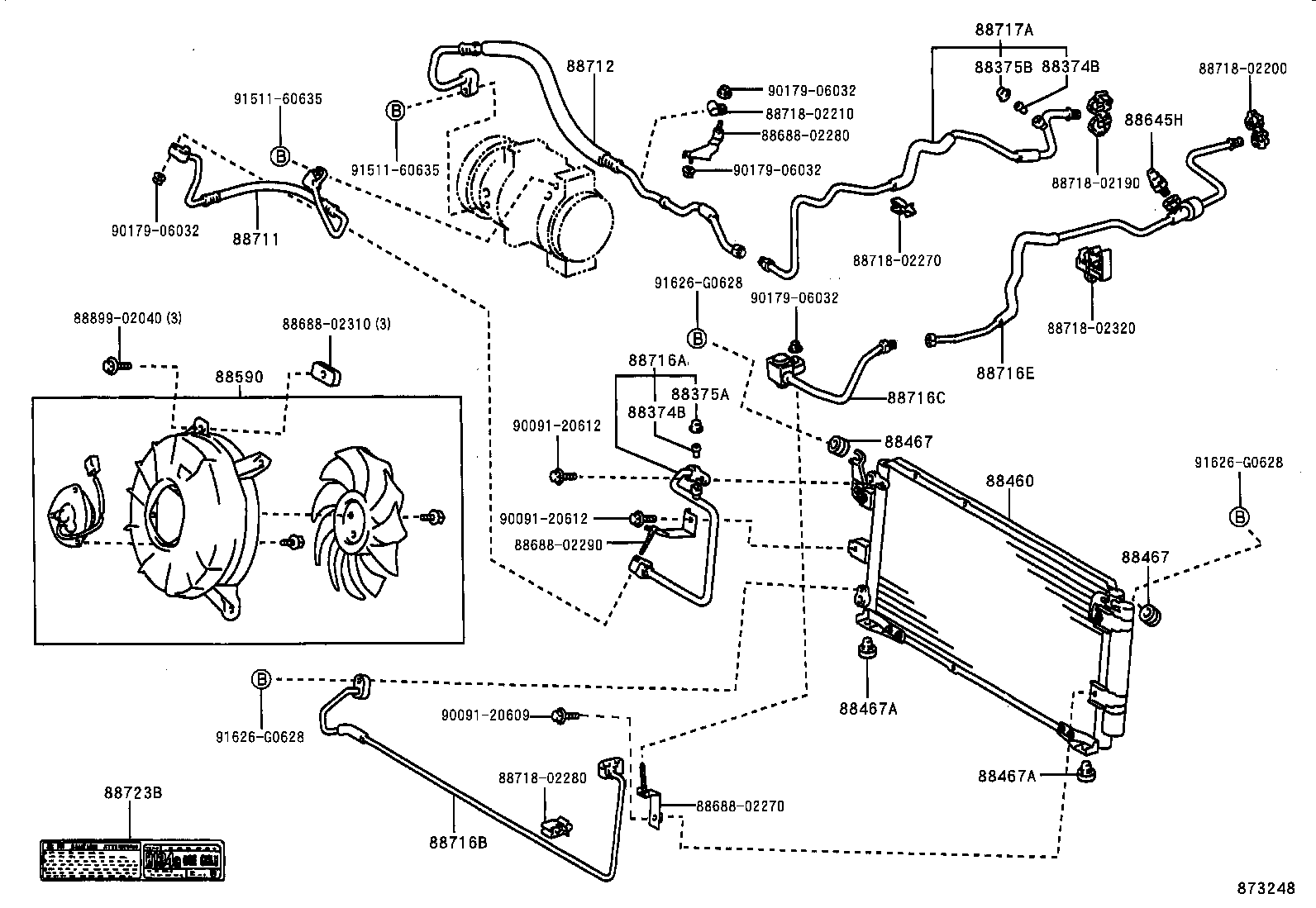

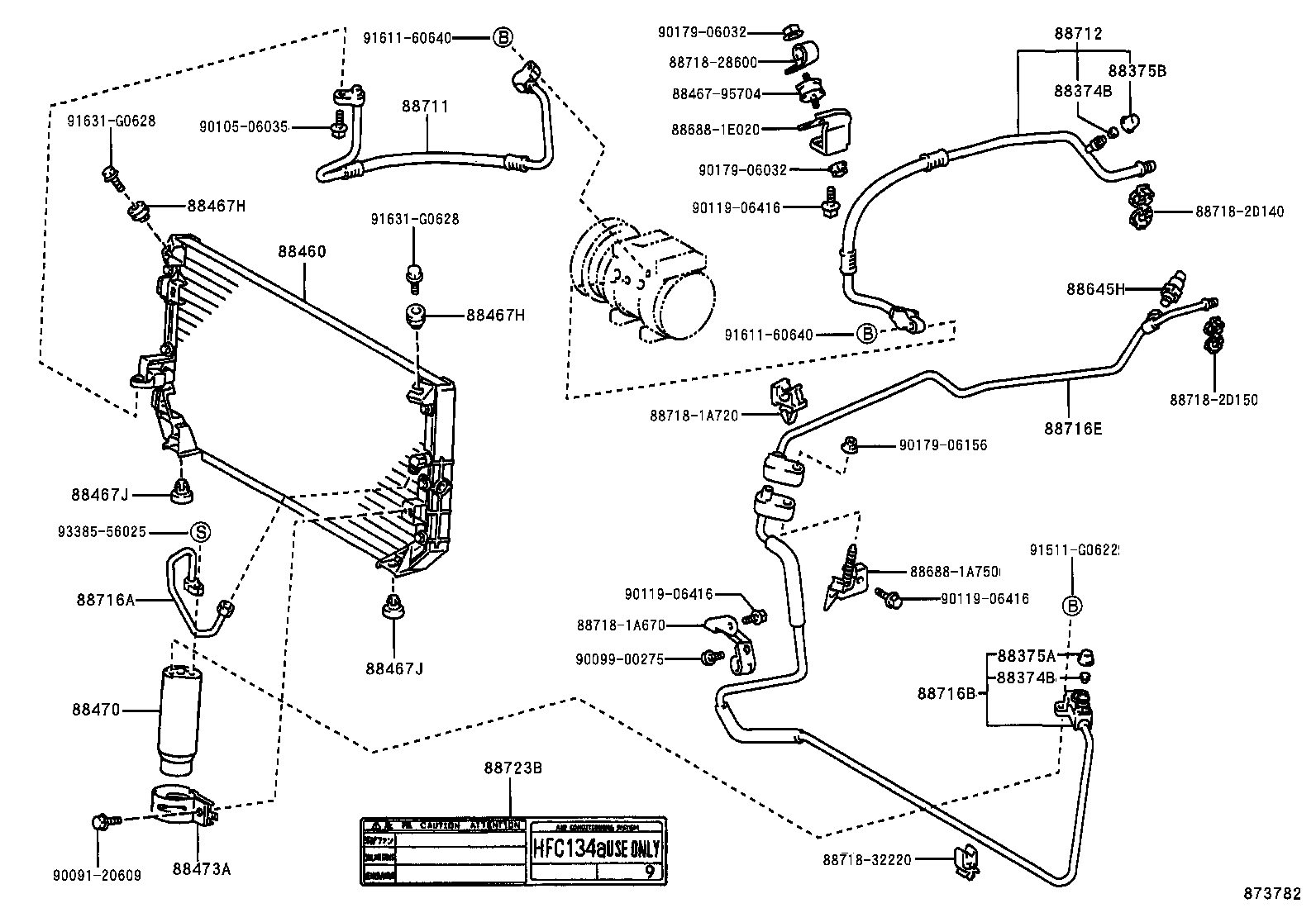

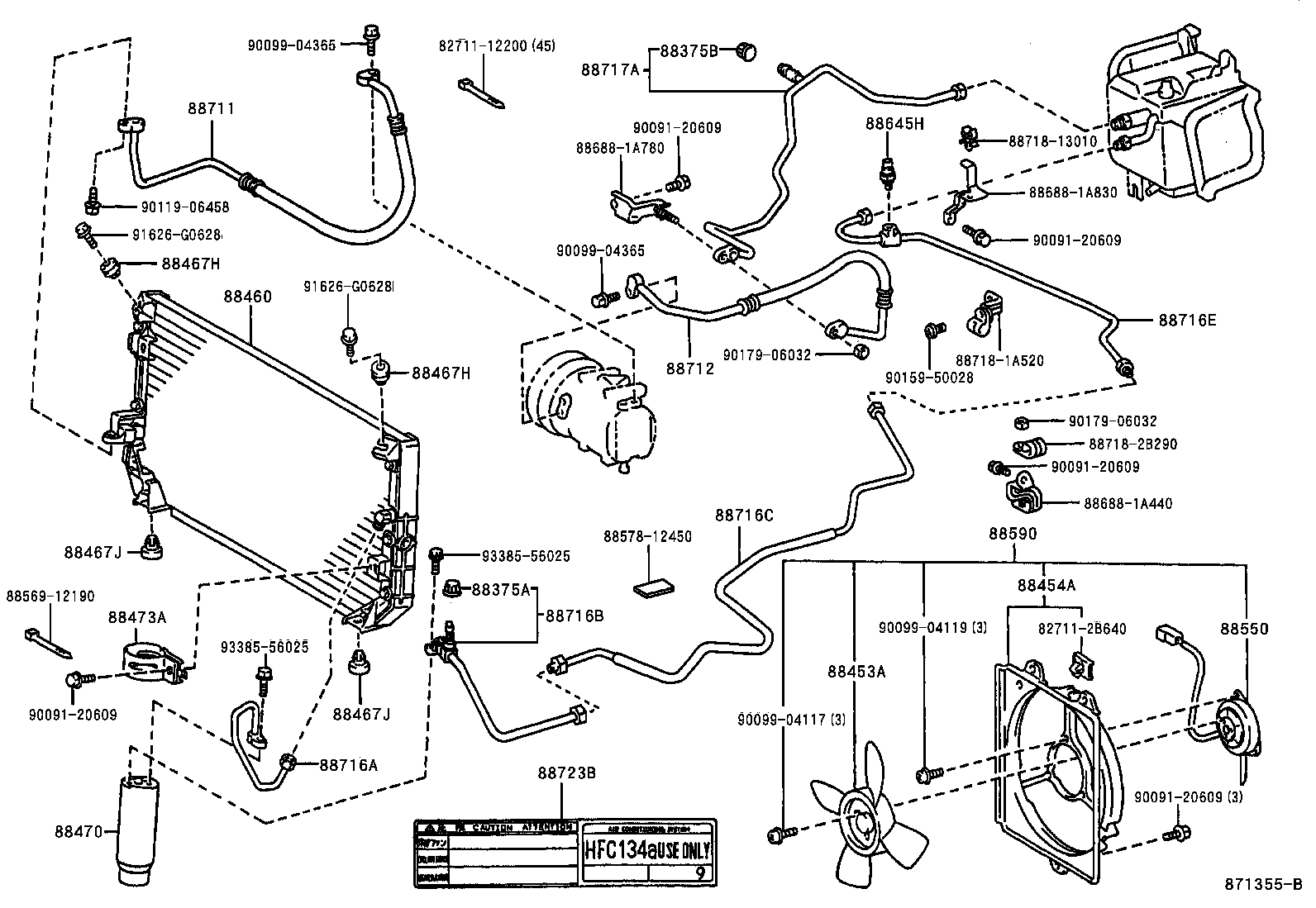

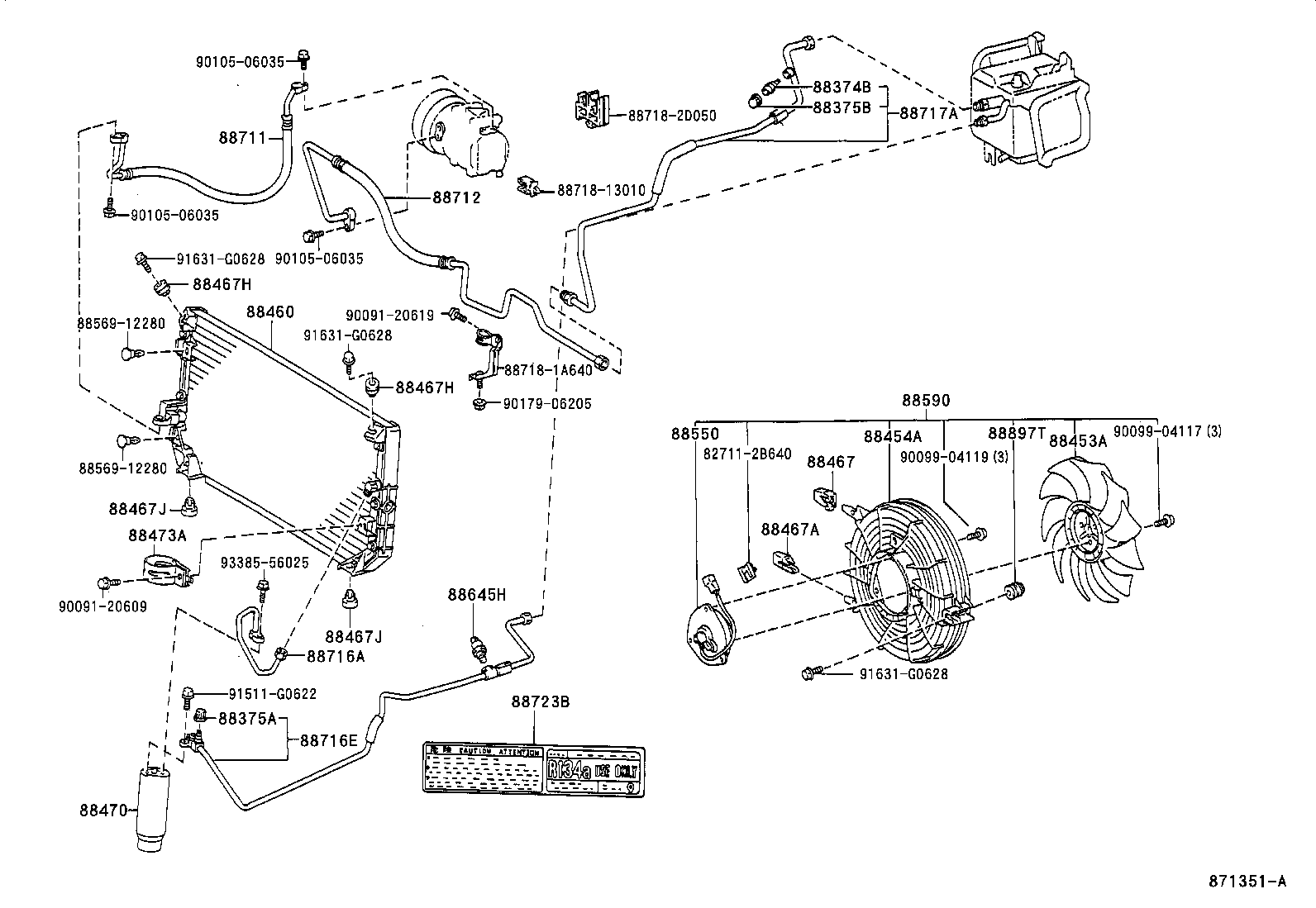

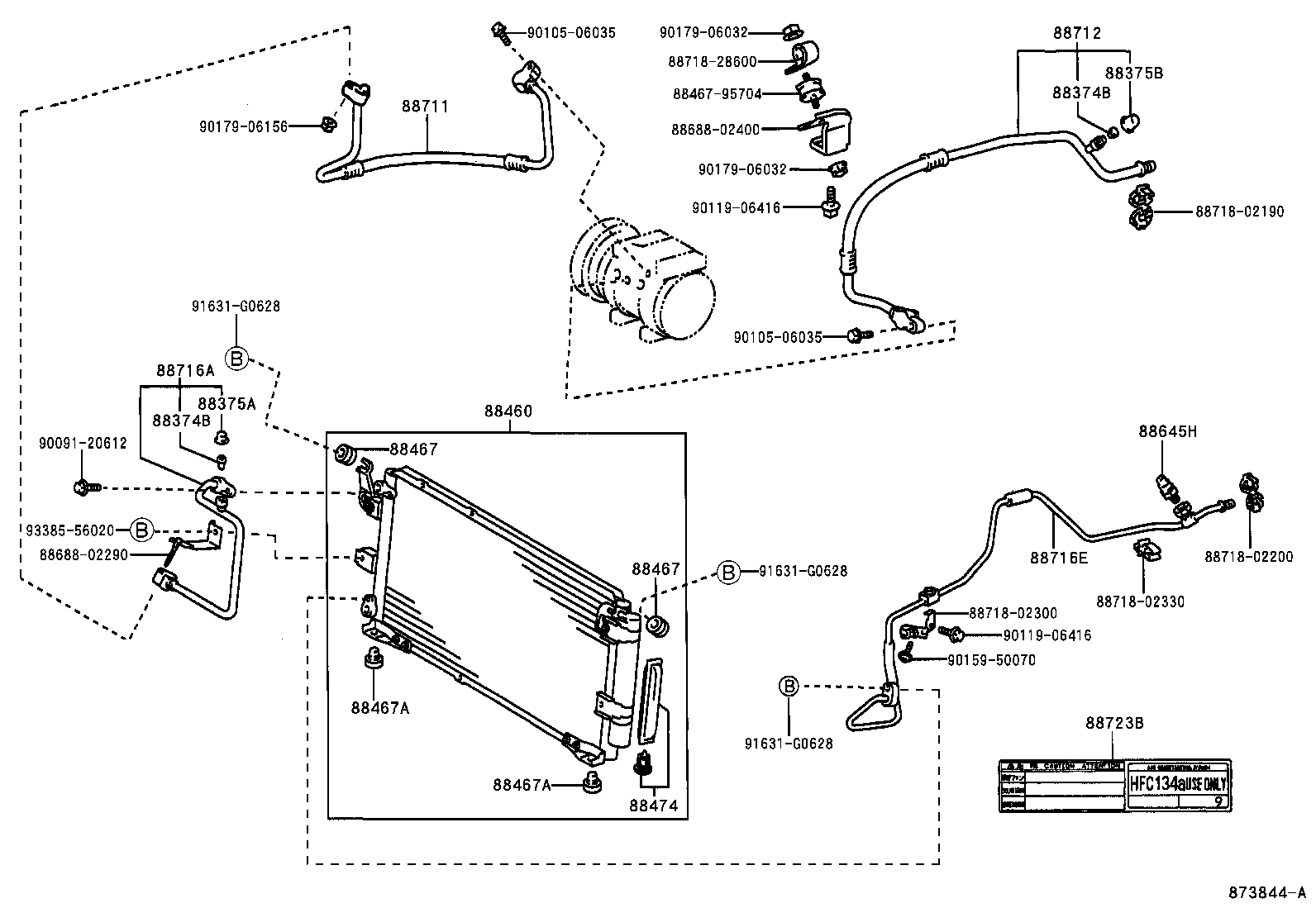

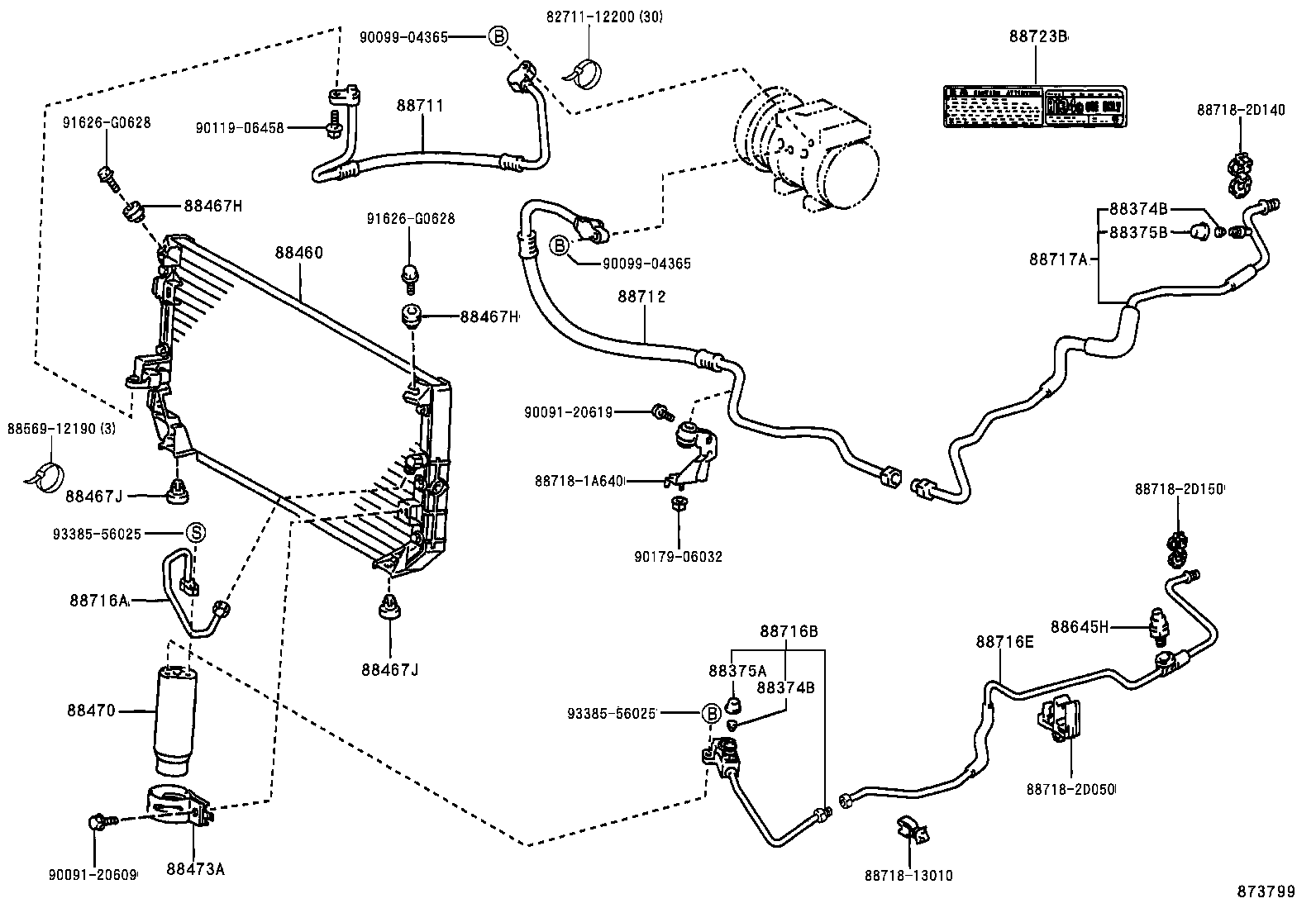

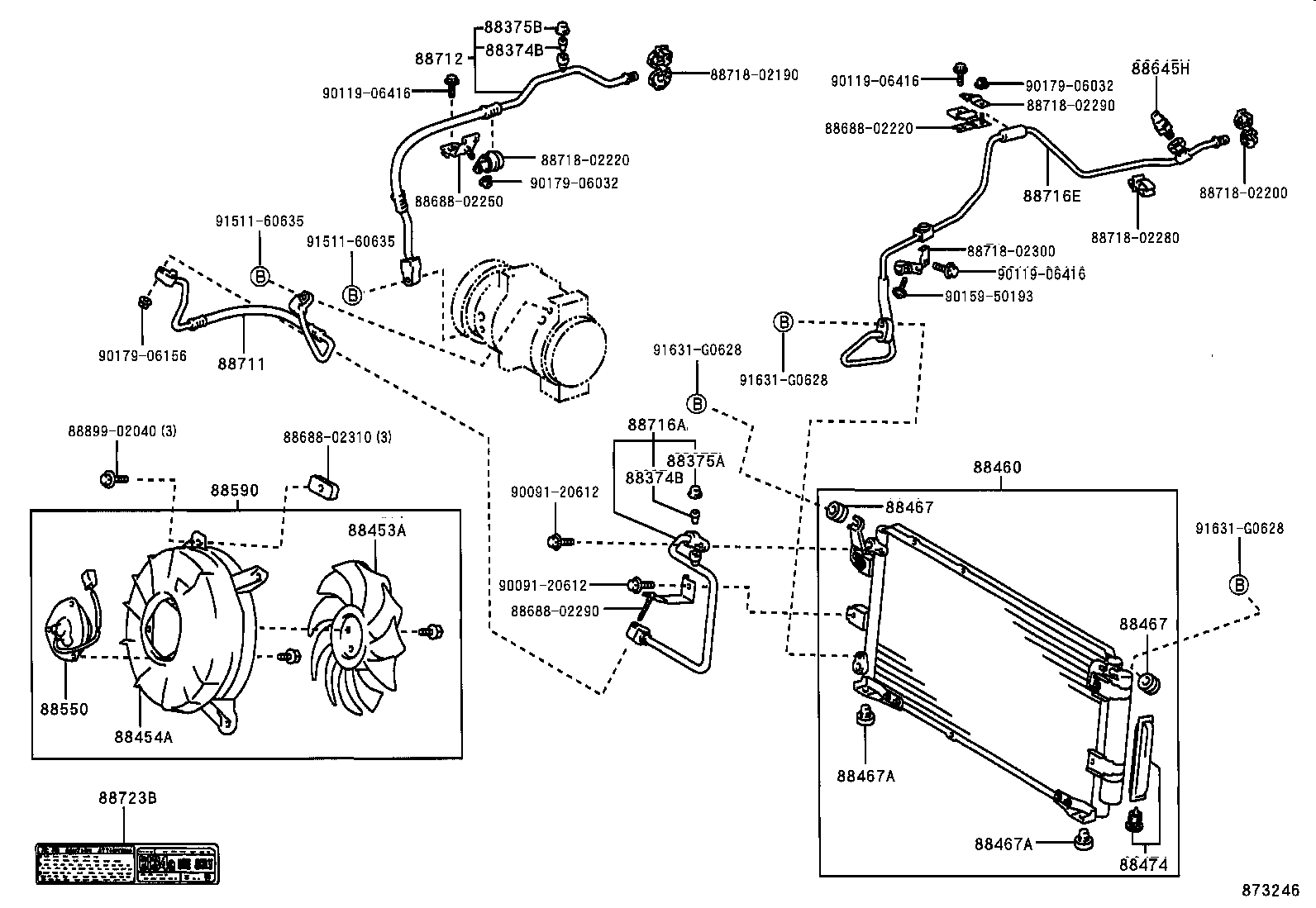

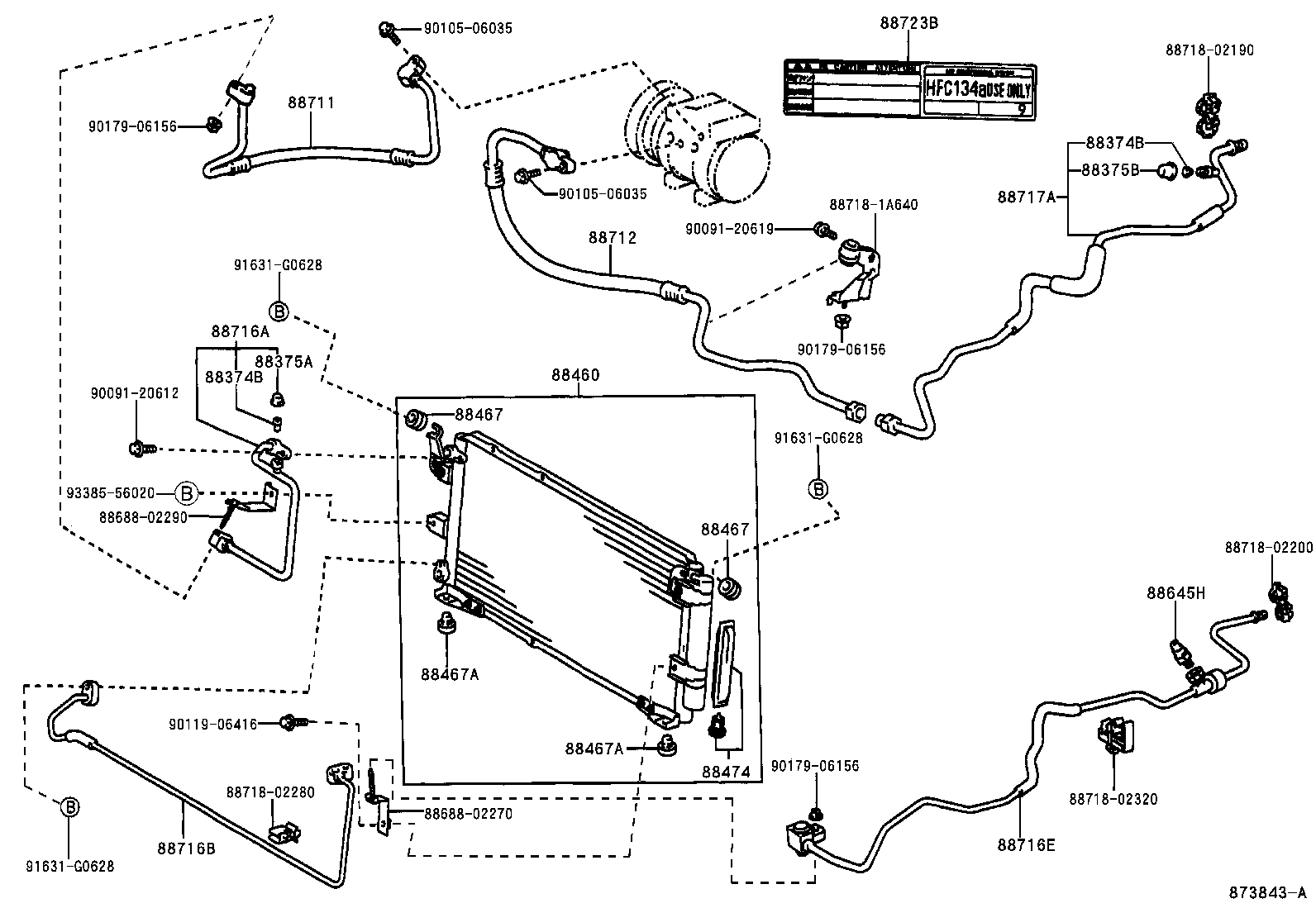

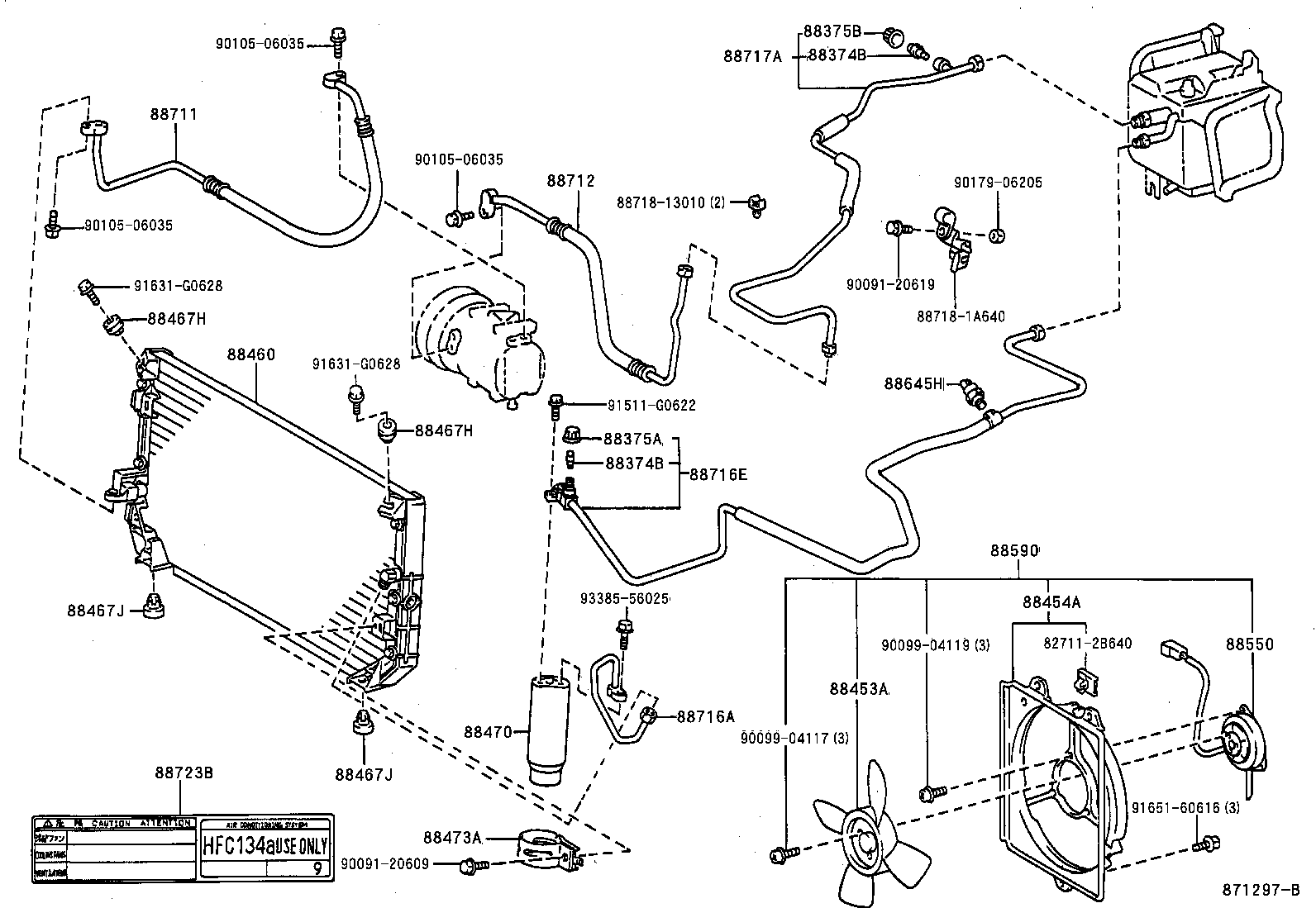

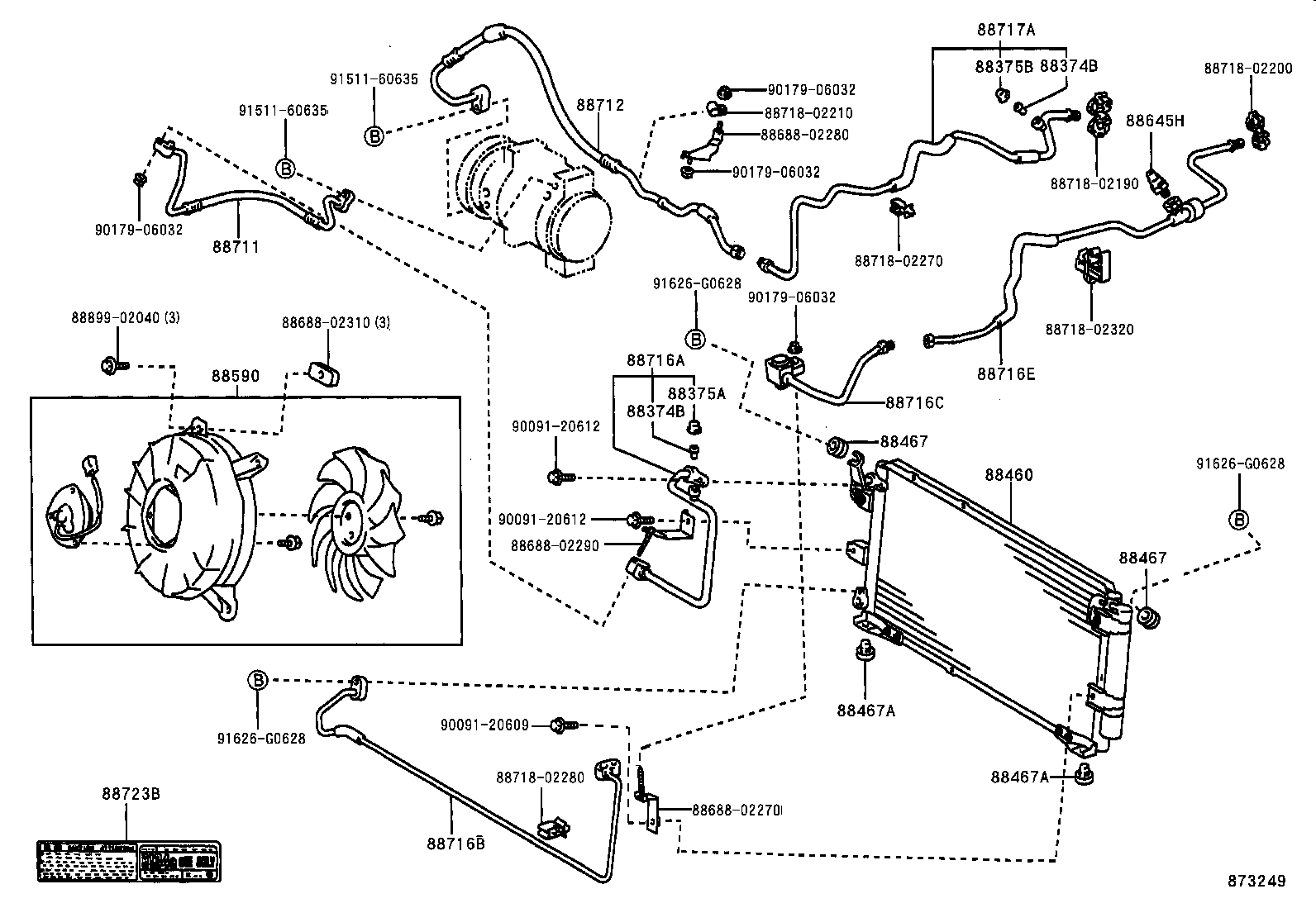

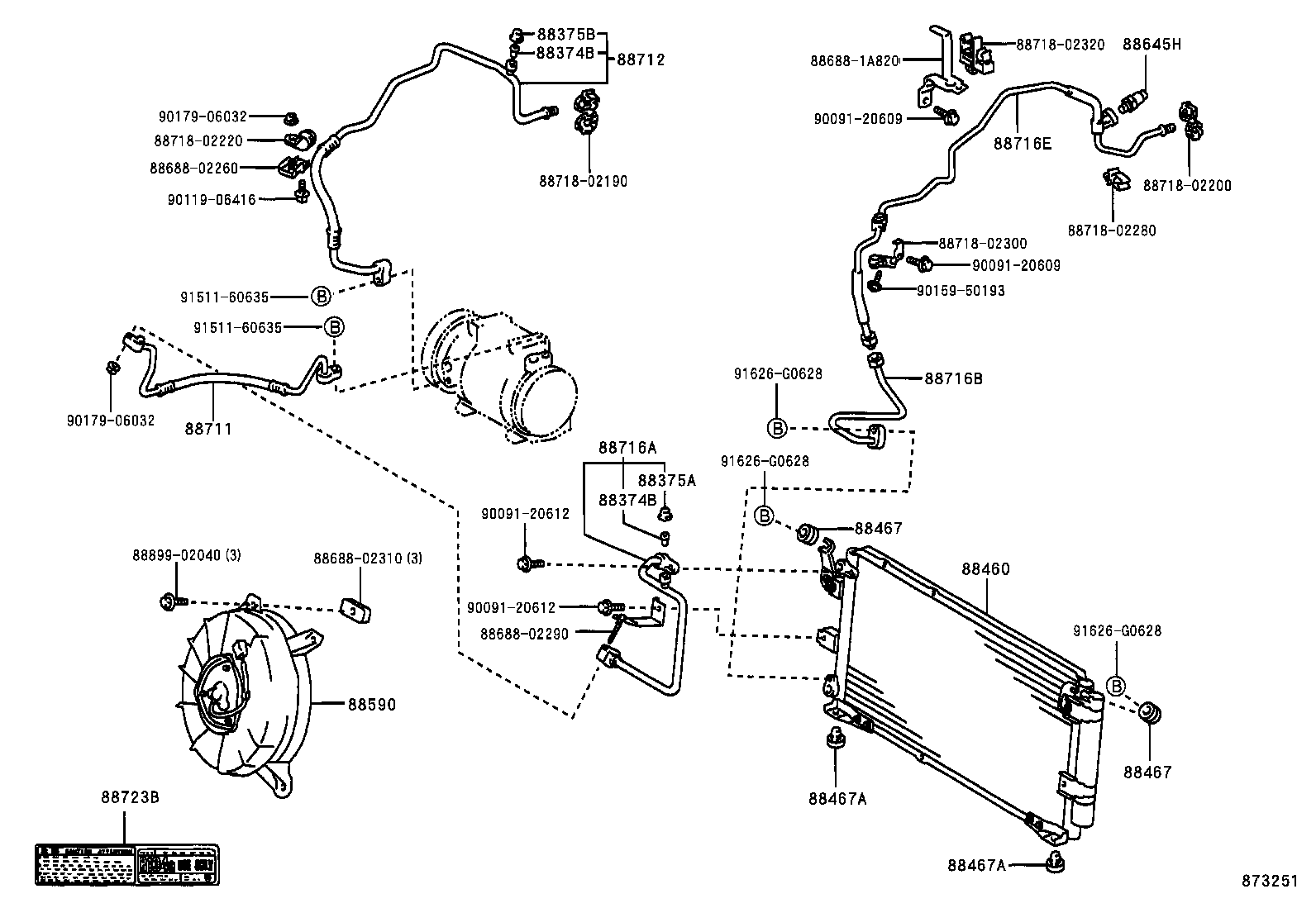

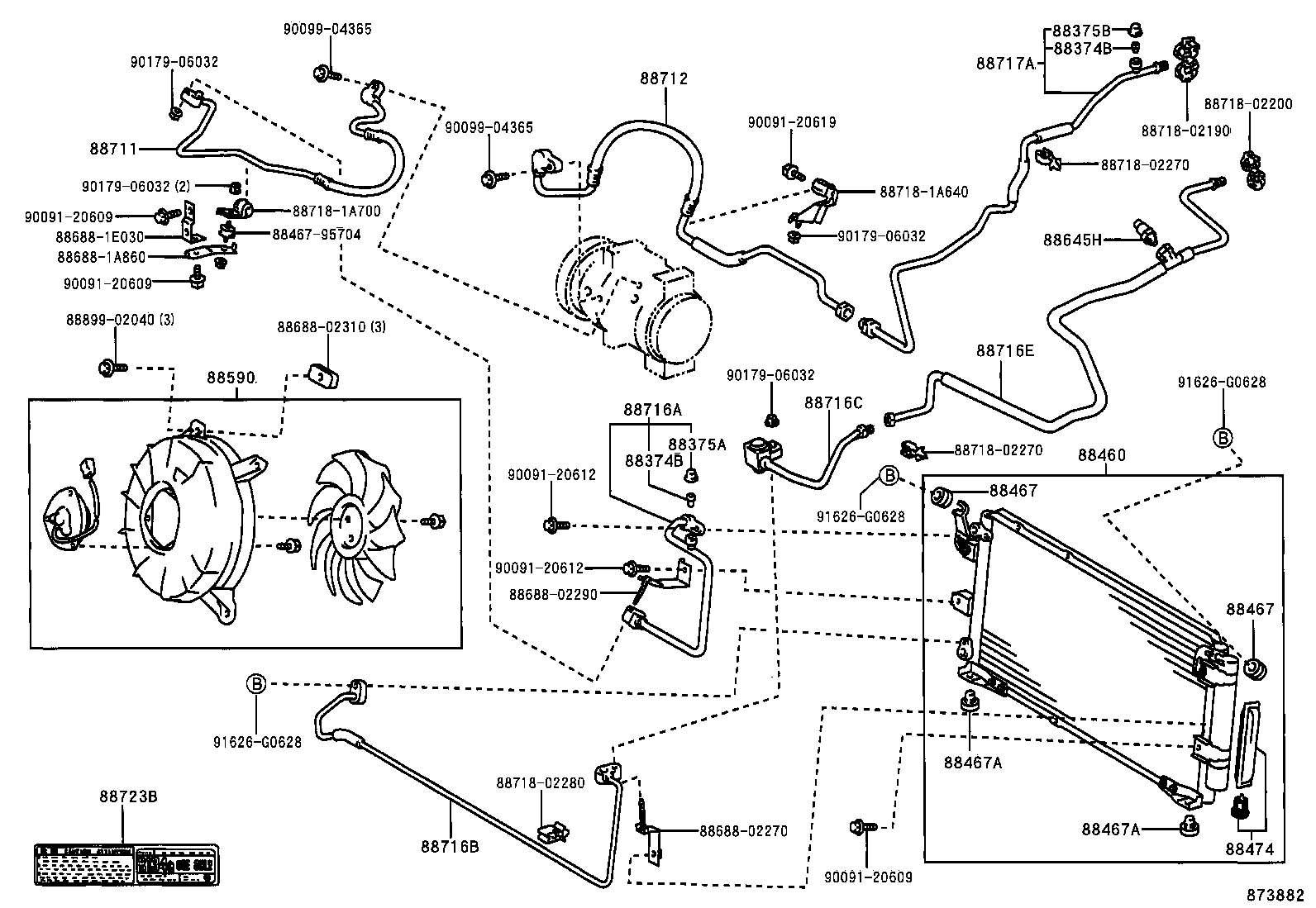

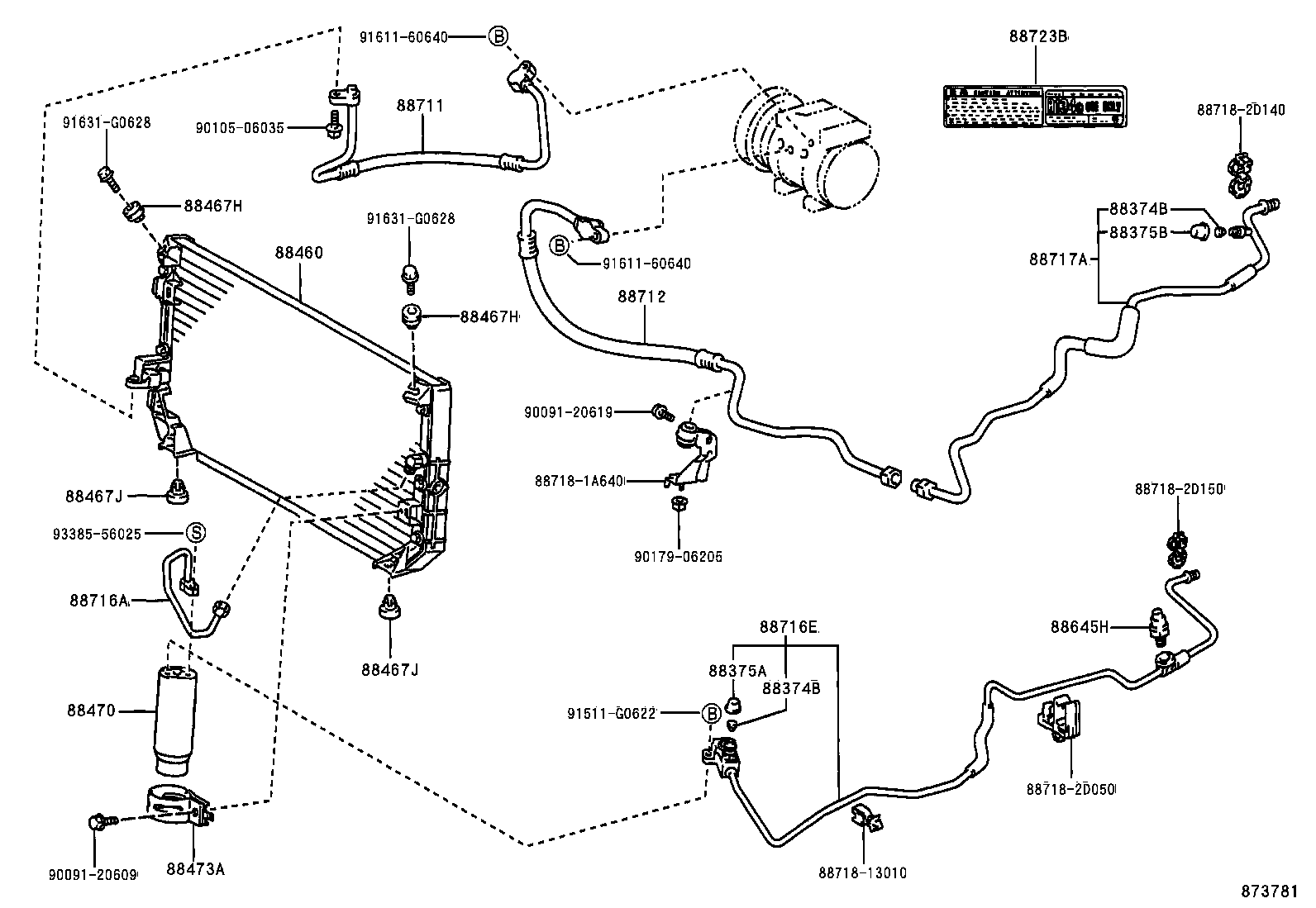

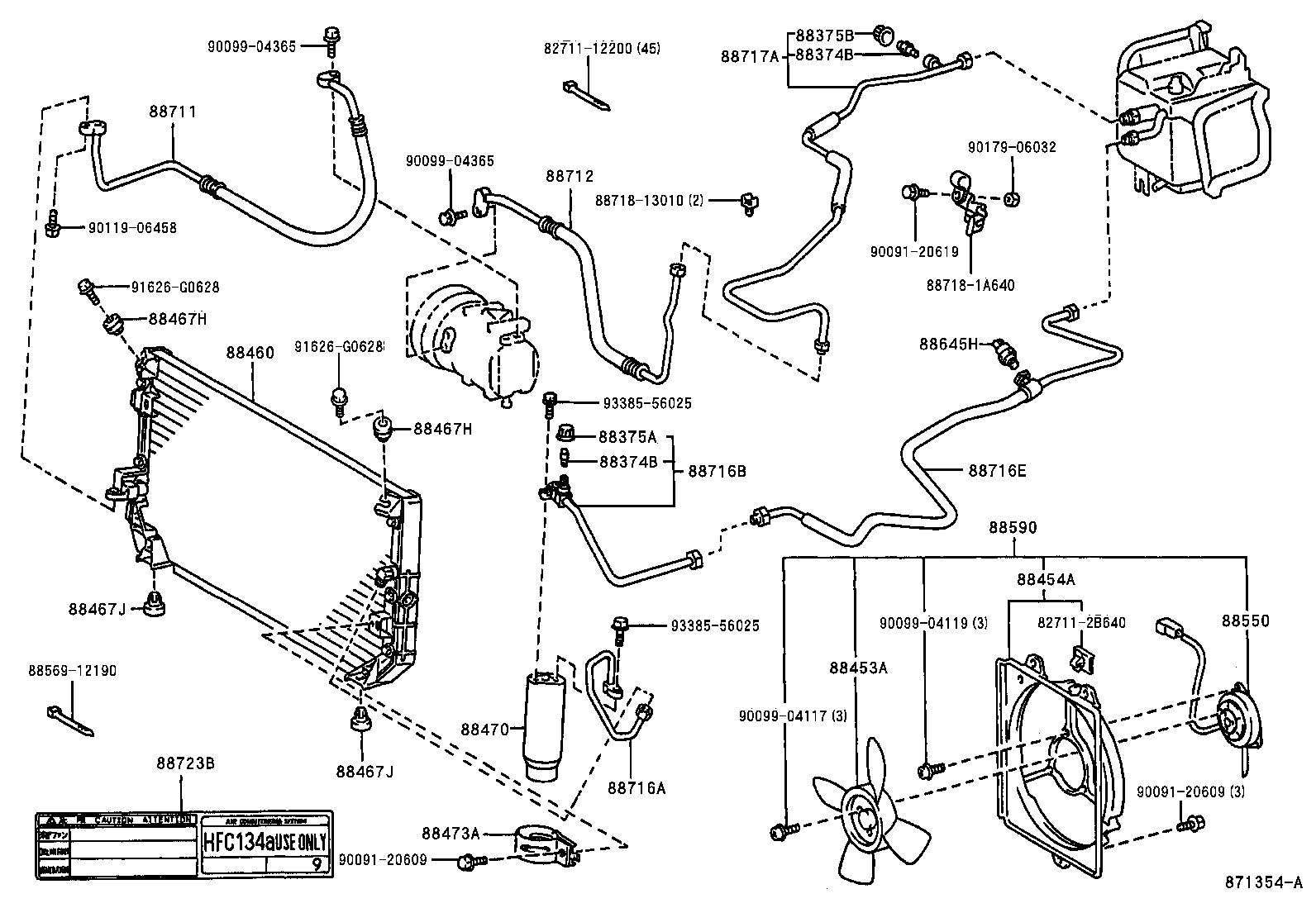

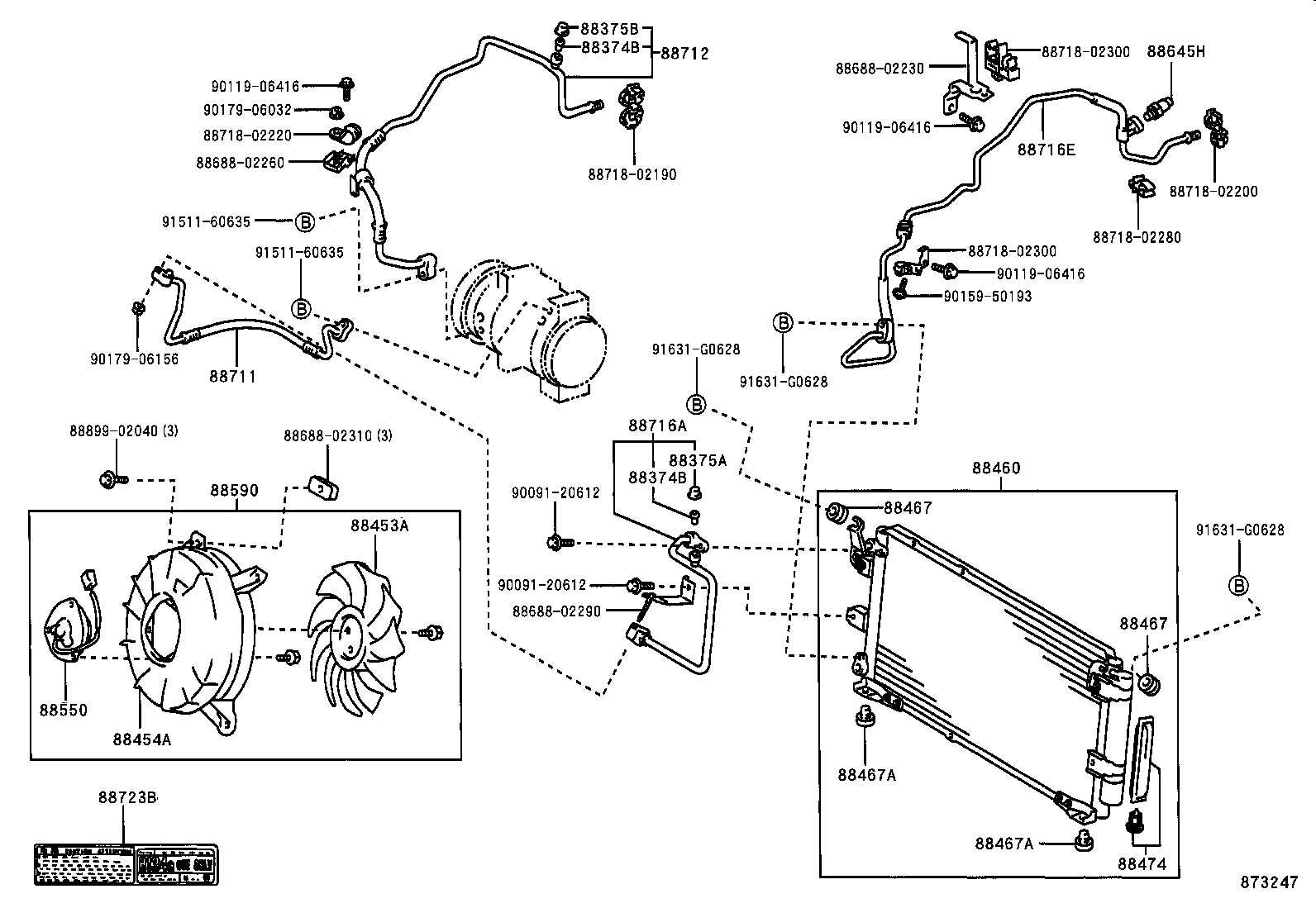

Figure 871350A 871350A 1997-04 → — Figure 871351A 871351A 1997-04 → — Figure 871360C 871360C 1997-04 → — Figure 871361E 871361E 1997-04 → — Figure 871354A 871354A 1997-04 → — Figure 871297B 871297B 1997-04 → — Figure 871355B 871355B 1997-04 → — Figure 871298B 871298B 1997-04 → — Figure 873248 873248 1998-09 → — Figure 873244 873244 1998-09 → — Figure 873249 873249 1998-09 → — Figure 873245 873245 1998-09 → — Figure 873250 873250 1998-09 → — Figure 873246 873246 1998-09 → — Figure 873251 873251 1998-09 → — Figure 873247 873247 1998-09 → — Figure 873799 873799 1999-09 → — Figure 873781 873781 1999-09 → — Figure 873800 873800 1999-09 → — Figure 873782 873782 1999-09 → — Figure 873880 873880 1999-11 → — Figure 873843A 873843A 1999-11 → — Figure 873881 873881 1999-11 → — Figure 873844A 873844A 1999-11 → — Figure 873882 873882 1999-12 → — Figure 873837A 873837A 1999-12 → — Figure 873888 873888 1999-12 → — Figure 873838A 873838A 1999-12 → — Figure 873965 873965 2000-01 → — Figure 873960 873960 2000-01 → — Figure 873964 873964 2000-01 → — Figure 873962 873962 2000-01 → — Figure 874467A 874467A 2000-08 → — Figure 874468A 874468A 2000-08 → — Figure 874445B 874445B 2000-08 → — Figure 874465B 874465B 2000-08 → — Figure 870233 870233 1997-04 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88453 Fan, Cooling (FOR CONDENSER)
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88467H Cushion, Condenser Bracket, NO.1
88467J Cushion, Condenser Bracket, NO.2
88470 Receiver & Dryer Assy, Cooler
88473A Holder, Receiver
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88723B Label, Cooler Service Caution
88897T Grommet, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
