Heating & Air Conditioning - Compressor

26 part groups · 9 illustrations

Illustrations

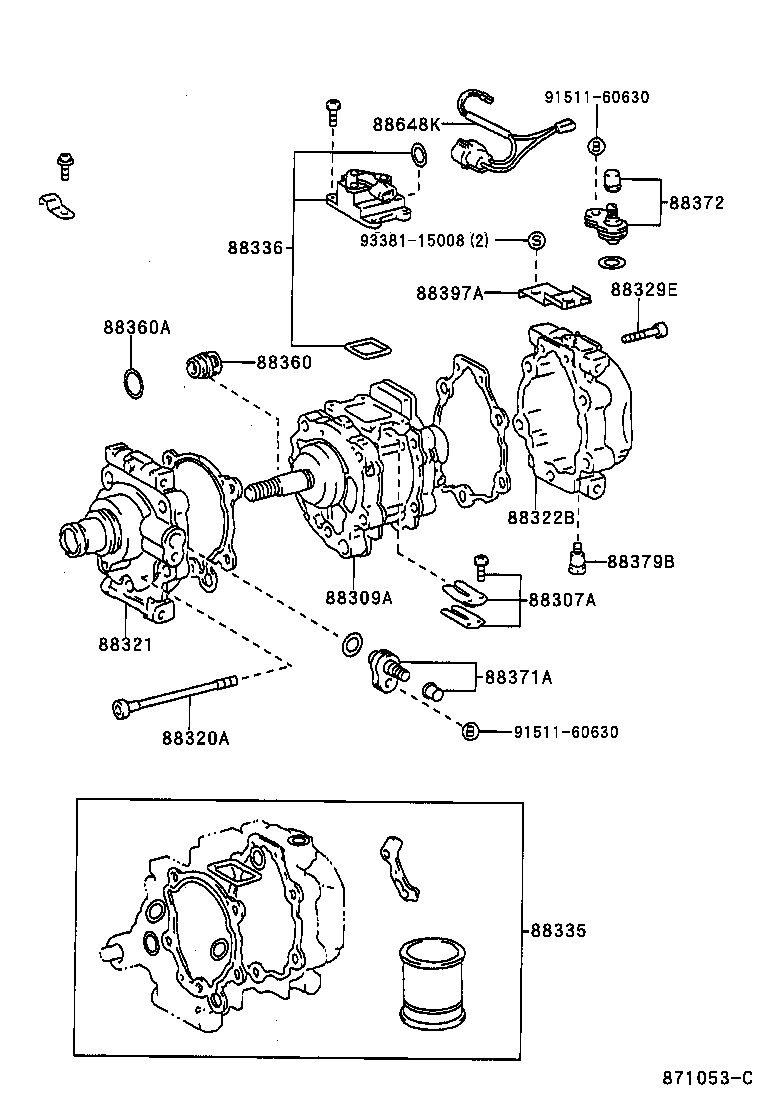

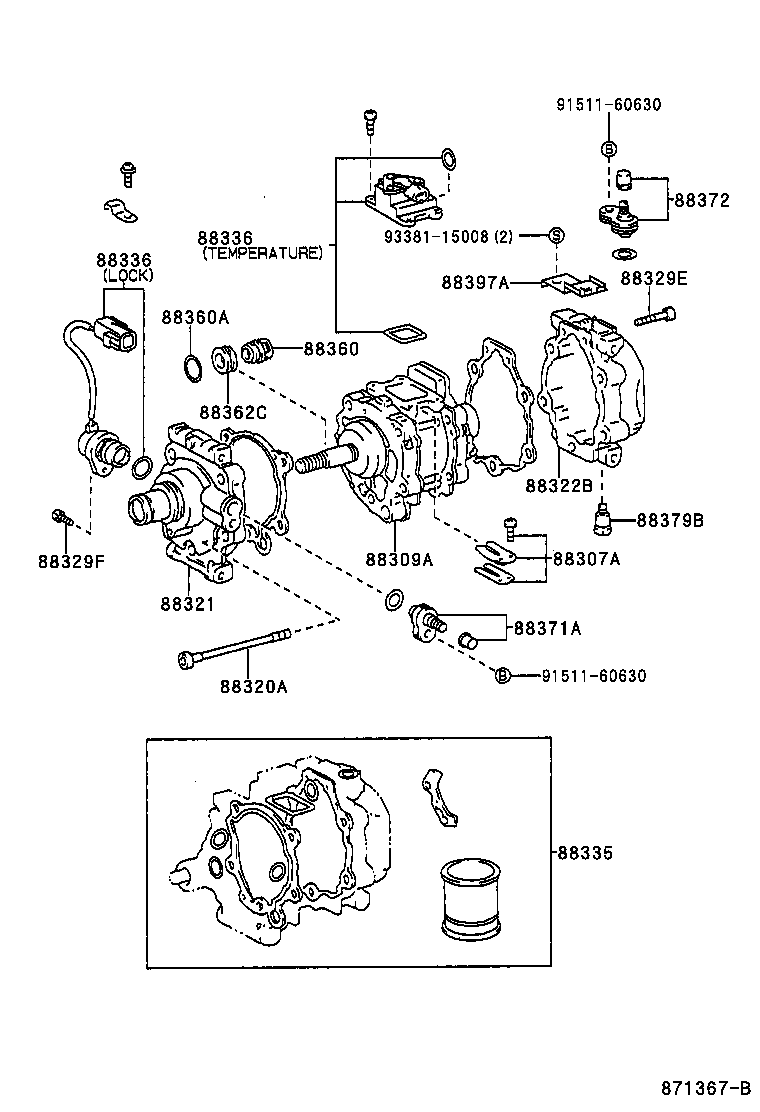

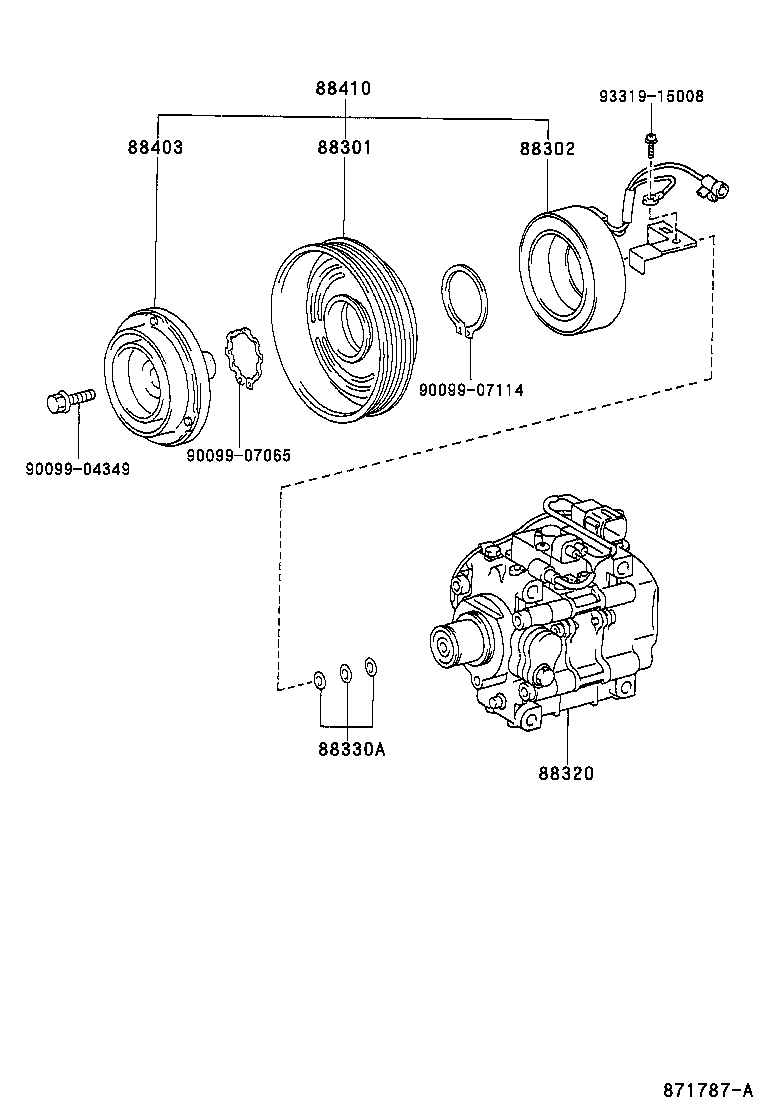

Figure NE2423 NE2423 1997-04 → — Figure 871366A 871366A 1997-04 → — Figure 871364 871364 1997-04 → — Figure 871787A 871787A 1997-04 → — Figure 871053C 871053C 1997-04 → — Figure 871367B 871367B 1997-04 → — Figure 873784A 873784A 1999-10 → — Figure 874405 874405 2000-08 → — Figure 874406 874406 2000-08 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88307A Reed Sub-assy, Valve
88309A Pump Sub-assy, Compressor
88320 Compressor Assy, Cooler
88320A Bolt, Through
88321 Head, Cooler Compressor Cylinder
88322B Case, Oil Separator
88329E Bolt, Compressor, NO.1
88329F Bolt, Compressor, NO.2
88330A Washer (FOR MAGNET CLUTCH)
88335 Gasket Kit, Overhaul
88336 Sensor, Compressor
88360 Seal Assy, Cooler Compressor Shaft
88360A Ring, Compressor Seal Plate Snap
88362C Plate, Pulse
88371A Valve, Suction
88372 Valve, Discharge
88379B Valve, Pressure Relief
88397A Clip, Compressor
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88446 Bolt, Idle Pulley
88595 Pulley, Cooler Compressor Idle
88648K Wire Sub-assy, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
