Toyota Corolla HB (UKP)

2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

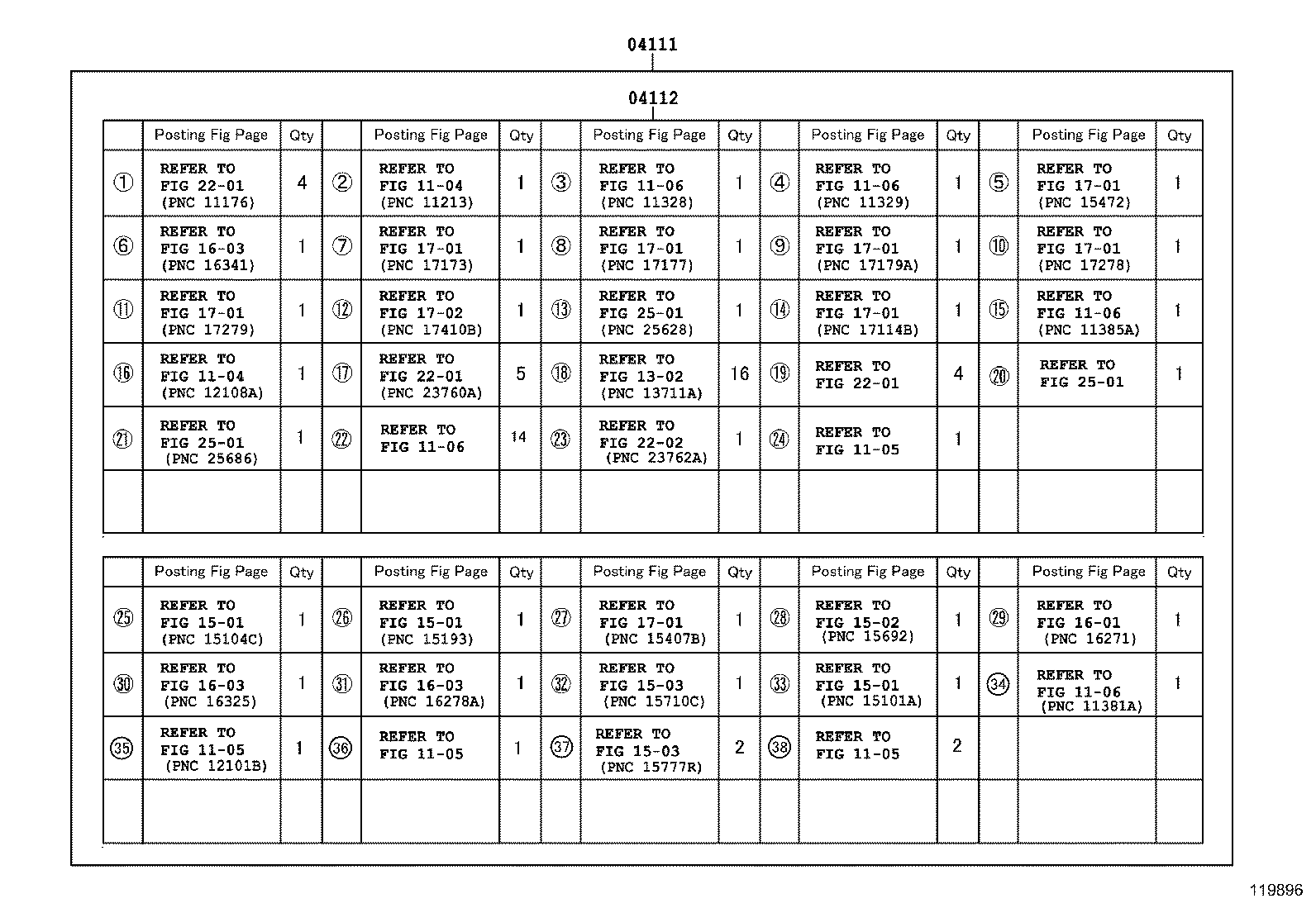

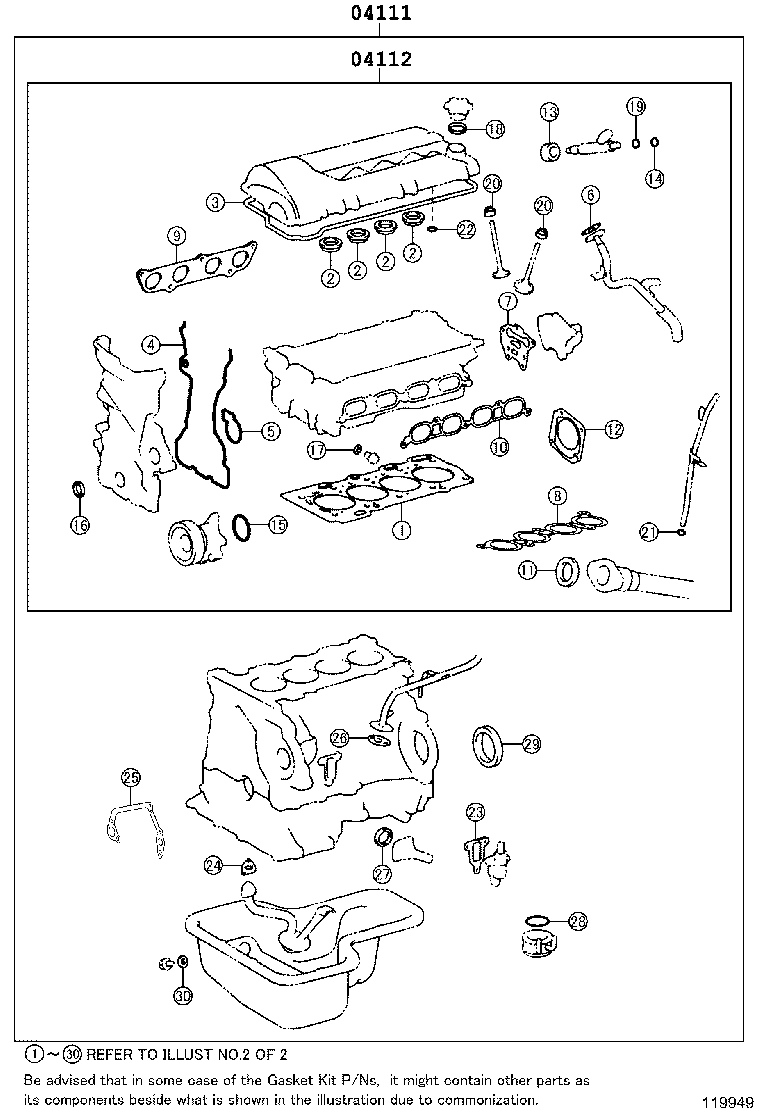

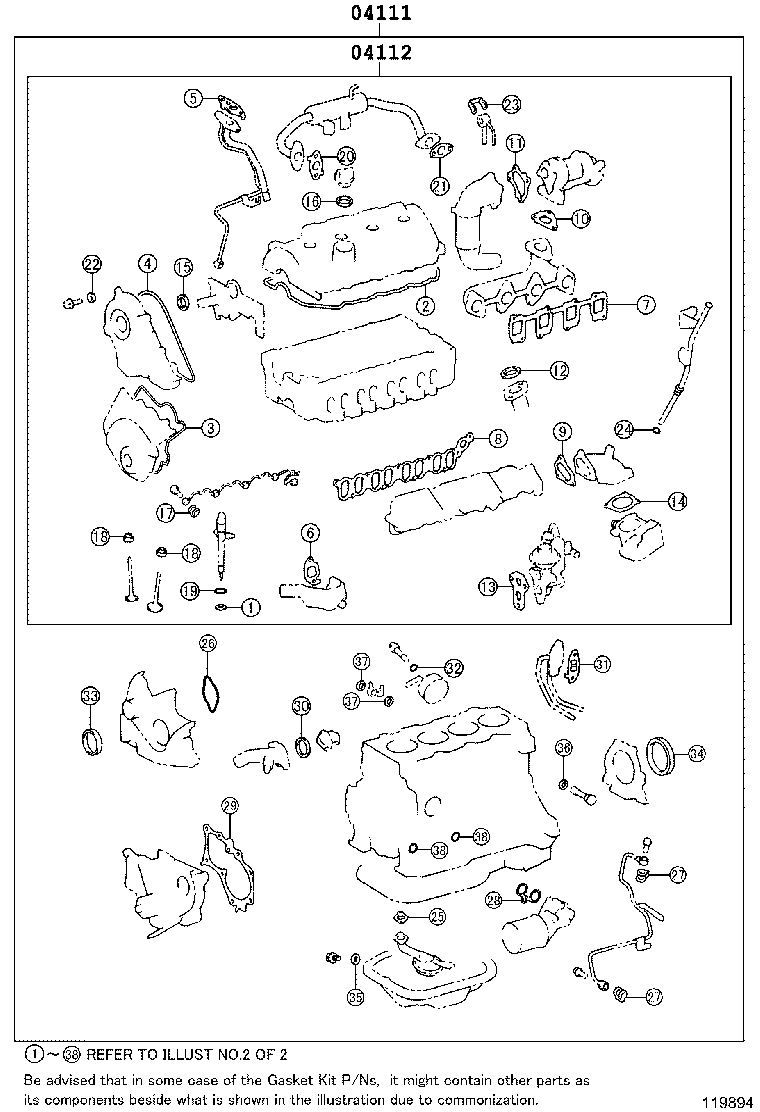

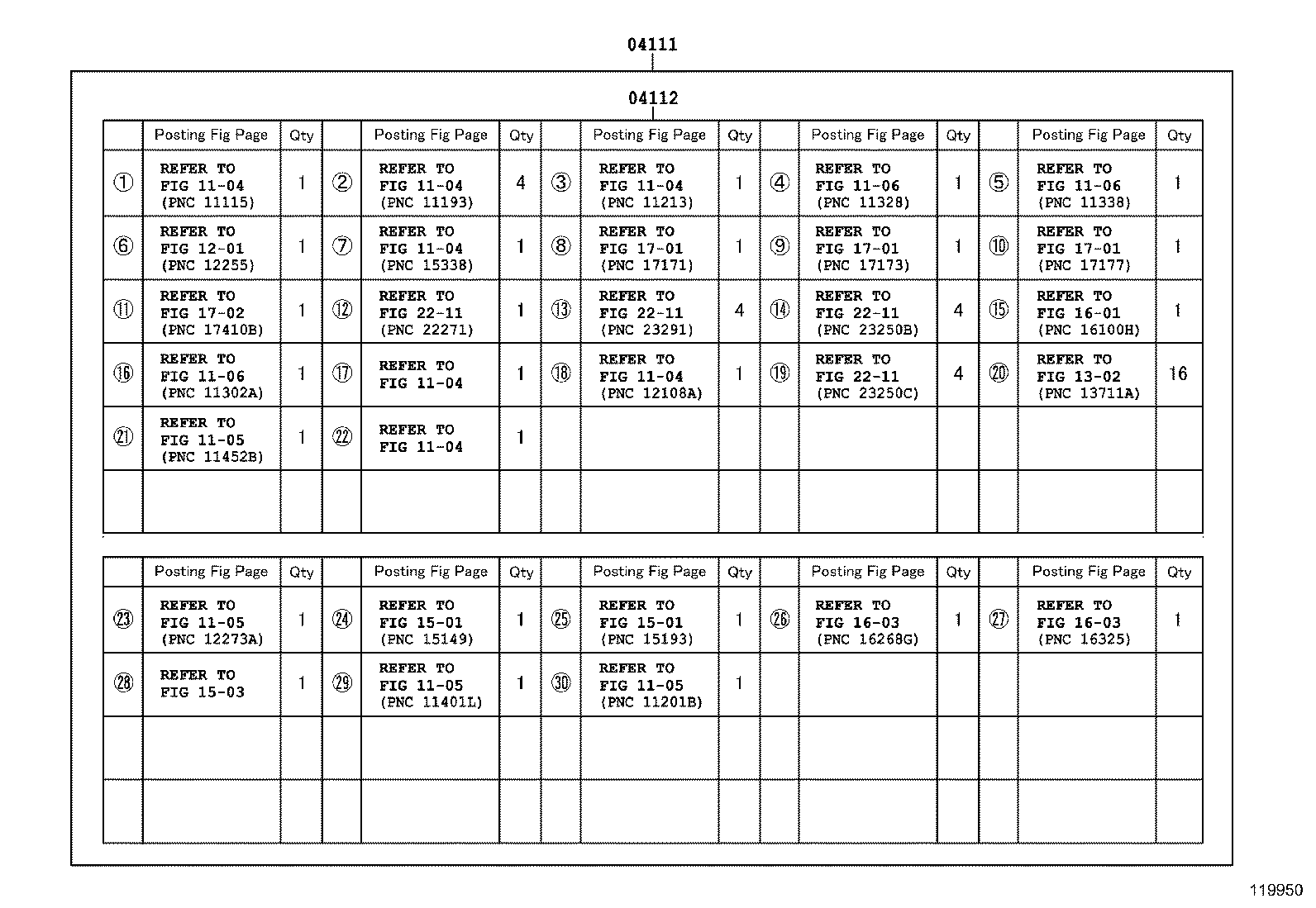

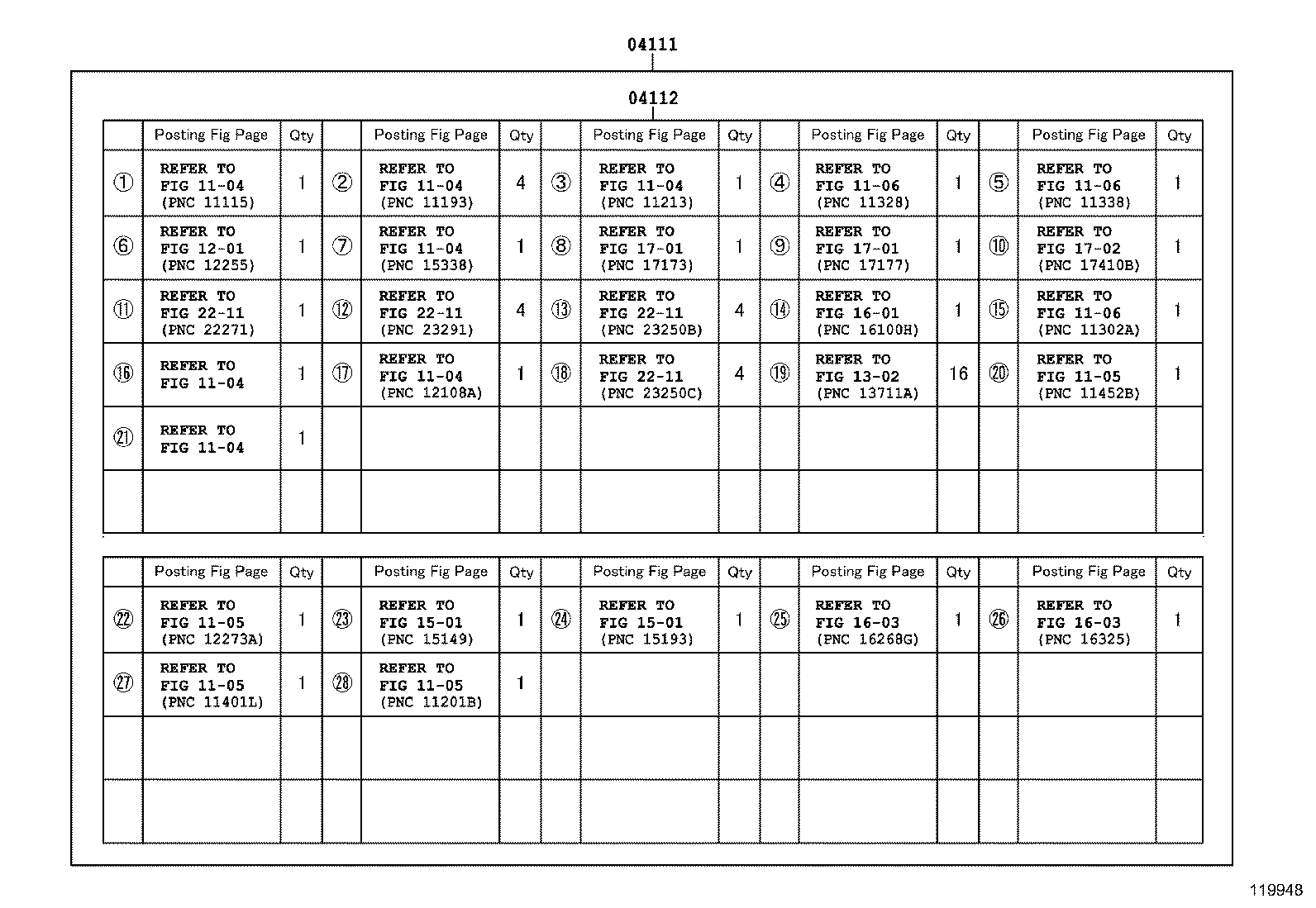

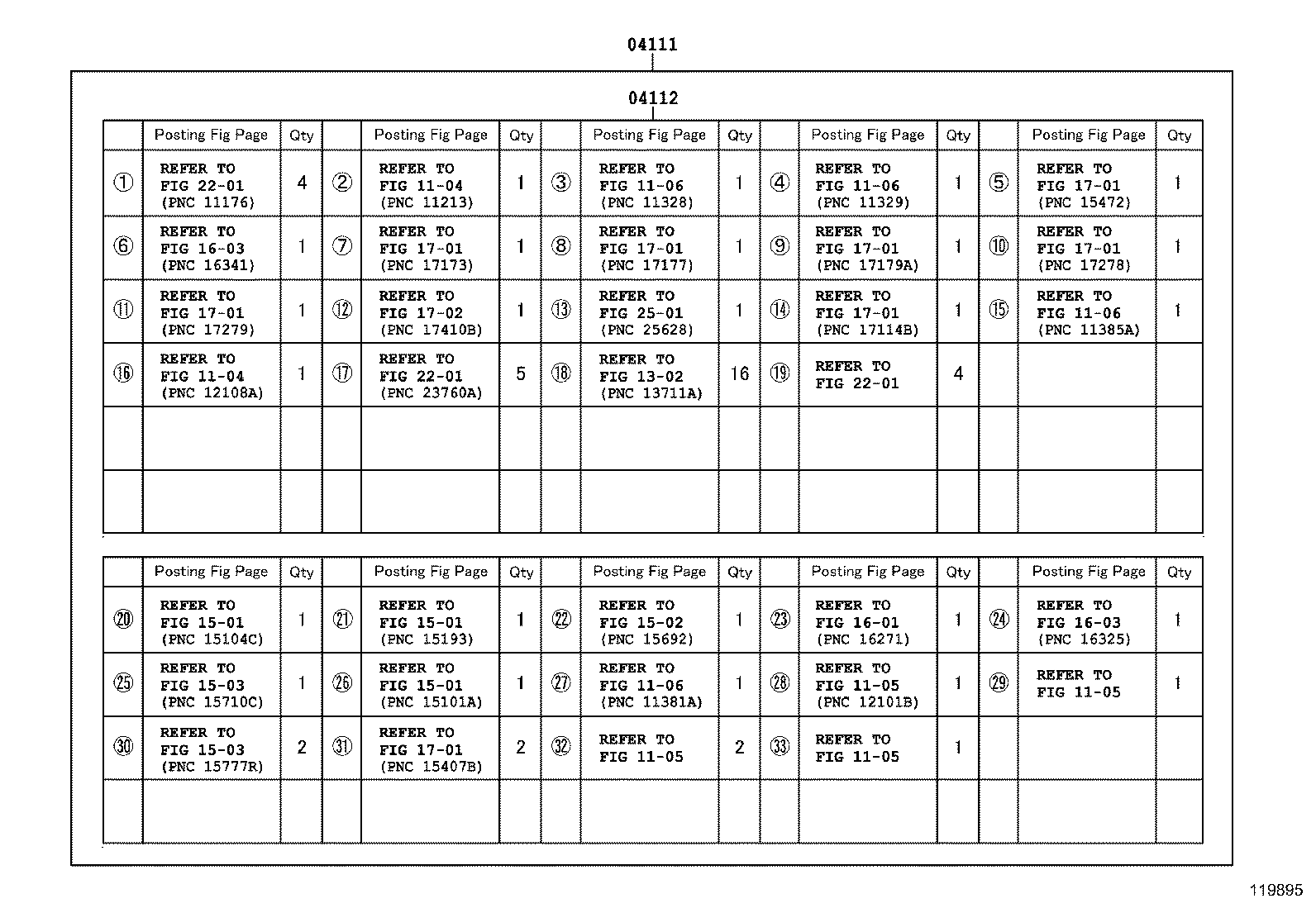

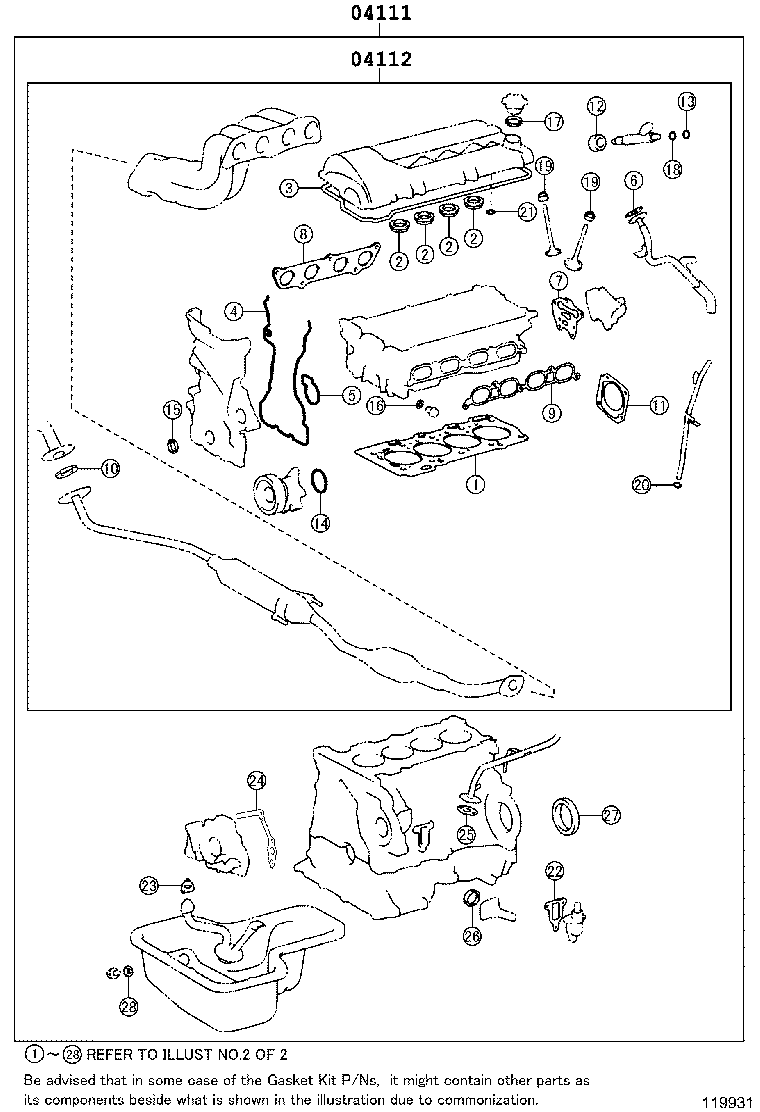

Figure 119893 119893 2001-11 → 2004-05 Figure 119894 119894 2003-04 → — Figure 119895 119895 2001-11 → 2004-05 Figure 119896 119896 2003-04 → — Figure 119818 119818 2004-08 → — Figure 119819 119819 2004-08 → — Figure 119931 119931 2001-11 → 2004-05 Figure 119948 119948 2001-11 → 2004-05 Figure 119949 119949 2004-05 → — Figure 119950 119950 2004-05 → — Figure 119925 119925 2001-11 → — Figure 119926 119926 2001-11 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
