Toyota Corolla HB (UKP)
2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe
Discontinued model
Data version 2007-09

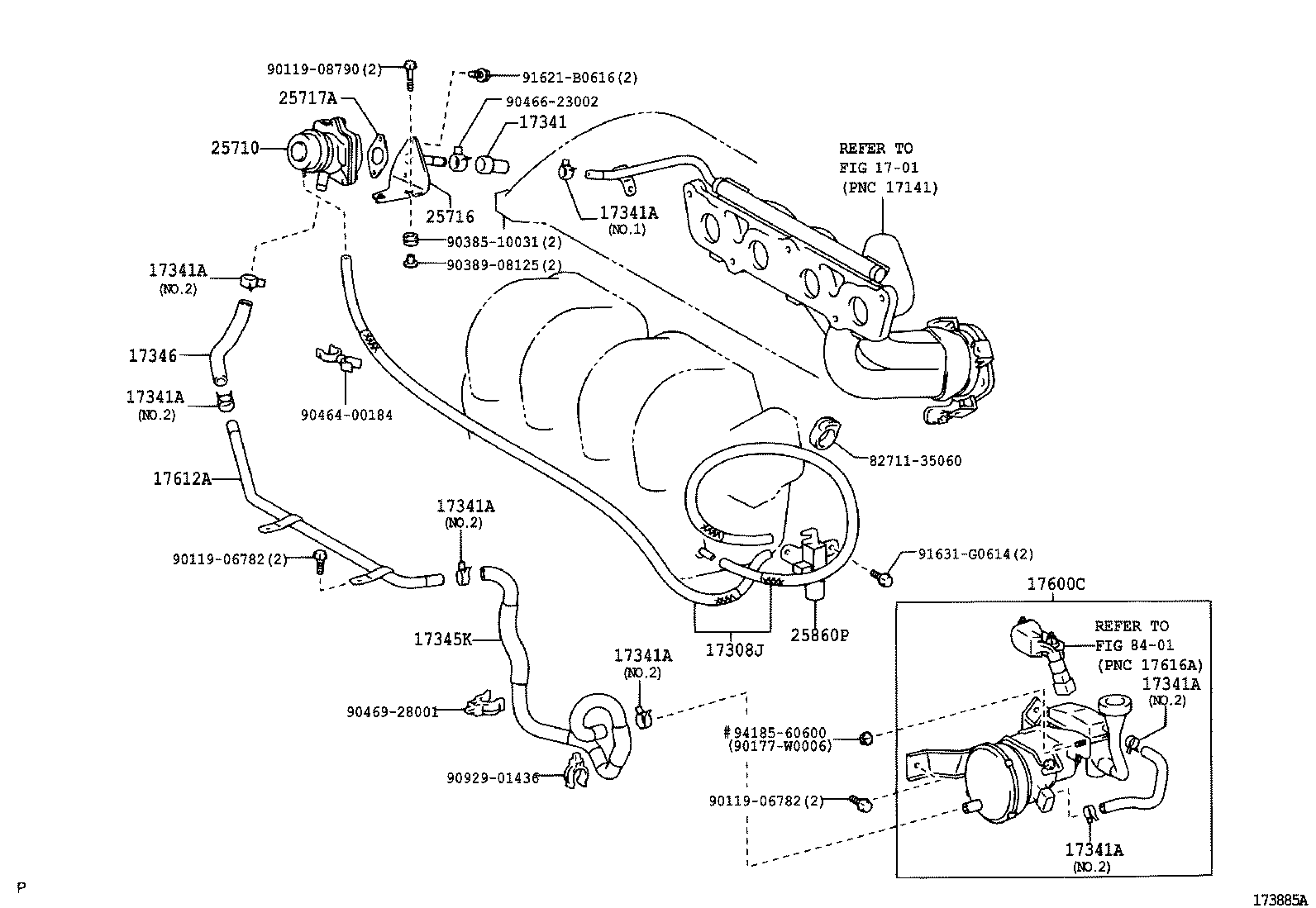

Manifold Air Injection System
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308J | Hose Sub-assy, Vacuum |
| 17341 | Hose, NO.1(FOR AIR INJECTION SYSTEM) |
| 17341A | Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1) |
| 17345K | Hose, Air, NO.5 |
| 17346 | Hose, NO.6(FOR AIR INJECTION SYSTEM) |
| 17600C | Pump Assy, Air |
| 17612A | Pipe, Air Pump Outlet |
| 25710 | Valve Assy, Air Switching |
| 25716 | Bracket, Air Switching Valve |
| 25717A | Gasket, Air Switching Valve |
| 25860P | Valve Assy, Vacuum Switching |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
