Toyota Corolla HB (UKP)

2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

12 part groups · 4 illustrations

Illustrations

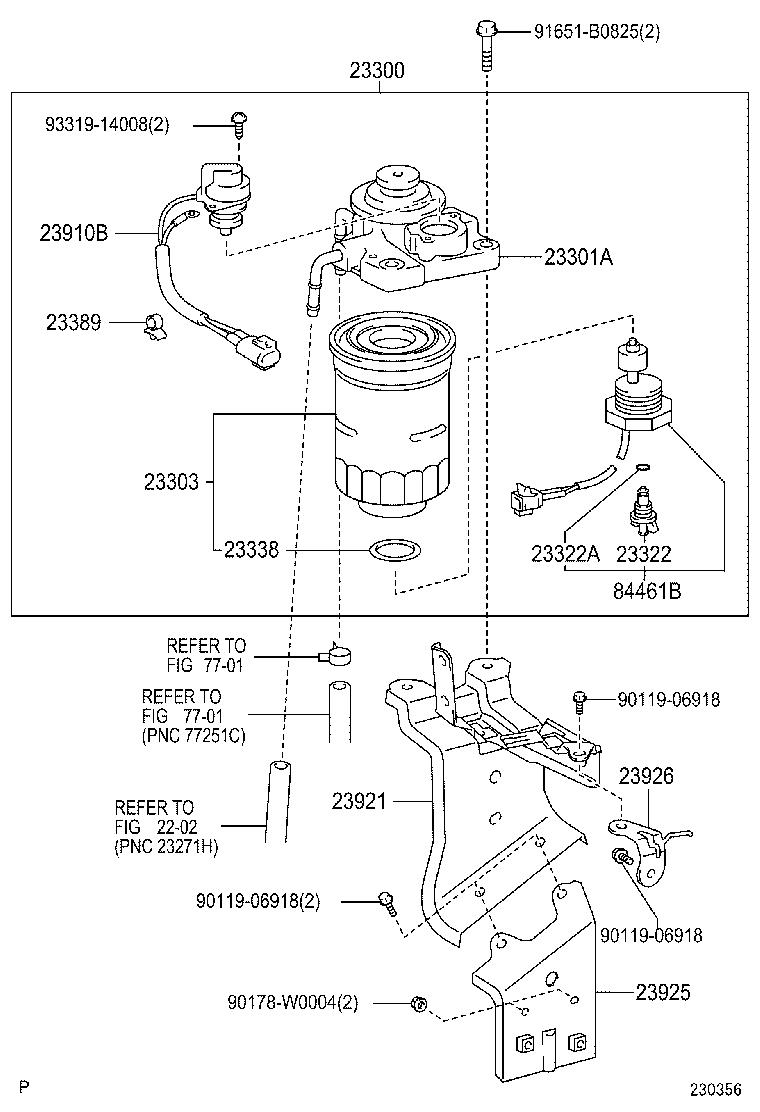

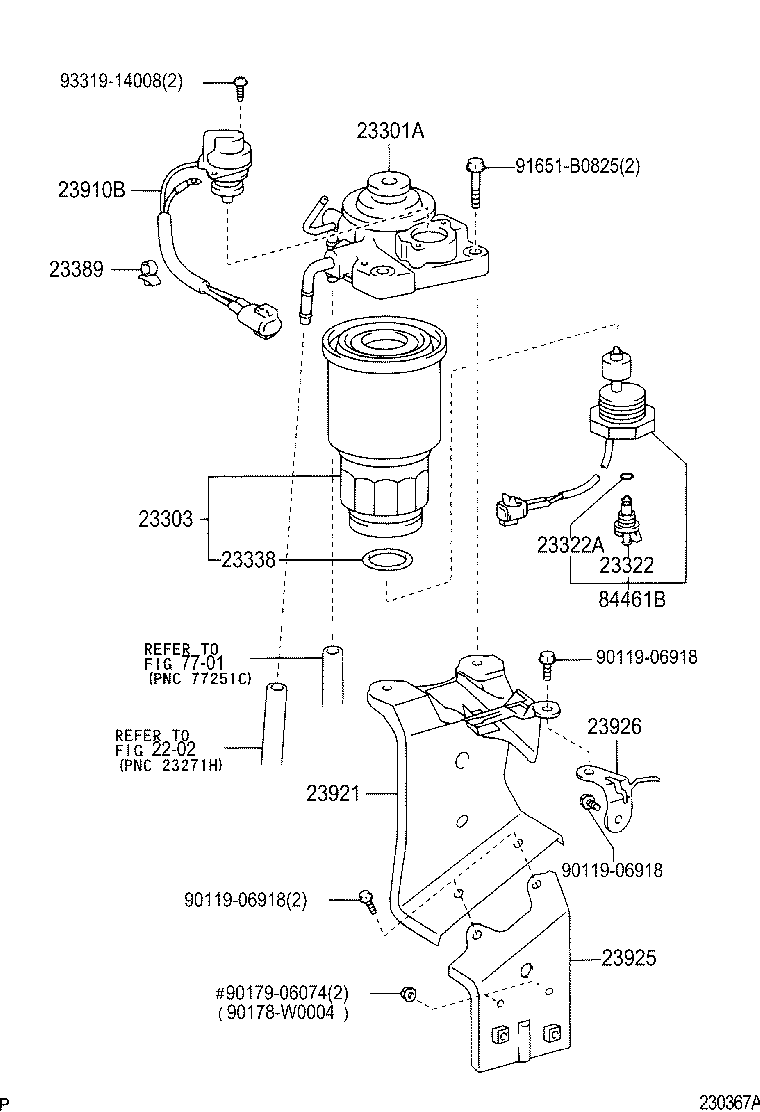

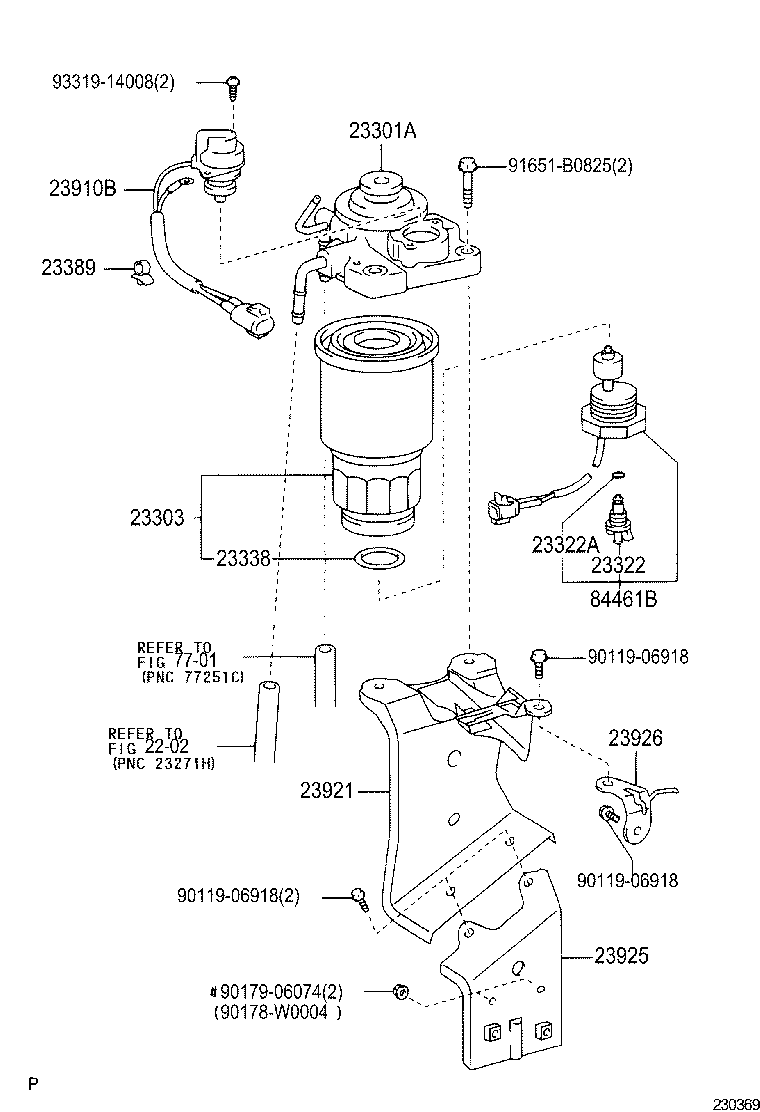

Figure 230231D 230231D 2001-11 → 2002-07 Figure 230369 230369 2001-11 → 2002-07 Figure 230367A 230367A 2002-07 → — Figure 230356 230356 2004-08 → —

Part groups

PNCDescription
23300 Filter Assy, Fuel
23301A Cap Assy, Fuel Filter
23303 Element Sub-assy, Fuel Filter
23322 Plug, Drain(FOR FUEL FILTER)
23322A Ring, O(FOR DRAIN PLUG)
23338 Gasket(FOR WARNING SWITCH)
23389 Clamp, Fuel Filter
23910B Heater Assy, Fuel
23921 Support, Fuel Filter
23925 Stay, Fuel Filter Support
23926 Stay, Fuel Filter Support, NO.2
84461B Switch, Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
