Toyota Corolla HB (UKP)
2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe
Discontinued model
Data version 2007-09

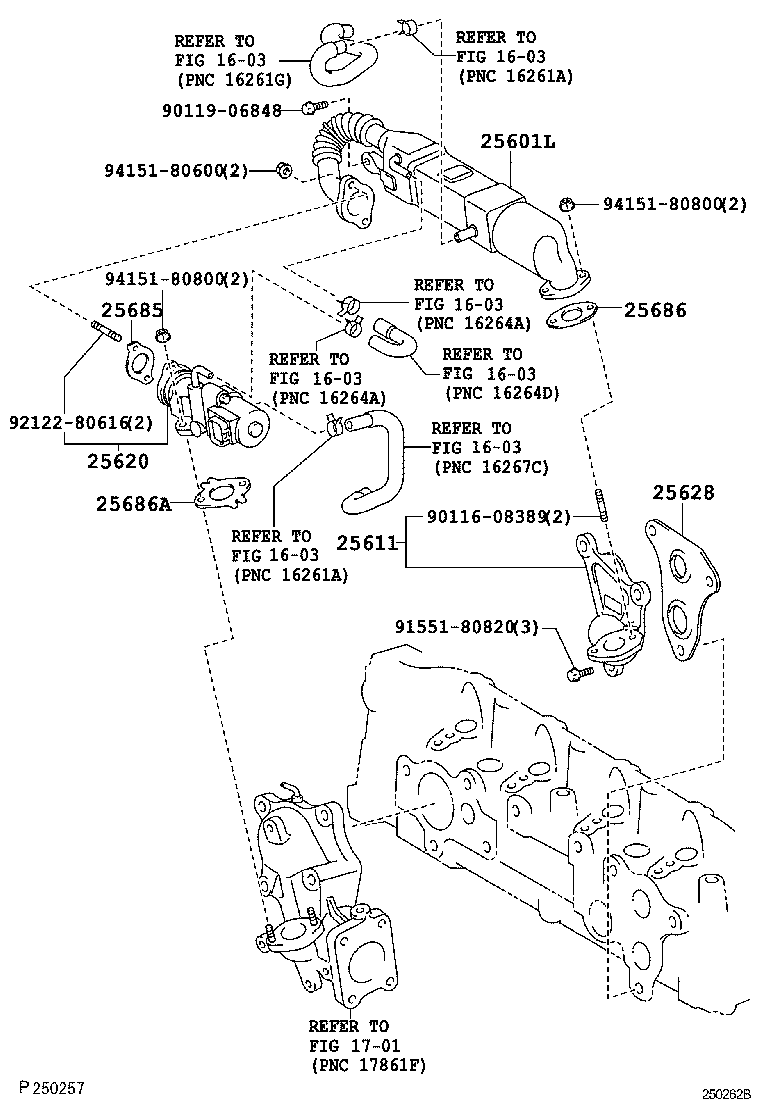

Exhaust Gas Recirculation System
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601L | Pipe Sub-assy, Egr W/Cooler |
| 25611 | Connector, Egr Pipe |
| 25620 | Valve Assy, Egr |
| 25628 | Gasket, Egr Inlet |
| 25685 | Gasket, Egr Cooler, NO.1 |
| 25686 | Gasket, Egr Cooler, NO.2 |
| 25686A | Gasket, Egr Cooler, NO.3 |
| 25760G | Hose Assy, Vacuum Transmitting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
