Toyota Corolla HB (UKP)

2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

9 part groups · 5 illustrations

Illustrations

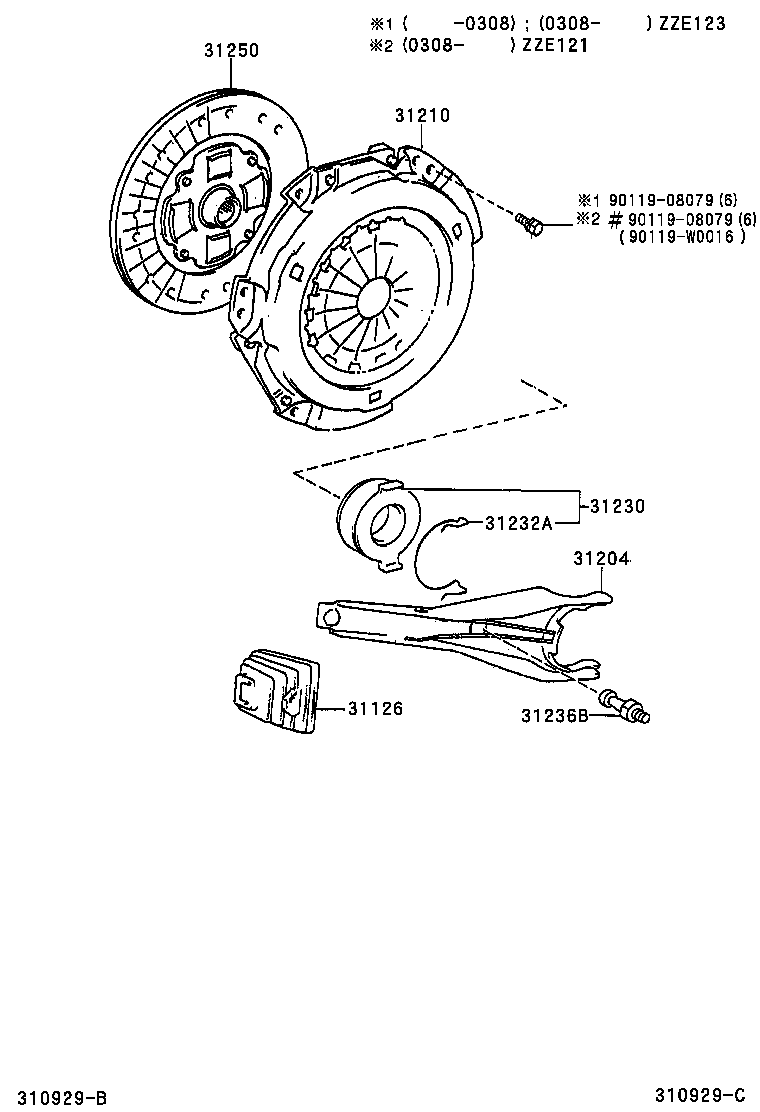

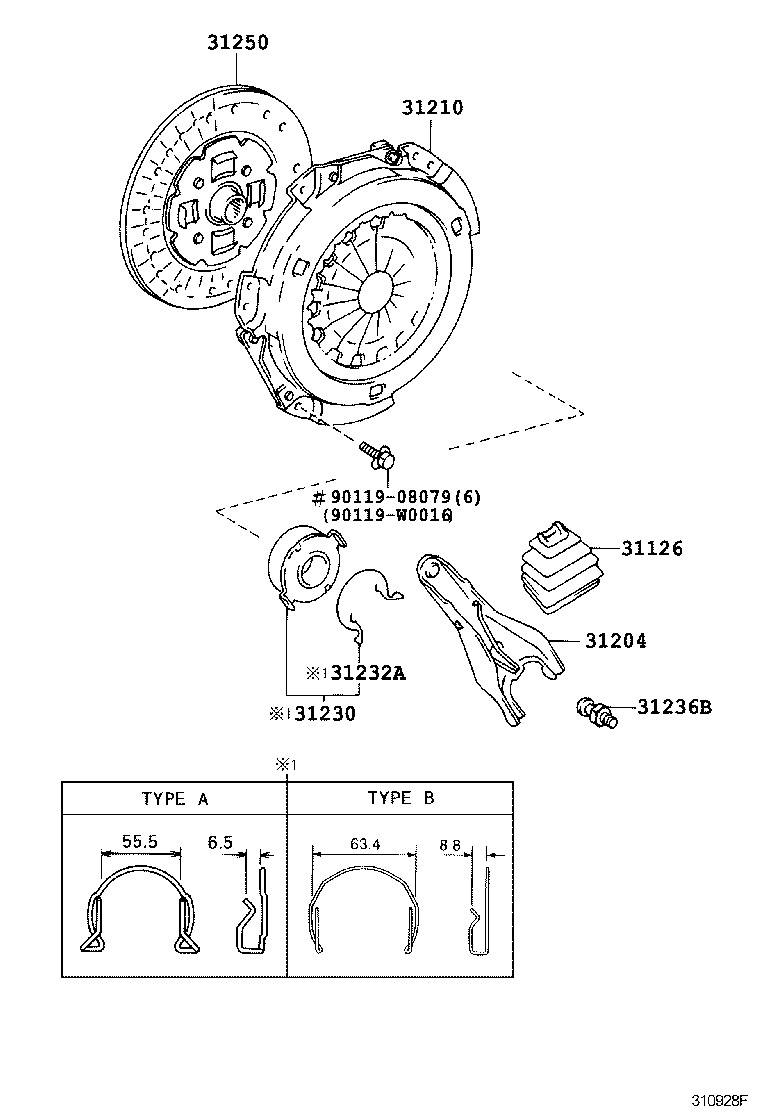

Figure 310927D 310927D 2001-11 → — Figure 310928F 310928F 2001-11 → — Figure 310929C 310929C 2001-11 → — Figure 311372 311372 2004-08 → — Figure 311373 311373 2004-08 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31232A Clip, Release Bearing Hub
31236B Support, Release Fork
31237 Boot, Clutch Release Fork Support
31250 Disc Assy, Clutch
31250B Disc Set, Adjustable Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
