Toyota Corolla HB (UKP)
2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe
Discontinued model
Data version 2007-09
Parking Brake & Cable
16 part groups · 3 illustrations
Part groups

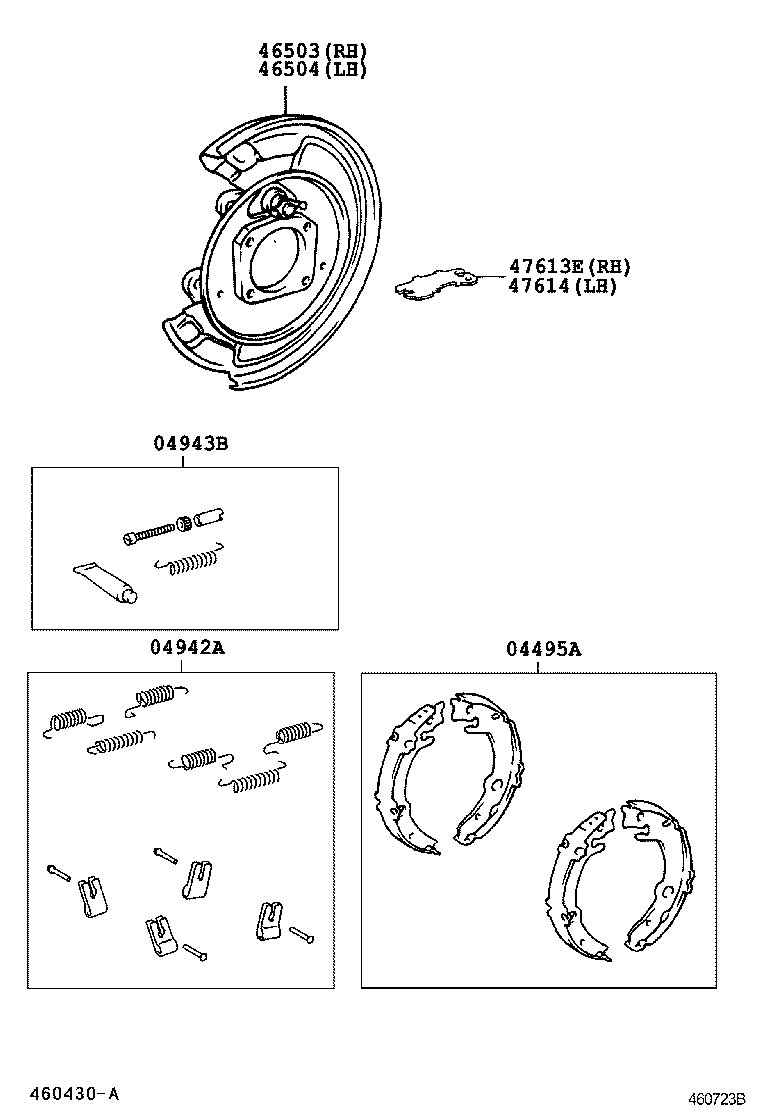

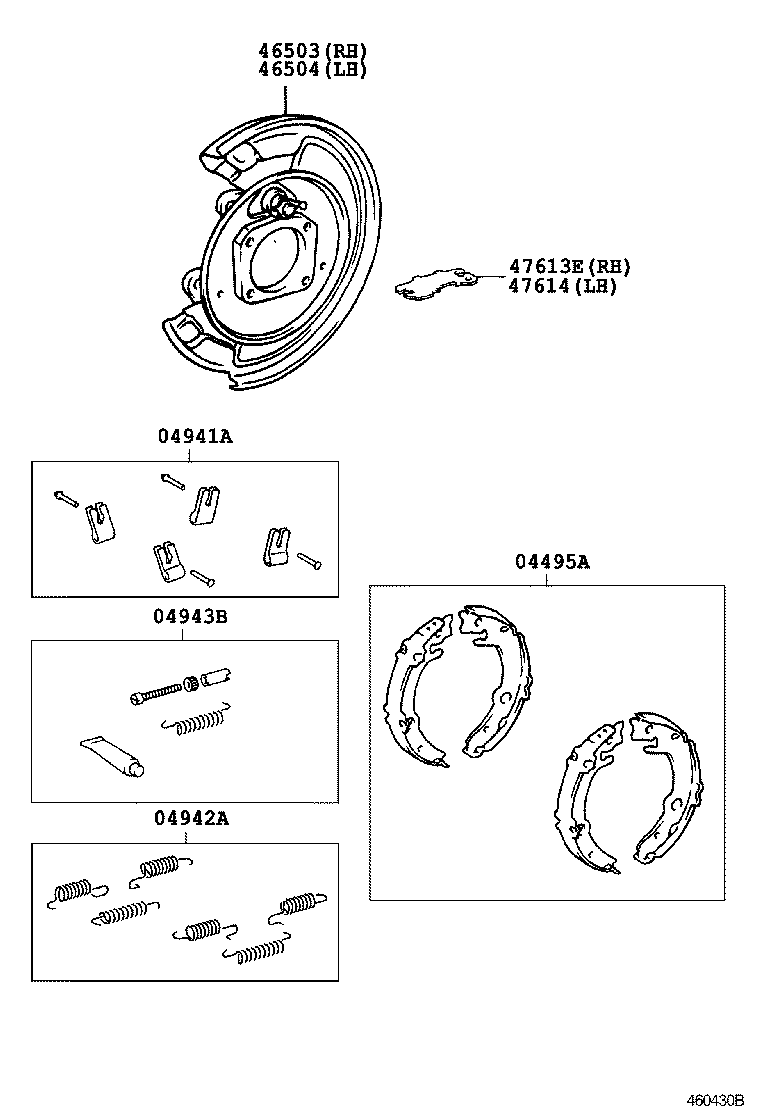

| PNC | Description |
|---|---|
| 04495A | Shoe Kit, Parking Brake |
| 04941A | Spring Kit, Parking Brake Shoe Hold Down |
| 04942A | Spring Kit, Parking Brake |
| 04943B | Adjuster Kit, Parking Brake |
| 46201E | Lever Sub-assy, Parking Brake |
| 46341 | Equalizer, Parking Brake |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46441A | Nut, Wire Adjusting, NO.2 |
| 46458 | Retainer, Cable |
| 46503 | Plate Sub-assy, Parking Brake, RH |
| 46504 | Plate Sub-assy, Parking Brake, LH |
| 47613E | Strut, Parking Brake Shoe, RH |
| 47614 | Strut, Parking Brake Shoe, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
