Toyota Corolla HB (UKP)

2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

12 part groups · 3 illustrations

Illustrations

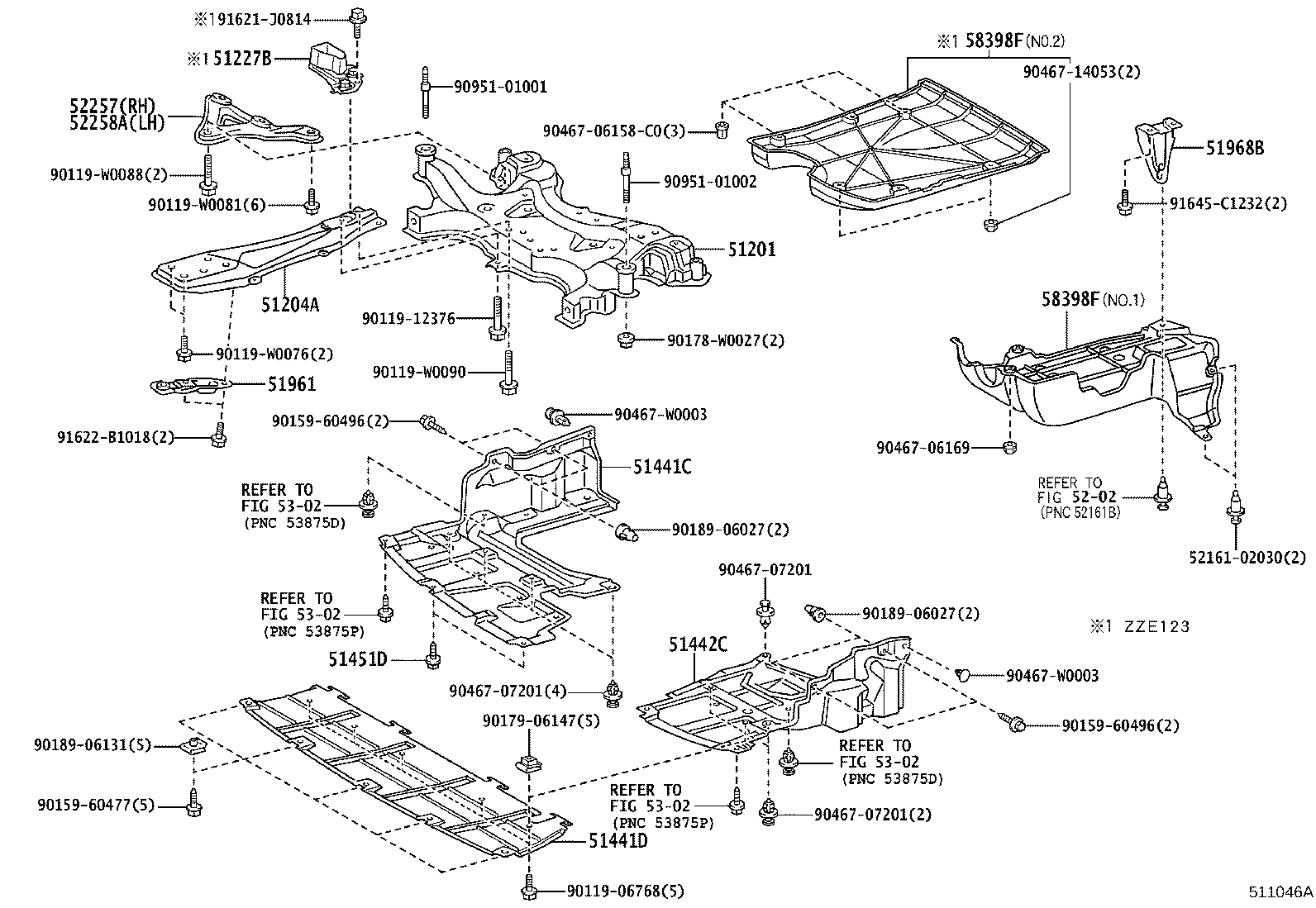

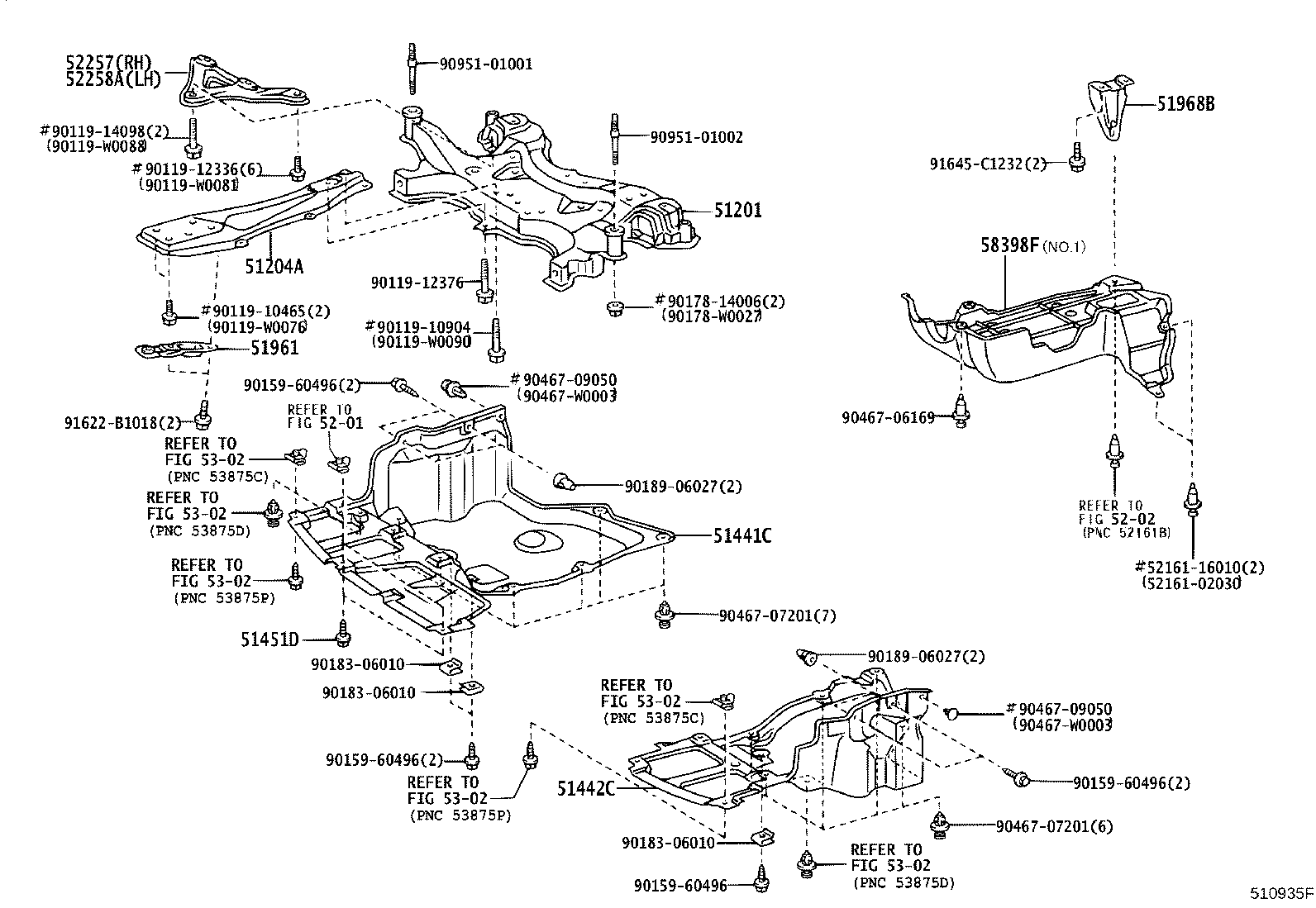

Figure 510745J 510745J 2001-11 → 2004-05 Figure 510935F 510935F 2003-04 → — Figure 511046A 511046A 2004-05 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51227B Damper, Front Suspension Member Dynamic
51441C Cover, Engine Under, RH
51441D Cover, Engine Under
51442C Cover, Engine Under, LH
51451D Screw, NO.1
51961 Hook, NO.1
51968B Hook, Transport, Rear LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
58398F Cover, Floor Under, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
