Toyota Corolla HB (UKP)
2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe
Discontinued model
Data version 2007-09
Hood & Front Fender
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53834C | Plate, Front Fender Support, RH |
| 53834D | Plate, Front Fender Support, LH |

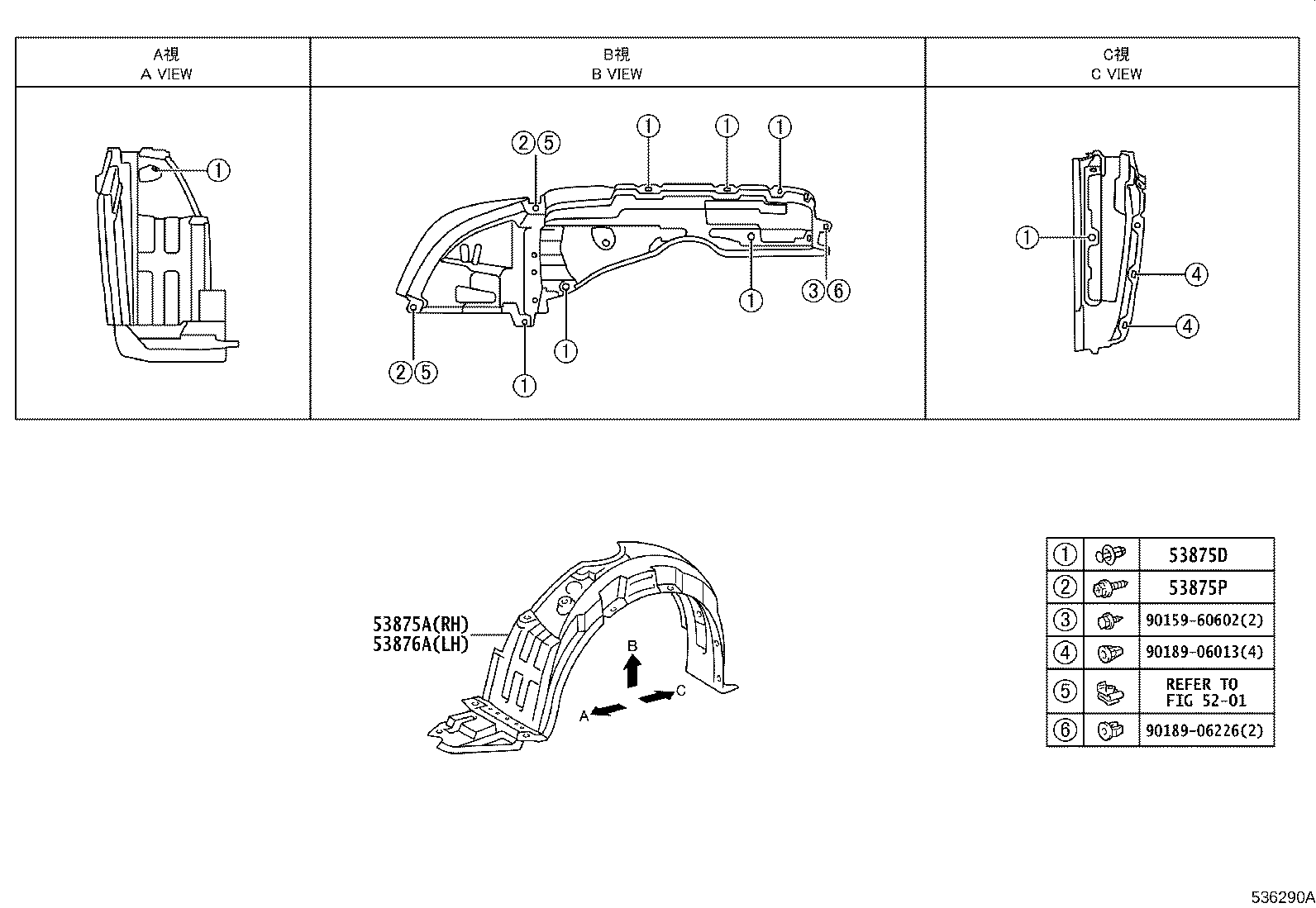

| 53875A | Liner, Front Fender, RH |
| 53875D | Clip, Front Fender Liner, NO.2 |
| 53875P | Screw, NO.1 |
| 53876A | Liner, Front Fender, LH |
| 53878C | Spacer, Front Fender |
| 53882P | Seal, Front Fender, RH |
| 53883K | Seal, Front Fender, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
