Toyota Corolla HB (UKP)

2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

42 part groups · 16 illustrations

Illustrations

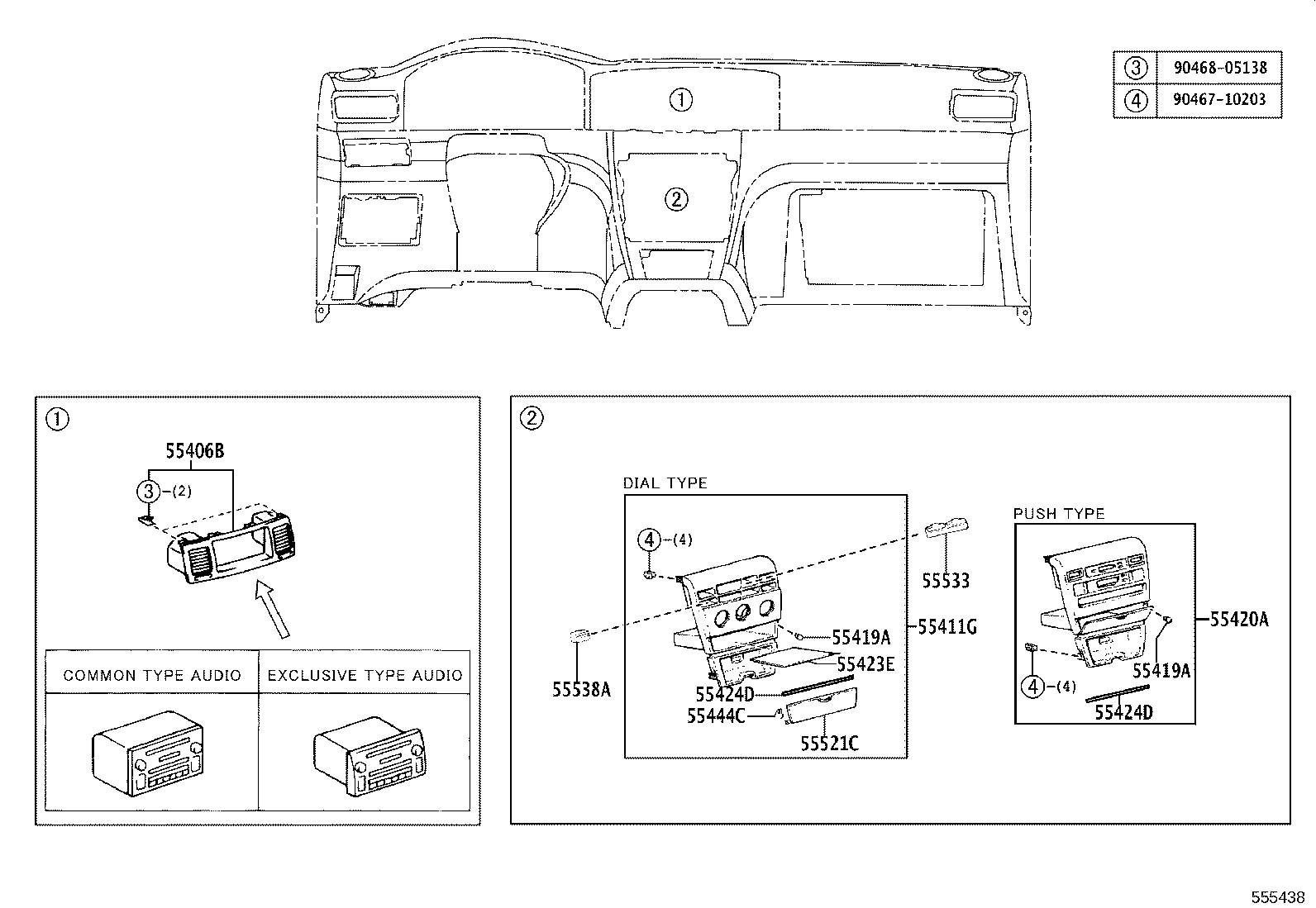

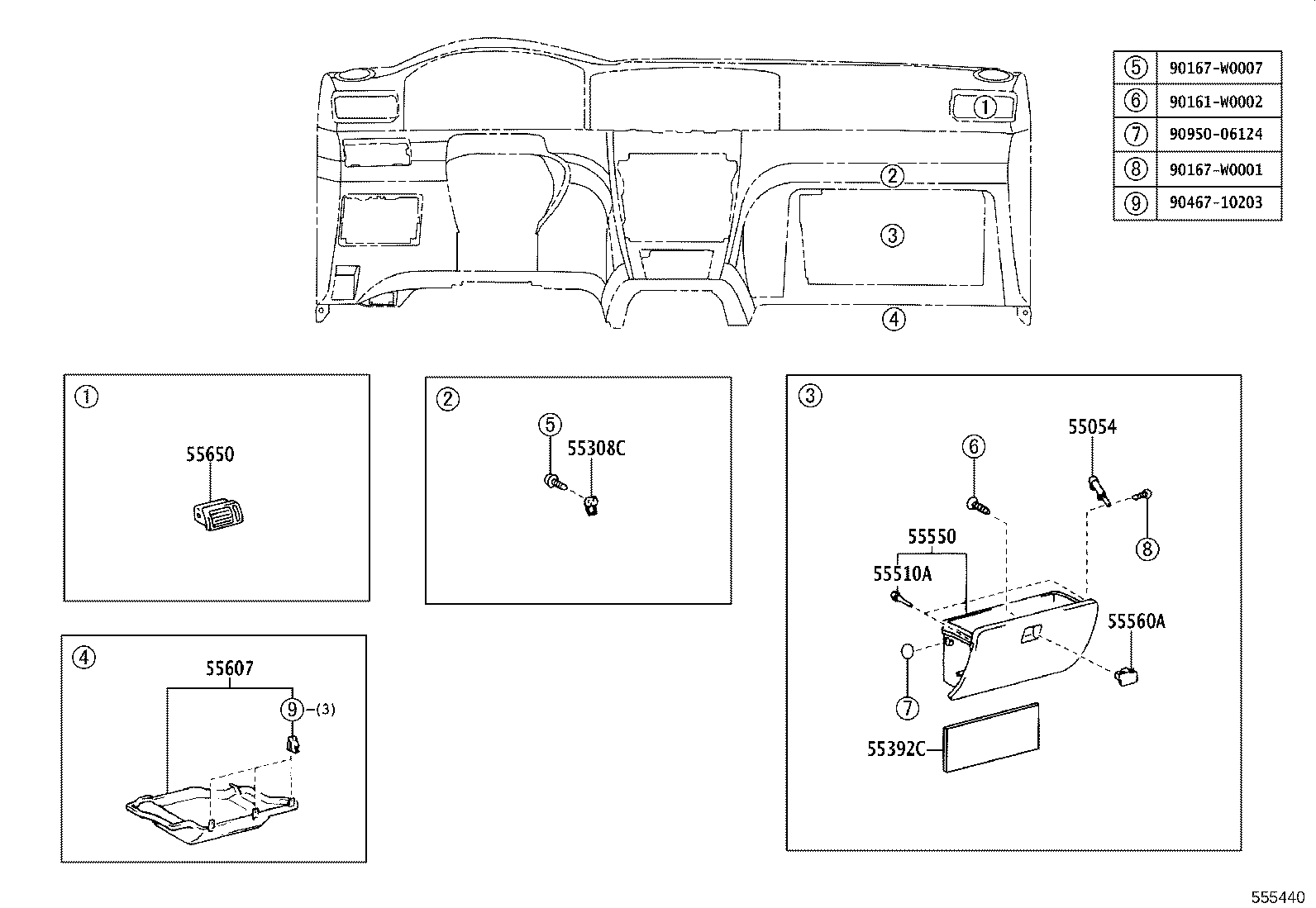

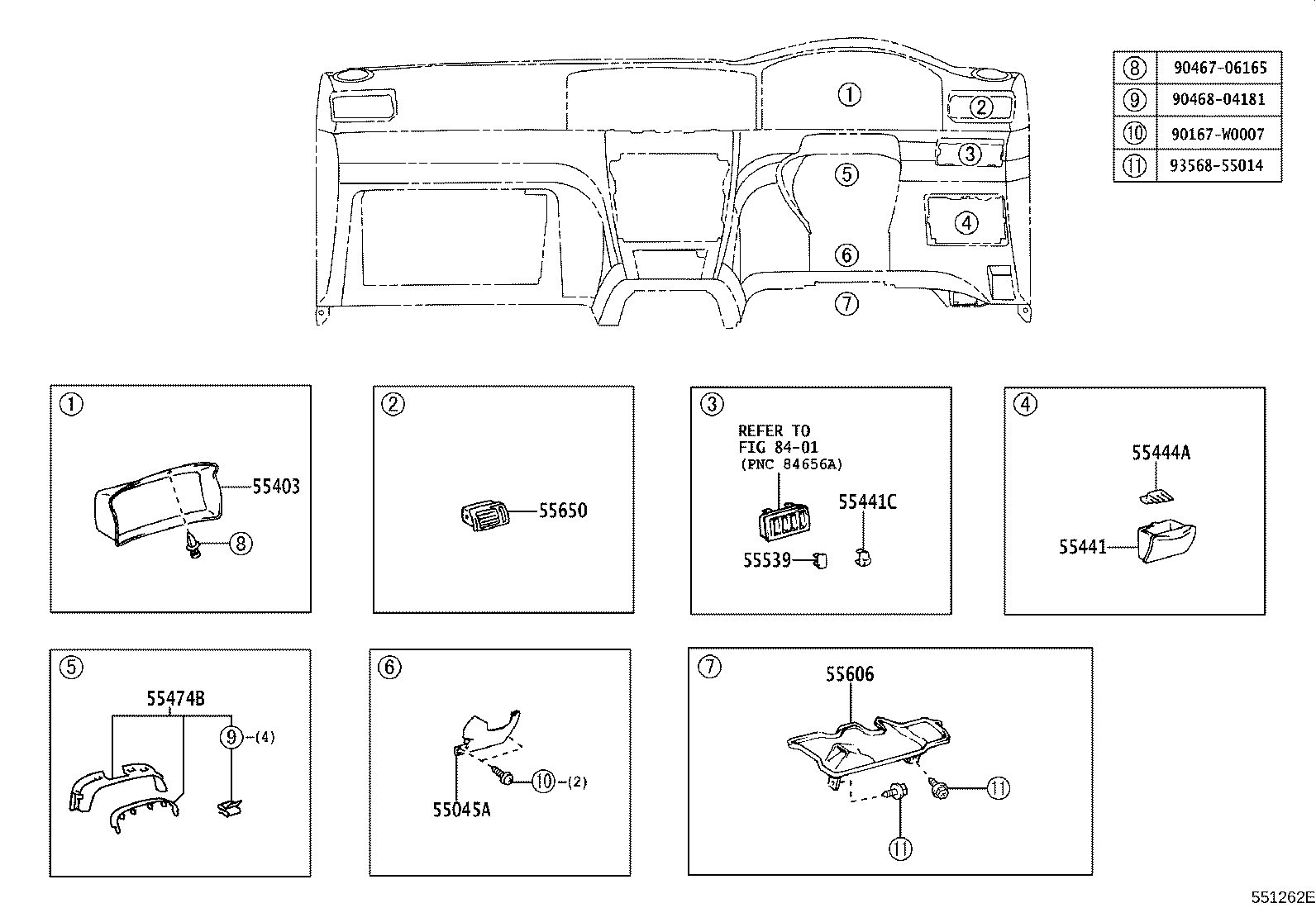

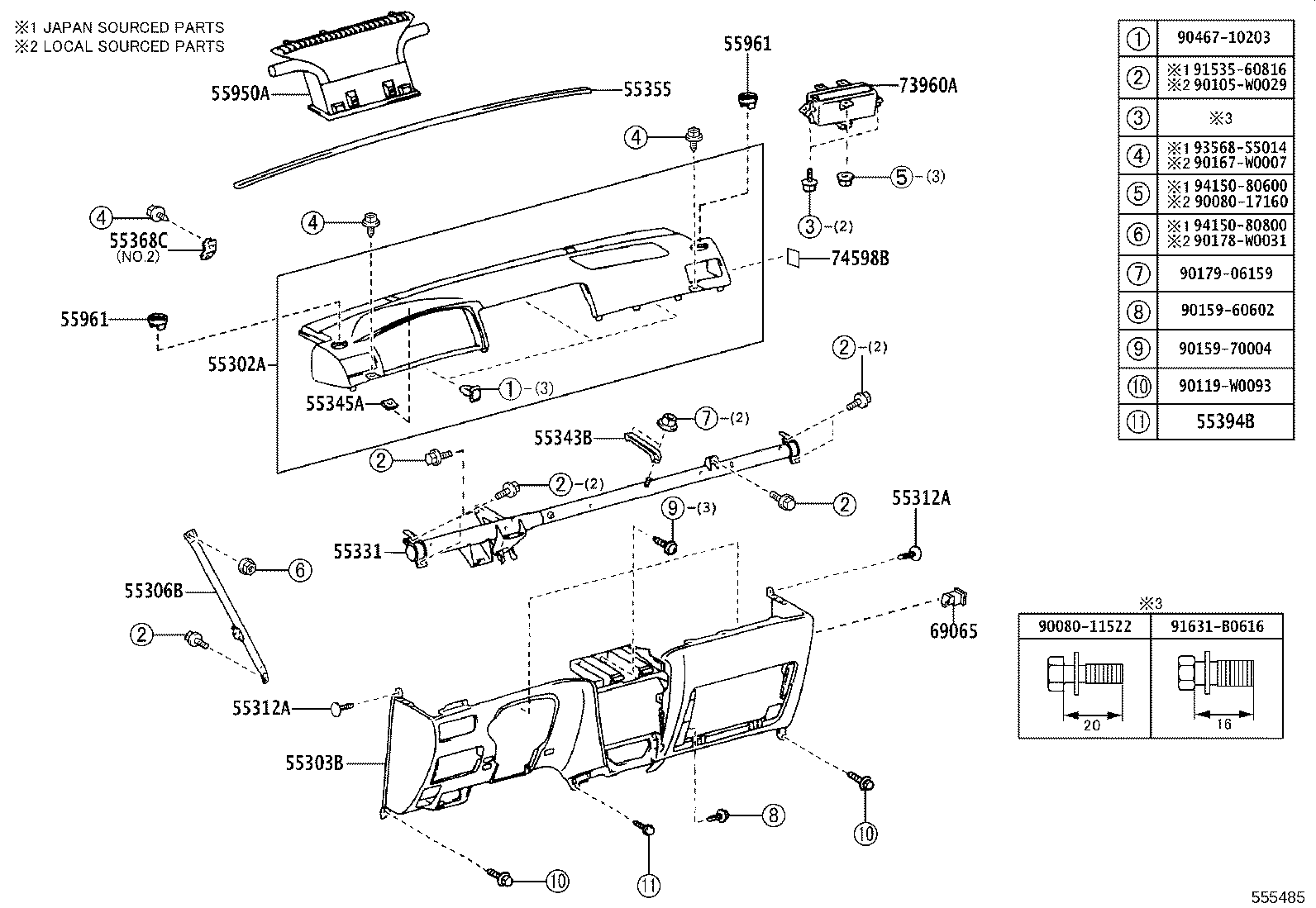

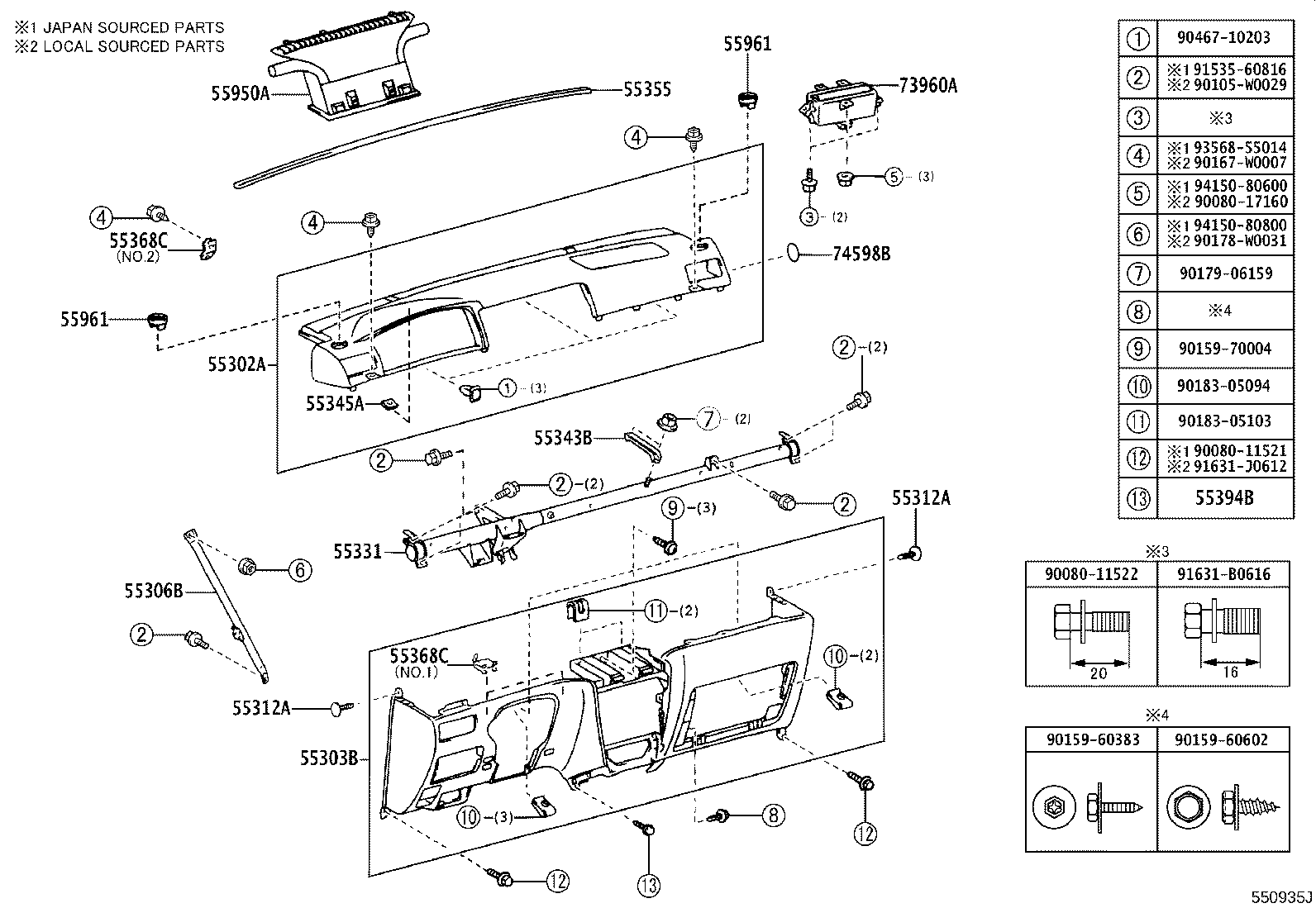

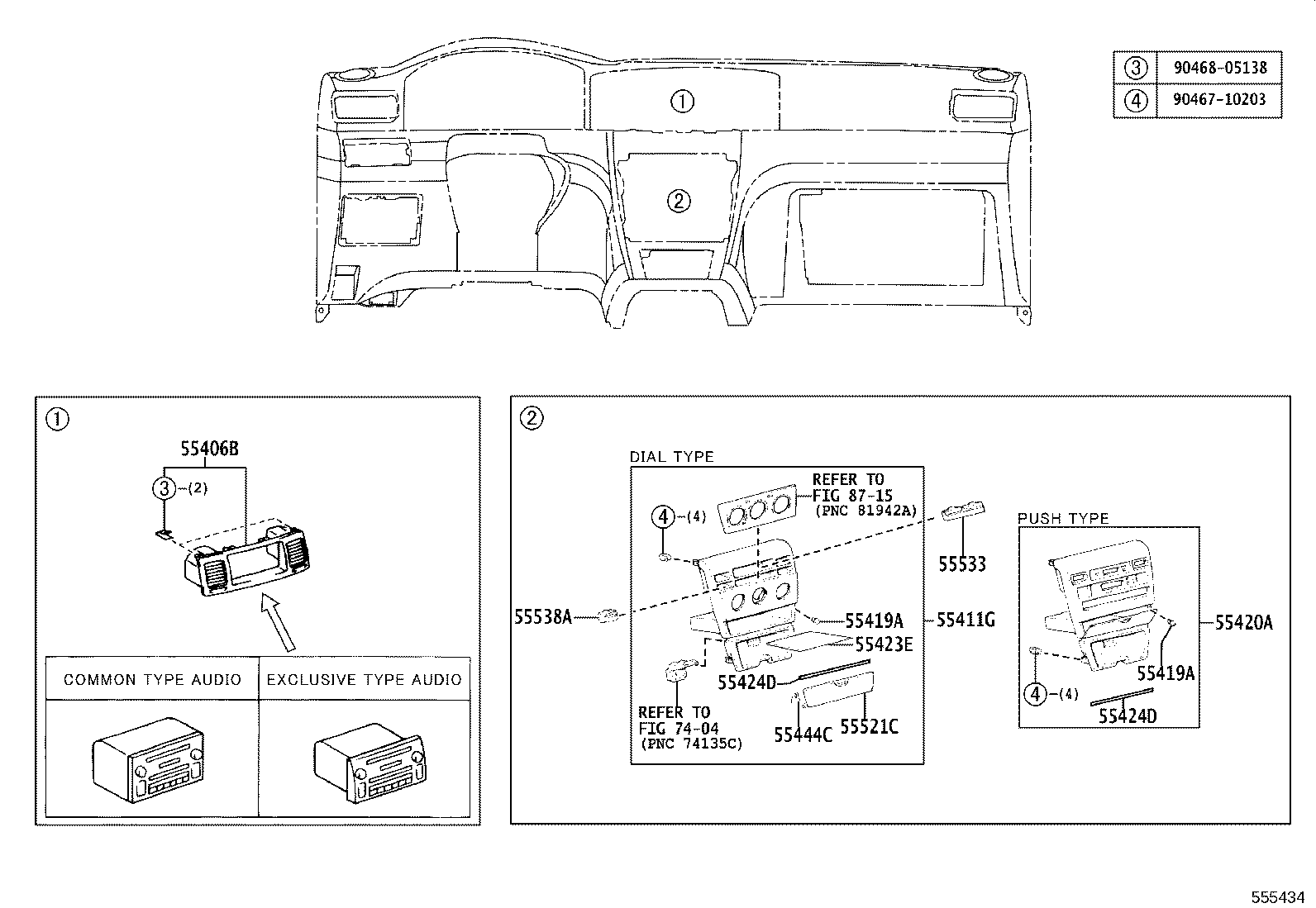

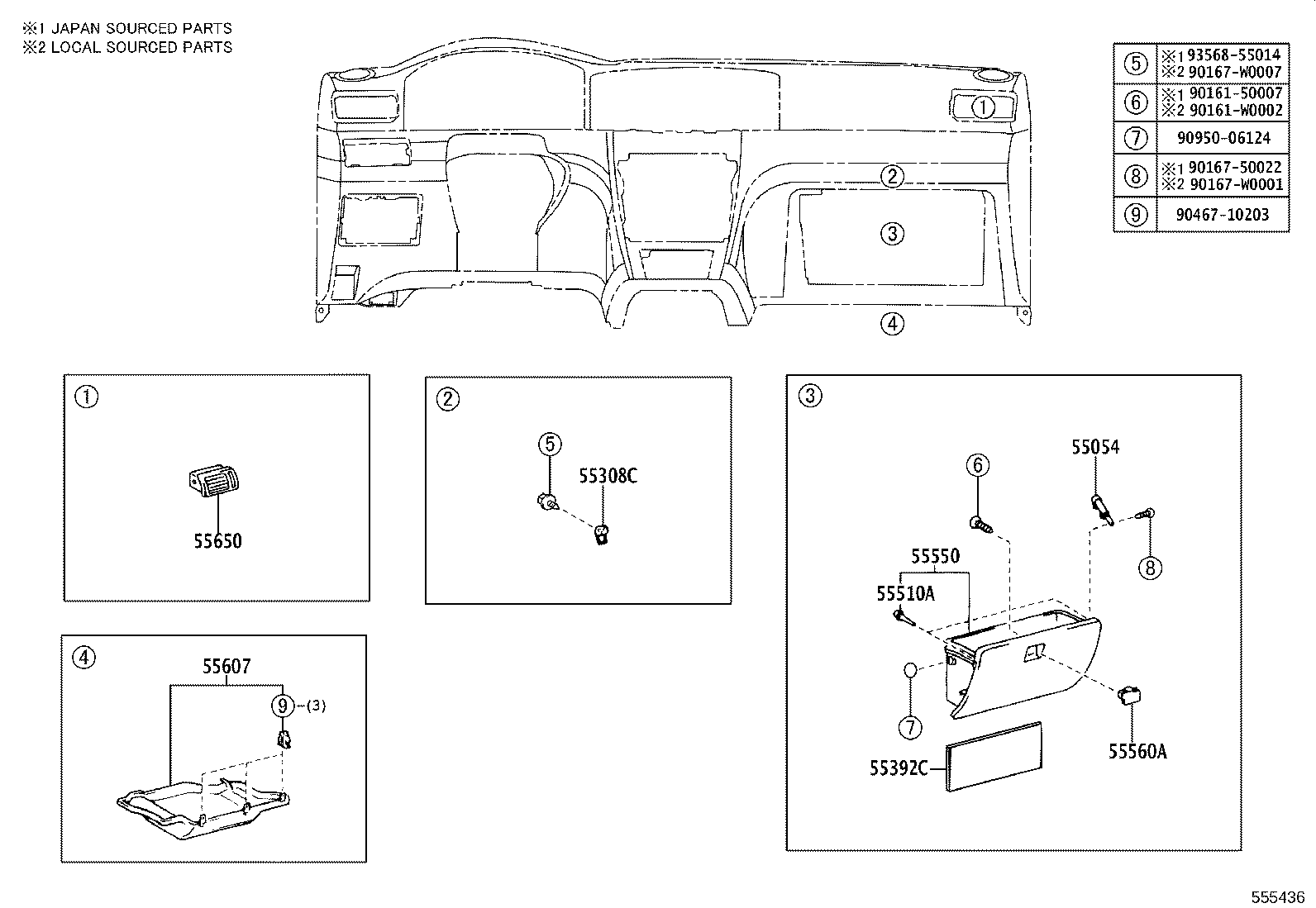

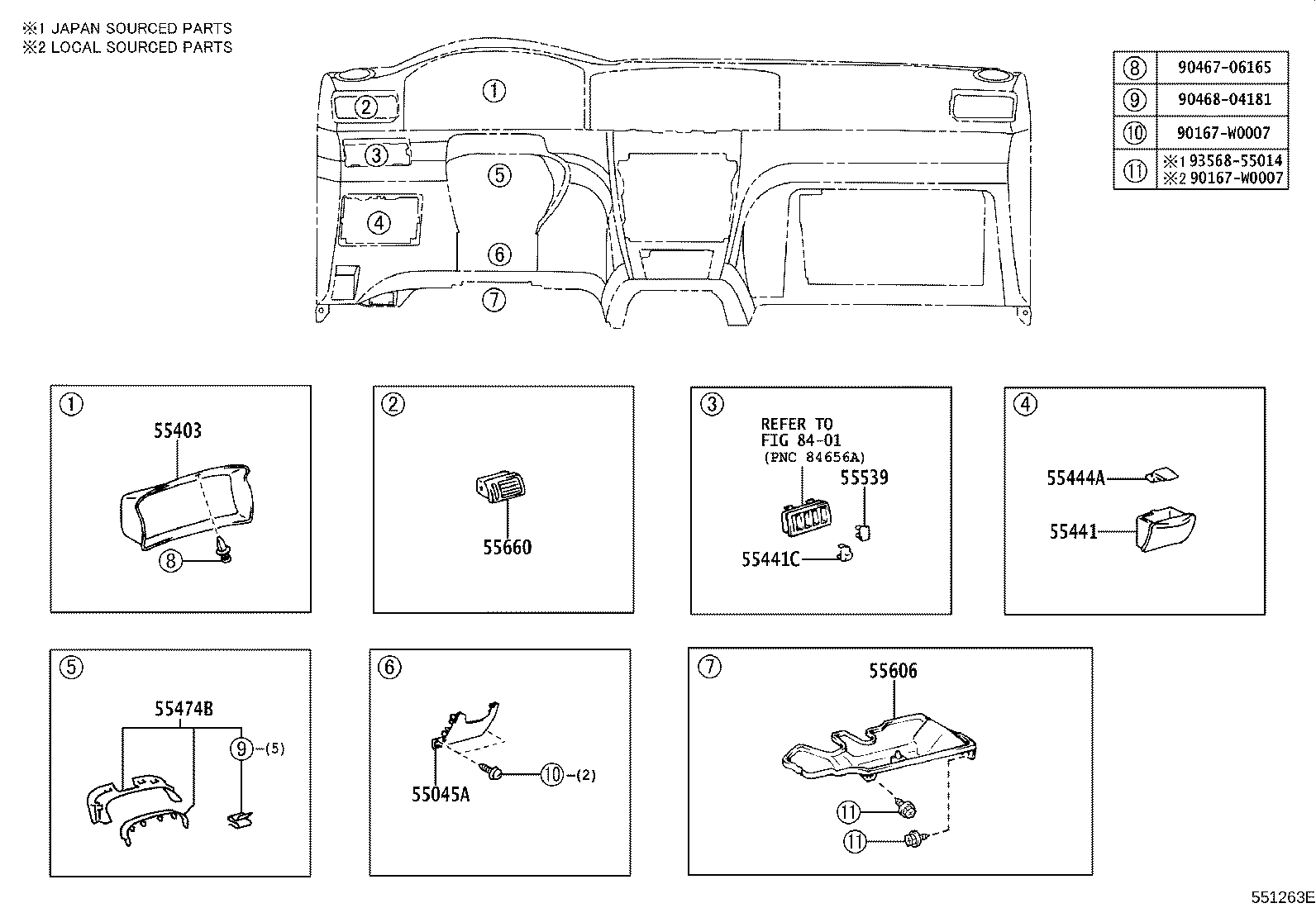

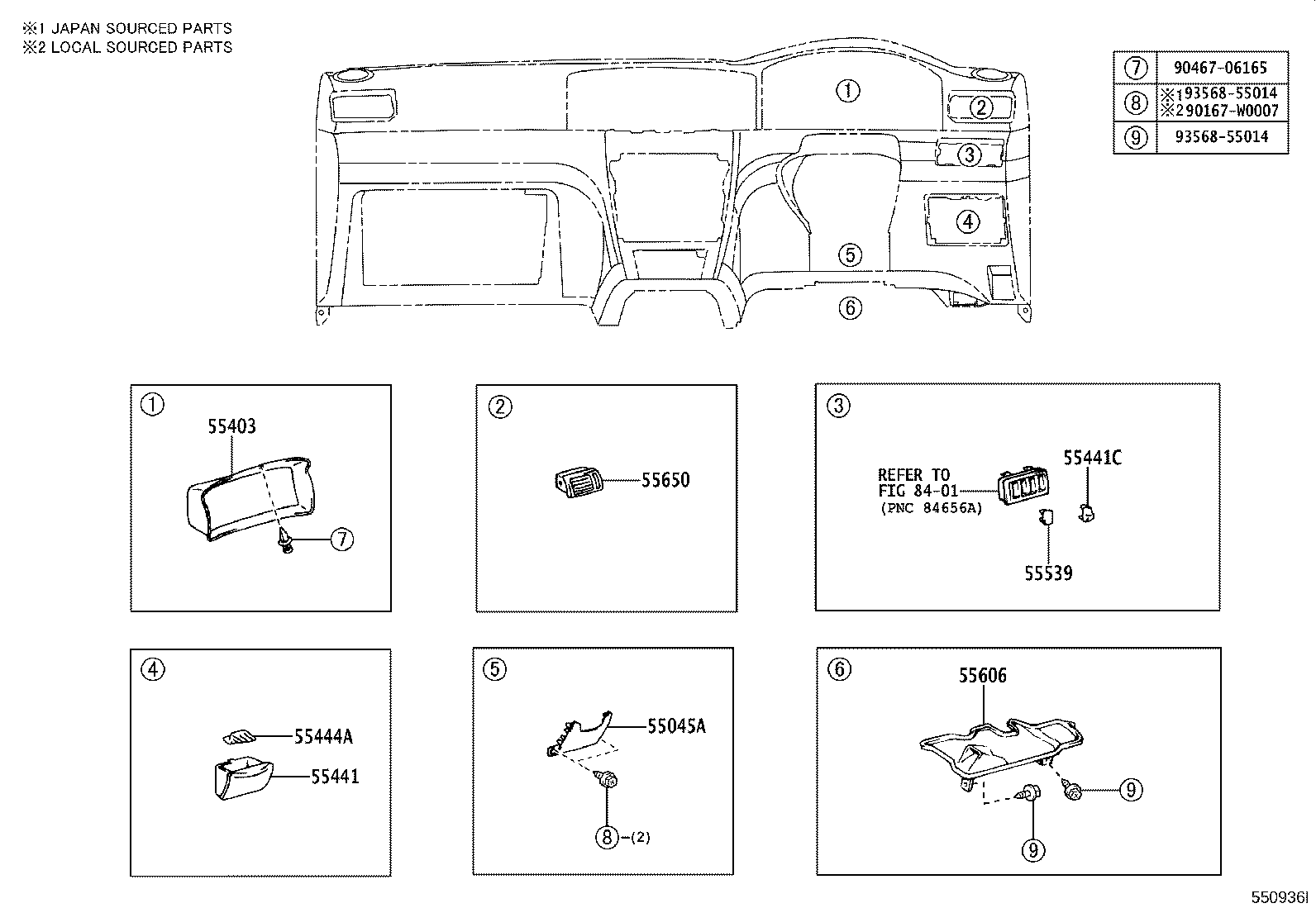

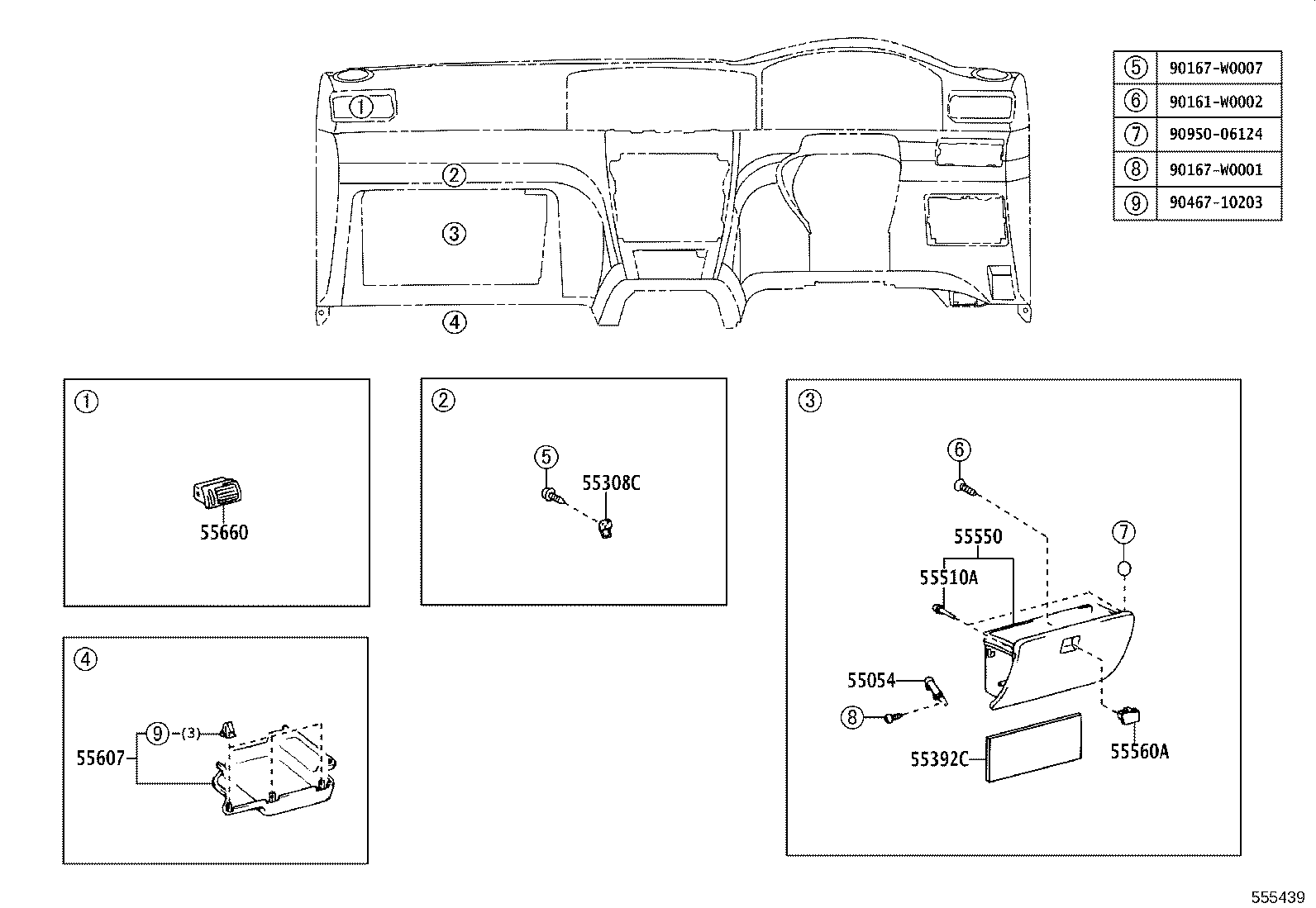

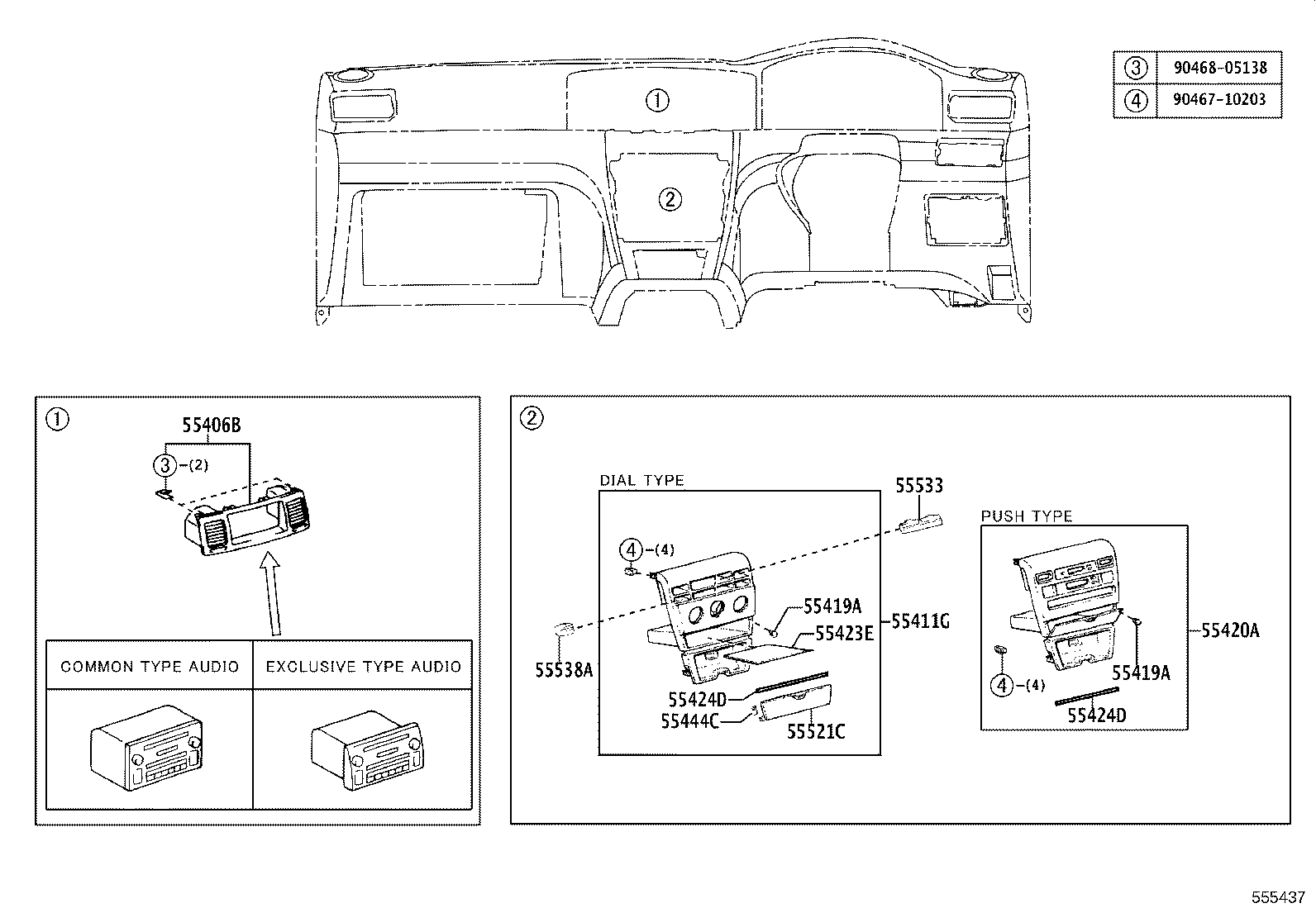

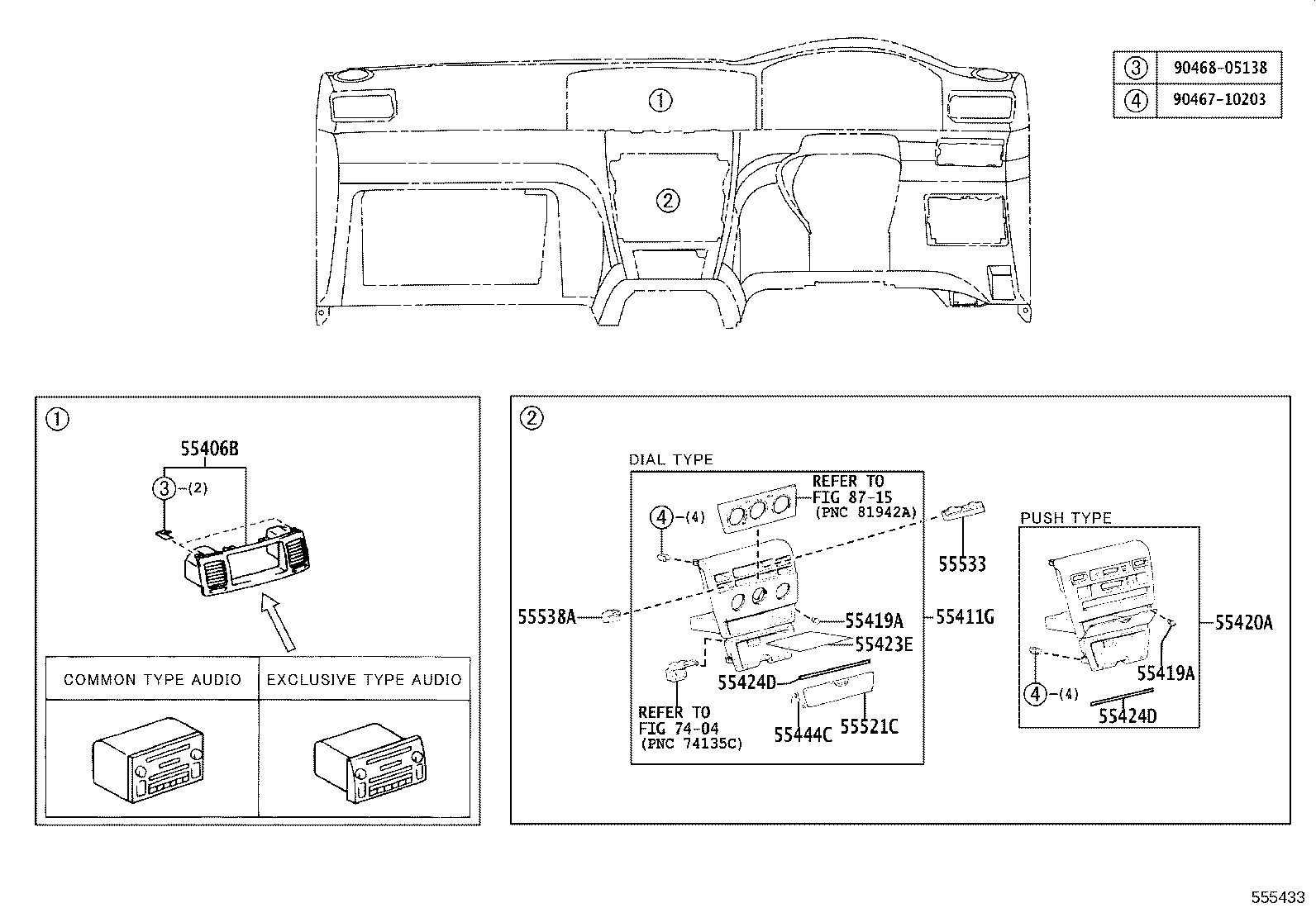

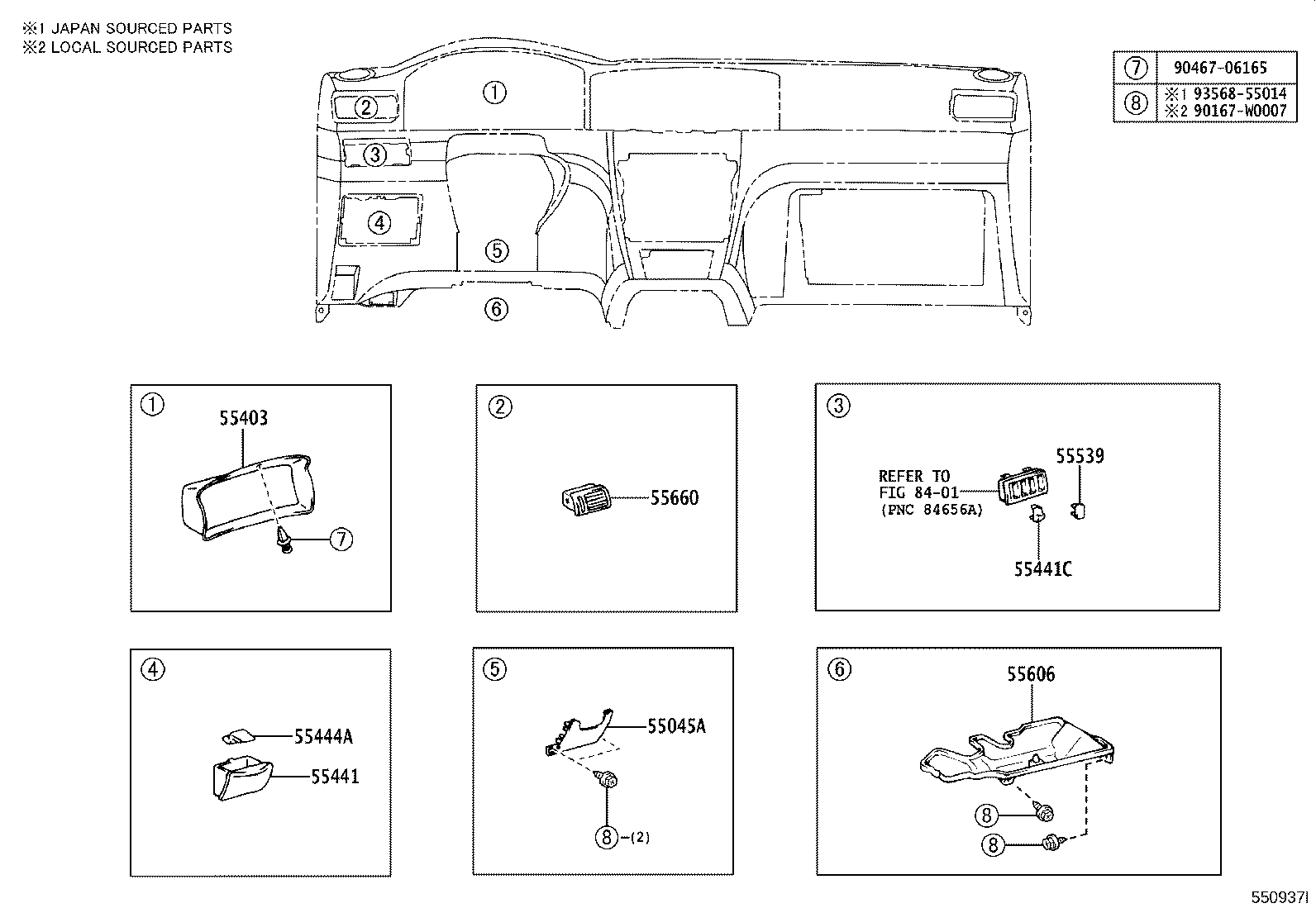

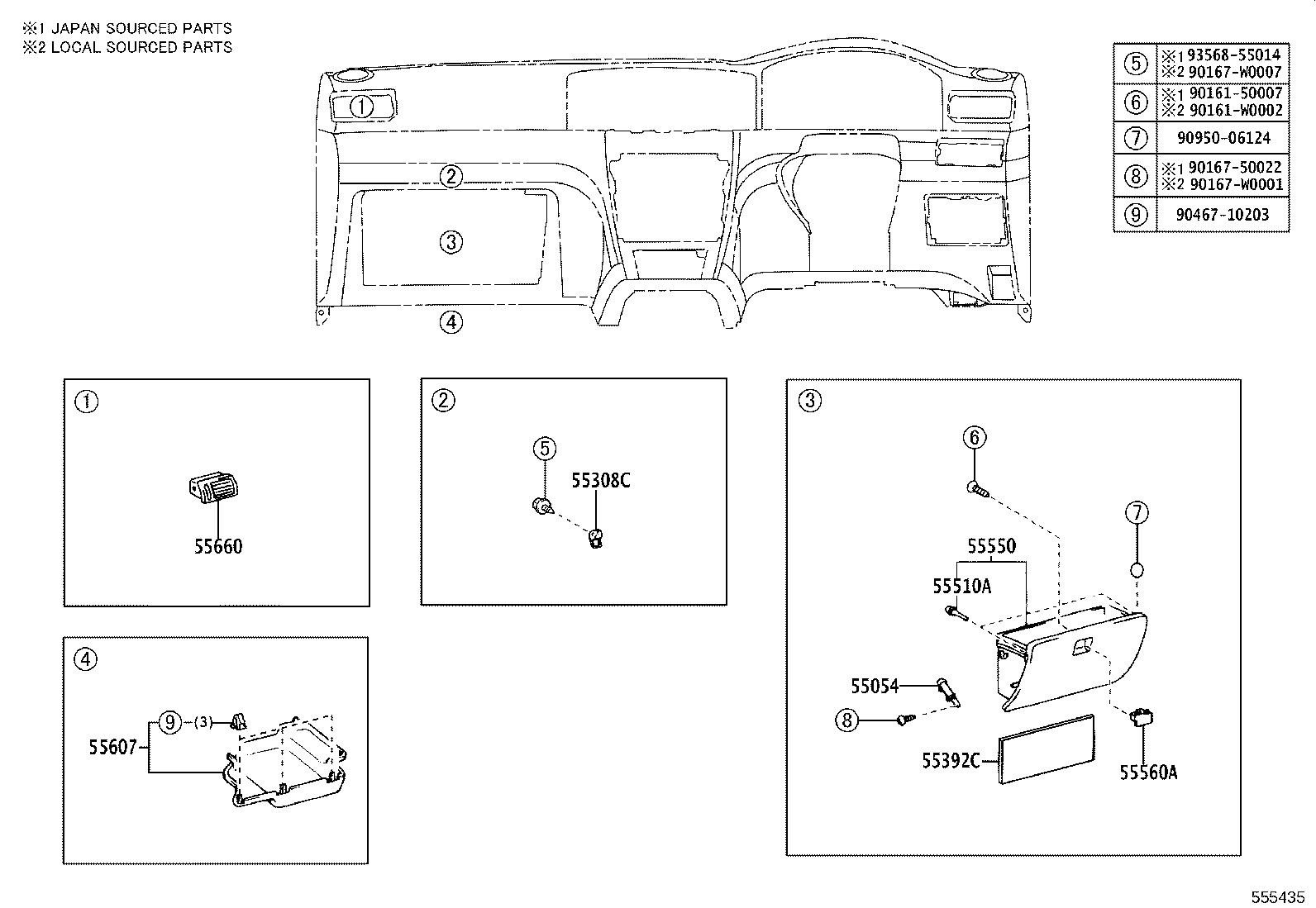

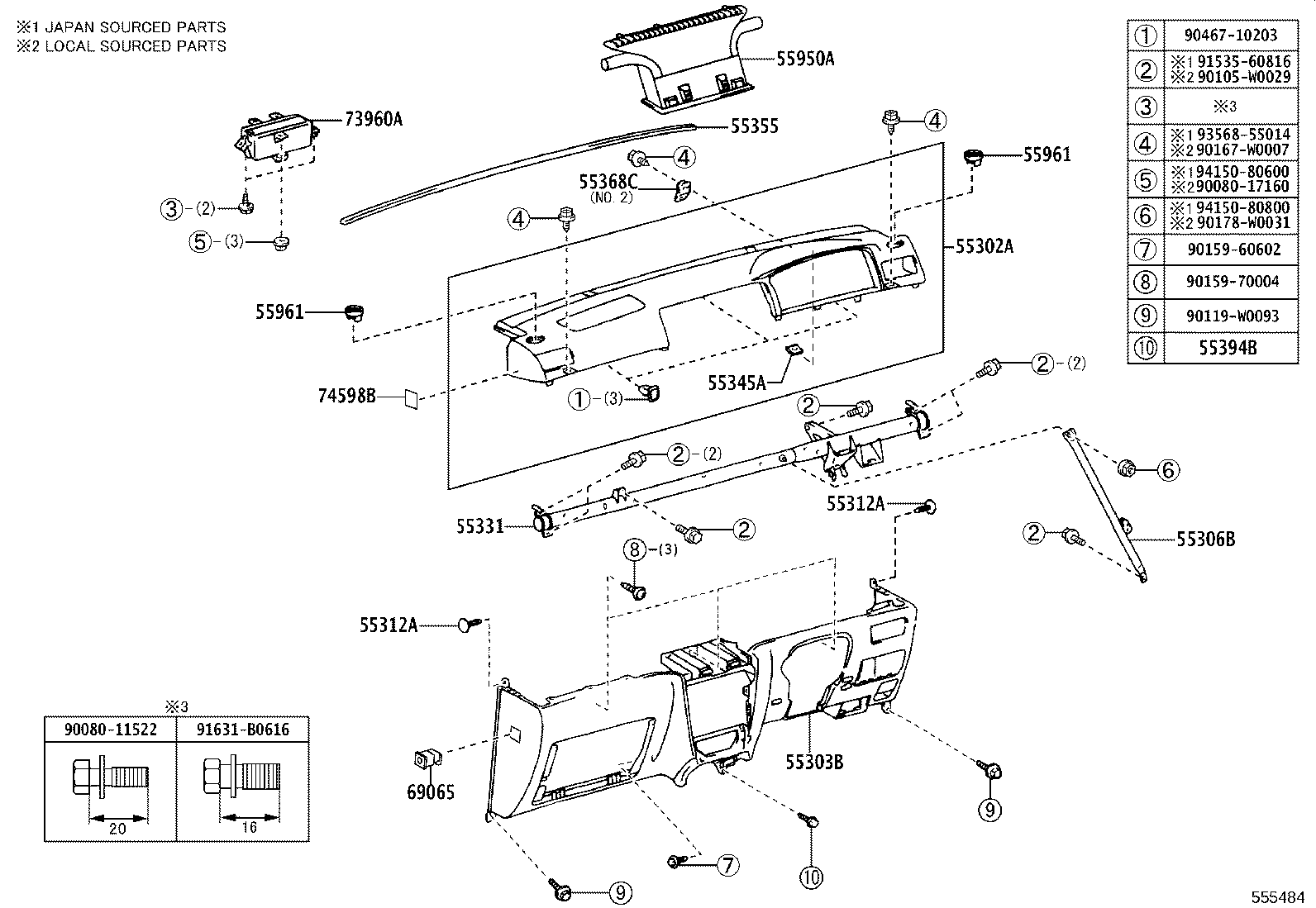

Figure 550934J 550934J 2001-11 → 2004-05 Figure 550935J 550935J 2001-11 → 2004-05 Figure 555484 555484 2004-05 → — Figure 555485 555485 2004-05 → — Figure 550936I 550936I 2001-11 → 2004-05 Figure 550937I 550937I 2001-11 → 2004-05 Figure 555433 555433 2001-11 → 2004-05 Figure 555434 555434 2001-11 → 2004-05 Figure 555435 555435 2001-11 → 2004-05 Figure 555436 555436 2001-11 → 2004-05 Figure 551262E 551262E 2004-05 → — Figure 551263E 551263E 2004-05 → — Figure 555437 555437 2004-05 → — Figure 555438 555438 2004-05 → — Figure 555439 555439 2004-05 → — Figure 555440 555440 2004-05 → —

Part groups

PNCDescription
55045A Panel Sub-assy, Instrument Panel Finish, Lower RH
55054 Stopper Sub-assy, Glove Compartment Door
55302A Panel Sub-assy, Instrument, Upper
55303B Panel Sub-assy, Instrument, Lower
55306B Brace Sub-assy, Instrument Panel TO Cowl
55308C Bracket Sub-assy, Instrument Panel, Center
55312A Clip, Instrument Panel
55331 Reinforcement, Instrument Panel
55343B Brace, Instrument Panel TO Cowl, Center
55345A Clip, Instrument Panel, NO.1
55355 Cushion, Instrument Panel, NO.1
55368C Bracket, Meter Mounting
55392C Cushion, Instrument Panel, Lower NO.2
55394B Bolt, Instrument Panel
55403 Hood Sub-assy, Meter
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55411G Panel, Instrument Cluster Finish, NO.1
55419A Cushion, Instrument Cluster Finish Panel
55420A Panel Assy, Instrument Cluster Finish, Center
55423E Cushion, Center Cluster, NO.1
55424D Cushion, Center Cluster, NO.2
55441 Box, Instrument Panel
55441C Box, Instrument Panel Coin
55444A Spring, Instrument Panel Box
55444C Spring, Instrument Panel Box
55474B Garnish, Instrument Cluster Finish Panel
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55521C Cover, Stereo Opening
55533 Cover, Auto Clock Hole
55538A Cover, Cooler Switch Hole
55539 Cover, Spare Switch Hole
55550 Door Assy, Glove Compartment
55560A Lock Assy, Glove Compartment Door
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55950A Nozzle Assy, Defroster
55961 Nozzle, Side Defroster, NO.1
69065 Cylinder Sub-assy, Airbag Cut Off SW
73960A Airbag Assy, Instrument Panel Passenger W/O Door
74598B Label, Passenger Airbag Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
