Toyota Corolla HB (UKP)
2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe
Discontinued model
Data version 2007-09

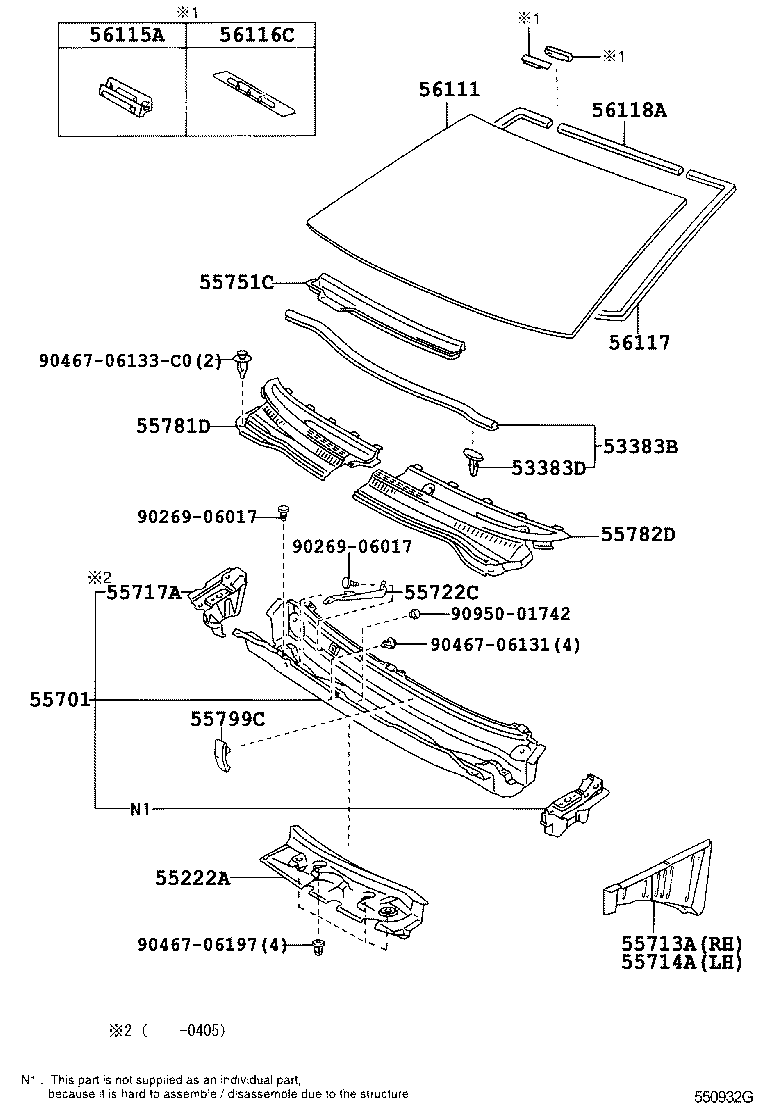

Cowl Panel & Windshield Glass
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383B | Seal, Hood TO Cowl Top |
| 53383D | Clip(FOR HOOD TO COWL TOP SEAL) |
| 55222A | Insulator, Dash Panel, Outer Center |
| 55701 | Panel Sub-assy, Cowl |
| 55713A | Panel, Cowl Top Side, RH |
| 55714A | Panel, Cowl Top Side, LH |
| 55717A | Panel, Cowl Top Side, Inner RH |
| 55722C | Brace, Cowl Top TO Cowl, Inner |
| 55751C | Shield, Cowl Ventilator Splash |
| 55781D | Louver, Cowl Top Ventilator, RH |
| 55782D | Louver, Cowl Top Ventilator, LH |
| 55799C | Clip, Cowl Top Ventilator Louver |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117 | Dam, Front Pillar, Outer |
| 56118A | Dam, Window Glass Adhesive, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
