Toyota Corolla HB (UKP)
2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe
Discontinued model
Data version 2007-09
Roof Panel & Back Window Glass
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63102 | Reinforcement Sub-assy, Roof Panel, Front |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63126B | Reinforcement, Roof Panel, Rear NO.2 |
| 63138 | Bracket, Dome Lamp, NO.2 |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63175A | Reinforcement, Back Door Hinge Female, RH |
| 63176A | Reinforcement, Back Door Hinge Female, LH |

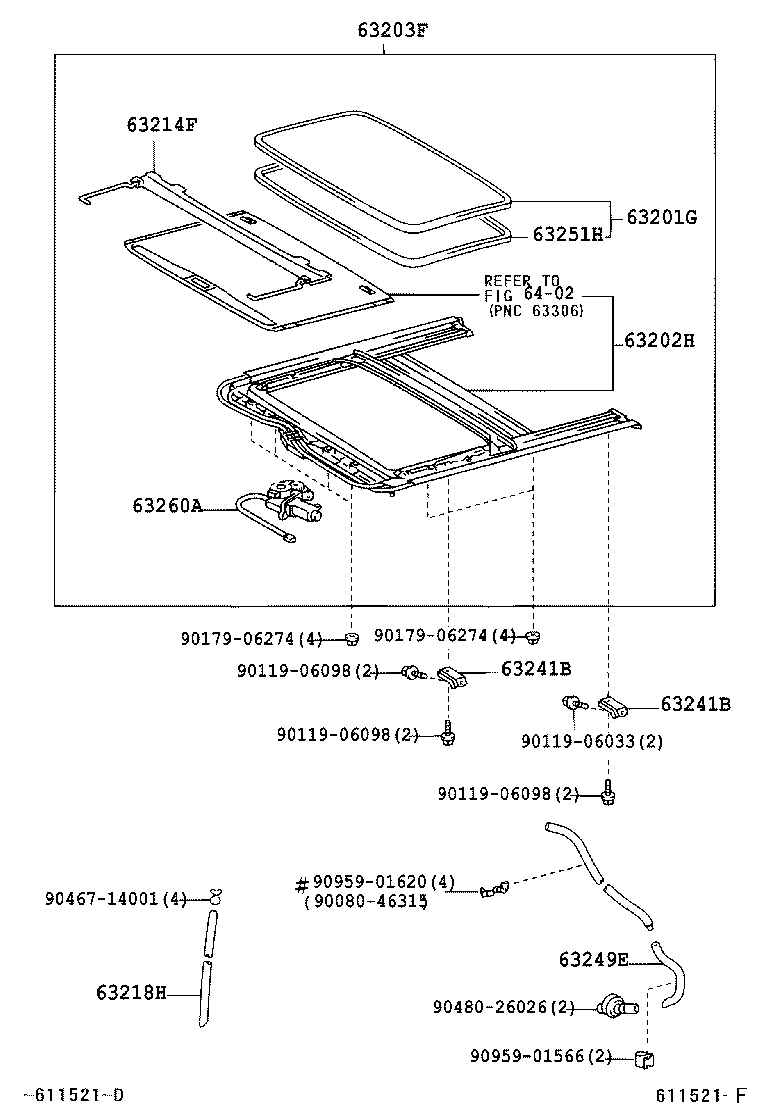

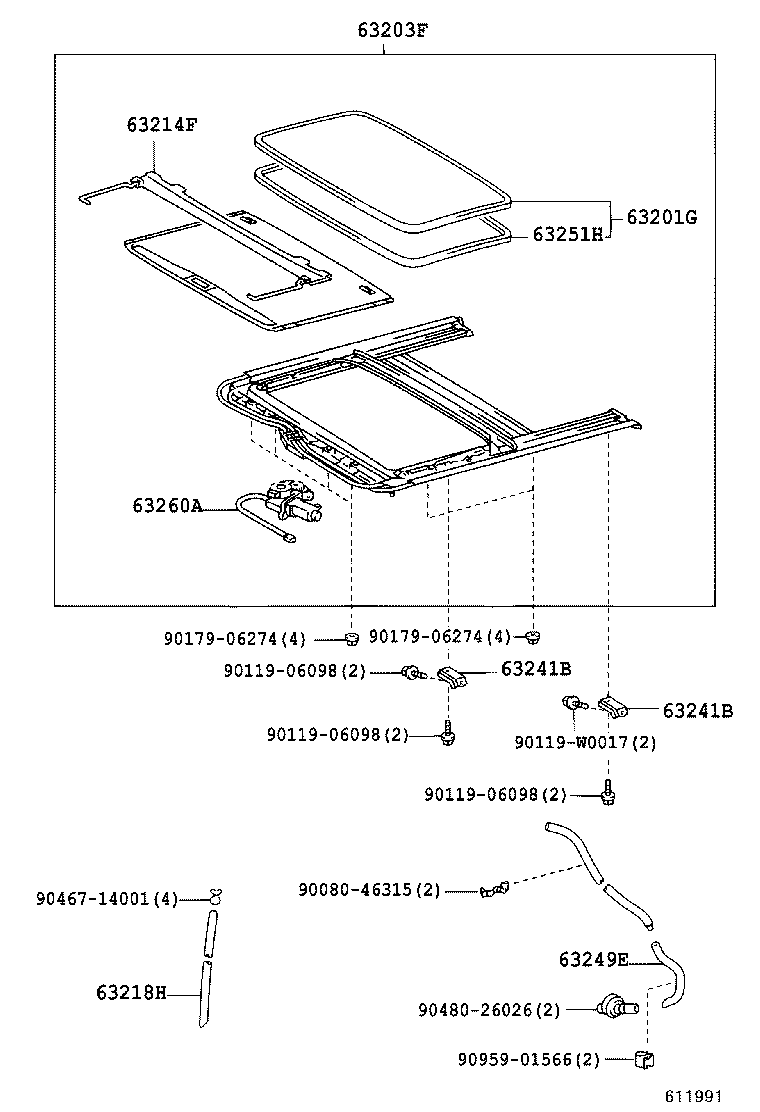

| 63201G | Glass Sub-assy, Sliding Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63214F | Channel, Roof Drip, Rear |
| 63218H | Hose, Sliding Roof Drain |
| 63241B | Bracket, Sliding Roof Housing, NO.1 |
| 63249E | Hose, Sliding Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
