Toyota Corolla HB (UKP)

2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 2 illustrations

Illustrations

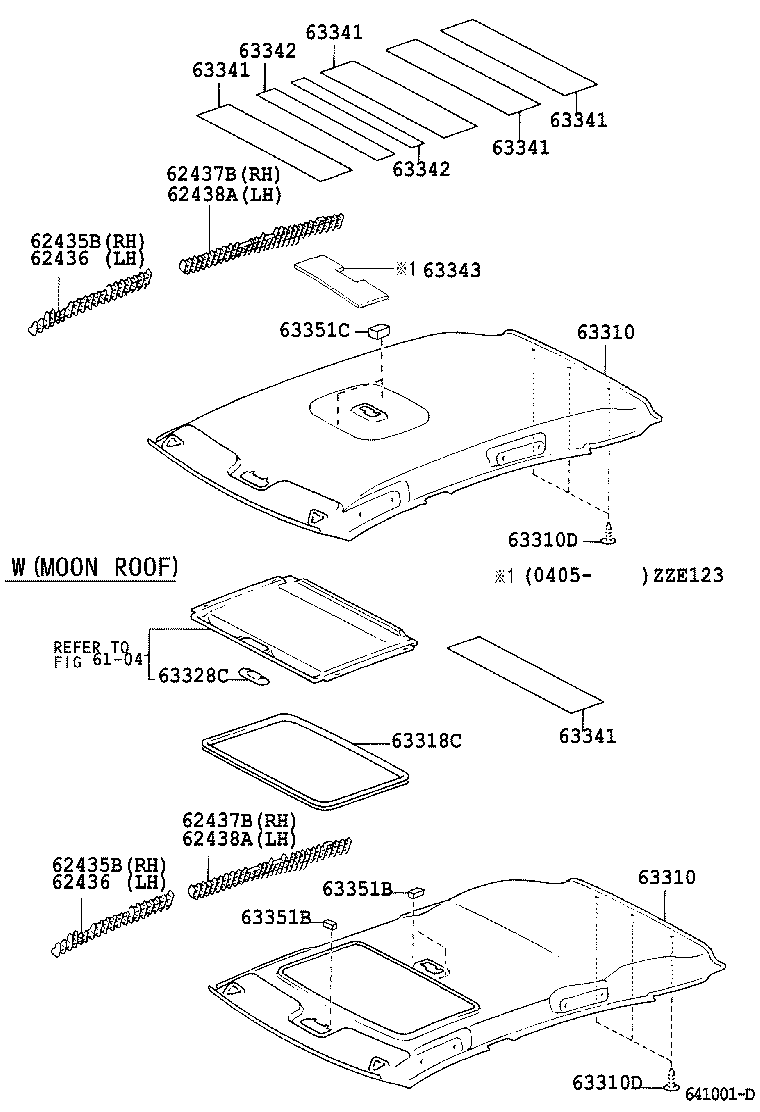

Figure 641002D 641002D 2001-11 → — Figure 641001D 641001D 2001-11 → —

Part groups

PNCDescription
62435B Pad, Roof Side Rail, Front RH
62436 Pad, Roof Side Rail, Front LH
62437B Pad, Roof Side Rail, Rear RH
62438A Pad, Roof Side Rail, Rear LH
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63317A Retainer, Roof Headlining
63318C Moulding, Sun Roof Opening Trim
63328C Knob, Sunshade Trim
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63351B Pad, Roof Headlining
63351C Pad, Roof Headlining
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
