Toyota Corolla HB (UKP)
2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe
Discontinued model
Data version 2007-09

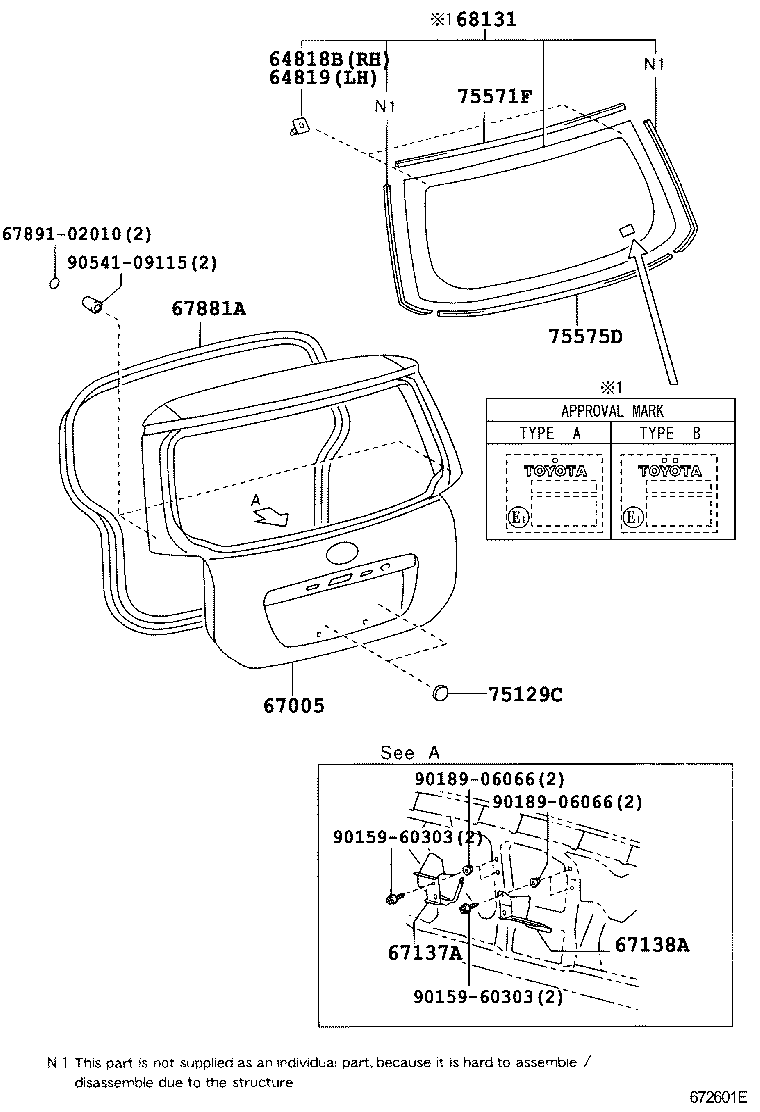

Back Door Panel & Glass
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64790B | Panel Assy, Back Door Trim, Upper |
| 64791C | Cover, Back Door Trim, RH |
| 64792 | Cover, Back Door Trim, LH |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67137A | Extension, Back Door Outer Panel, RH |
| 67138A | Extension, Back Door Outer Panel, LH |
| 67750 | Board Assy, Back Door Trim |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 68131 | Glass, Back Door |
| 75129C | Cushion, Rear Licence Plate |
| 75571F | Mouldimg, Back Door Window |
| 75575D | Moulding, Back Window, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
