Toyota Corolla HB (UKP)
2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe
Discontinued model
Data version 2007-09

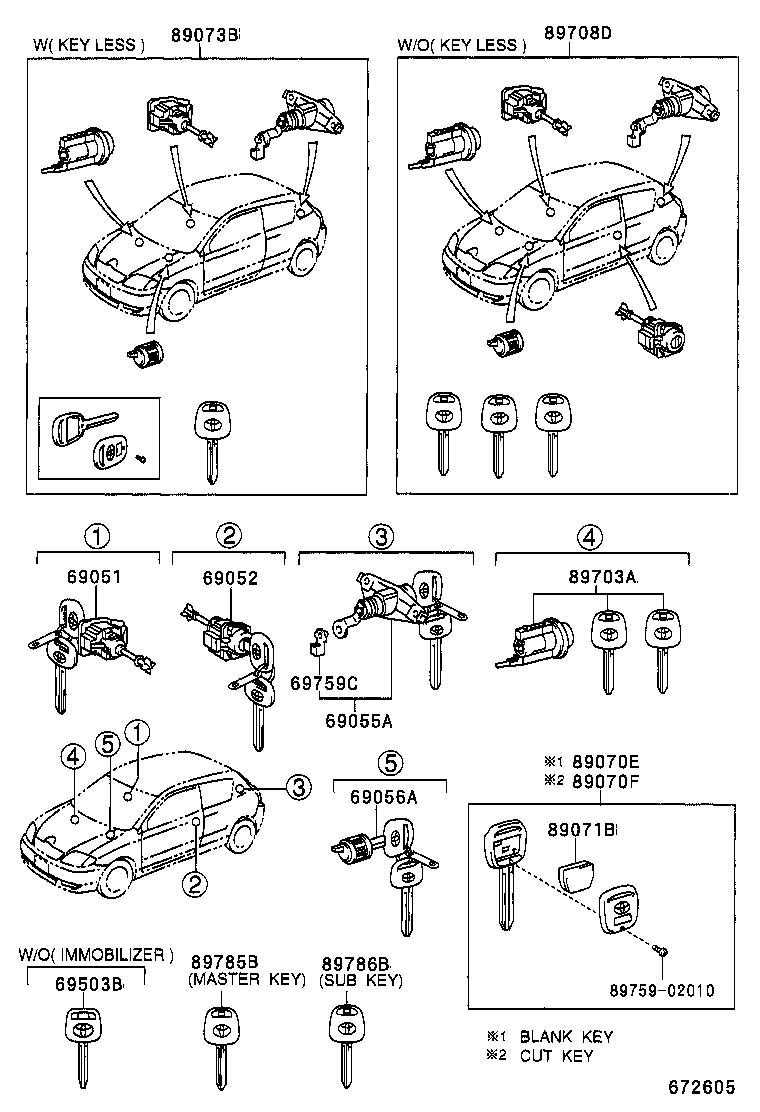

Lock Cylinder Set
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69055A | Cylinder & Key Set, Luggage Compartment Lock |
| 69056A | Cylinder & Key Set, Glove Compartment Lock |
| 69503B | Key, Cut |
| 69759C | Snap, Back Door Lock Cylinder |
| 89070E | Transmitter Assy, Door Control |
| 89070F | Transmitter Assy, Door Control (CUT KEY) |
| 89071B | Module Set, Transmitter Sub-assy, Door Control |
| 89073B | Cylinder Set, Lock W/Transmitter Housing(LESS MODULE) |
| 89703A | Cylinder & Key Set, Ignition W/Transponder |
| 89708D | Cylinder Set, Lock W/Transponder Key Transmitter |
| 89785B | Transmitter, Transponder Key Master |
| 89786B | Transmitter, Transponder Key Sub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
