Toyota Corolla HB (UKP)

2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

21 part groups · 5 illustrations

Illustrations

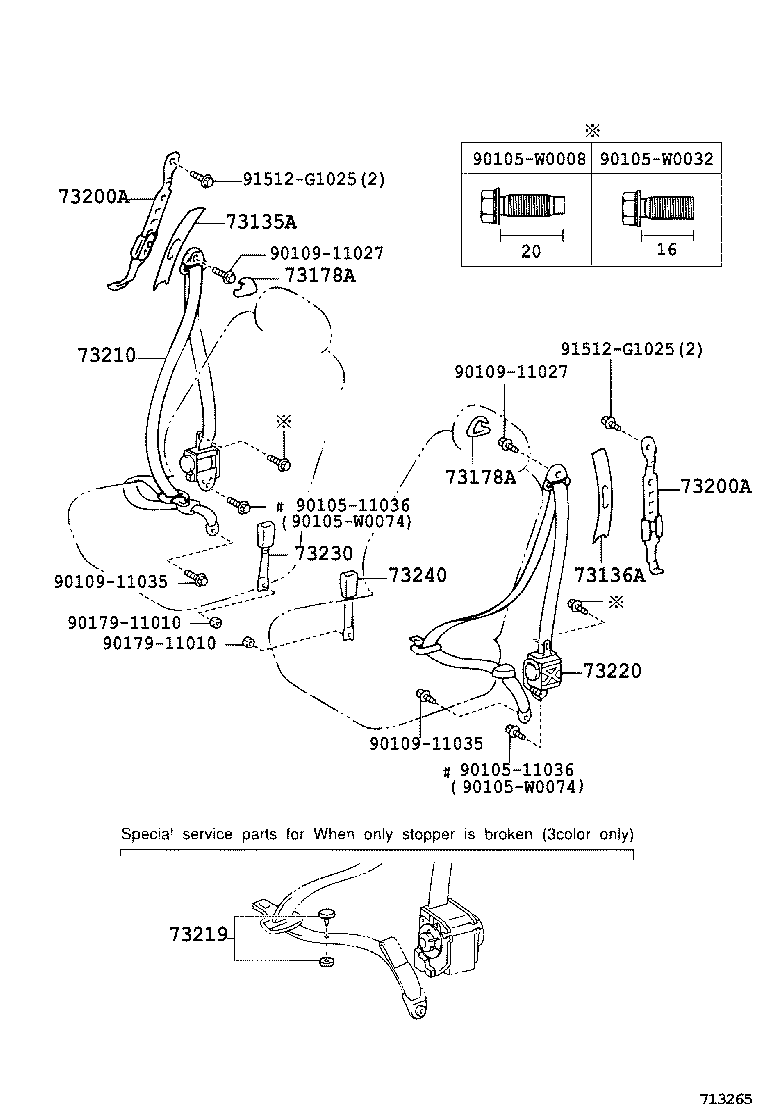

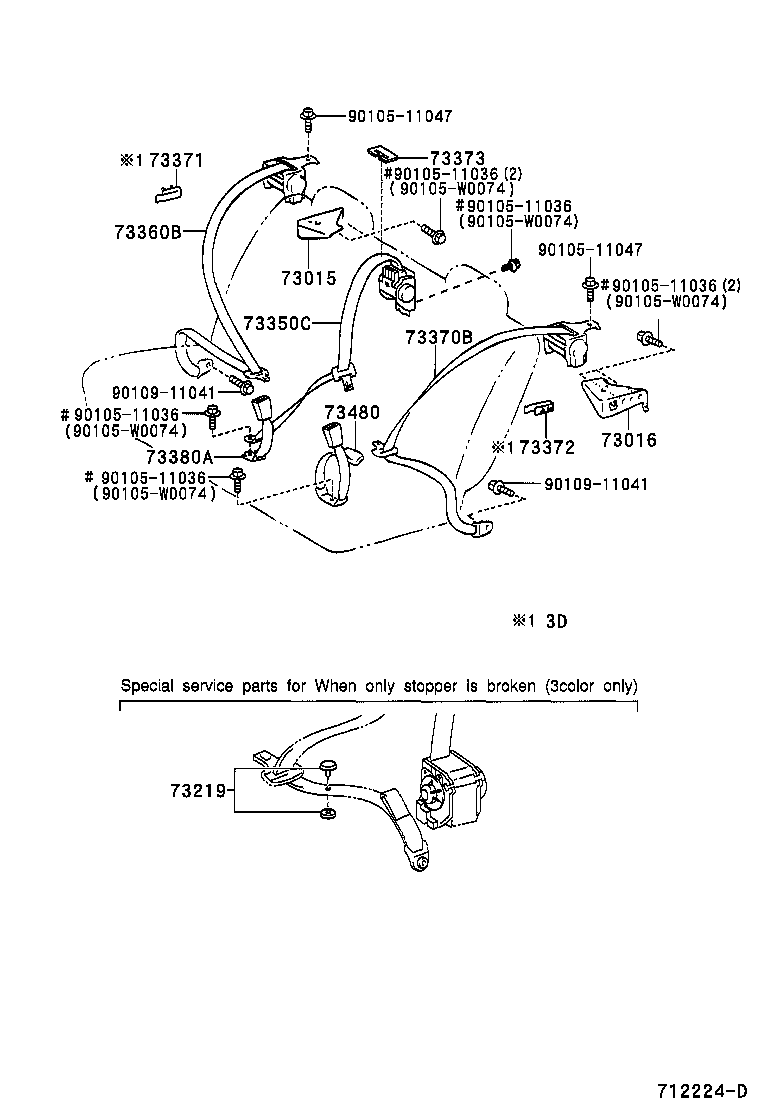

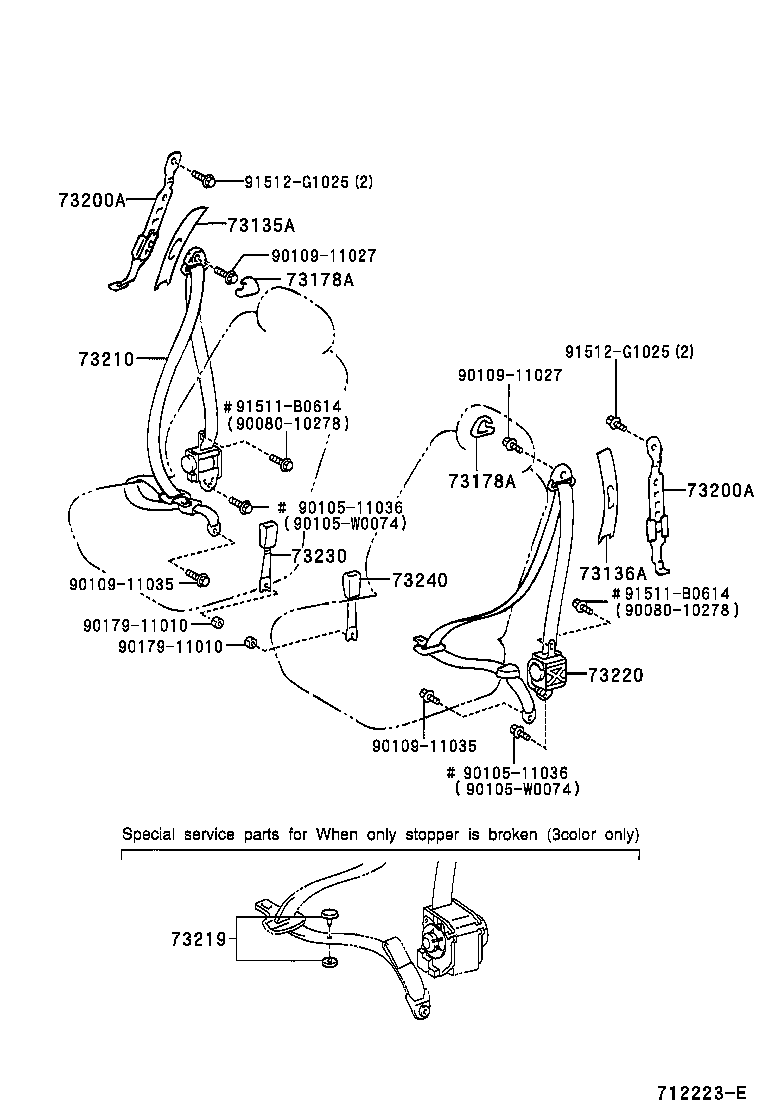

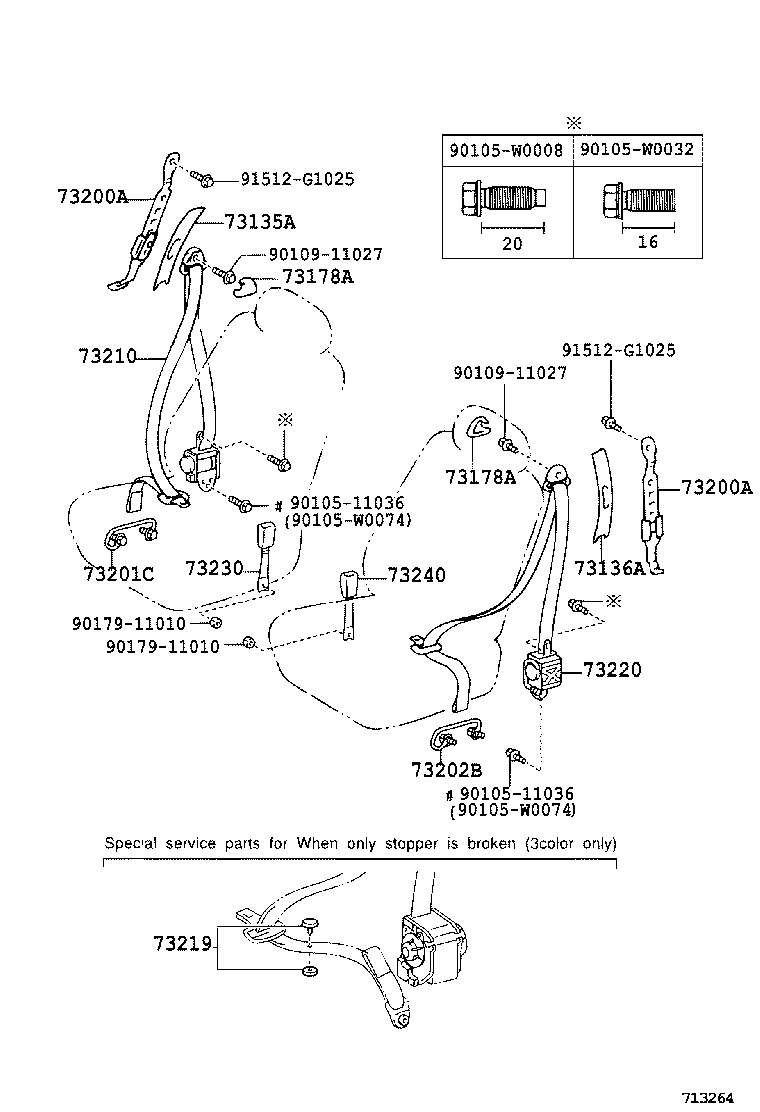

Figure 712222E 712222E 2001-11 → 2004-05 Figure 712223E 712223E 2001-11 → 2004-05 Figure 713264 713264 2004-05 → — Figure 713265 713265 2004-05 → — Figure 712224D 712224D 2001-11 → —

Part groups

PNCDescription
73015 Bracket Sub-assy, Belt Outer Anchor, RH
73016 Bracket Sub-assy, Belt Outer Anchor, LH
73135A Cover, Shoulder Belt Anchor, RH
73136A Cover, Shoulder Belt Anchor, LH
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73201C Bar Sub-assy, Front Seat Belt, Outer RH
73202B Bar Sub-assy, Front Seat Belt, Outer LH
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350C Belt Assy, Rear Seat, Outer Center
73360B Belt Assy, Rear Seat, Outer
73370B Belt Assy, Rear Seat, Outer
73371 Hanger, Rear Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
73373 Cover, Rear Seat Shoulder Belt
73380A Belt Assy, Rear Seat, Inner
73480 Belt Assy, Rear Seat Inner W/Center, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
